Air Cooler Tube Bundle component of Air-Cooled Heat Exchanger

Overview

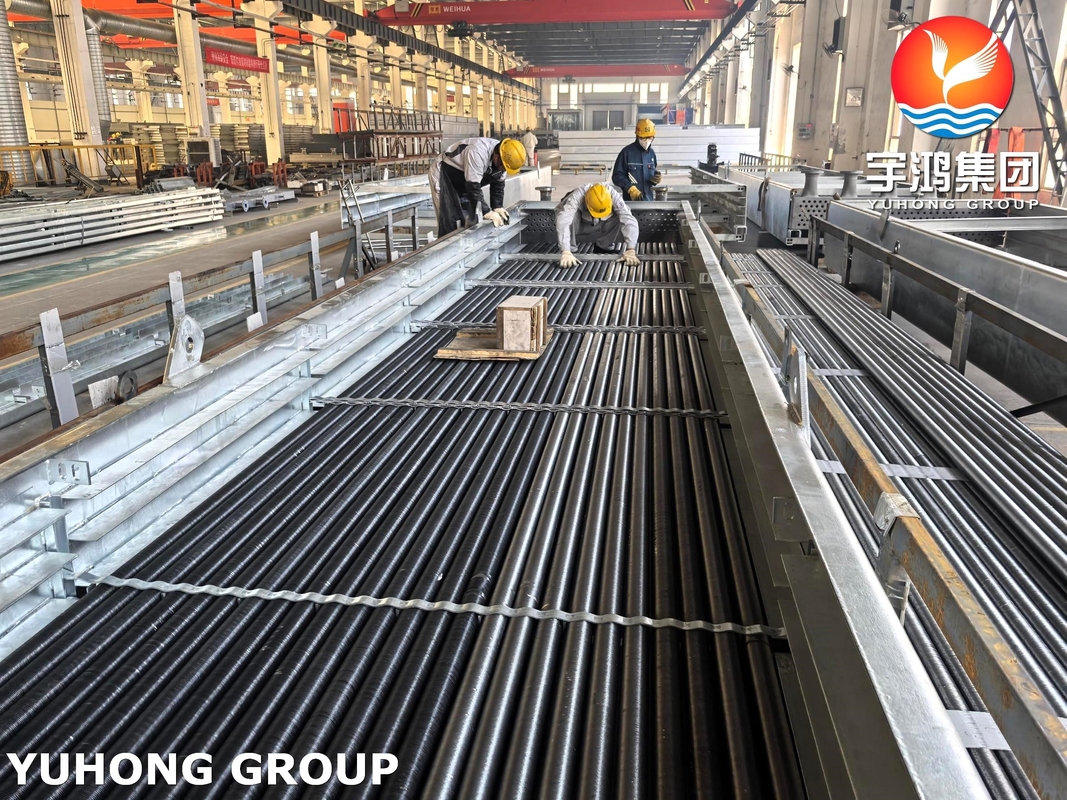

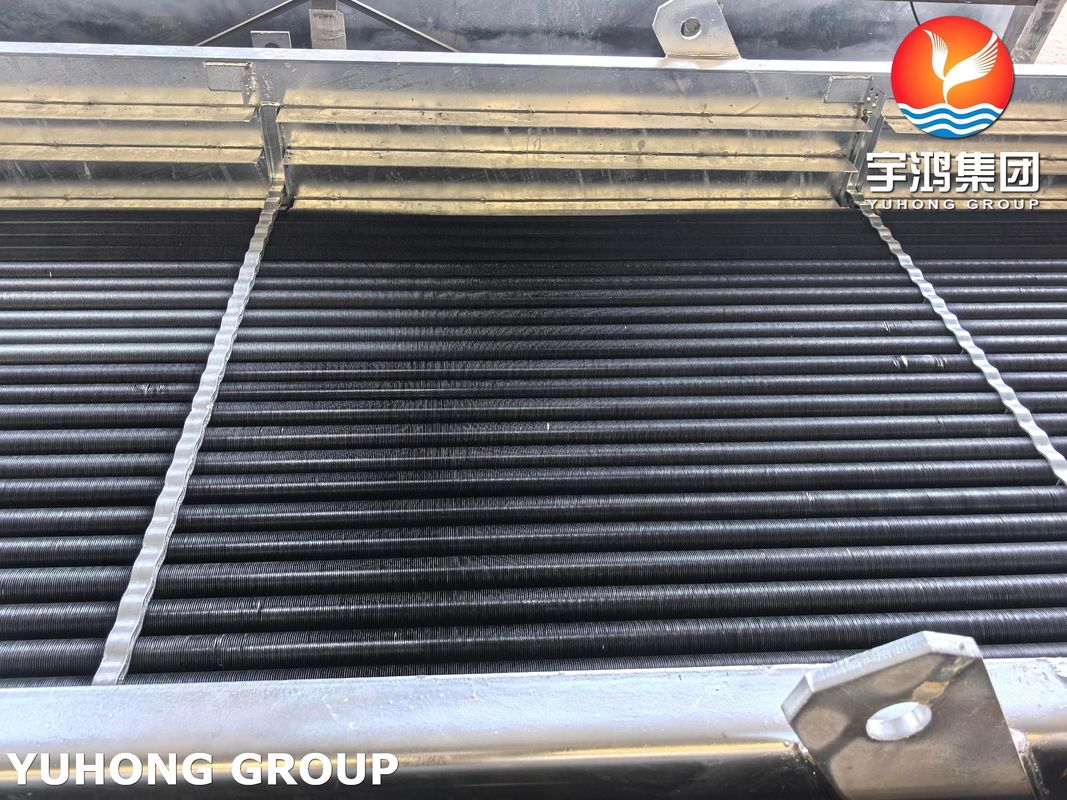

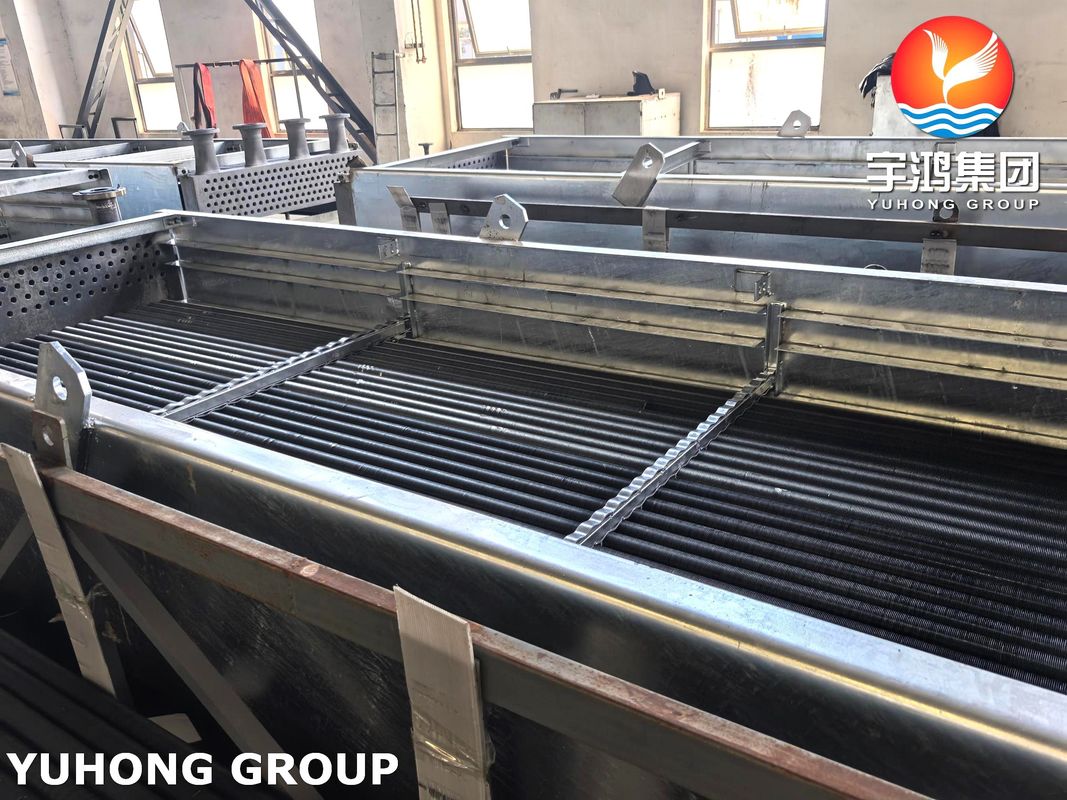

Air Cooler Tube Bundle is a vital component in air-cooled heat exchangers (ACHEs), designed to transfer heat from a hot fluid to ambient air. It consists of a series of tubes, often equipped with fins, through which the hot fluid flows. The heat from the fluid is transferred to the surrounding air, which cools the fluid as it passes through the system. This process is essential in many industrial applications, particularly in settings where water is scarce or expensive, and air is a more readily available cooling medium.

Components of Air Cooler Tube Bundle

• Tubes:

The tube bundle consists of multiple tubes (typically made of materials like copper, aluminum, or stainless steel) arranged in a bundle or array. The hot fluid flows through these tubes.

The design of the tubes maximizes the surface area for heat exchange, which is essential for efficient cooling.

• Finning:

To further improve heat transfer, the tubes in the bundle are often equipped with fins. These are metal sheets wrapped around the tubes or placed in between them. The fins increase the surface area of the tubes, allowing more air to come into contact with the heated surface and thus improving heat dissipation.

• Headers:

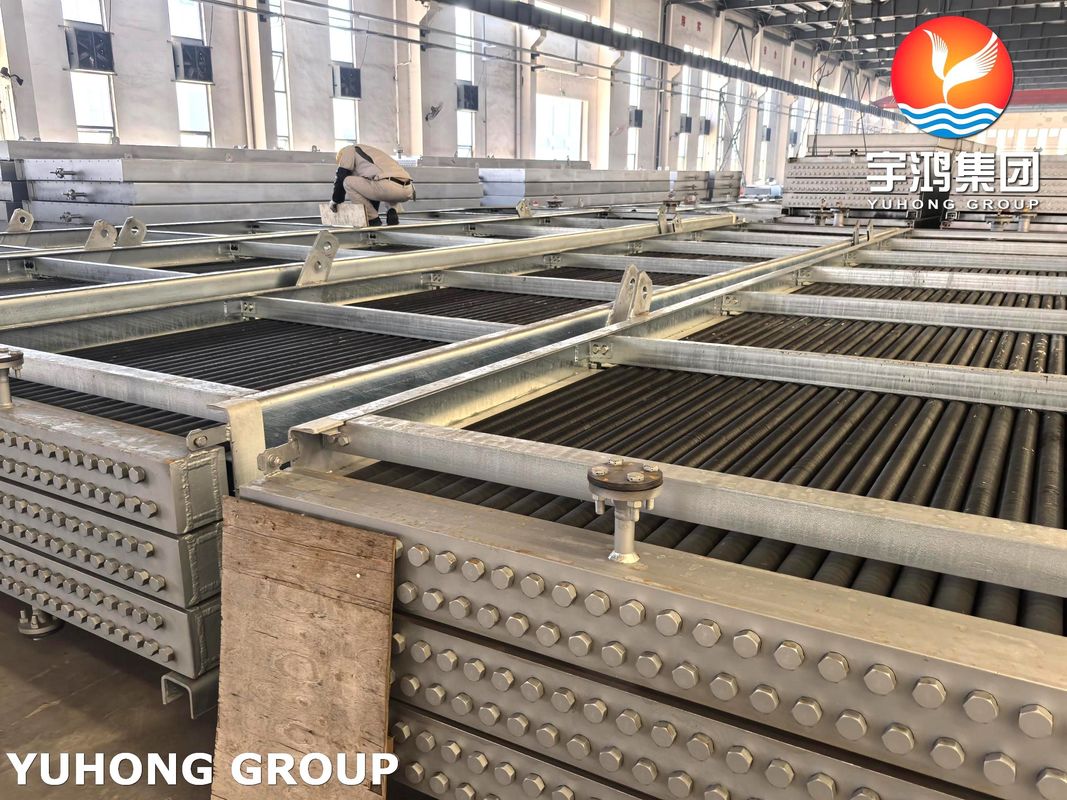

The headers are located at both ends of the tube bundle. They serve as the inlet and outlet points for the hot and cold fluids. The fluid enters the header, then travels through the tubes, and exits from the other side after losing heat.

• Support Frame:

The tube bundle is supported by a frame that holds the tubes in place and allows air to flow freely around them. This frame ensures structural stability and positioning of the tubes within the air-cooled heat exchanger.

• Air Flow (Fans or Natural Convection):

In air-cooled heat exchangers, air is used to absorb the heat from the tubes. Fans or natural convection provide the airflow that passes over the tubes, absorbing the heat. The warmed air is then expelled from the system.

• Air Inlet and Outlet:

The air enters the heat exchanger through the inlet side and exits through the outlet. These inlets and outlets are often equipped with louvers or grills to control the flow of air and enhance heat transfer efficiency.

Working Principle of Tube Bundle in Air-Cooled Heat Exchanger


• Heat Transfer: The hot fluid inside the tubes (such as oil, water, or refrigerant) flows through the tube bundle. As the fluid moves through the tubes, the heat from the fluid is transferred to the walls of the tubes.
• Air Cooling: As the fluid inside the tubes heats up, fans or natural convection cause air to flow over the external surface of the tube bundle. The heat from the tube walls is transferred to the air through the process of convection.
• Heat Dissipation: The heated air is then vented out of the system, while the cooled fluid exits the tube bundle through the headers, having lost some of its heat to the surrounding air.

Applications

Tube bundles in air-cooled heat exchangers are commonly used in industries like:

• Oil and gas (for cooling lubricants, gas compressors, etc.)
• Power generation (cooling of steam or cooling fluids)
• Chemical processing (cooling of various fluids used in industrial reactions)
• HVAC systems (for large-scale cooling in industrial buildings)

Advantages of Tube Bundles in Air-Cooled Heat Exchangers:

• Water Conservation: They don’t require water, which is crucial in areas with water shortages or high costs associated with water use.
• Efficiency: The use of fins and a large surface area increases heat transfer efficiency.
• Cost-Effective: Compared to water-based cooling systems, air-cooled heat exchangers are often more cost-effective in certain industrial settings.
• Minimal Maintenance: They are relatively easy to maintain, especially compared to systems using water, which may suffer from scaling or clogging.

In summary, the tube bundle in an air-cooled heat exchanger is a system of tubes (often finned for better heat exchange) that facilitate the transfer of heat from the hot fluid to the surrounding air. The efficient airflow, combined with the large surface area of the tubes, ensures effective cooling in various industrial applications.
