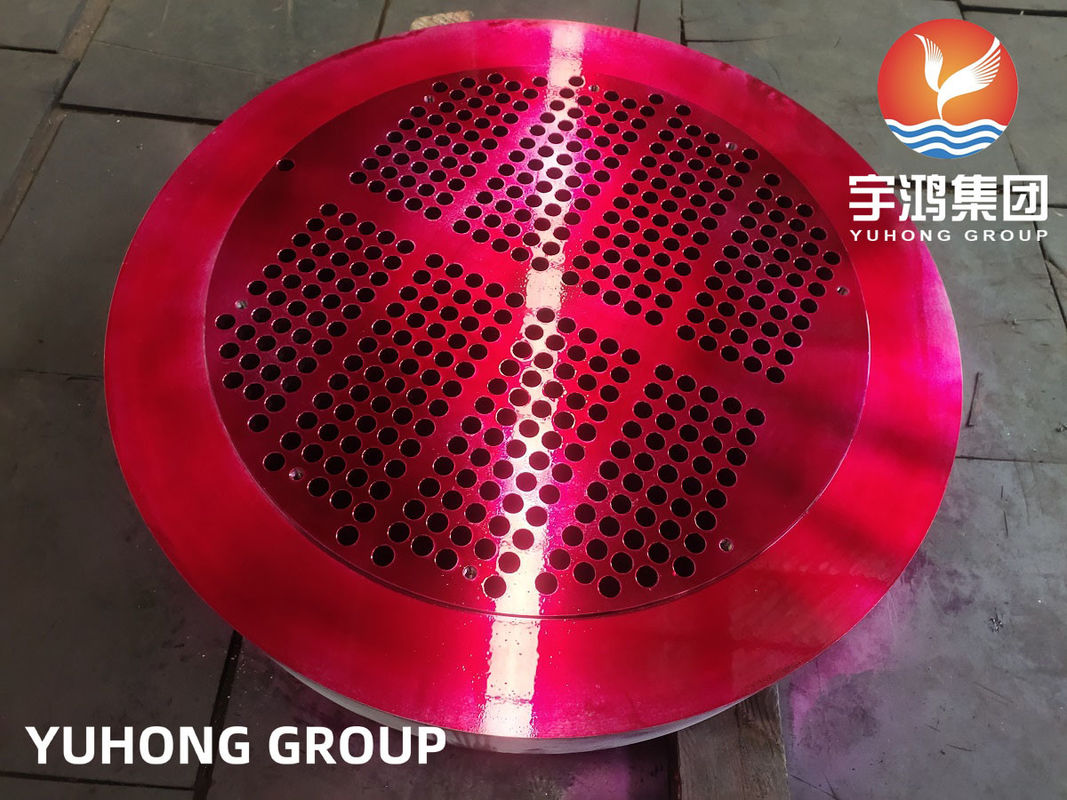

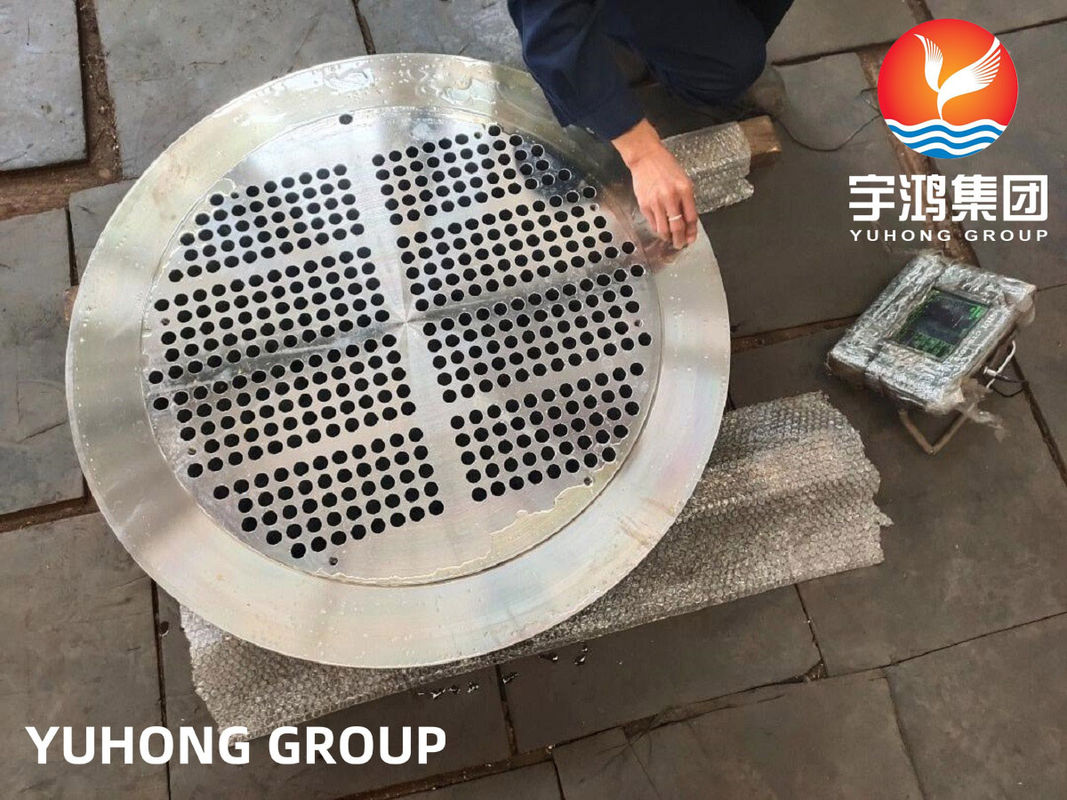

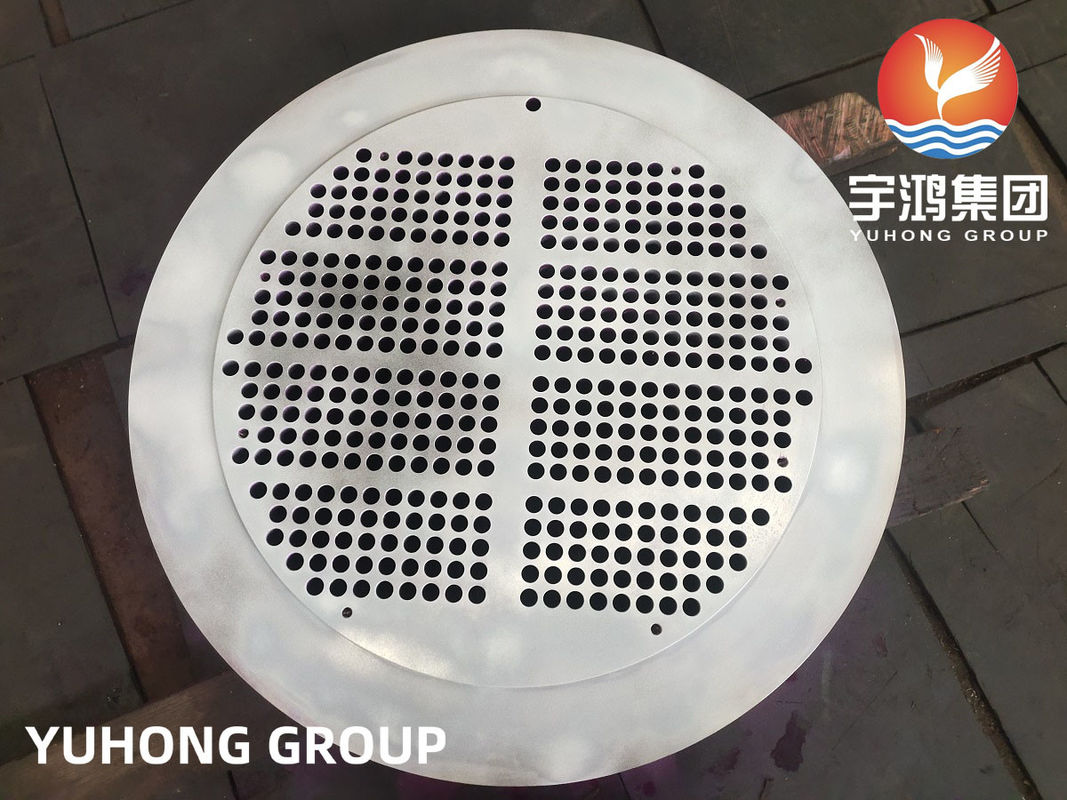

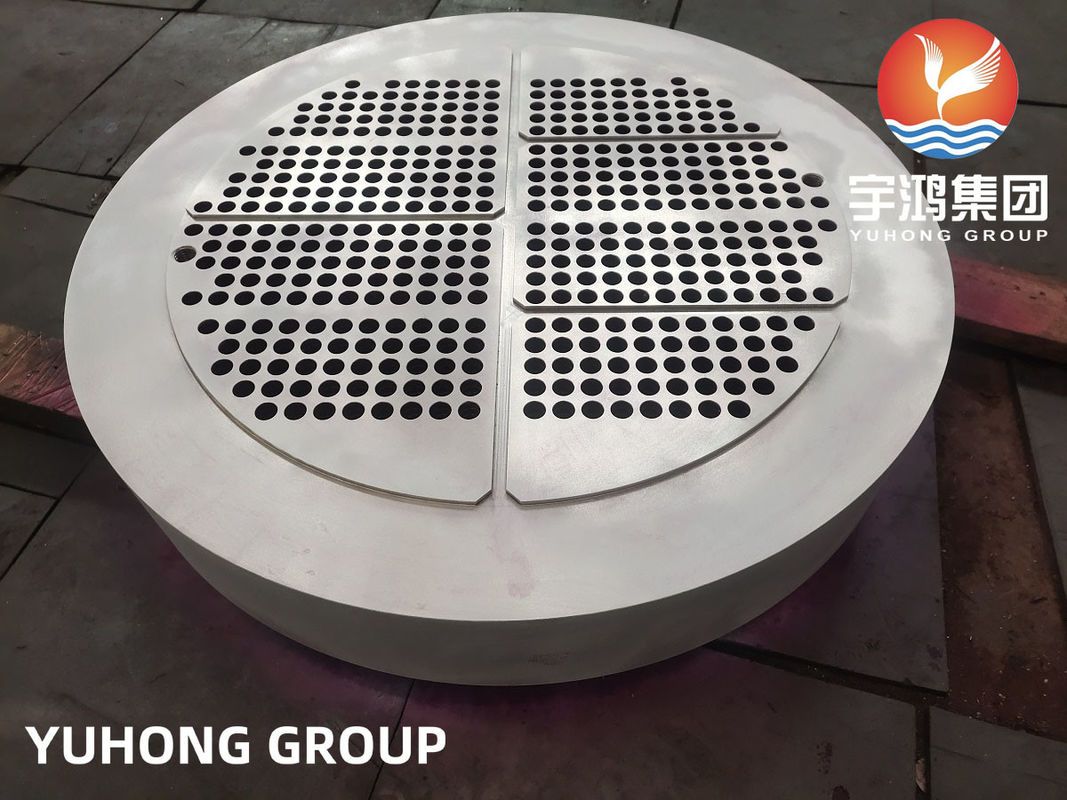

A182 F304 Customized Tubesheet Stainless Steel Forgings evaporator used

Overview

Tubesheet is a key component used in heat exchangers, pressure vessels, and other types of equipment where tubes are inserted into a shell or other enclosing structure. The A182 F304 tubesheet is made from A182 F304 stainless steel, a material known for its excellent corrosion resistance and high-temperature strength, making it ideal for demanding applications in various industries.

What is A182 F304?

• A182: This refers to the ASTM A182 standard, which specifies forged or rolled alloy steel piping components, typically used in high-temperature and high-pressure environments.

• F304: This designates the specific grade of 304 stainless steel, austenitic stainless steel with a composition that includes 18% chromium and 8% nickel, giving it:

  1. Excellent resistance to corrosion (especially against many acids, salts, and chemicals).

  2. Good mechanical properties at both high and low temperatures.

  3. Ease of fabrication, including welding, machining, and forming.

Tubesheet Functionality and Role

A tubesheet serves the critical function of:

• Securing tubes within a shell or vessel.

• Providing a seal between the tubes and the surrounding shell, preventing leaks between the two fluid systems.

• Withstanding high thermal and mechanical stresses while maintaining integrity under pressure differential and thermal expansion.

Key Features of A182 F304 Tubesheets

1. Corrosion Resistance:

   • The 304 stainless steel used for these tubesheets offers excellent resistance to oxidation and general corrosion, especially in environments where exposure to water, steam, and mild acids occurs. It’s particularly useful in chemical processing, marine, and food industries.

2. High-Temperature Resistance:

   • A182 F304 maintains its strength at high temperatures, often up to 870°C (1600°F), making it suitable for environments like boilers, heat exchangers, and pressure vessels where elevated temperatures are common.

3. Mechanical Properties:

   • Strength: The material offers good tensile strength, which ensures the tubesheet remains intact under high-pressure conditions.

   • Ductility and Toughness: F304 stainless steel is known for its excellent ductility, enabling the tubesheet to withstand thermal and mechanical stresses without cracking or breaking.

4. Ease of Fabrication:

   • 304 stainless steel is known for its ease of welding, machining, and forming, making it adaptable for custom tubesheet designs that meet specific industrial requirements.

Applications of A182 F304 Tubesheets

Given the corrosion resistance and thermal properties of A182 F304, tubesheets made from this material are used in several critical applications:

1. Heat Exchangers: Used in chemical plants, power generation systems, and HVAC systems to transfer heat between fluids without mixing them.

2. Boilers: Supporting and sealing tubes in boilers that handle high-pressure steam or water.

3. Pressure Vessels: Found in reactors, distillation columns, and other pressure vessels where tube bundles are held securely.

4. Condensers: In systems that require heat exchange between cooling water and process fluids, often used in power plants and chemical processes.

5. Marine and Seawater Systems: Due to its resistance to corrosion in saline environments, it's used in desalination plants and heat exchangers exposed to seawater.

Advantages of A182 F304 Tubesheets

1. Corrosion Resistance: A182 F304 is highly resistant to corrosion caused by oxidation, acids, and chlorides. This makes it ideal for industries like chemical processing, food processing, and marine applications.

2. Temperature Resistance: It can perform well in high-temperature applications, making it suitable for heat exchangers, boilers, and other equipment that operates in extreme heat.

3. Mechanical Strength: The material is known for its tensile strength and resilience under pressure and thermal cycling, ensuring that the tubesheet can withstand the stresses involved in heat transfer systems and other pressure vessels.

4. Ease of Fabrication: The material is easy to weld, fabricate, and form, allowing for customized tubesheet designs to meet specific requirements for tube arrangements, hole sizes, and sealing features.

5. Long-Term Durability: Stainless steel's natural resistance to corrosion and scaling leads to extended service life, minimizing the need for frequent replacements or repairs.

Considerations and Limitations

1. Chloride Stress Corrosion Cracking (SCC): While A182 F304 has good resistance to chloride corrosion, in environments with extremely high chloride concentrations, there can be a risk of stress corrosion cracking (SCC). In such cases, materials with higher resistance, such as 904L or alloy 625, might be more suitable.

2. Cost: 304 stainless steel can be more expensive than carbon steel. For applications where corrosion resistance is not a priority, alternatives like carbon steel or low-alloy steel might be considered more cost-effective.

3. Workability in Extreme Conditions: Although A182 F304 is very durable, in environments with high chloride concentrations or extreme temperatures (above 870°C or 1600°F), other grades of stainless steel may be more appropriate.

Conclusion

An A182 F304 tubesheet is a vital component in systems where tubes need to be secured within a pressure vessel, heat exchanger, or boiler. Its combination of corrosion resistance, high-temperature performance, and mechanical strength makes it a preferred material in industries like chemical processing, oil and gas, power generation, and marine applications. While it is generally an excellent choice, careful consideration of environmental conditions is necessary to ensure that it is the most appropriate material for the job.
