Replacement Tube Bundle for Floating Head Heat Exchanger | Custom Sizes
What is Tube Bundle?

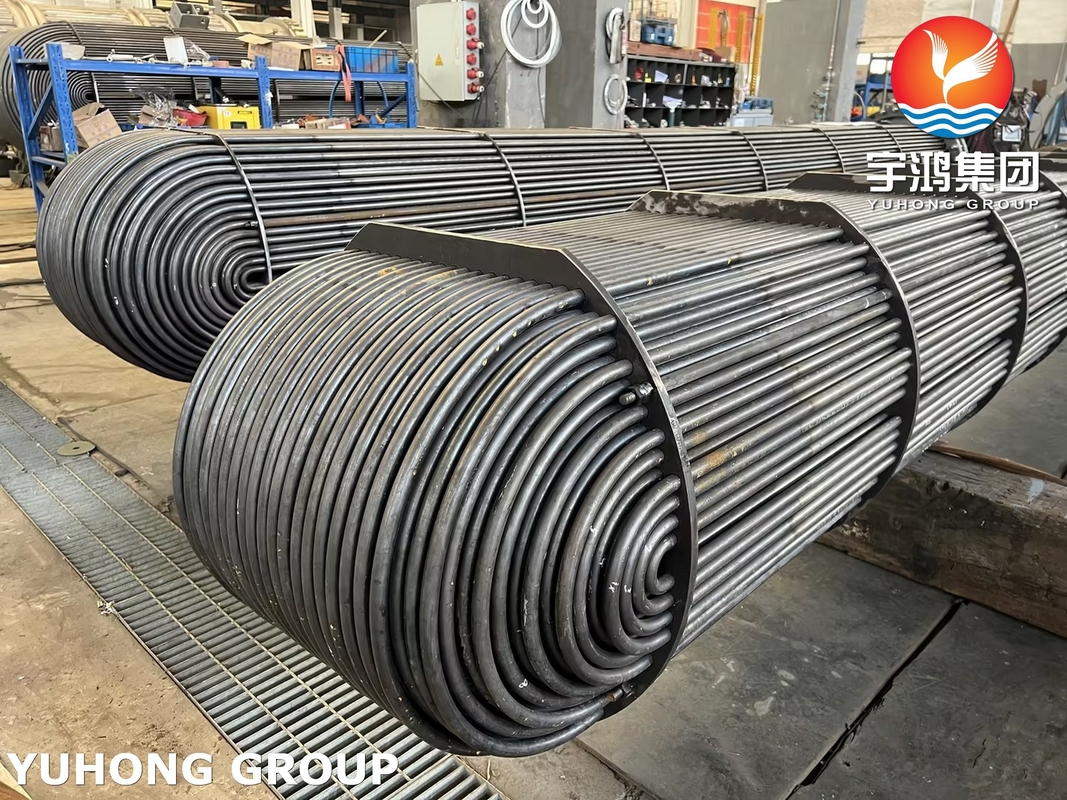

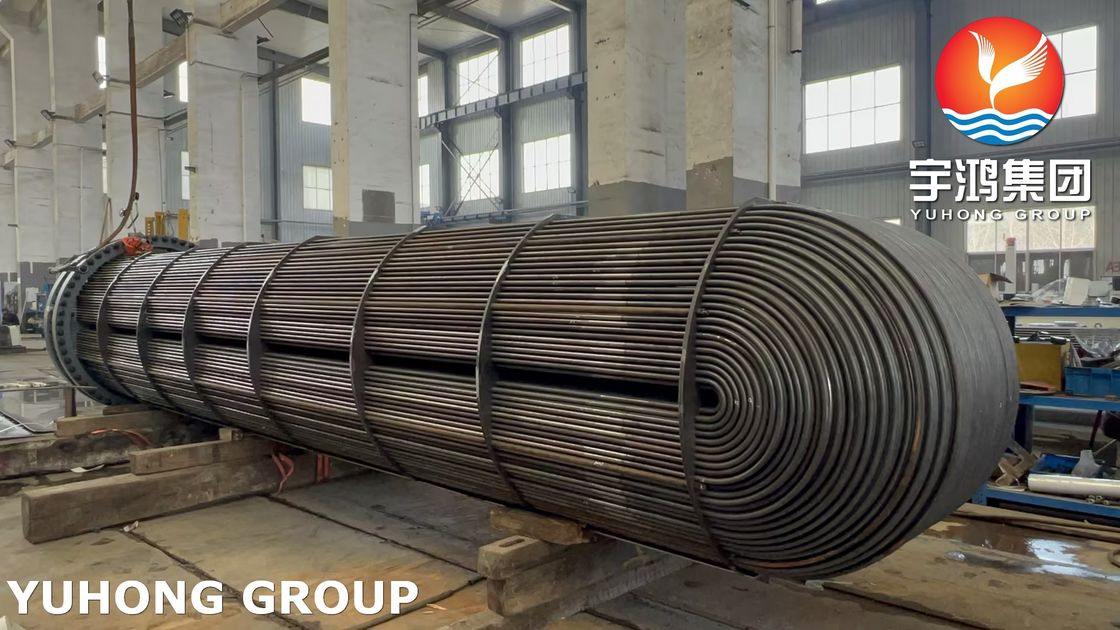

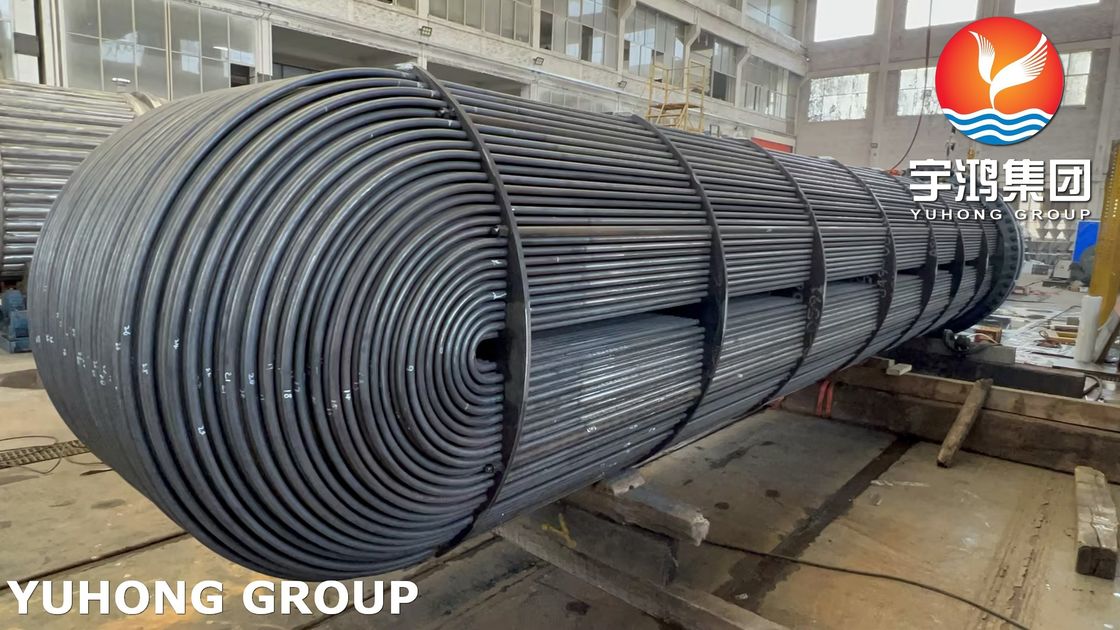

A tube bundle is the core component of a shell-and-tube heat exchanger, comprising tubes, tube sheets, baffles, spacers, and tie rods. When used to replace floating head heat exchangers, the tube bundle is reconfigured to suit a fixed tube sheet design, offering distinct advantages in cost, simplicity, and reliability for specific applications. This transition is particularly relevant in scenarios where thermal stresses are manageable, maintenance requirements are minimal, or operational conditions favor a robust, leak-resistant design. Below is a detailed breakdown of the tube bundle’s role in replacing floating head exchangers, including technical specifications, design considerations, and trade-offs.
Key Components of the Tube Bundle
Tubes:
Material: Stainless steel (316L), titanium, copper-nickel alloys, or Inconel, chosen for corrosion resistance and thermal conductivity.
Diameter: Typically ¾" to 1.5" OD (19–38 mm), with wall thicknesses from 1.2–3 mm (BWG 12–18).
Layout: Triangular (30°/60°), square (90°), or rotated square patterns to optimize heat transfer and cleaning access.
Tube Sheets:
Thick circular plates (carbon steel, stainless steel, or clad materials) that anchor the tubes.
Tubes are welded, rolled, or expanded into the sheets for a rigid, leak-proof seal.
Baffles:
Types: Segmental (most common), helical, or rod baffles to direct shell-side flow and prevent vibration.
Spacing: 20–50% of the shell diameter; closer spacing increases turbulence but raises pressure drop.
Tie Rods and Spacers:
Maintain baffle alignment and tube bundle integrity under operational stresses.
Why Replace Floating Head Exchangers with Fixed Tube Bundles?
Floating head heat exchangers allow thermal expansion by letting one tube sheet "float," enabling easy tube bundle removal for maintenance. However, fixed tube sheet bundles are preferred when:
Cost Reduction is critical (no floating head assembly, fewer seals).
Leakage Risk must be minimized (welded tube sheets eliminate gasket failures).
High-Pressure/High-Temperature (HPHT) conditions demand robust construction.
Fouling is Minimal, reducing the need for frequent mechanical cleaning.
Technical Adaptations for Fixed Tube Bundle Replacement
Thermal Stress Management:
Floating heads inherently accommodate thermal expansion, but fixed tube bundles require:
Expansion Joints: Bellows or flanged joints on the shell to absorb differential expansion (critical if ΔT > 50–100°C).
Material Matching: Using shell/tube materials with similar coefficients of thermal expansion (e.g., carbon steel shell with carbon steel tubes).
Pressure Design:
Fixed tube sheets are thickened (up to 300 mm) to withstand high pressure (up to 300 bar tube-side).
Smaller tube diameters (e.g., ¾") enhance pressure resistance.
Fouling Mitigation:
Wider tube pitch (1.25–1.5x tube diameter) to reduce clogging.
Smooth or coated tubes (e.g., PTFE) for sticky or corrosive fluids.
Maintenance Provisions:
Chemical cleaning ports or CIP (Clean-in-Place) systems to compensate for non-removable bundles.
Comparison: Fixed Tube Bundle vs. Floating Head
|
Parameter |
Fixed Tube Bundle |
Floating Head |
|---|---|---|
|
Thermal Expansion |
Requires expansion joints or matched materials |
Built-in accommodation via floating head |
|
Maintenance |
Limited to chemical cleaning; bundle not removable |
Easy mechanical cleaning; removable bundle |
|
Cost |
Lower (simpler design, fewer components) |
Higher (complex seals, floating assembly) |
|
Leak Risk |
Minimal (welded tube sheets) |
Higher (multiple gaskets/seals) |
|
Applications |
Clean fluids, moderate ΔT, HPHT |
Fouling fluids, large ΔT, frequent service |
Advantages of Fixed Tube Bundles in Replacement
Cost Efficiency:
Eliminates floating head components (e.g., split backing rings, gland seals), reducing fabrication and maintenance costs.
Compact Design:
Ideal for space-constrained installations due to fewer moving parts.
Durability:
Welded tube sheets withstand higher pressures and temperatures without leakage.
Simplified Operation:
No risk of floating head misalignment or seal degradation over time.
Limitations and Mitigation Strategies
Thermal Expansion Constraints:
Solution: Install expansion joints or use flexible shell designs (e.g., bellows).
Fouling Susceptibility:
Solution: Integrate automated cleaning systems (e.g., CIP) or anti-fouling coatings.
Non-Removable Bundles:
Solution: Design for chemical cleaning or specify ultra-smooth tubes to delay fouling.
Applications Suited for Fixed Tube Bundle Replacement
Refineries:
High-pressure gas coolers where leakage risks outweigh maintenance needs.
Power Plants:
Feedwater heaters and lube oil coolers with stable thermal cycles.
Chemical Processing:
Non-fouling fluid exchangers (e.g., solvents, distilled liquids).
HVAC Systems:
Chillers and condensers with clean water circuits.
Standards and Compliance
TEMA Class R/C/B: Dictates design rules for fixed tube sheet exchangers.
ASME BPVC Section VIII: Governs pressure-rated components (tube sheets, shells).
ISO 16812: Specifies requirements for thermal performance and mechanical design.
