Place of Origin:
CHINA
Brand Name:
YUHONG
Certification:
ASME VIII Div. 1, PED/97/23/CE, TEMA R, TEMA C, TEMA B
Model Number:
SHELL AND TUBE HEAT EXCHANGER

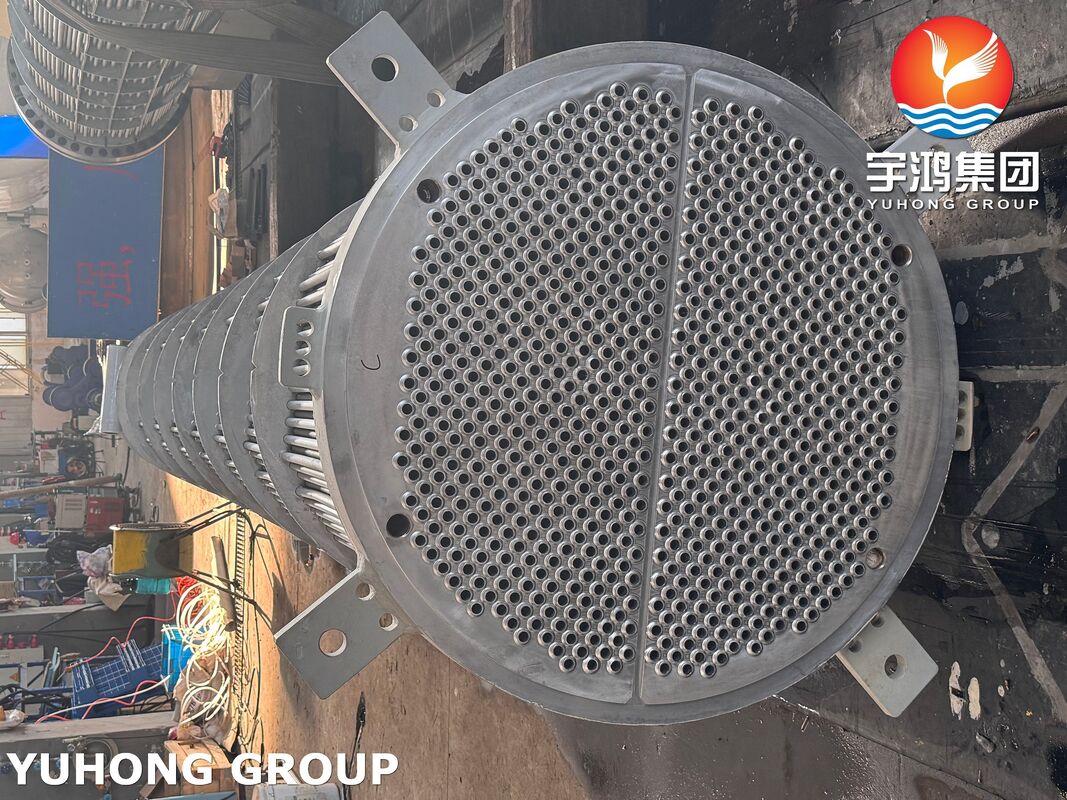

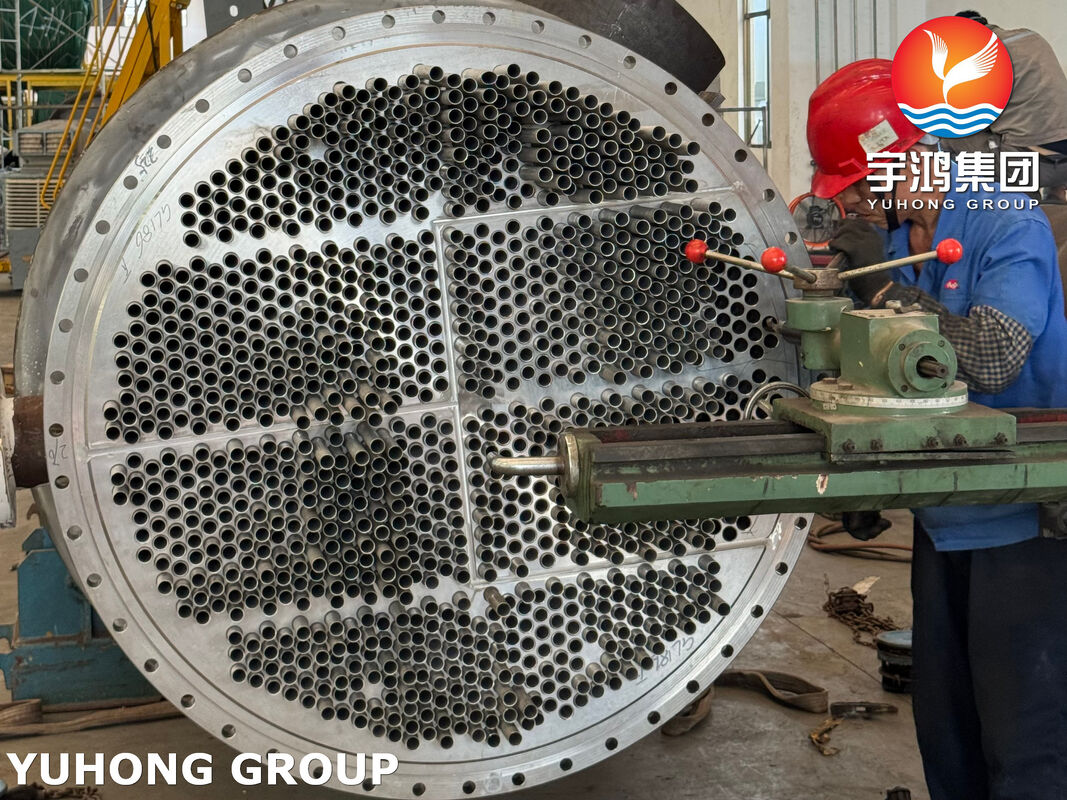

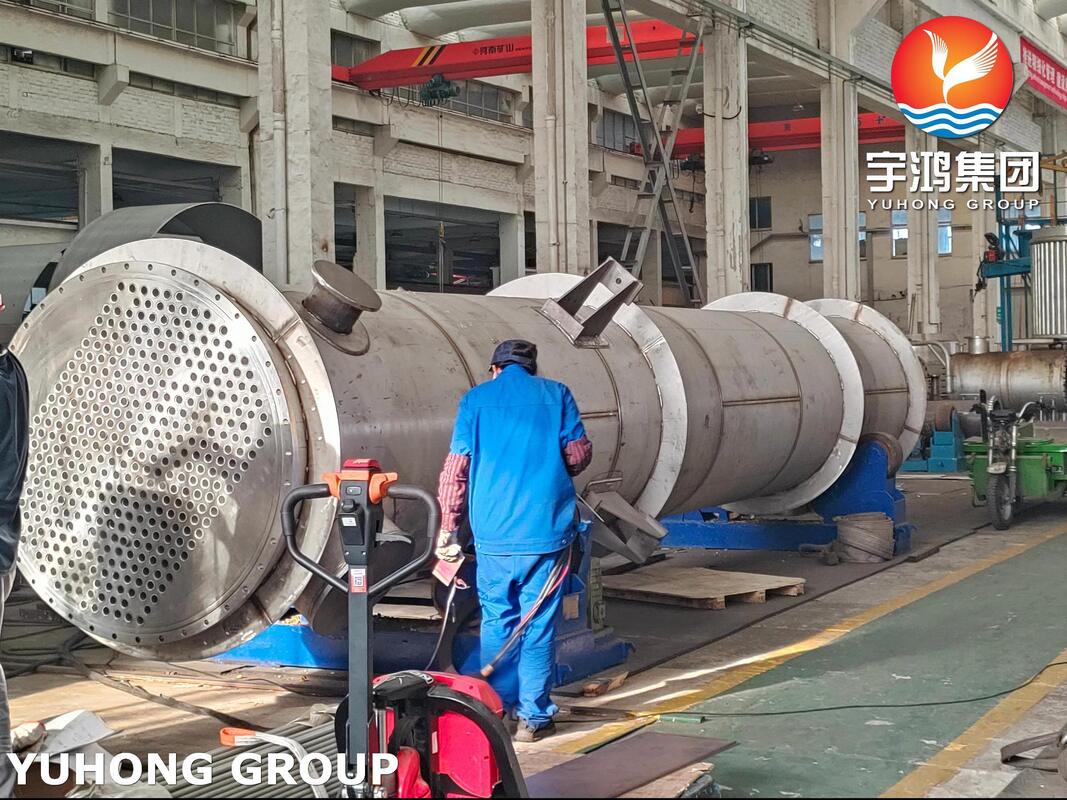

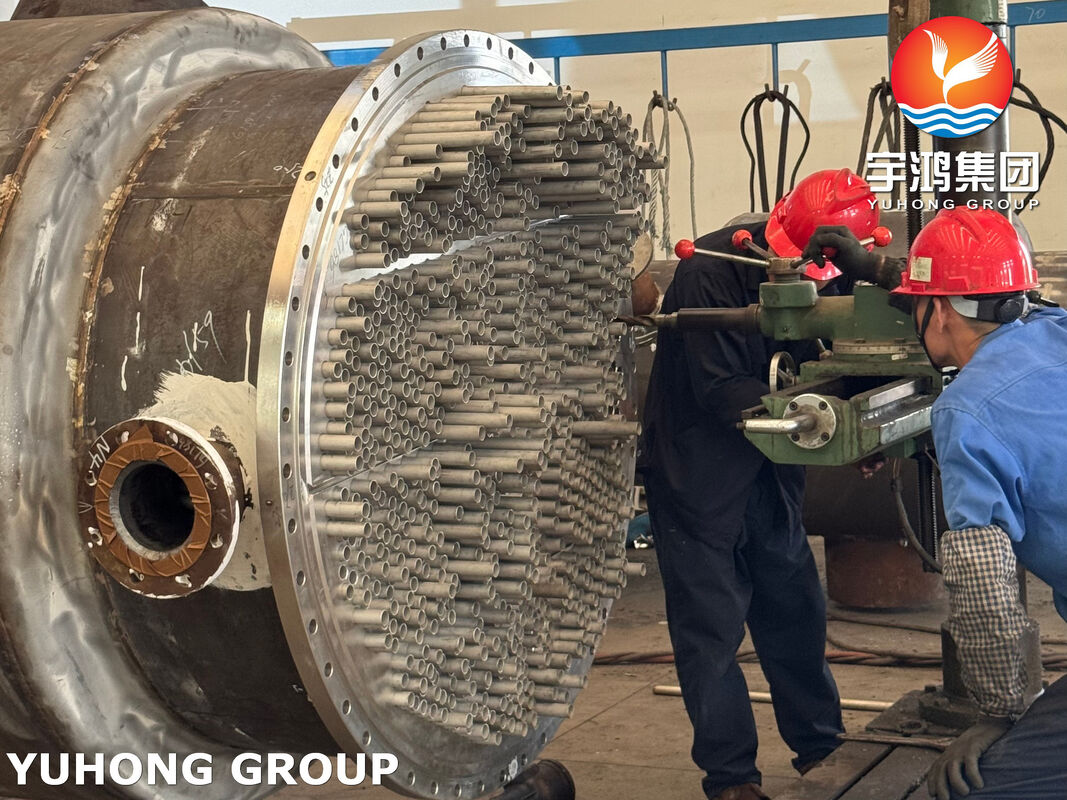

ASME Certified Shell and Tube Heat Exchangers SA213 TP304L Chiller for Pipeline Project
YUHONG provide ASME certified shell and tube heat exchangers using SA213 TP304L materials, designed for optimal efficiency and durability. Our solutions are ideal for various industries, ensuring reliability in demanding environments.
Material list of Shell and Tube Heat Exchangers
| Component / Part Name | Material Specification |
| BARREL | SA 516 Gr.70N |
| BODY FLANGES | SA 350 LF2 CL.1 |
| NOZZLE FROM PIPE | SA 333 Gr.1 |
| NOZZLE FROM PLATE | SA 516 Gr.70N |
| NOZZLE FLANGE | SA 350 LF2 CL.1 |
| COUPLING & PLUGS | - |
| NOZZLE SELF REINFORCE | SA 350 LF2 CL.1 |
| EXCHANGER SUPPORT | SA 283 Gr.C |
| SADDLES WEAR PLATE | SA 516 Gr.70N |
| STIFFENING RINGS | SA 516 Gr.70N |
| EXPANSION JOINT | - |
| BARREL | SA 516 Gr.70N |
| COVER | SA 516 Gr.70N |
| FLANGE | SA 350 LF2 CL.1 |
| BARREL | SA 240 304L |
| BODY FLANGE | SA 182 F304L |
| NOZZLE FROM PIPE | SA 312 TP304L |
| NOZZLE FROM PLATE | - |
| NOZZLE FLANGE | SA 182 F304L |
| NOZZLE SELF REINFORCE | SA 182 F304L |
| PARTITION PLATE | SA 240 304L |
| COVER | - |
| FLANGE | - |
| SPLIT RING | - |
| TUBE | SA 213 TP304L |
| TUBE SHEET (CLAD) | SA 350 LF2 CL.1 + 3mm S.S.304L CLAD |
| BAFFLE / SUPPORT / IMPINGEMENT PLATE | SA 240 304L |
| TIE ROD & SPACER | SA 479 Gr.304L / SA 213 TP304L |
Applications:
Oil and Gas
Chemical Processing
HVAC Systems
Power Generation
Water Treatment
