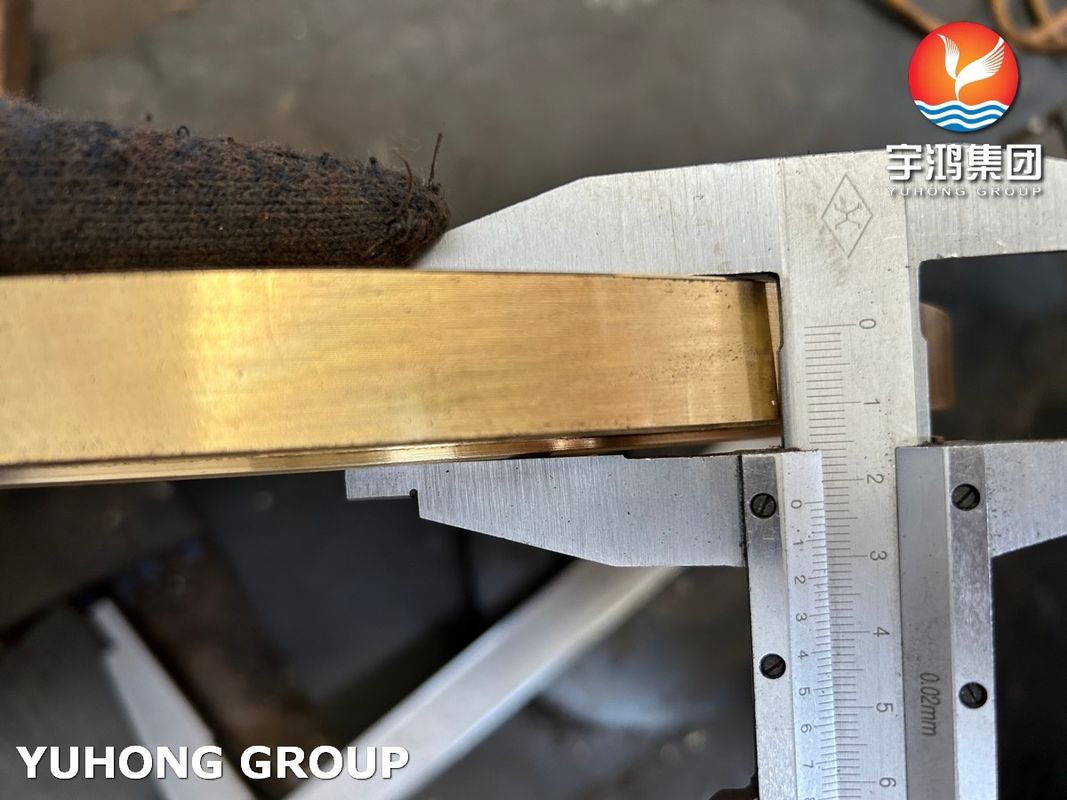

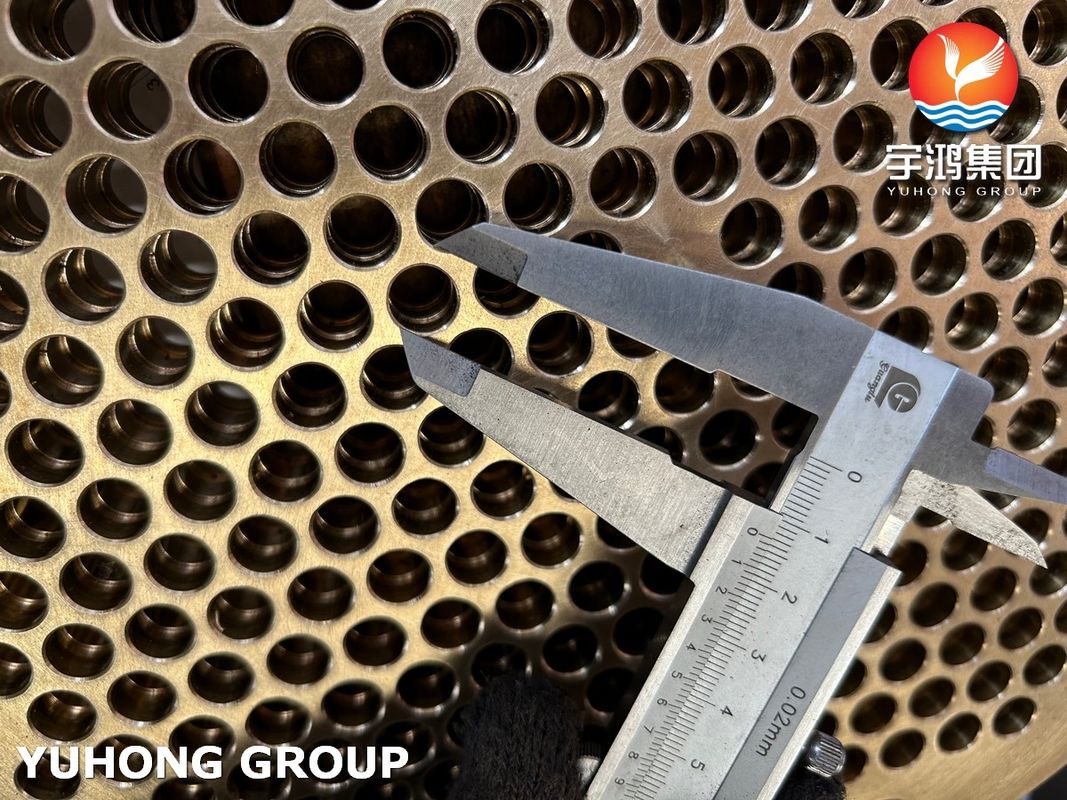

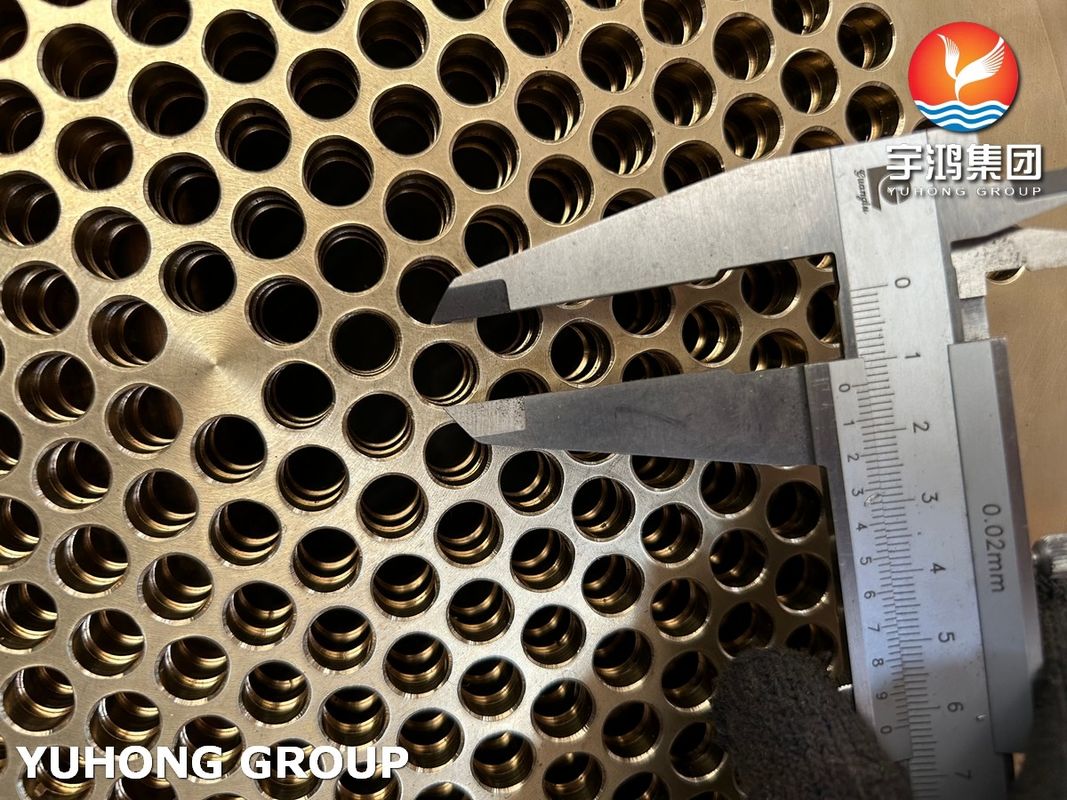

ASME SB171 C46400 Cooper Alloy TubeSheet 4-80mm Thk for Marine Heat Exchangers

ASME SB171 C46400 Cooper Alloy TubeSheet 4-80mm Thk for Marine Heat Exchangers

Yuhong Holdings Group Co., Ltd. is a leading manufacturer of pressure vessels, boasting an annual production capacity of over 6,000 tons. We provide a wide range of products, including film evaporators, heat exchangers, reaction vessels, towers, storage tanks, and filters. Our offerings cater to various specifications and materials, ensuring we meet the diverse needs of our clients across industries such as biopharmaceuticals and petrochemicals.

Chemical Composition of C46400

The C46400 alloy, known for its excellent corrosion resistance and thermal conductivity, is composed of the following elements:

Mechanical Properties of C46400

C46400 exhibits impressive mechanical properties, making it suitable for demanding applications:

Tube and Tube Sheet Welding

Welding of tubes to the tube sheet in shell and tube heat exchangers is critical for ensuring integrity and performance. The C46400 alloy can be welded using techniques such as TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding, which provide strong joints and minimal distortion.

Welding Inspection

Heat exchanger tube and tube plate welding and inspection
1. Pre-welding inspection.

• Dimensional tolerance test;.
• Cleanliness inspection
• Pipe projection height inspection;
• Spot weld inspection.

2. Welding inspection.

• Welding start and finish points.
• Welding specification checking.
• Depth of fusion and molding of the first pass and the second pass.

3. Post-welding inspection.

• Appearance and molding inspection of the weld.
• Gas tightness test (0.03~0.05MPa.) or helium leakage of pipe and tube joints.
• Surface MT or PT inspection
• Non-destructive radiographic inspection.
• Hydrostatic test.

Conclusion

At Yuhong Holdings Group Co., Ltd., we are committed to providing high-quality products and services. Our expertise in manufacturing pressure vessels, coupled with our commitment to customer satisfaction, sets us apart in the industry. The ASTM B171 C46400 copper alloy tube sheet is a prime example of our dedication to excellence in engineering and design.
