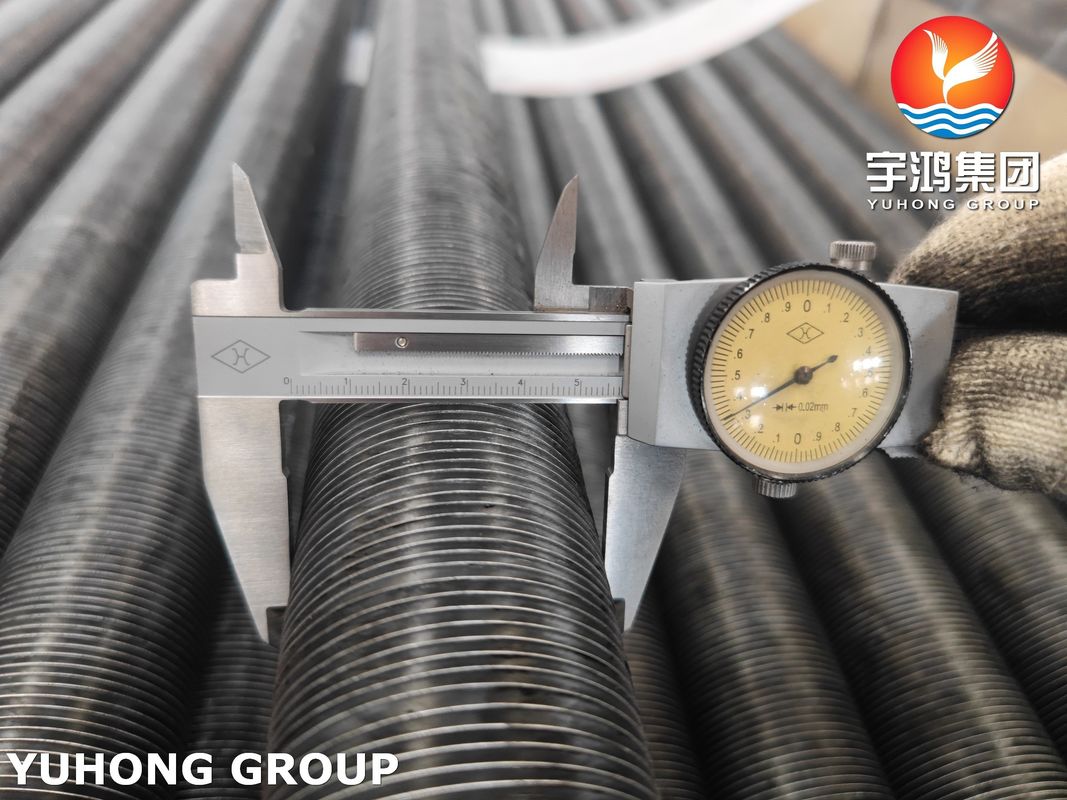

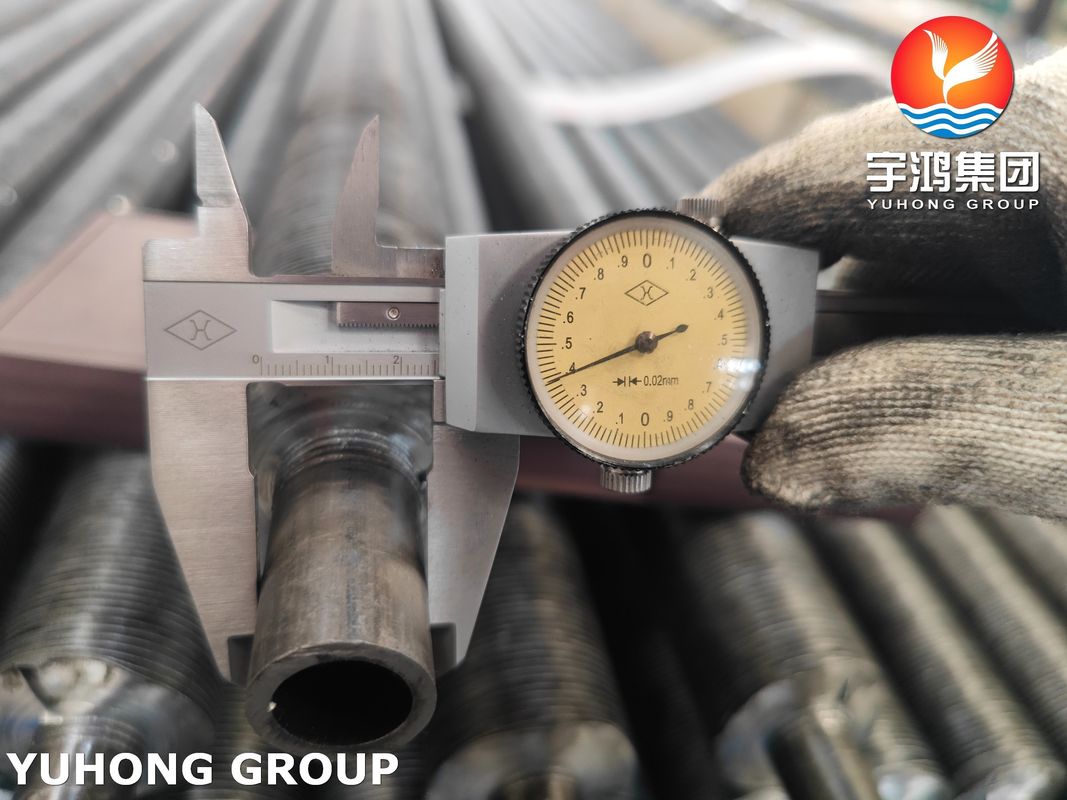

Embedded Finned Tube SA210 GR.A1 Enhanced Heat Transfer For Power Generation

Overview

Embedded fin tubes, such as the 'G' fin tube, are designed to enhance heat transfer efficiency by integrating fins into the surface of a base tube. This design increases the surface area, facilitating improved thermal exchange between fluids. The manufacturing process involves embedding a metal fin strip into a groove machined on the base tube's outer surface, creating a secure and efficient bond that withstands high temperatures and mechanical stresses.

SA210 Gr.A1 Embedded Finned Tube is a type of heat transfer tube made from SA210 Grade A1 carbon steel. The "Gr.A1" designation refers to the material specification, which is commonly used for low to medium pressure boilers, heat exchangers, and other heat transfer applications. The embedded fin tube refers to a design where metal fins are embedded into the base tube to increase the surface area for enhanced heat transfer.

Key Features of Embedded Fin Tubes:

• Enhanced Heat Transfer: The embedded fin design provides a larger surface area for heat exchange, improving thermal efficiency.
• Durability: The secure embedding process ensures that the fins remain intact under high-stress conditions, making them suitable for demanding applications.
• Versatility: These tubes are suitable for a wide range of temperatures and pressures, making them ideal for various industrial applications.
• Compact Design: Efficient heat transfer allows for more compact heat exchanger designs, saving space and material costs.

Embedded Finned Tube Design

• Embedded fin tubes are designed to improve heat transfer by increasing the surface area of the tube.
• In this type of tube, metal fins are embedded into the tube’s outer surface, creating a greater contact surface for heat exchange.
• Manufacturing Process:
  • A fin strip (typically made of aluminum or copper) is embedded into grooves or machined indentations on the tube’s surface.
  • The fins are then compressed and secured, creating a strong bond that enhances the tube's heat transfer efficiency while maintaining structural integrity at high temperatures.

Applications of SA210 Gr.A1 Embedded Finned Tubes

• These tubes are mainly used in boilers, heat exchangers, and other equipment where efficient heat transfer is essential.
• They are suitable for applications in power generation, petrochemical plants, oil refineries, and chemical processing.
• Ideal for use in steam boilers, superheaters, and condensers where both high heat exchange rates and resistance to high temperatures are required.

Advantages of Embedded Finned Tubes

• Improved Heat Transfer Efficiency: The embedded fins increase the surface area, facilitating more effective heat exchange between the fluid inside the tube and the surrounding medium.
• Compact Design: The increase in heat transfer efficiency allows for more compact heat exchanger designs, saving space and material costs.
• Durability and Corrosion Resistance: The embedded design ensures that the fins remain securely attached to the tube, even under high temperatures and pressures, reducing the likelihood of corrosion or fin detachment.
• High-Temperature Resistance: SA210 Gr.A1 is known for its ability to withstand high-temperature environments, making it ideal for use in steam or hot gas environments.

Applications for Embedded Finned Tubes

• Heat Exchangers: Used in industrial heat exchangers for power generation, chemical processing, and petrochemical applications.
• Boilers: These tubes are ideal for use in low- to medium-pressure steam boilers, where effective heat transfer is critical.
• Superheaters and Economizers: The embedded fin tubes can be used in these devices to increase heat recovery efficiency.
• Air Cooled Heat Exchangers: They can also be used in applications where air-cooled heat exchangers are required.

Advantages of Using SA210 Gr.A1 for Embedded Finned Tubes

• Cost-Effective: While offering good performance, SA210 Gr.A1 is a relatively cost-effective material, making it suitable for large-scale applications.
• Availability: It is a widely available grade, making it easier to source in large quantities.
• Strength and Durability: The material’s mechanical properties, such as good tensile strength and yield strength, make it durable in demanding thermal environments.

Conclusion:

SA210 Gr.A1 Embedded Finned Tubes offer excellent heat transfer efficiency due to their design and the properties of the SA210 Gr.A1 carbon steel. These tubes are used in industries requiring high thermal efficiency, such as power plants, chemical plants, and refineries, where they enhance heat exchanger performance and overall system efficiency.

For specific requirements regarding dimensions, material certifications, or custom applications, it's recommended to consult with manufacturers who specialize in these types of heat transfer tubes.
