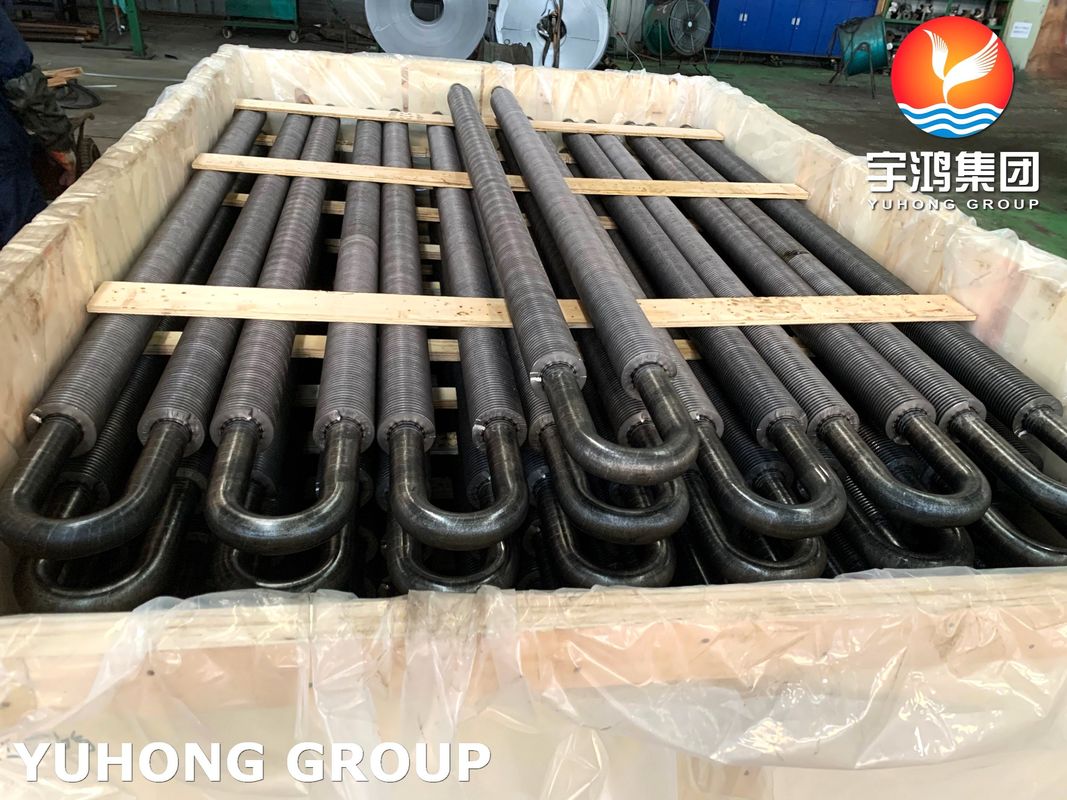

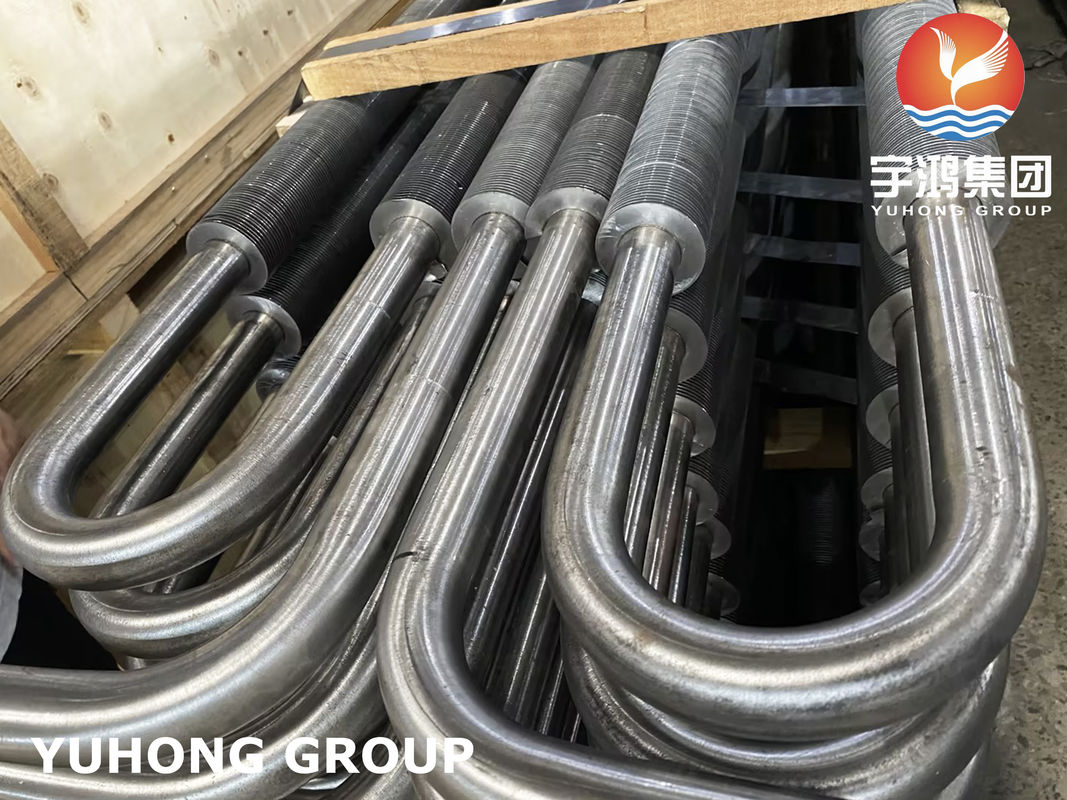

HFW U-Bend Fin Tube High Frequency welded For Nuclear Power Plant

Overview

HFW (High Frequency Welded) U-Bend Fin Tube is a specialized type of heat exchanger tube that combines the efficiency of finned heat transfer surfaces with a U-bend configuration, offering excellent heat exchange performance in compact spaces. HFW U-Bend Fin Tubes are commonly used in various industrial applications where efficient heat transfer and compact designs are essential. They are particularly well-suited for equipment that requires heat exchange in confined spaces or areas with complex configurations.

Key Features of HFW U-Bend Fin Tube:

1. HFW (High Frequency Welded) Technology:

   • High Frequency Welding: This process involves welding the fin to the tube using high-frequency electrical currents. The result is a strong and durable bond between the fins and the tube, which is more reliable than other welding methods.
   • The process ensures that the tube and fin are tightly bonded, enhancing heat transfer and overall tube strength.

2. U-Bend Configuration:

   • U-Bend: In many applications, space limitations or the need for compact designs require the tube to be bent into a U-shape. The U-bend configuration helps in fitting the tube into more complex layouts, especially in heat exchangers, without losing efficiency.
   • The U-bend design allows the tube to make tight turns or changes in direction while maintaining effective heat transfer performance.

3. Finning:

   • The tube is equipped with external fins that increase the surface area available for heat transfer. The fins are typically made from materials like aluminum or copper, and they are either extruded or mechanically wound around the tube.
   • These fins are crucial in applications where maximizing heat exchange is a priority.

4. Material:

   • The tube is typically made from carbon steel, stainless steel, or alloy materials. The choice of material depends on the application and environmental conditions, such as corrosion resistance, temperature tolerance, and thermal conductivity.
   • The fins can also be made from materials like aluminum or copper for enhanced heat dissipation.

5. Applications:

   • Heat exchangers: Commonly used in industries such as power generation, HVAC systems, chemical processing, and oil refineries.
   • Cooling and Heating Systems: Often found in systems where the fluid needs to be cooled or heated effectively in compact or tight spaces, such as condensers or evaporators.
   • Energy Systems: Used in waste heat recovery systems, steam boilers, and energy-efficient applications.

6. Customization:

   • HFW U-Bend Fin Tubes can be customized in terms of tube diameter, fin height, fin spacing, and U-bend radius to meet the specific requirements of a project or application.

Advantages:

• Enhanced Heat Transfer Efficiency: The finned surface area increases heat transfer, making the system more efficient at cooling or heating.
• Compact Design: The U-bend configuration saves space, allowing for more efficient use of the available area in heat exchangers or cooling systems.
• Corrosion Resistance: Stainless steel or other alloy materials used in the construction of the tubes ensure long-lasting performance in harsh or corrosive environments.
• Strength and Durability: The high-frequency welding method ensures a strong bond between the tube and the fin, increasing the longevity and durability of the system.

Equipments Suitable for HFW U-Bend Fin Tubes:

• Heat exchangers (shell and tube, air-cooled, and cooling systems)

• Steam boilers

• Air conditioning and refrigeration systems (evaporators, condensers)

• Oil & gas processing (refineries, offshore platforms)

• Power generation (waste heat recovery, HRSGs)

• Petrochemical and chemical processing (reactors, process exchangers)

• Desalination plants

• Automotive and aerospace (radiators, turbochargers)

• District heating systems
