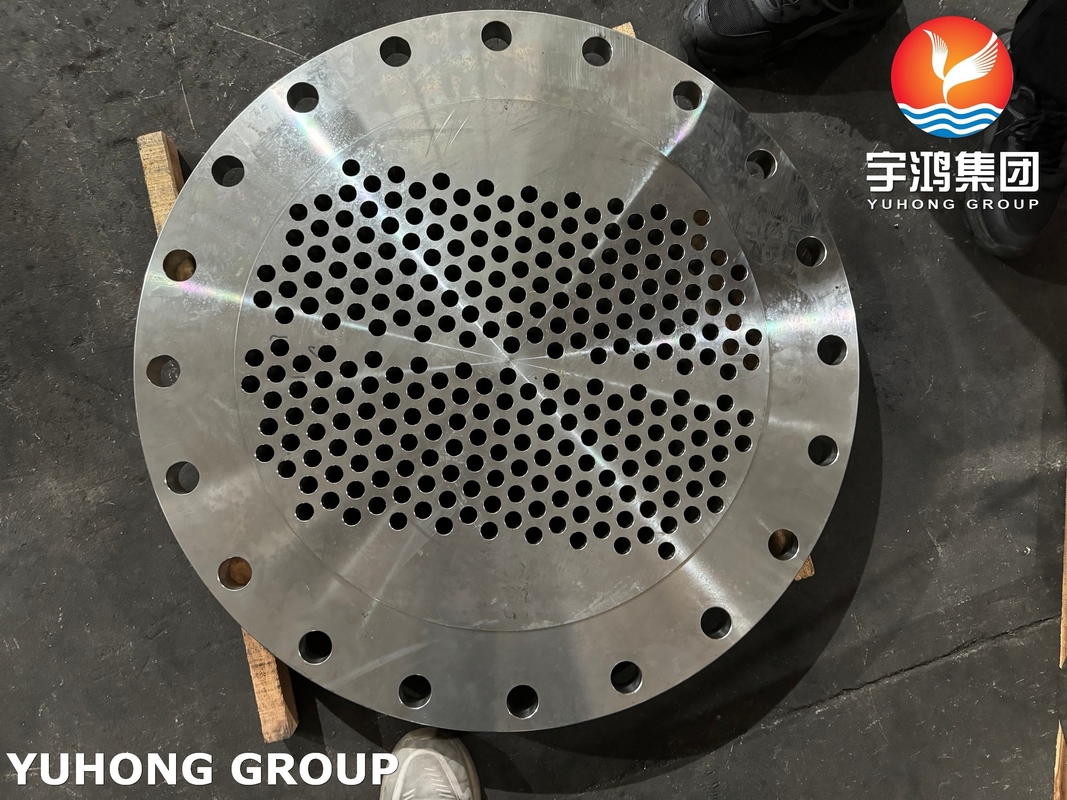

SA240 SS304 Stainless Steel Tube Sheet For Heat Exchanger 100% PT

SA240 SS304 Stainless Steel Tubesheet for Heat Exchanger 100% PT

Yuhong Holding Group Co., Ltd is a globally recognized leader in the manufacturing and supply of industrial equipment, including heat exchangers, fired heaters, air coolers, and their critical components. With decades of experience, advanced manufacturing capabilities, and a commitment to quality, we provide premium solutions that meet the demanding requirements of various industries. Among our top-tier products is the SA240 SS304 Stainless Steel Tubesheet, designed for use in heat exchangers. This tubesheet undergoes rigorous testing, including 100% Penetrant Testing (PT), to ensure its performance and reliability in the most challenging environments.

1. SA240 SS304 Chemical Composition and Mechanical Properties

SA240 SS304 is an austenitic stainless steel grade widely used in heat exchanger applications due to its excellent corrosion resistance, high strength, and superior toughness. Its durability and resistance to oxidation make it ideal for environments with high temperatures and corrosive conditions.

Chemical Composition of SA240 SS304

The high chromium and nickel content provide exceptional resistance to corrosion and oxidation, making SS304 a reliable choice for tubesheets in heat exchangers.

Mechanical Properties of SA240 SS304

These mechanical properties ensure that SA240 SS304 Tubesheets can withstand high pressures and temperatures, as well as mechanical stress, during operation.

2. Testing Requirements for Tubesheets

To ensure the SA240 SS304 Stainless Steel Tubesheets meet the highest quality standards, we perform comprehensive testing. At Yuhong Holding Group, we employ rigorous inspection methods to verify the material's integrity and ensure its suitability for critical applications.

Key Testing Procedures

1. Penetrant Testing (PT):

   • Detects surface defects such as cracks, pinholes, or porosity.
   • Ensures the surface is free from imperfections that could compromise the tubesheet's performance.

2. Ultrasonic Testing (UT):

   • Identifies subsurface flaws such as inclusions or voids within the material.
   • Ensures the tubesheet meets the required structural integrity standards.

3. Hydrostatic Testing:

   • Simulates operating conditions to verify the tubesheet's ability to withstand high-pressure environments.
   • Ensures no leakage or deformation occurs during operation.

4. Dimensional Inspection:

   • Confirms the precision of drilled holes, surface finish, and overall dimensions.
   • Ensures perfect alignment with heat exchanger tubes.

5. Visual Inspection:

   • Examines the surface for any visible defects or irregularities.
   • Guarantees a smooth and polished finish.

We provide detailed inspection reports for all tests, ensuring full traceability and compliance with international standards.

3. Applications of SA240 SS304 Stainless Steel Tubesheets

The SA240 SS304 Stainless Steel Tubesheets are versatile and widely used in various industries due to their excellent corrosion resistance, mechanical strength, and thermal performance. Key application areas include:

• Petrochemical Industry:

  • For heat exchangers used in refining, chemical processing, and gas separation applications.

• Oil and Gas Industry:

  • Suitable for offshore platforms, pipelines, and processing plants where corrosion resistance is critical.

• Power Generation:

  • Used in steam condensers, feedwater heaters, and other heat exchanger components in power plants.

• Food and Beverage Industry:

  • Ideal for sanitary heat exchangers used in pasteurization, sterilization, and processing.

• Pharmaceutical Industry:

  • For zero-contamination heat exchangers used in sterile environments.

• HVAC Systems:

  • Used in refrigeration, air conditioning, and cooling systems requiring reliable heat transfer performance.

The exceptional durability and corrosion resistance of SA240 SS304 Tubesheets make them a preferred choice for both standard and demanding industrial applications.

4. Types of Tubesheets

Tubesheets are critical components in heat exchangers, acting as support for the tubes and ensuring efficient heat transfer. We manufacture various types of tubesheets to meet diverse application requirements:

Common Types of Tubesheets

1. Fixed Tubesheets:

   • Permanently welded to the shell and tube bundle.
   • Suitable for applications where thermal stress is minimal.

2. Floating Tubesheets:

   • Designed to allow for thermal expansion and contraction.
   • Ideal for applications with significant temperature fluctuations.

3. U-Tube Tubesheets:

   • Designed specifically for U-tube heat exchangers.
   • Compact, efficient, and suitable for high-performance systems.

4. Double Tubesheets:

   • Used in applications requiring zero cross-contamination between fluids.
   • Commonly found in industries with strict hygiene and safety standards.
