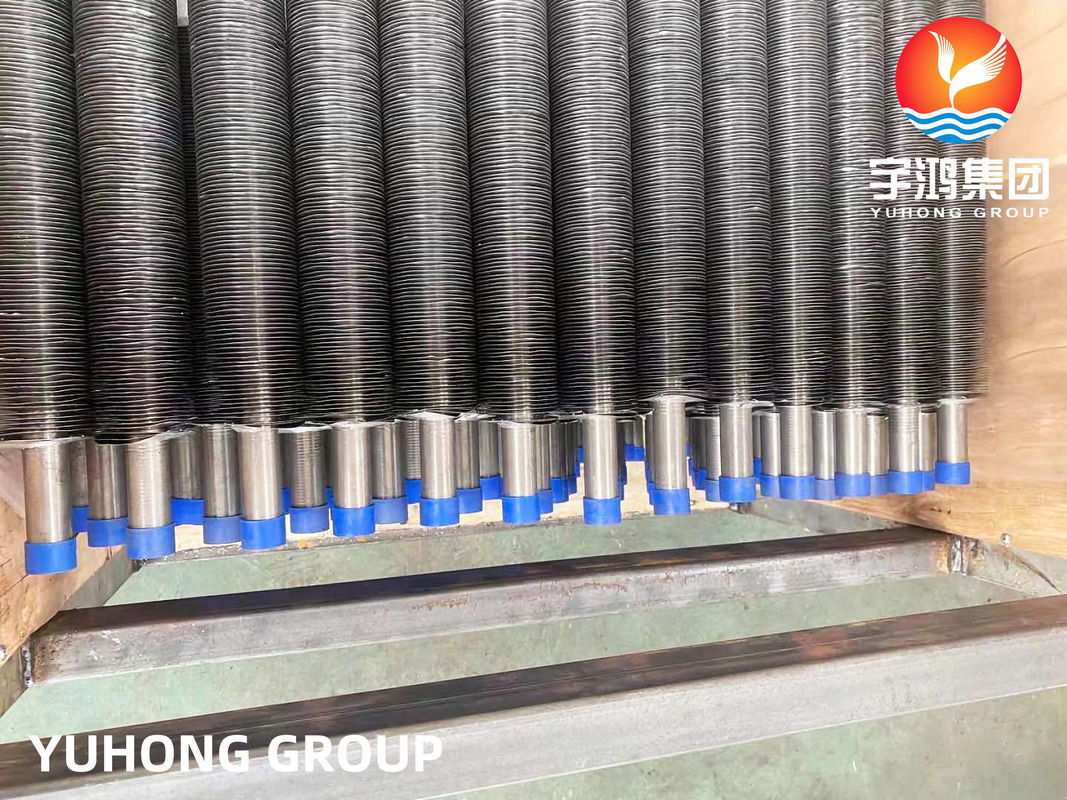

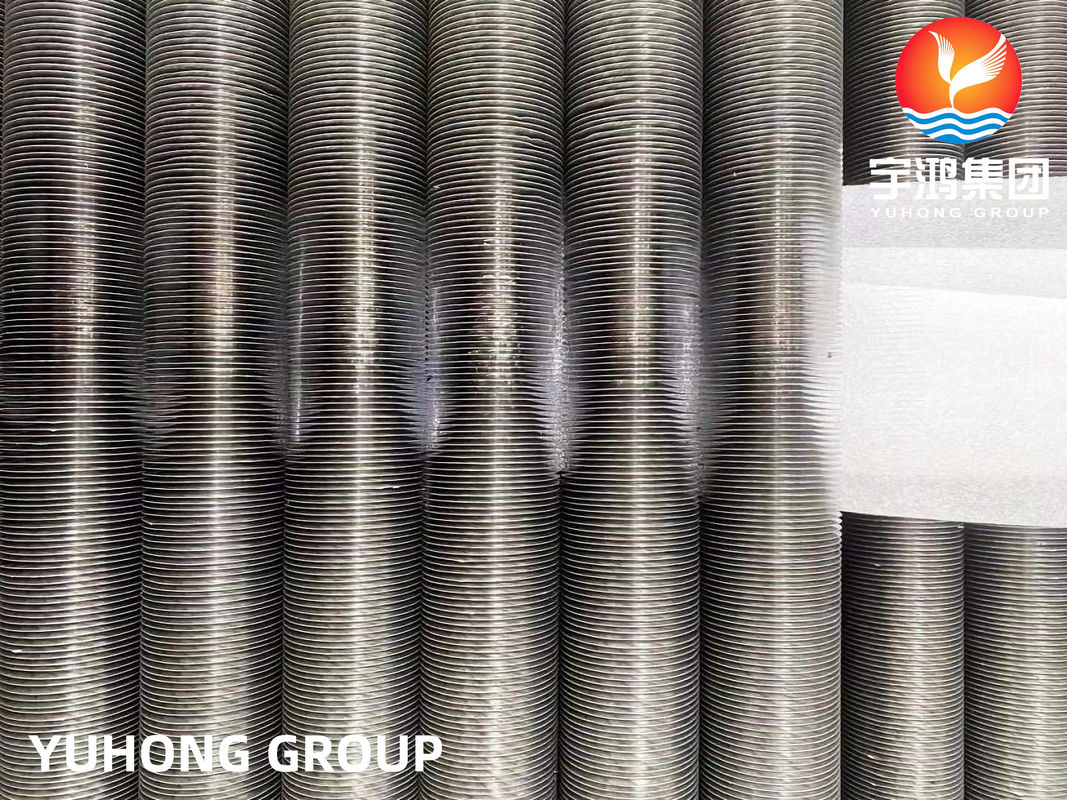

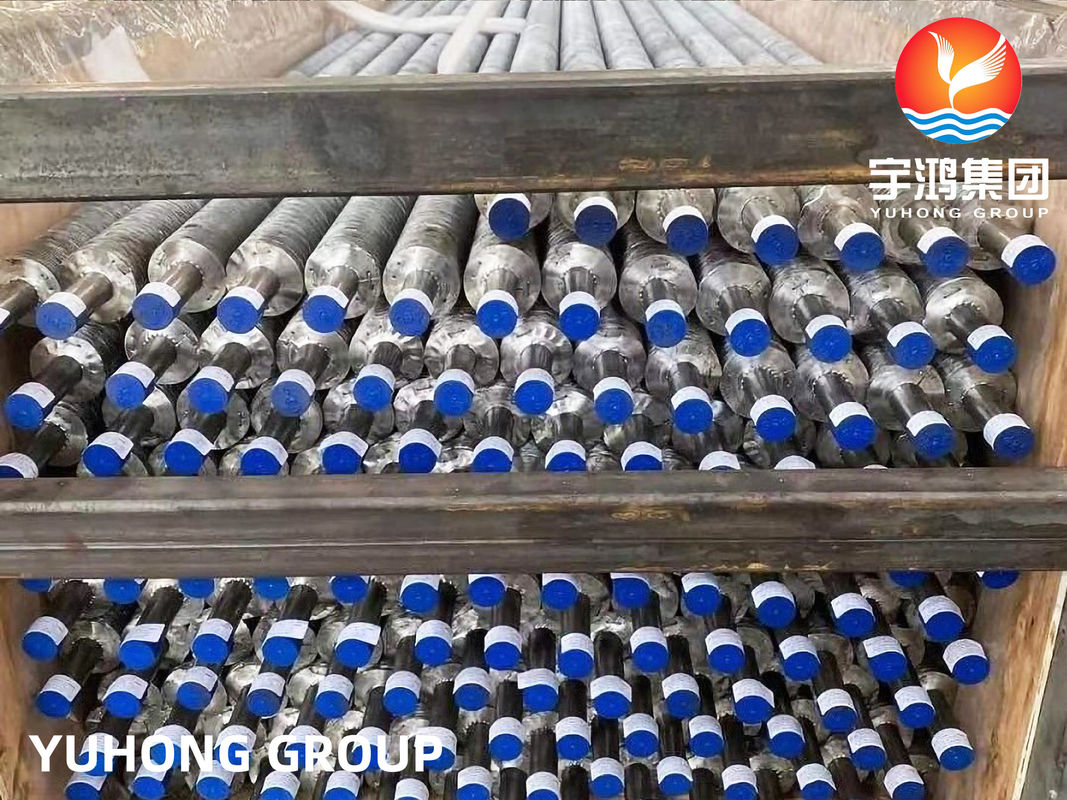

HVAC System Used Embedded Fin Tube G-Type Nickel Alloy SB163 Monel400

Overview

Embedded Fin Tube G-Type is a specialized variation of the embedded fin tube heat exchanger, where the fins are designed in a G-shaped (or G-type) configuration. This design is used to enhance heat transfer efficiency while maintaining the structural integrity and performance of the tube. The "G" shape typically refers to the form of the fin, which might resemble the letter "G" in cross-section and is designed to maximize surface area for heat exchange.

Here’s an overview of the Embedded Fin Tube G-Type:

1. Design and Structure:

• Embedded Fins: The fins in a G-type tube are embedded into the surface of the tube, often using a mechanical or welding process. These fins are designed in a G-shaped pattern that wraps around or is integrated into the tube's surface.

• G-Shape Fin Design: The G-shape enhances heat transfer by providing a larger surface area, which improves the heat exchange rate. The shape may also help increase turbulence in the surrounding fluid, further enhancing thermal performance.

• Materials: The tubes and fins are typically made from materials with high thermal conductivity, such as copper, aluminum, or stainless steel, depending on the application’s requirements (e.g., corrosion resistance, durability).

2. Applications:

Embedded fin tube G-type designs are typically used in industrial, HVAC, refrigeration, and heat exchange applications where efficient heat transfer is needed. Some common applications include:

• Air-cooled heat exchangers: Used in systems like air conditioning or refrigeration where air is the cooling medium.

• Industrial cooling systems: Often used in factories, refineries, or power plants where high thermal efficiency is required.

• Automotive radiators: Can be used in vehicles where high-performance cooling is needed.

• Waste heat recovery systems: In industries that need to recover and utilize excess heat, such as in power generation.

3. Heat Transfer Efficiency:

• Surface Area: The G-type embedded fins increase the surface area significantly, allowing more heat to be transferred from the fluid inside the tube to the surrounding medium (like air or water).

• Increased Turbulence: The G-shape can create turbulence in the fluid passing around the tube, which helps to disrupt boundary layers and improve the overall heat transfer rate.

4. Advantages:

• Enhanced Heat Transfer: The G-type fins maximize the heat exchange surface, leading to better heat transfer efficiency compared to standard fin tubes.

• Compact Design: Despite the increased surface area, the G-type embedded fin tubes can remain compact, making them ideal for systems with space limitations.

• Improved Durability: The embedded nature of the fins can help protect them from damage (e.g., corrosion or mechanical wear) compared to external fins, which can be more prone to damage.

• Corrosion Resistance: The embedded fins provide a more robust solution in environments where external fins might degrade more quickly due to exposure to harsh conditions, including high humidity or corrosive substances.

5. Disadvantages:

• Manufacturing Complexity: Producing embedded fin tubes, particularly with a G-type fin design, can be more complex and costly than simpler fin designs.

• Maintenance Challenges: Depending on the application, it might be harder to clean or repair embedded fin tubes compared to traditional external fin tubes.

6. Common Variations:

• Single and Double-Fin Variants: In some cases, these tubes might have either single or multiple fins, depending on the thermal requirements of the system.

• Heat Transfer Optimization: Depending on the system's needs, the fins might be designed with various shapes or configurations to optimize heat transfer for specific fluid types (air, water, etc.).

Conclusion:

Embedded Fin Tube G-Type designs are a high-performance solution for applications requiring efficient heat exchange. The unique G-shaped fins enhance heat transfer by maximizing the surface area and creating turbulent flow, which disrupts the thermal boundary layer and improves efficiency. This makes them highly suitable for industries like HVAC, refrigeration, power plants, and automotive cooling systems.
