H Type And Double H Type Finned Tubes For Heat Exchangers High Rigidity

Brand Name:	YUHONG
MOQ:	500KGS
Price:	NEGOTIABLE
Delivery Time:	10-90 Days
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015

Tube Material:

Carbon Steel, Stainless Steel, Alloy Steel

Fin Material:

Carbon Steel, Stainless Steel, Alloy Steel

Tube OD:

1/2”~2 1/2”(NPS)

Tube Wall Thk:

0.118”~0.236”

Tube Lenght:

≤60.7 Ft

Fin Height:

0.98”~1.77”

Fin Lenght:

1.97”~9.8”

Fin Pitch:

1~3 FPI

Fin Thk:

0.060”~0.157”

Packaging Details:

Ply-wooden Case /Iron Case/ Bundle with plastic Cap

Supply Ability:

According To Client's Request

Highlight:

High rigidity H Type Finned Tubes

Finned Tubes For Heat Exchangers

High rigidity heat exchanger finned tube

Product Description

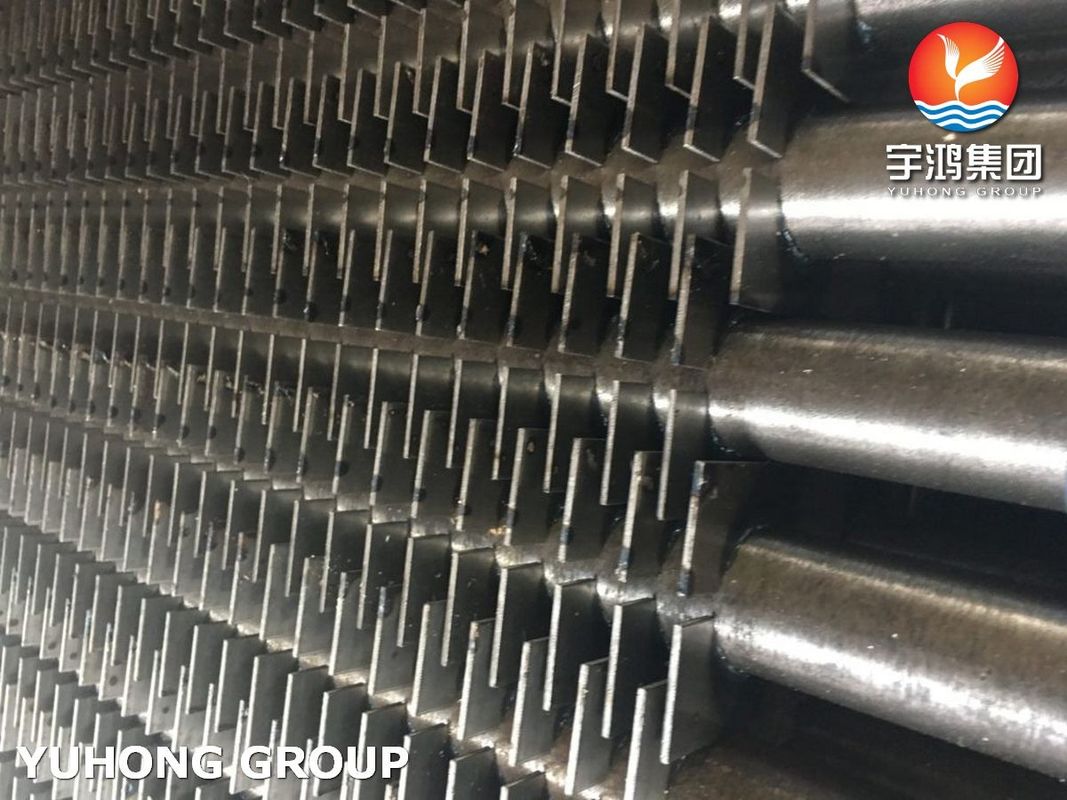

H-Finned Tube

Structural features:

The fins are arranged in parallel and symmetrical, and the cross-section is shaped like the letter "H". Usually, two longitudinal fins are fixed on both sides of the base tube by high-frequency welding or mechanical pressing.

Typical parameters: fin height 15-30 mm, thickness 1.5-3 mm, spacing 20-50 mm.

Core advantages:

High rigidity: The H-shaped structure enhances anti-deformation ability and is suitable for high flow rate (>30 m/s) or particle-containing media.

Easy to clean: The straight channel reduces ash accumulation and is suitable for flue gas waste heat recovery systems (such as coal-fired boilers).

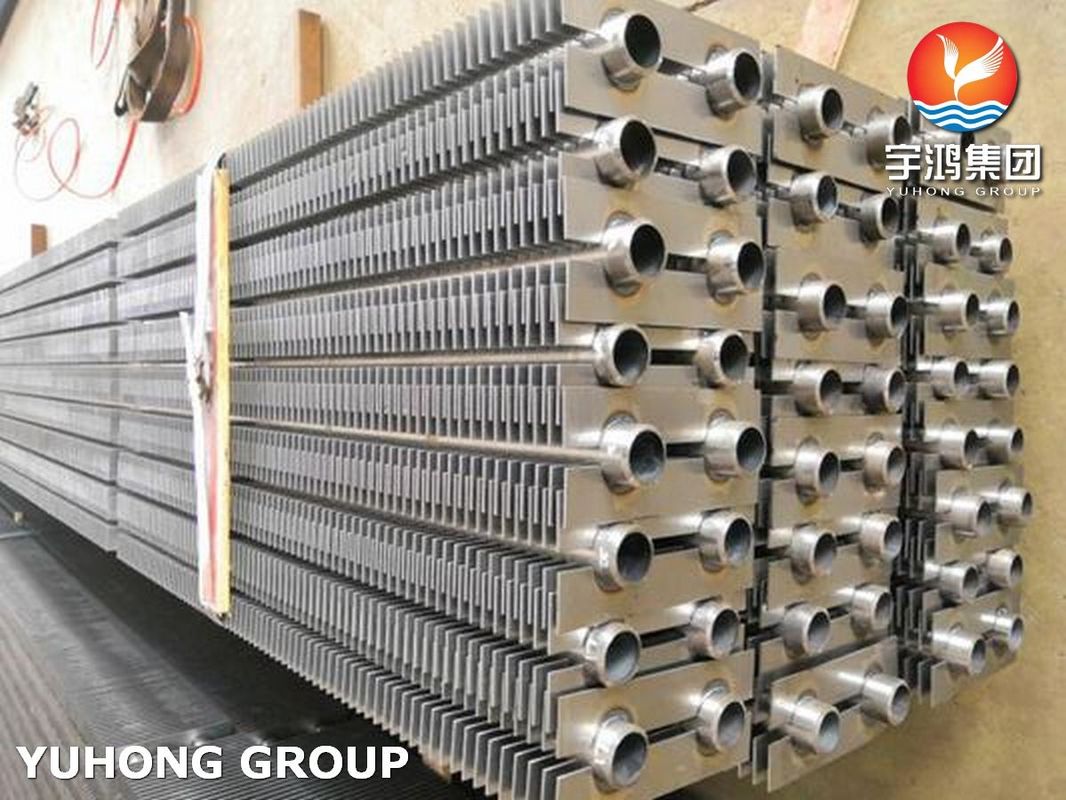

Double H-Finned Tube

Structural features:

Two sets of H-shaped fins are integrated on a single base tube to form a "double H" cross-section, or the heat transfer area is increased through a cross-fin design.

Typical parameters: fin height 10–25 mm, thickness 1.0–2.5 mm, spacing 15–40 mm (staggered arrangement).

Core advantages:

Heat transfer doubled: The double-fin structure increases the heat transfer area by 40–60% compared to the single H-type.

Turbulence optimization: Cross-fins disturb the fluid and increase the Nusselt number (Nu) by 10–15%.

H-type fin tube: with anti-scouring and low maintenance as the core, it is suitable for high dust and high flow rate industrial scenes.

Double H-type finned tube: With the advantages of efficient heat transfer and compact design, it is suitable for chemical and energy systems with high heat load and limited space.

When selecting, it is necessary to comprehensively evaluate the medium characteristics (corrosiveness, dust content), thermal parameters (temperature, pressure, flow rate) and life cycle cost. If necessary, composite fins (such as H-type + spiral fins) can be customized to balance performance and economic benefits.

Application

Power industry:

Coal-fired boiler air preheater (APH), resistant to fly ash erosion.

Gas turbine waste heat boiler (HRSG) medium pressure evaporation section.

Metallurgical industry:

Blast furnace gas waste heat recovery, medium dust content ＞50 g/Nm³.

Double H-type fin tube

Petrochemical unit:

Flue gas turbine (Flue Gas Expander) inlet heat exchanger of catalytic cracking unit (FCCU).

Ethylene cracking furnace convection section, improve cracking gas preheating efficiency.

New energy systems:

High temperature heat exchange tubes (400–550°C) for molten salt energy storage systems (TES).
