SA192 High Frequency Welded Spiral Fin Tube , Water Tube Boiler Fin Tube

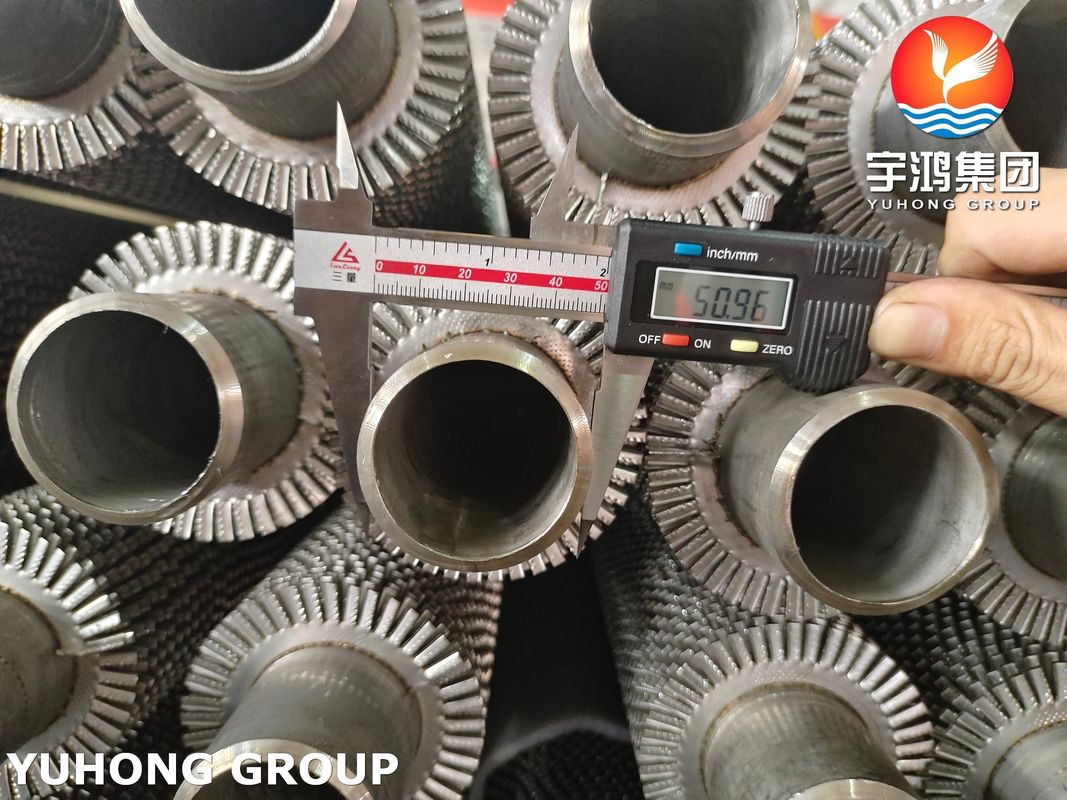

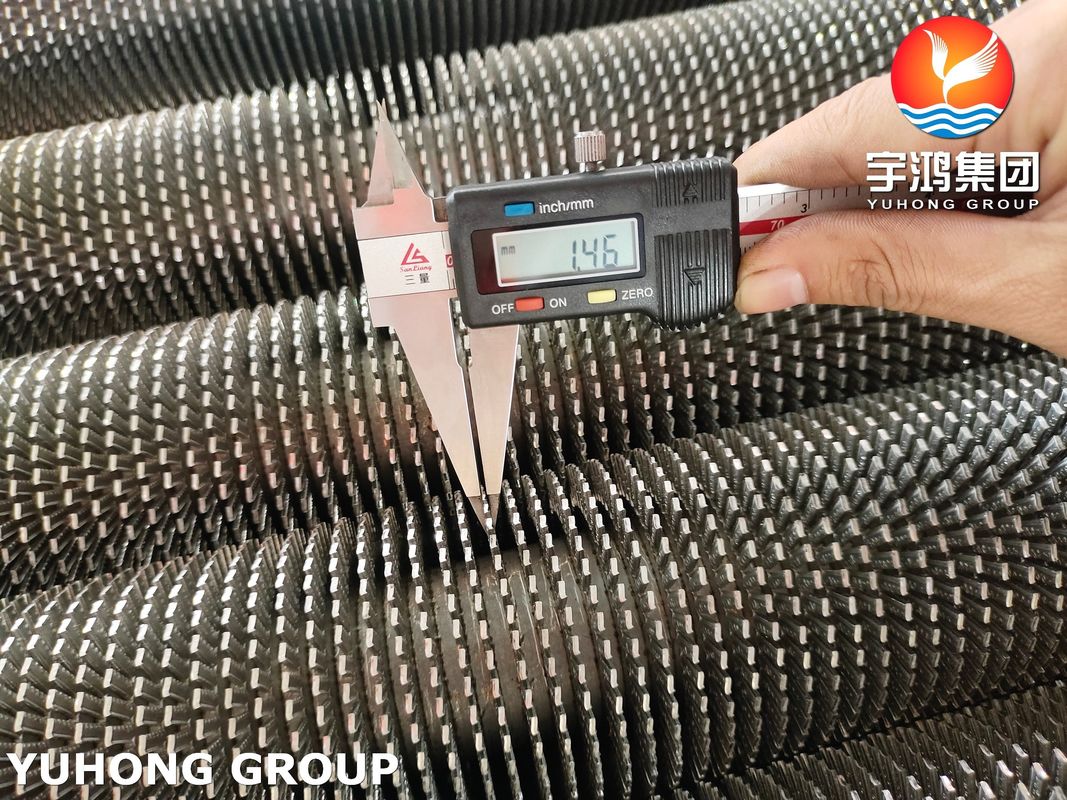

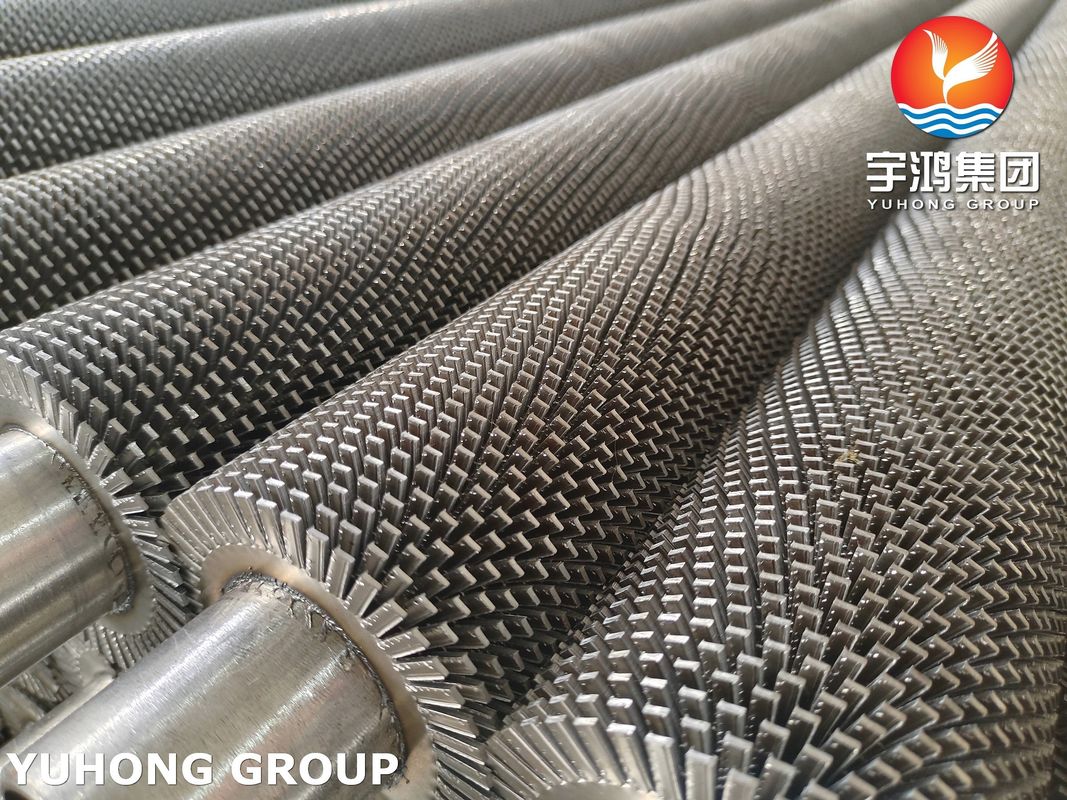

SA192 High Frequency Welded (HFW) Spiral Fin Tube , serrated type for Water Tube Boiler


Overview


SA192 High-Frequency Welded Serrated Type Fin Tubes are a specialized version of SA192 high-frequency welded fin tubes. These tubes are used primarily in heat exchangers, boilers, and other industrial heat transfer applications where efficient heat exchange and corrosion resistance are important. The serrated fin design enhances the tube's performance by increasing the surface area for heat transfer, while also helping to improve the turbulence of the fluid surrounding the tube.

Material and Manufacturing (SA192 and Serrated Fin):

• SA192: Refers to the carbon steel material specification for the tube, as discussed earlier. It's widely used for applications involving moderate to high-pressure steam, gas, and water in environments where durability and heat resistance are crucial.

• High-Frequency Welded (HFW): This refers to the welding process used to join the tube with fins. High-frequency welding uses electric current to heat the edges of the tube and fin to welding temperatures, ensuring a strong, reliable bond.

• Serrated Fins: These fins have a series of indentations or notches along the surface, which increases turbulence around the tube and helps to improve the heat transfer rate. The serrated fins are commonly used in applications where fluid flow rates and heat transfer efficiency are critical.

Design and Functionality of Serrated Fins:

1.Serrated Design:

• Serrated fins are designed with a pattern of grooves or ridges along the length of the fin.
• These grooves help to increase the turbulence of the surrounding fluid, which in turn enhances the heat transfer coefficient.
• The increased turbulence results in a higher heat transfer rate compared to smooth fins, as it helps in breaking up the thermal boundary layer and improving fluid movement over the surface of the fin.

2.Types of Serrated Fins:

• Spiral Serration: Fins are wound in a spiral, providing uniform heat transfer around the tube.
• Flat Serrated Fins: Flat fins with notches or serrations can be applied in a linear or helical arrangement.

3.Increased Surface Area:

• Just like standard finned tubes, the serrated fins help increase the surface area available for heat exchange between the fluid inside the tube and the environment or fluid outside the tube.
• The serrations further improve the heat transfer efficiency by creating better mixing of the fluid on the tube’s surface.

Applications of SA192 High-Frequency Welded Serrated Type Fin Tubes:

1. Heat Exchangers: air-to-liquid and liquid-to-liquid heat exchangers
2. Boilers: water heat exchangers or water-tube boilers
3. Condensers: air-cooled or water-cooled condensers
4. Air Preheaters: furnaces or industrial heaters

5. Industrial Cooling Systems: Chillers, coolers, and HVAC systems

6. Gas-to-Air Heat Exchangers: such as in industrial processes or power generation.

Advantages of SA192 High-Frequency Welded Serrated Fin Tubes:

1.Increased Heat Transfer Efficiency:

• The serrated design improves heat transfer by increasing turbulence and disrupting the thermal boundary layer. This allows for more efficient energy transfer between fluids.

2.Cost-Effective:

• Compared to smooth fin tubes, serrated fin tubes are typically more cost-effective in applications that require enhanced heat transfer. The HFW process is efficient, leading to lower manufacturing costs.

3.Improved Fluid Flow:

• The serrated fins create turbulence, which prevents fluid stagnation and promotes uniform heat distribution along the tube, resulting in more consistent heat exchange.

4.Resistance to Fouling:

• The serrated surface can also help reduce the buildup of fouling (e.g., deposits or scale) on the fins, as the increased fluid movement helps keep the surface clean.

5.Durability:

• The HFW process used for joining the fins to the tube ensures strong bonds that can withstand high temperatures and pressures commonly found in boiler systems, heat exchangers, and other heavy-duty applications.

6.Versatility:

• These tubes are adaptable to a wide range of industrial applications due to their high heat transfer capacity and ability to work in both liquid and gas-based systems.

Considerations of SA192 Material:

1.Corrosion Resistance:

• While SA192 carbon steel has decent corrosion resistance, it may not be as resistant to corrosion as stainless steel or alloy materials. For highly corrosive environments, coatings or material upgrades may be necessary.

2. Temperature Limitations:

• The SA192 material is suitable for moderate to high temperatures (up to about 600°F or 315°C). For very high-temperature environments, more heat-resistant alloys may be required.

3. Fouling:

• While serrated fins reduce fouling to some extent, in very dirty or industrial environments, regular maintenance and cleaning of finned tubes are required to ensure optimal performance.
