Forced Draft Air Cooled Heat Exchangers API 661 Design Power Plant Application

Forced Draft Air Cooled Heat Exchangers API 661 Design Power Plant Application

Forced Draft Air Cooled Heat Exchangers

API 661 forced draft air cooler

Power Plant forced draft air cooler

Place of Origin:

China

Brand Name:

YUHONG

Certification:

API 661, ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Model Number:

Forced Draft Air-Cooled Heat Exchanger

Chat Now
Request A Quote
Product Details
Air Cooled Heat Exchanger Type:
Forced Draft Air Cooler
Material Of Ari Cooler:
Carbon Steel , Alloy Steel , Stainless Steel , Nickel Alloy , Titanium
Design Standard:
ASME U , API 661
Test Of Air Cooler:
Pressure Test, Noised Test, Vibration Test
Application Of Air Cooler:
Oil Refinery , Petrochemical , Power Plant, Gas Station, Dry Industry
Highlight:

Forced Draft Air Cooled Heat Exchangers

,

API 661 forced draft air cooler

,

Power Plant forced draft air cooler

Payment & Shipping Terms
Minimum Order Quantity
1Set
Packaging Details
Pallet
Delivery Time
45---150 DAYS
Payment Terms
L/C, T/T
Supply Ability
50SETS/MONTHS
Product Description

Air-Cooled Heat Exchanger , Froced Draft Type Air Cooler, API 661 design, Power Plant Application

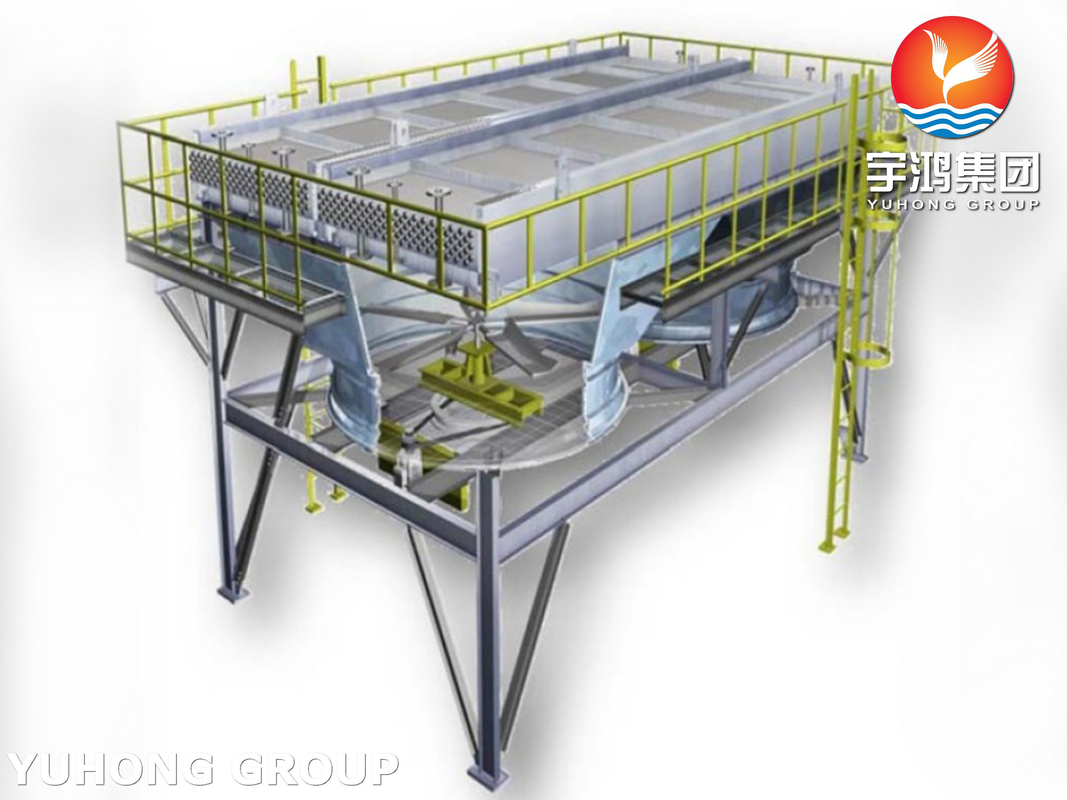

Yuhong Group forced draft type Air-Cooled Heat Exchanger is the most common style of air-cooled heat exchanger, the design positions the fans beneath the process tube bundle allowing easy access to all mechanical components.



Air Cooled Heat Exchanger‘s tube bundle is an assembly of tubes, headers, side frames, and tube supports as shown in Figure 2. Usually the tube surface exposed to the passage of air has extended surface in the form of fins to compensate for the low heat transfer rate of air at atmospheric pressure and at a low enough velocity for reasonable fan power consumption. The prime tube is usually round and of any metal suitable for the process, due consideration being given to corrosion, pressure, and temperature limitations. Fins are helical or plate type, and are usually of aluminum for reasons of good thermal conductivity and economy of fabrication. Steel fins are used for very high temperature applications.



Forced Draft Air Cooled Heat Exchangers API 661 Design Power Plant Application 0

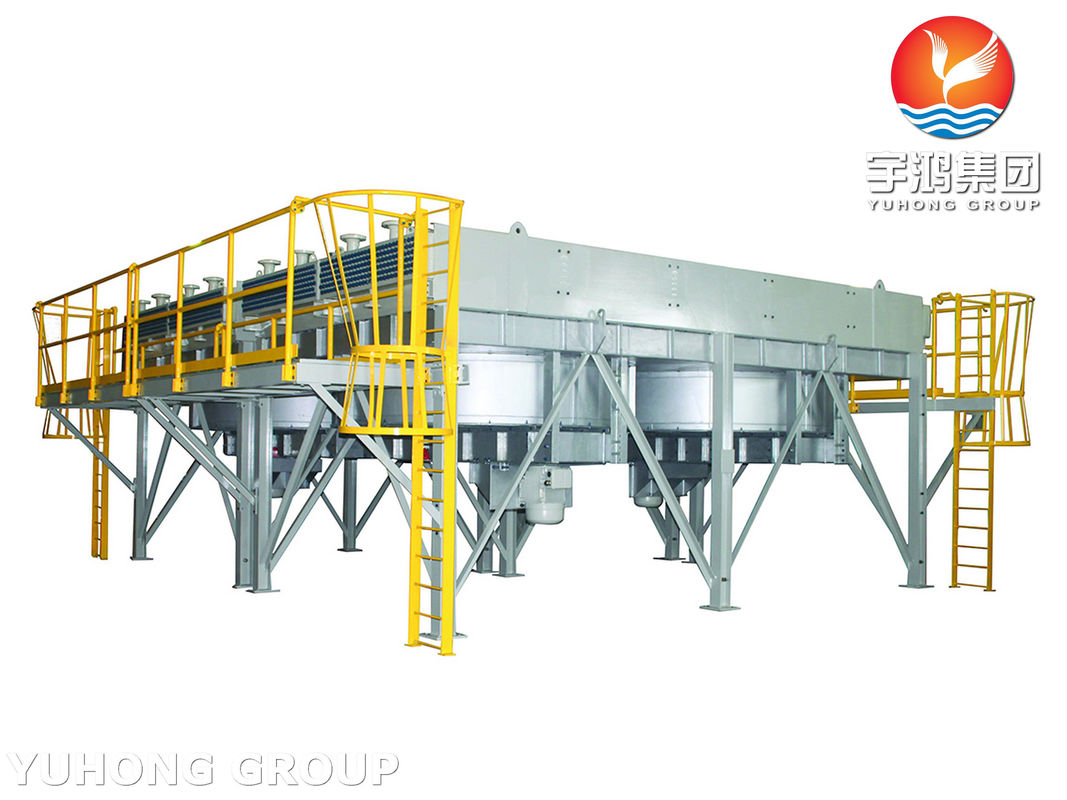

Air-Cooled Heat Exchanger Header type :



Forced Draft Air Cooled Heat Exchangers API 661 Design Power Plant Application 1

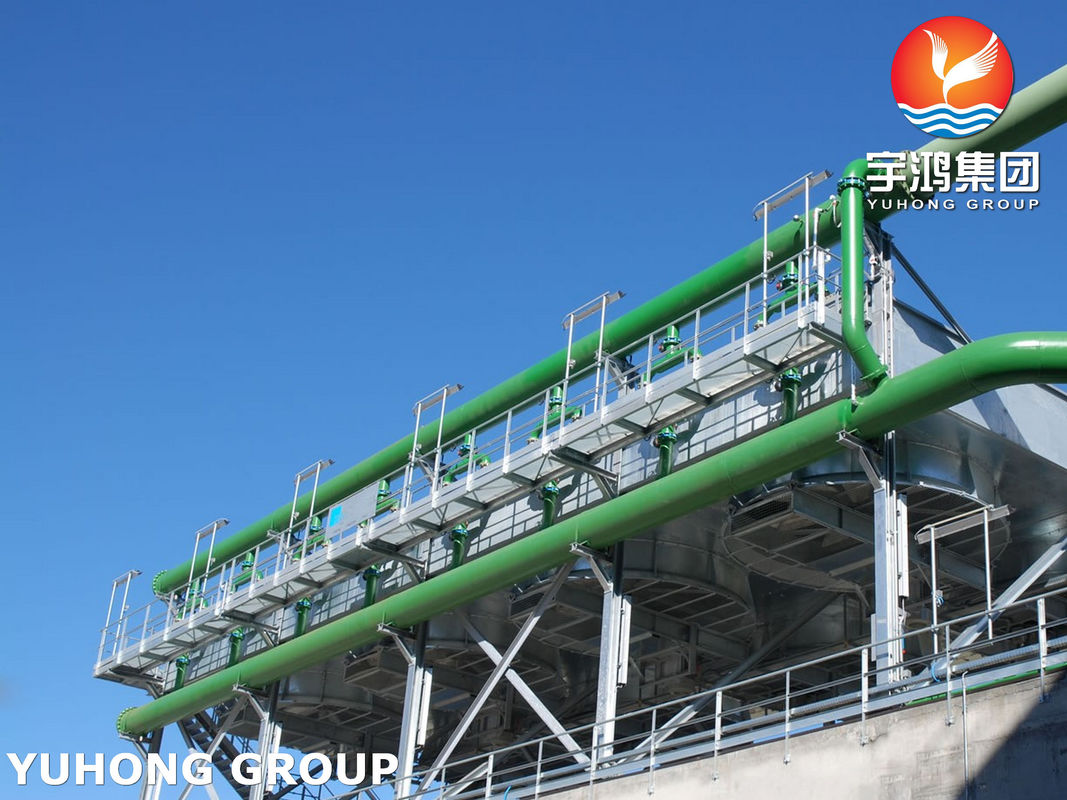

Air-Cooled Heat Exchanger Plenum:
The air plenum is an enclosure that provides for the smooth flow of air between the fan and bundle. Plenums can be box type or slopesided type. The slopesided type gives the best distribution of air over the bundles, but is almost exclusively used with induced draft because hanging a machinery mount from a slopesided forced draft plenum presents structural difficulties.



Forced Draft Air Cooled Heat Exchangers API 661 Design Power Plant Application 2
