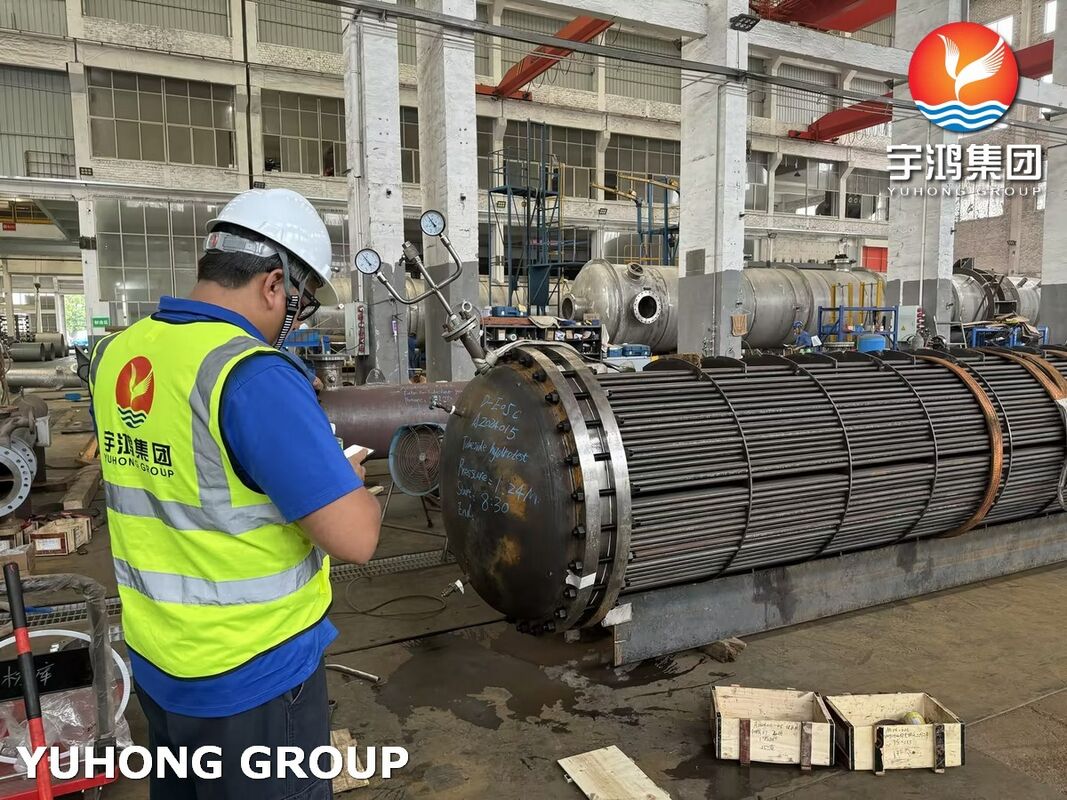

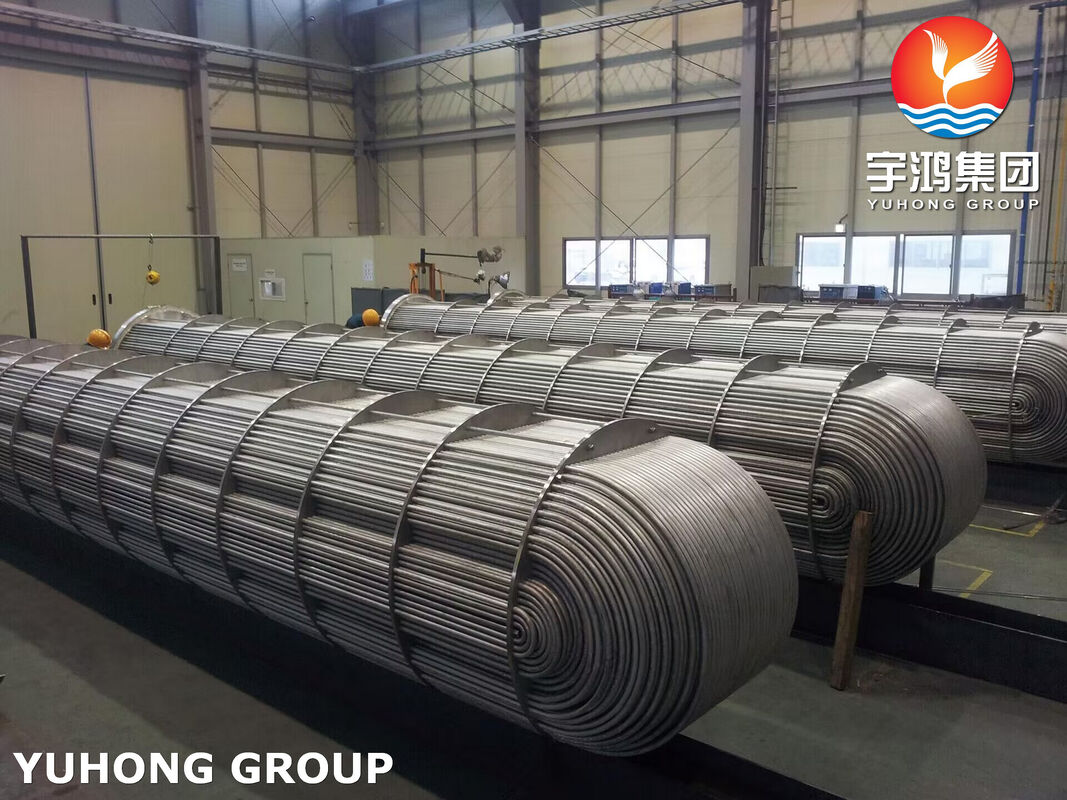

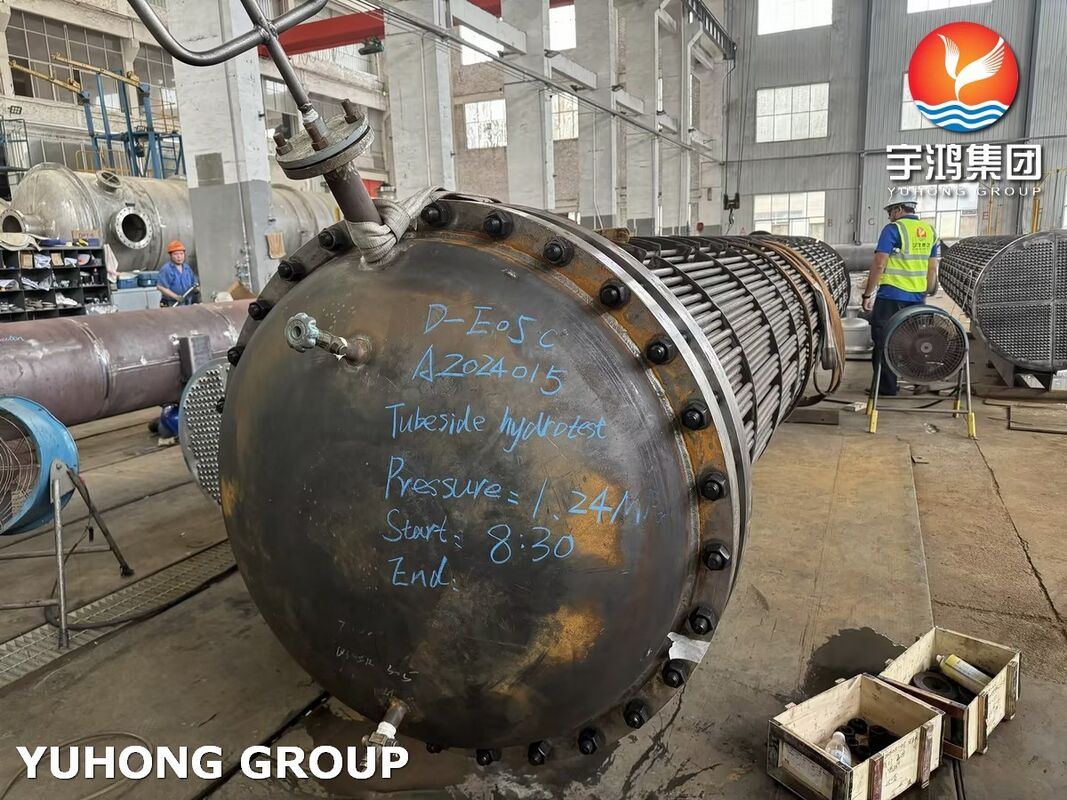

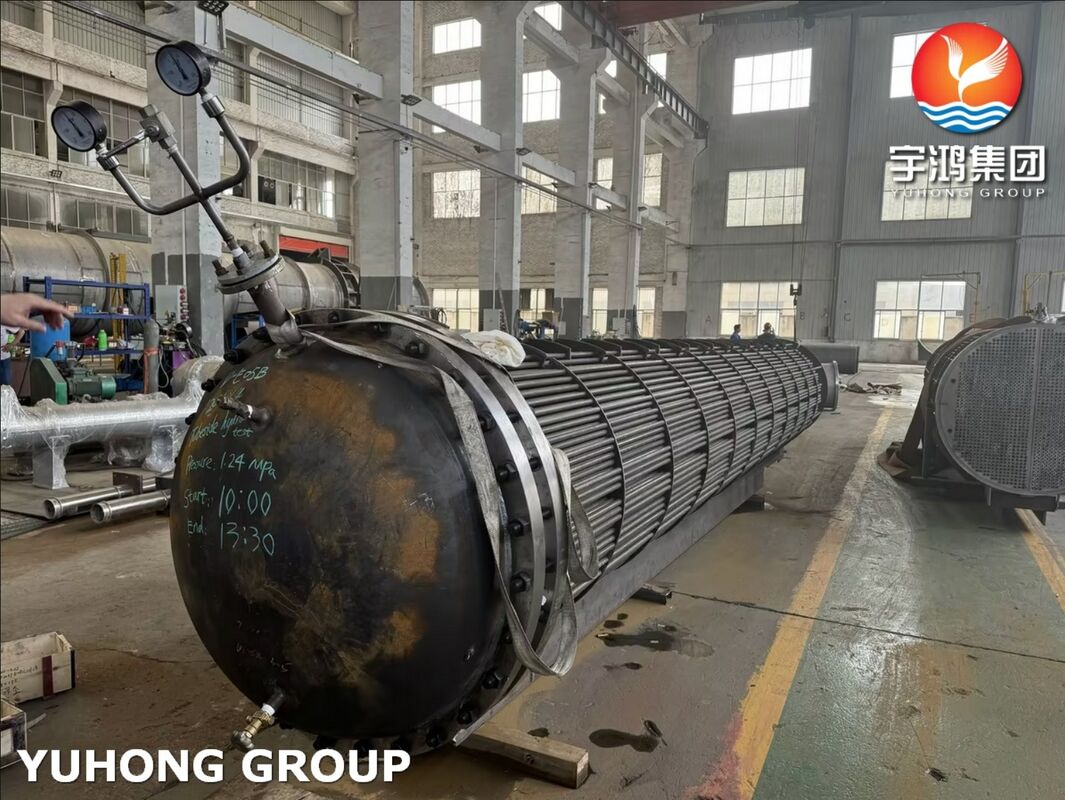

High-Efficiency Carbon Steel Tube Bundle with ASME SA179 Tubes and SA266 Gr.2 Tubesheet for Shell & Tube Heat Exchanger Replacement

ASME SA179 Carbon Steel Tube Bundle

High-Efficiency Shell & Tube Heat Exchanger Tube Bundle

Plug-and-Play Replacement Tube Bundle

Place of Origin:

CHINA

Brand Name:

YUHONG

Certification:

ASME, TEMA

Model Number:

CFU

Chat Now

Request A Quote

Product Details

Highlight:

ASME SA179 Carbon Steel Tube Bundle

High-Efficiency Shell & Tube Heat Exchanger Tube Bundle

Plug-and-Play Replacement Tube Bundle

Payment & Shipping Terms

Minimum Order Quantity

1 SET

Price

Depend on Detailed Drawings

Packaging Details

Ply-wooden Case /Iron Case/Rain cover and mesh bag

Delivery Time

30-80 Days

Payment Terms

T/T,L/C

Supply Ability

60 Sets/Month

Stainless Steel Tube Bundle For Heat Exchanger ASME SA213 / SA312 / SA249 / SA269

Chat Now

ASME Certificated Shell and Tuba Heat Exchanger Tube Bundle for Oil and Gas Industry

Chat Now

ASME SA213 GR.T91 Alloy Steel Seamless Tube Bundle ASME Section VIII Certified

Chat Now

ASTM B111 EN 12452 C70600 Copper Steel Tube Bundle For Heat Exchanger，Condensers

Chat Now

+8618892647377

jimmy@steelseamlesspipe.com

0086-574-88013900

Chat Now

Product Description

High-Efficiency Carbon Steel Tube Bundle

ASME SA179 Tubes & SA266 Gr.2 Tubesheet Shell & Tube Heat Exchanger Replacement

Yuhong Group: Engineering Reliability into Every Heat Transfer Solution

Yuhong Group Co., Ltd. is a trusted provider of industrial thermal equipment and precision components. We deliver engineered shell & tube heat exchangers, pressure vessels, and a comprehensive suite of maintenance and upgrade parts.

Product Focus: The High-Performance Carbon Steel Replacement Core

This carbon steel tube bundle is engineered as a direct, performance-matched replacement for existing shell and tube heat exchangers. It leverages the proven reliability of ASME SA179 seamless cold-drawn low-carbon steel tubes and the robust structural integrity of an ASME SA266 Grade 2 carbon steel tubesheet.

Component Architecture & Specifications

Core Assembly	Governing Material Standard	Primary Function & Engineering Rationale
Heat Exchanger Tubes	ASME SA179	Seamless, smooth-bore tubes ensure minimal flow resistance and efficient heat conduction.
Primary Tubesheet	ASME SA266 Grade 2	A forged or rolled carbon steel plate offering superior strength and dimensional stability for reliable tube anchoring.
Baffle System	Typically SA516 Gr. 70	Configurable (segmental, NTIW) to maximize cross-flow velocity and heat transfer coefficient while supporting tubes.
Tie Rods, Spacers & Sealing Strips	Carbon Steel	Maintains precise assembly geometry and prevents fluid bypass around the bundle edges.
Header / End Closure	SA105 or SA350 LF2	Forged steel component providing a secure and accessible interface for tube-side connections.

Technical Highlights and Customized Services

Heat transfer optimization design: We simulate and optimize tube bundle layout and baffle design based on your specific thermal parameters
Strict Quality and Traceability: All major pressure-bearing components come with Material Test Reports (MTR) compliant with ASME requirements
Seamless Replacement Commitment: Build-to-order service ensures full compatibility with your original equipment
Value-Added Services: Options such as corrosion-resistant coatings available to extend service life

Ideal Applications

HVAC & District Heating: Boilers, chillers, heat exchange stations
Power Industry: Generator air coolers, lubricating oil coolers, closed-loop water coolers
Industrial Manufacturing: Air compressor aftercoolers, hydraulic system coolers, process coolers
Marine & Offshore Platforms: Intercoolers, diesel engine coolers

Request Your Engineering Solution

To obtain a customized pipe clamp solution designed to improve the efficiency and reliability of your system, please provide equipment drawings or nameplate information. Contact Yuhong Group at jimmy@steelseamlesspipe.com for technical specifications and a tailored quote.
