Product Description

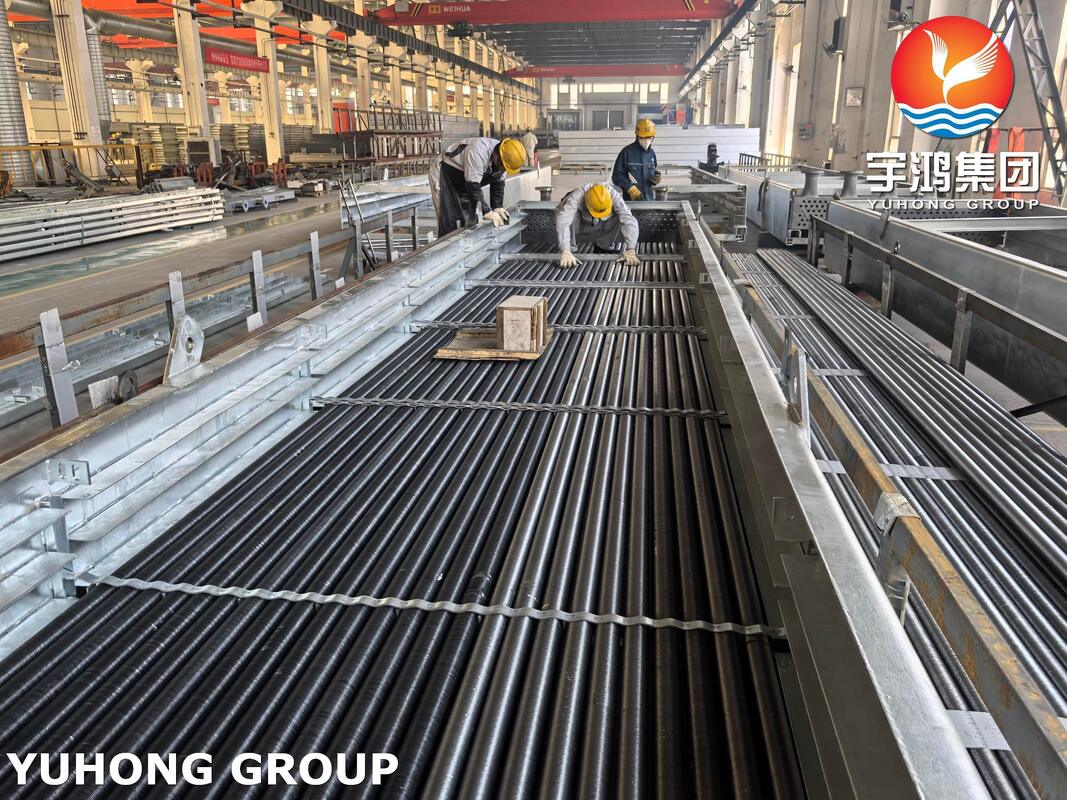

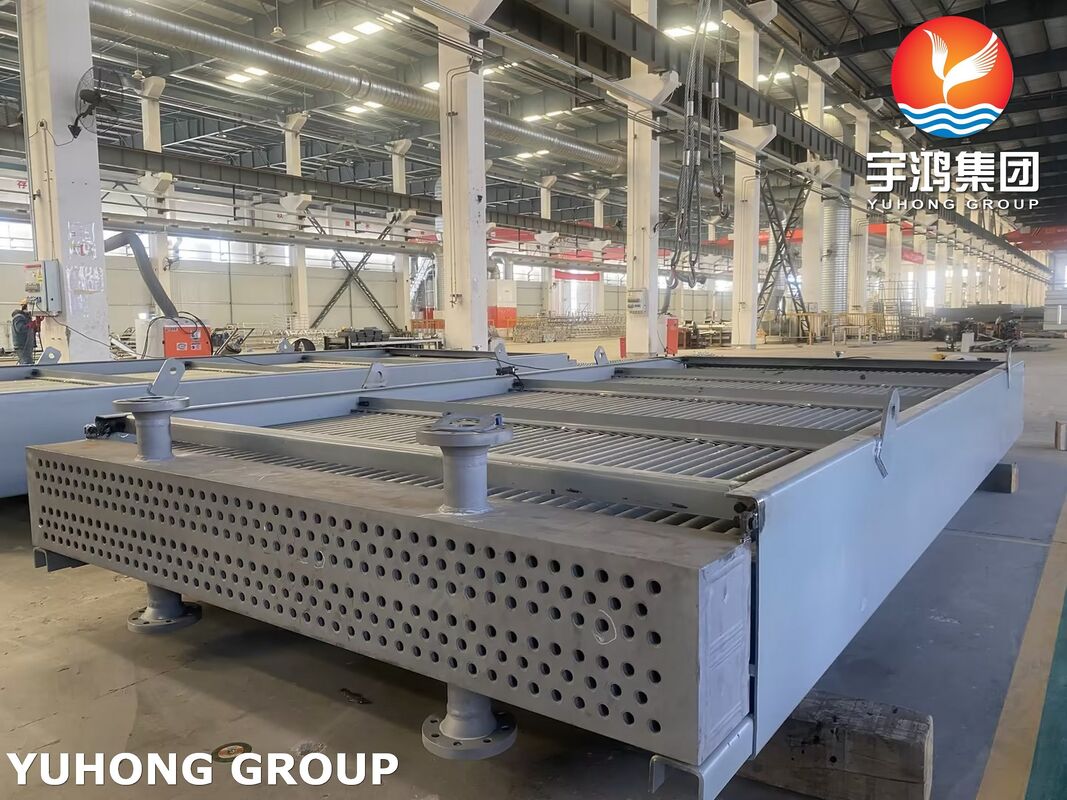

ASME SB163 Monel 400 Seamless Tube Bundle for Air Cooler

Yuhong Holding Group Co., Ltd. is a leading manufacturer of engineered thermal management equipment. Through our TEMA Heat Exchanger platform, we specialize in shell & tube heat exchangers, pressure vessels, air coolers (fin-fan coolers), and their high-performance components.

Product Overview

This Air Cooler Tube Bundle is engineered for superior performance in highly corrosive environments. It features ASME SB163 Monel 400 seamless tubes combined with high-thermal-conductivity A1060 aluminum extruded fins, ensuring long-term reliability and maximum heat dissipation efficiency.

Construction & Component Details

Component	Material Standard / Specification	Key Characteristics & Role
Heat Transfer Tubes	ASME SB163, Alloy 400 (Monel 400)	Seamless nickel-copper alloy tubes providing the primary corrosion barrier and pressure containment
Fins	A1060 Aluminum, Extruded Type	High-purity aluminum fins mechanically bonded to tubes, offering excellent heat transfer and corrosion resistance

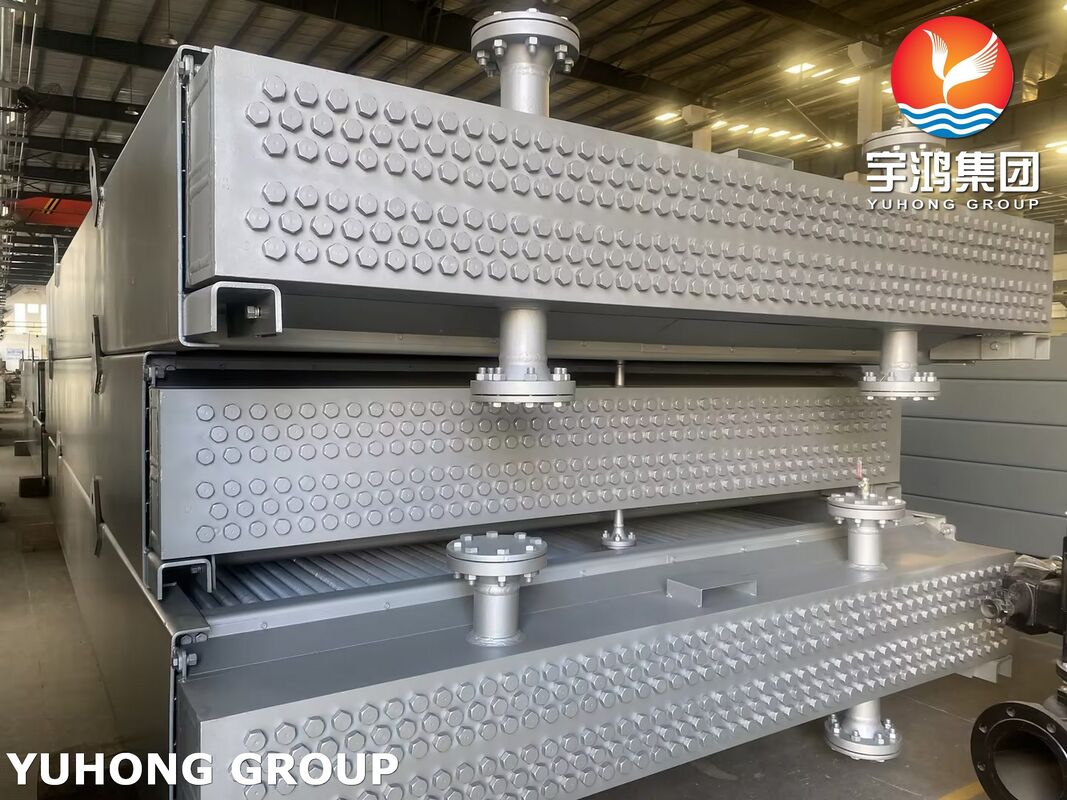

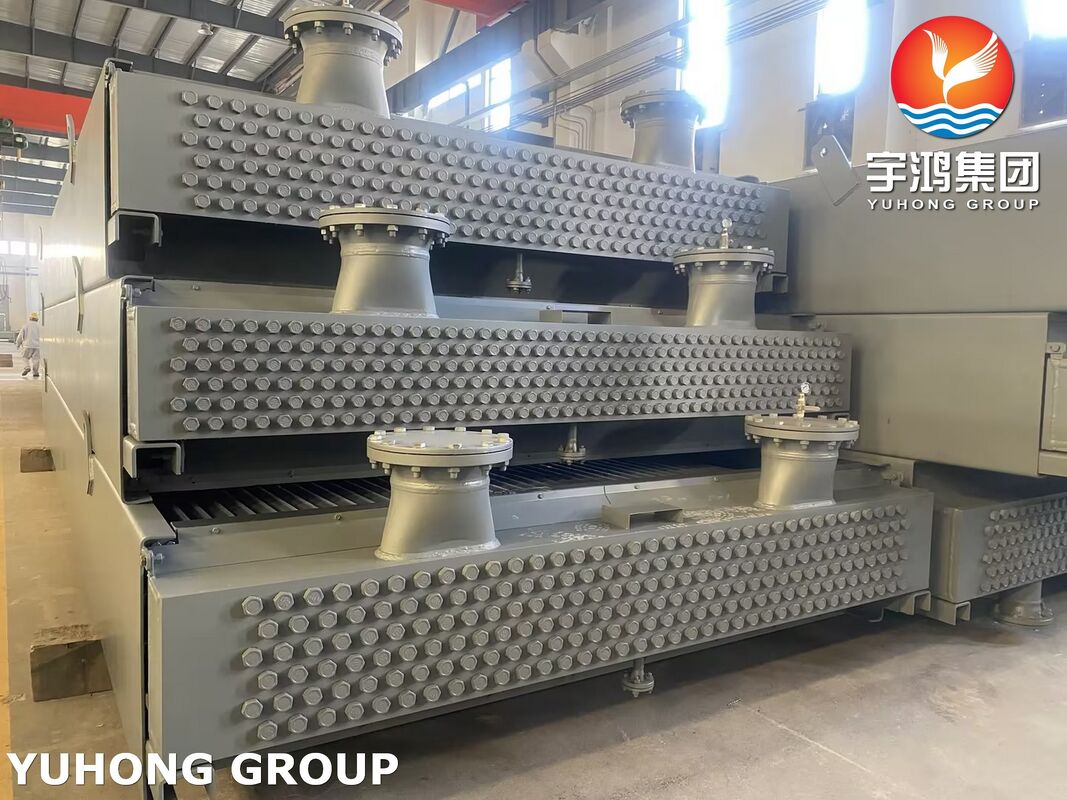

Header / Manifold	Typically Monel 400, Carbon Steel (lined), or ASME SB171 Alloy 400	Distributes and collects process fluid; material selected for compatibility with tube and service fluid
Side Frame / Support	Carbon Steel (galvanized or painted) or Stainless Steel	Provides structural rigidity to the entire tube bundle assembly
Nozzles	Forged to match Header material (e.g., SA182 F44)	Connection points for process fluid inlet and outlet

Technical Highlights & Advantages

Unmatched Corrosion Defense: Monel 400 tube core delivers outstanding resistance to chloride-ion stress-corrosion cracking, sulfuric and hydrofluoric acids, and alkalies
Optimized Thermal Performance: Extruded aluminum fins create a durable, integral fin-tube bond with minimal contact resistance, maximizing air-side heat transfer efficiency
Robust Mechanical Design: Constructed to withstand operational thermal cycling and vibration, ensuring stable fin-to-tube contact and long-term structural integrity
Custom Configuration: Tailored bundle dimensions, tube layout, fin density, and header design to match specific airflow, thermal duty, and spatial constraints

Typical Applications & Value

Critical Service Environments: Ideally suited for offshore oil & gas platforms, chemical processing plants, seawater cooling circuits, and marine applications
Lifecycle Cost Reduction: Exceptional durability of Monel 400 minimizes tube failure and fluid leakage, reducing unplanned downtime and maintenance costs
Efficiency Maintenance: Stable extruded fin design prevents fin loosening over time, maintaining consistent heat transfer performance

Request an Engineering Quote

Equip your critical air-cooling system with a bundle built for durability and performance. Contact Yuhong Holding Group at jimmy@steelseamlesspipe.com with your thermal duty, process fluid properties, and environmental data for a detailed technical proposal and competitive quotation.
