Product Description

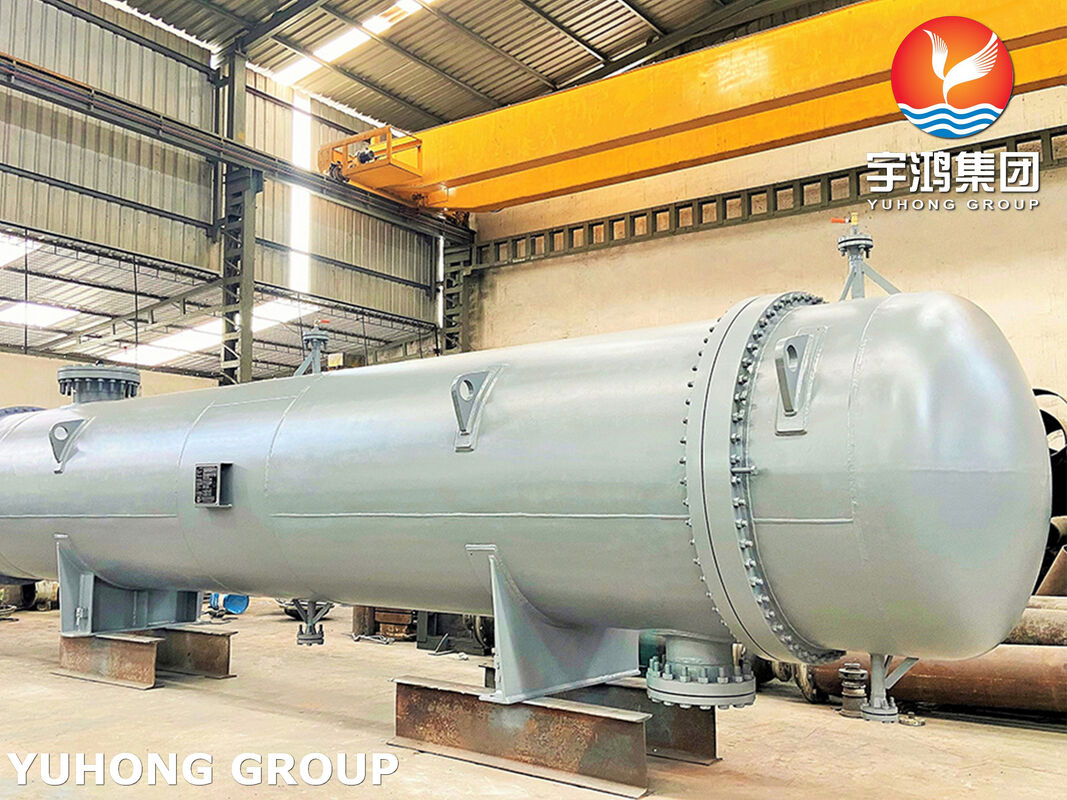

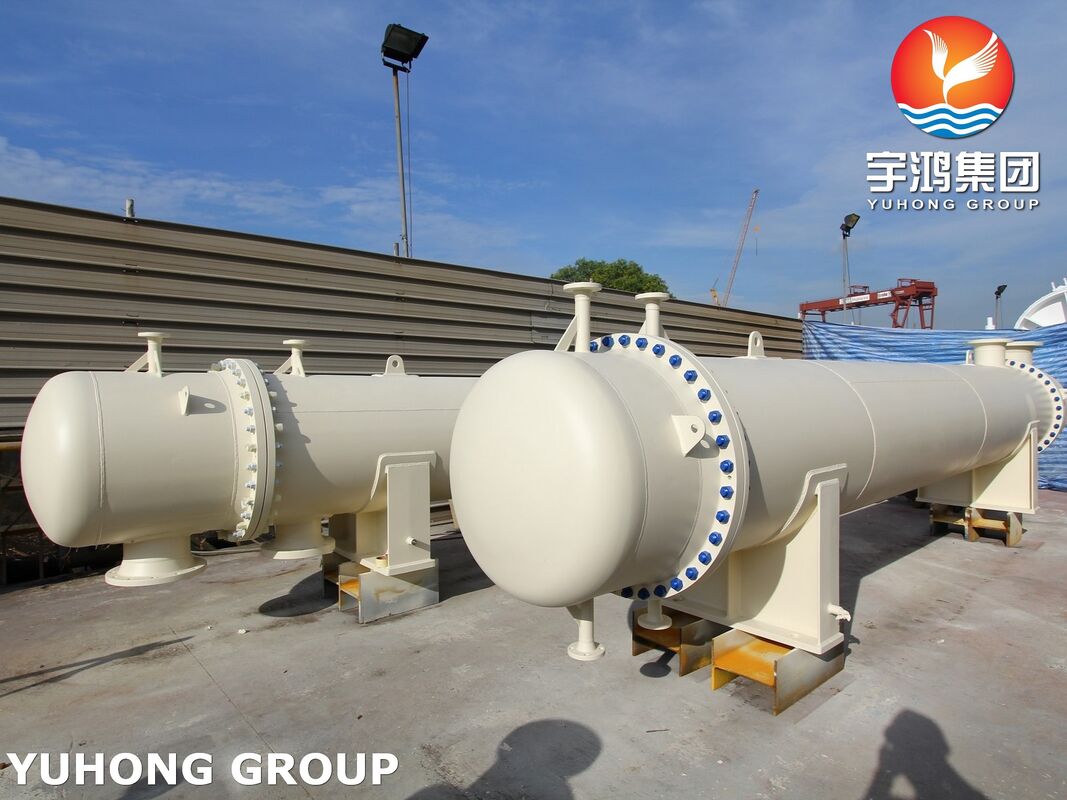

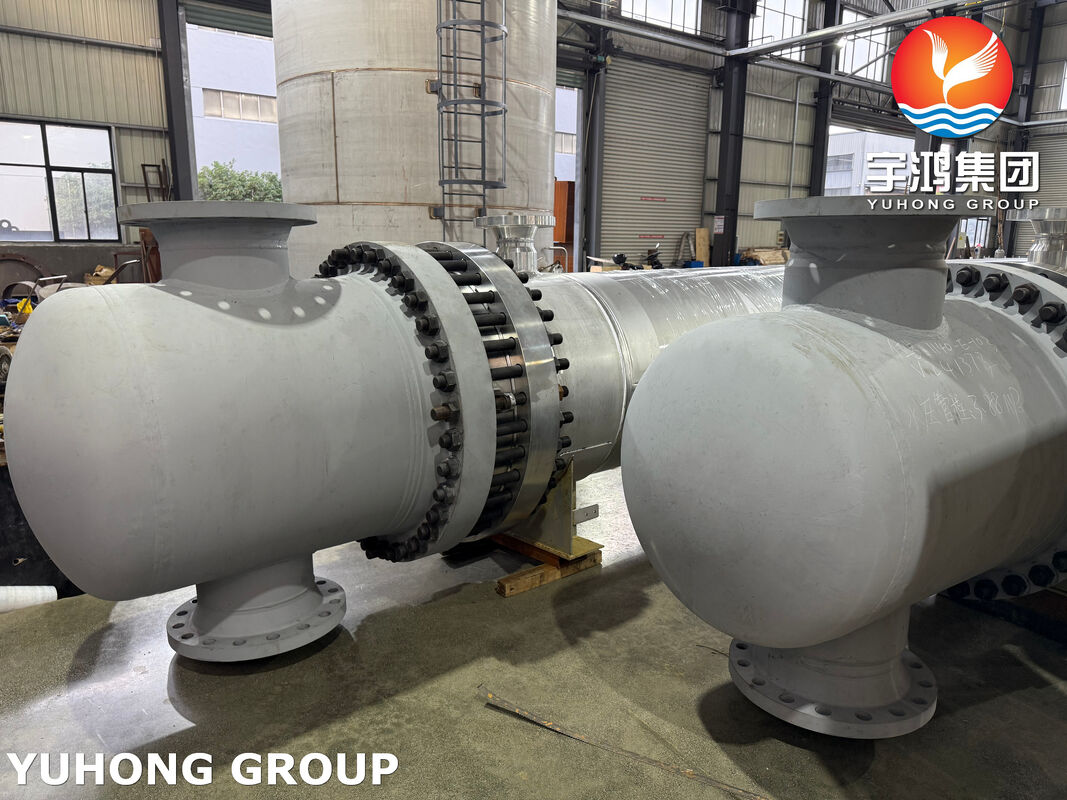

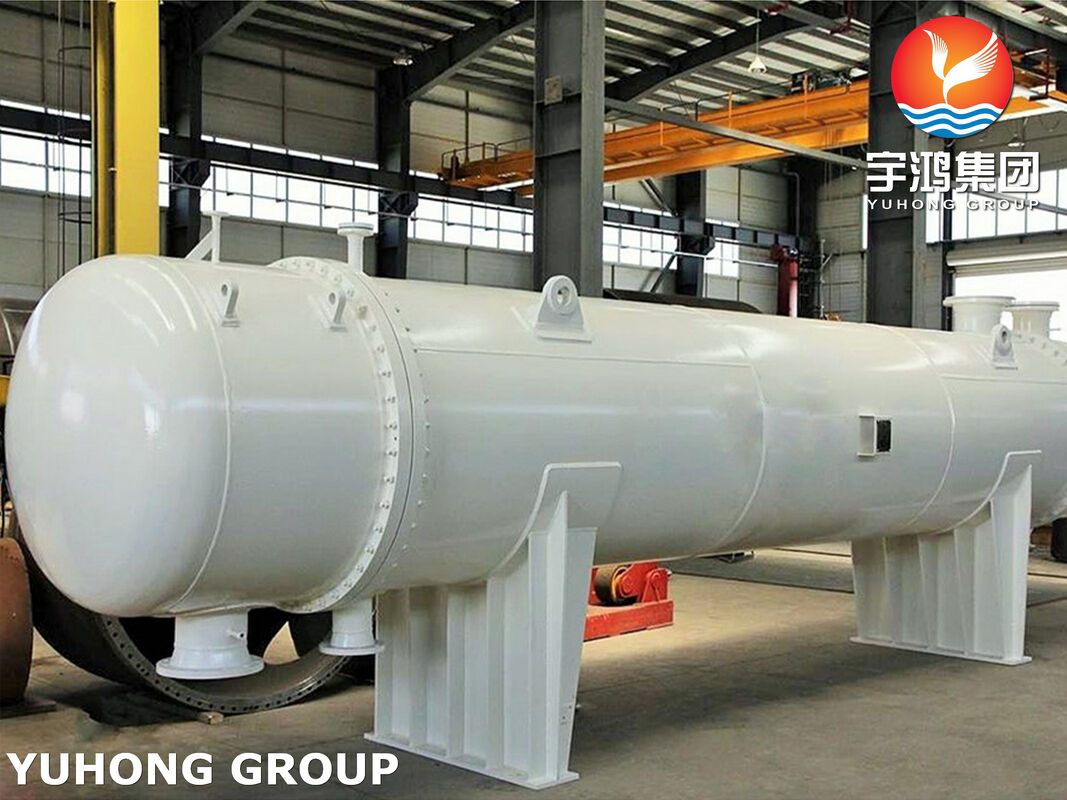

AES Type Floating Head Heat Exchanger

ASME SB213 TP316L Tubes | ASME U Stamp Certified

Yuhong Holding Group Co., Ltd. is a premier manufacturer of custom-engineered thermal and pressure equipment. Through our TEMA Heat Exchanger platform, we design and fabricate a full range of shell and tube heat exchangers (including Fixed Tube Sheet, U-Tube, and Floating Head types), pressure vessels, and air coolers. All our pressure equipment is ASME U Stamp certified, ensuring compliance with the highest international safety and quality standards.

Our AES Type Floating Head Heat Exchanger is designed for demanding process applications involving significant thermal expansion, high temperatures, and frequent maintenance needs. Fabricated under the ASME Boiler and Pressure Vessel Code and featuring ASME SB213 TP316L seamless stainless steel tubes, this unit delivers reliable, long-term performance in corrosive and thermally challenging services.

Key Construction & Material Specifications

Component	Typical Material Standard	Design Function & Advantage
Heat Exchanger Tubes	ASME SB213 TP316L	Seamless, low-carbon stainless steel offering excellent resistance to a wide range of corrosive chemicals and chloride pitting.
Tubesheets	ASME SA182 F316L (Fixed End) / SA266 Gr.2 (Floating End)	The floating end tubesheet is not welded to the shell, allowing free expansion. Materials are selected for weld compatibility.
Shell & Shell Cover	ASME SA516 Gr.70 or SA240 316L	Contains the shell-side fluid. Material is chosen based on process requirements.
Floating Head Assembly	Includes Cover, Gasket, & Bolting	Allows the tube bundle to expand and contract independently of the shell, eliminating thermal stress. Easily removable for maintenance.
Channel & Channel Cover	ASME SA516 Gr.70 or SA240 316L	Houses the tube-side inlet and outlet, allowing easy access to the tube ends for cleaning.
Baffles	ASME SA516 Gr.70 or SA240 316L	Support tubes and direct shell-side flow to maximize heat transfer efficiency.

Technical Highlights & Design Advantages

ASME U Stamp Assurance: Every exchanger is designed, fabricated, inspected, and stamped in accordance with the ASME Boiler and Pressure Vessel Code, Section VIII, Division 1. This provides global recognition of safety, quality control, and material traceability.
Stress-Free Thermal Expansion: The floating head design completely isolates the tube bundle from the shell, allowing unrestricted differential thermal expansion. This prevents stress buildup and is critical for high-temperature applications or large temperature differences.
Superior Maintainability: The entire tube bundle can be withdrawn after removing the rear cover, granting full access to the external tube surfaces for mechanical cleaning, inspection, or tube replacement. This makes it ideal for services prone to fouling.
Corrosion-Resistant Core: The use of TP316L stainless steel tubes provides a robust defense against a broad spectrum of corrosive process streams, ensuring longevity and reducing lifecycle costs.

Typical Applications & Value Proposition

Versatile Process Solution: Ideal for refinery services, chemical processing, high-temperature heat recovery, viscous fluid heating/cooling, and other applications requiring easy maintenance and thermal flexibility.
Reduced Lifecycle Costs: The design drastically reduces downtime for maintenance and cleaning. Combined with the durability of TP316L tubes, this results in lower total cost of ownership over the equipment's lifespan.
Global Project Compliance: The ASME U Stamp ensures the unit meets the stringent requirements for projects worldwide, facilitating approvals and accelerating deployment.

Request a Custom Design

Leverage our ASME-certified engineering expertise for your next critical project. Contact Yuhong Holding Group at jimmy@steelseamlesspipe.com with your process conditions to receive a detailed technical proposal and a competitive quotation.
