Energy-Efficient API 661 Air Cooled Exchanger Fin Fan Cooer Forced Draft High Reliability

Product Overview: Engineered for Efficiency and Reliability

Our Energy-Efficient API 661 Air Cooled Heat Exchanger (Fin Fan Cooler) represents the pinnacle of reliable, cost-effective process cooling for industrial applications. Designed and manufactured in strict compliance with the API 661 Standard for forced-draft units, this fin fan cooler is engineered to deliver superior thermal performance while minimizing energy consumption and total cost of ownership. The robust forced draft design places the fans beneath the tube bundle, ensuring optimal airflow management, easier maintenance access, and enhanced operational reliability in the most demanding environments, from oil refineries and gas plants to power generation facilities.

Core Design & Performance Features

API 661 Compliance Guaranteed: Every unit is designed, fabricated, and tested to meet or exceed the rigorous mechanical and performance standards outlined in API Standard 661 (Petroleum, Petrochemical, and Natural Gas Industries – Air-Cooled Heat Exchangers), ensuring interoperability, safety, and global project acceptance.

Forced Draft Design Advantages: The forced draft configuration offers significant benefits:

Easier Maintenance: Fans and drivers are located at ground level for safe and simple inspection, servicing, or belt replacement without disturbing the finned tube bundle.

Protected Tube Bundles: The tube bundles are positioned in the positive pressure zone above the fans, reducing the accumulation of debris and protecting fins from direct weather exposure, which can extend service life.

Stable Performance: Provides more uniform air distribution across the bundle face for consistent cooling.

Optimized for Energy Efficiency: We achieve superior energy efficiency through:

High-Efficiency Fans & Motors: Utilizing Class I or II fans paired with premium efficiency or VFD-driven motors to match exact air flow requirements.

Advanced Fin Tube Technology: Custom-engineered finned tubes (embedded G-fin, L-fin, or extruded) maximize air-side heat transfer coefficients, allowing for compact bundle design and reduced fan horsepower.

Intelligent Controls: Optional automatic louvers and variable frequency drives (VFDs) modulate air flow precisely to process demand, eliminating energy waste during off-peak or cooler ambient conditions.

Built for High Reliability & Uptime:

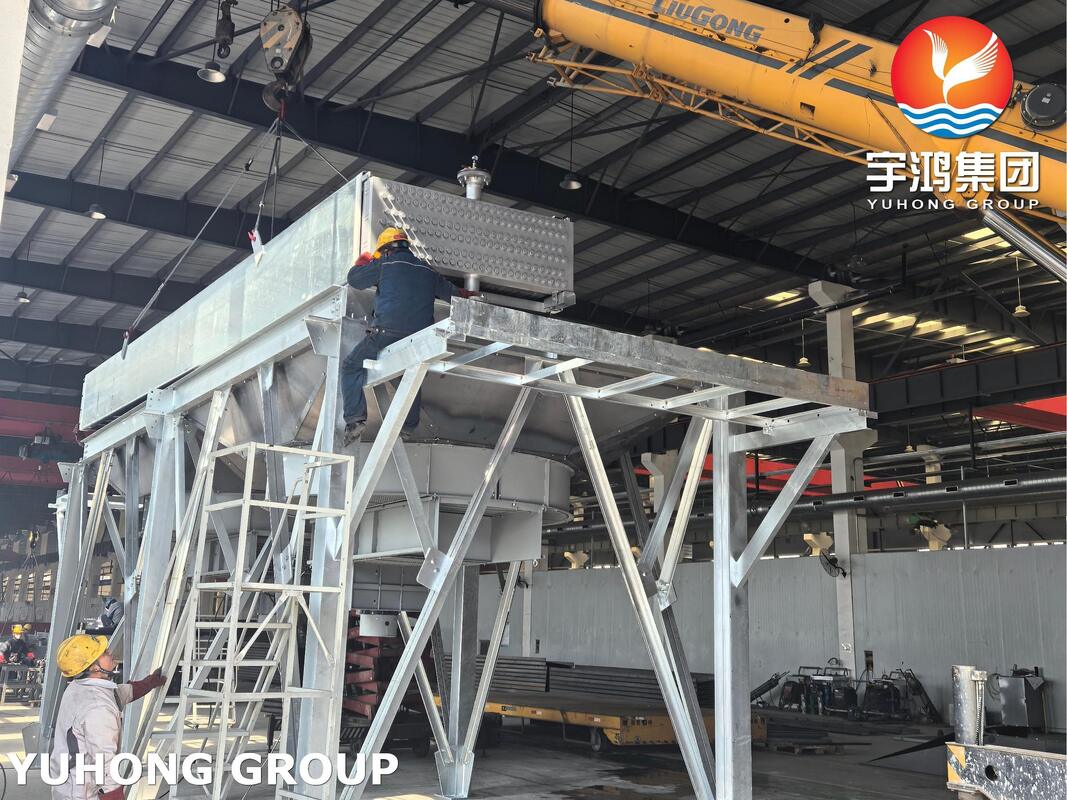

Robust Construction: Heavy-duty steel structure, vibration-resistant tube bundles with proper support, and corrosion-protected components.

Quality Components: Industrial-grade fans, plenums, headers, and louver systems designed for continuous operation.

Redundancy Options: Configurable for multiple fan bays to allow continued operation at reduced capacity in case of a single fan shutdown.

Applications

This forced-draft air cooler is ideal for a wide range of cooling and condensation duties, including:

Oil & Gas Refining: Cooling refined products (gasoline, diesel), process water, amine, and compressor aftercoolers.

Gas Processing & LNG: Cooling natural gas, condenser duty for refrigeration cycles, and final product coolers.

Power Generation: Cooling turbine lube oil, closed cooling water loops, and auxiliary system fluids.

Chemical & Petrochemical: Condensing process streams and cooling reactor effluents.

Technical Specifications & Customization

Our air coolers are fully custom-engineered to your process duty. Key specifications include:

Design Standard: API 661 (Latest Edition)

Type: Forced Draft (Fans below bundle)

Heat Duty Range: Custom, from small skid-mounted units to large multi-bay coolers.

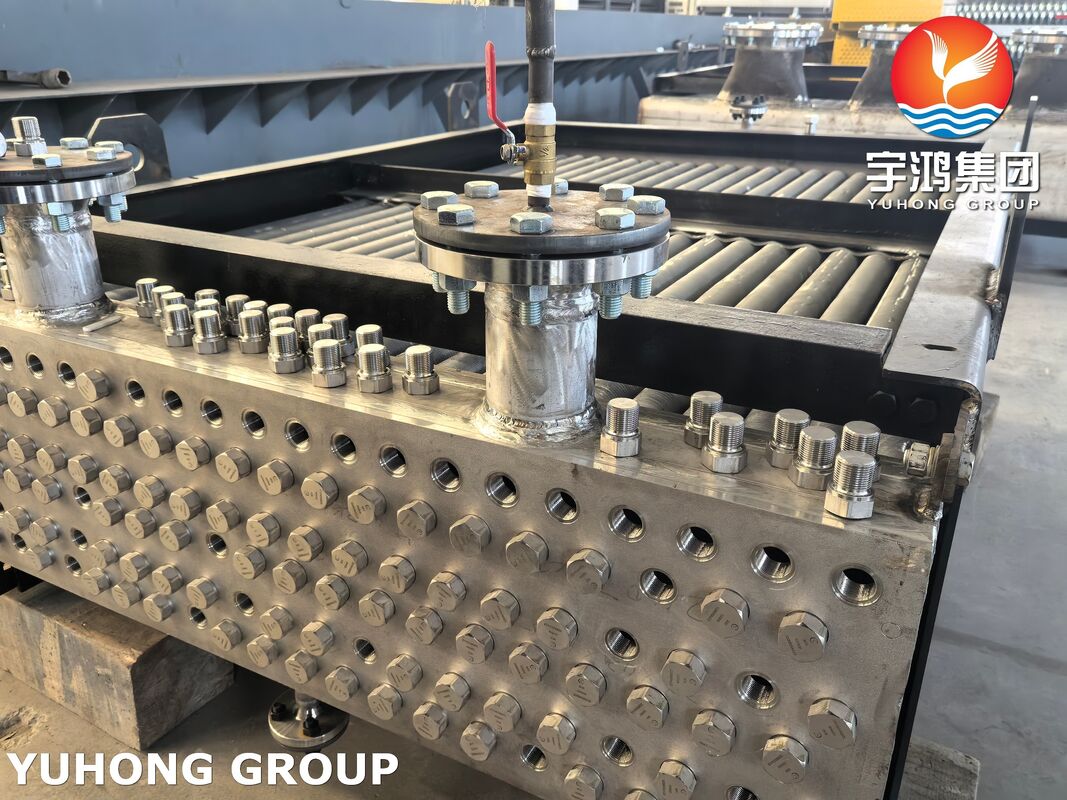

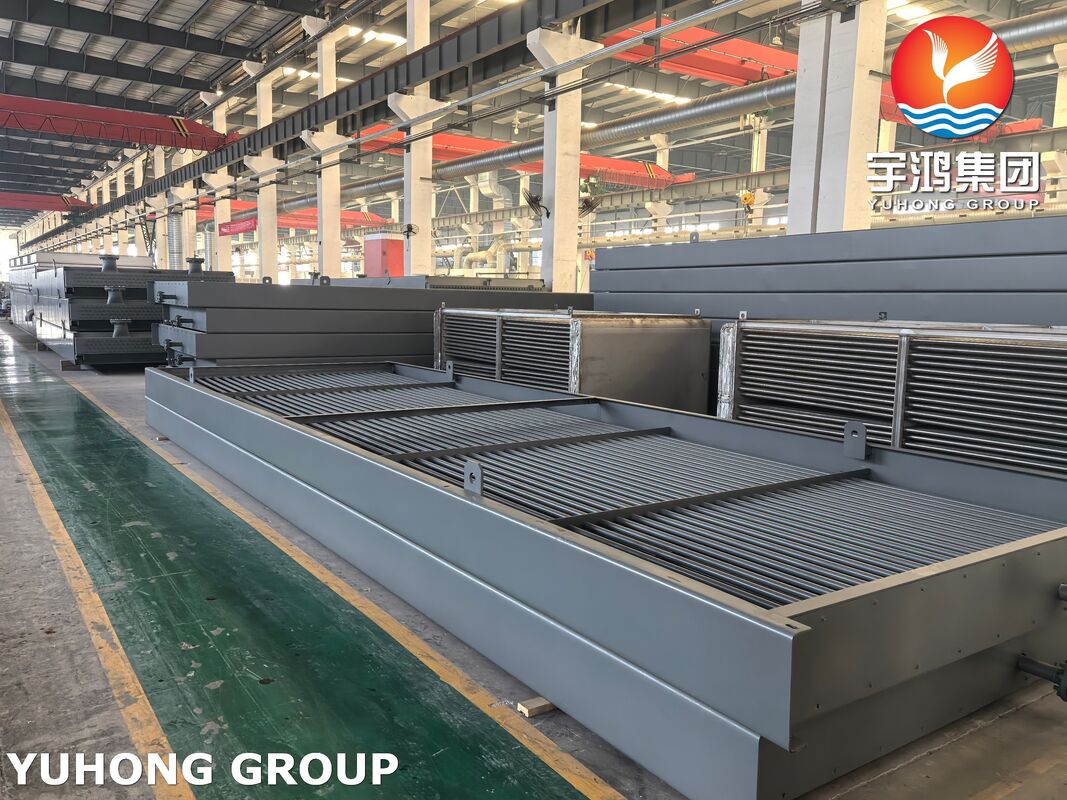

Tube Bundle: Finned tubes per ASTM/ASME standards. Materials include carbon steel tubes with aluminum fins (ASTM A179 + Al Fin) or various stainless steel/alloy options for corrosive services.

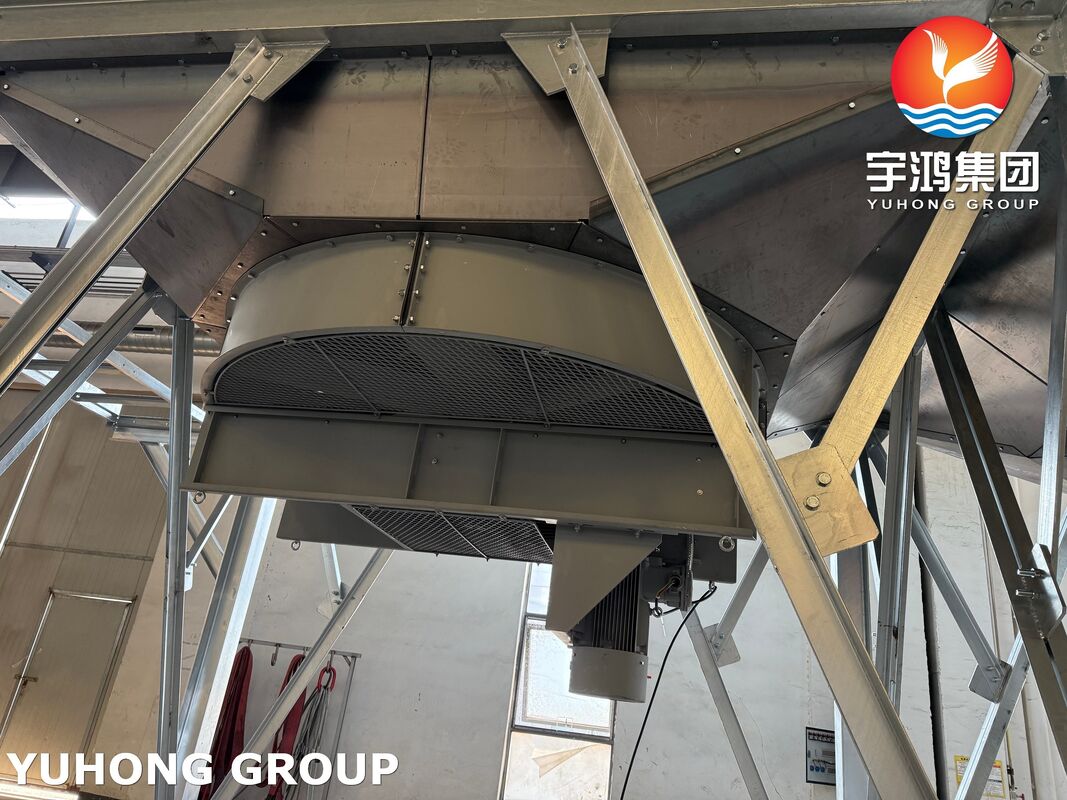

Fans & Drivers: Industrial axial fans with adjustable pitch or fixed blades. Driven by electric motors (optional VFD) or steam turbines.

Structure & Plenum: Carbon steel, with optional coatings or galvanization. Weatherproof plenum design.

Optional Features: Louvers (manual/auto), walkways, platforms, recirculation systems for winter operation, noise attenuation.

Why Partner With Us?

We are more than a manufacturer; we are your cooling solution partner. Our engineering team performs precise thermal and mechanical design to ensure your API 661 air cooler meets exact performance targets with optimal energy use. We focus on durability and serviceability, delivering a unit that maximizes uptime and minimizes lifetime operating costs.
