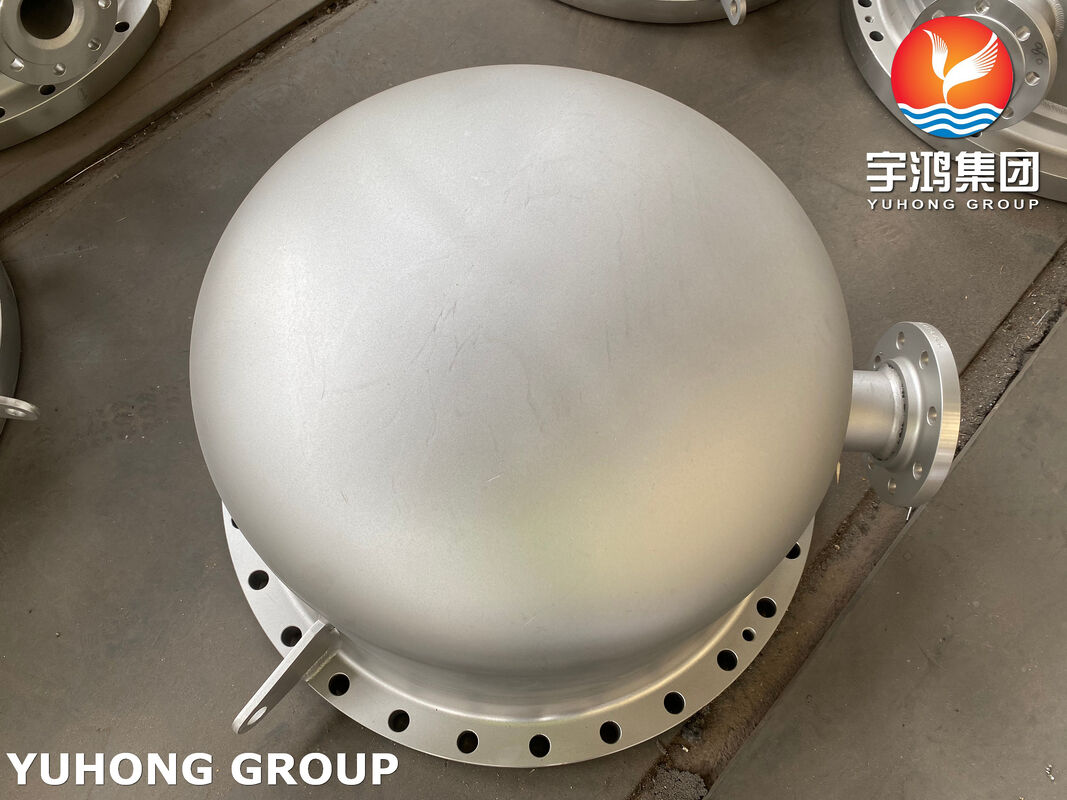

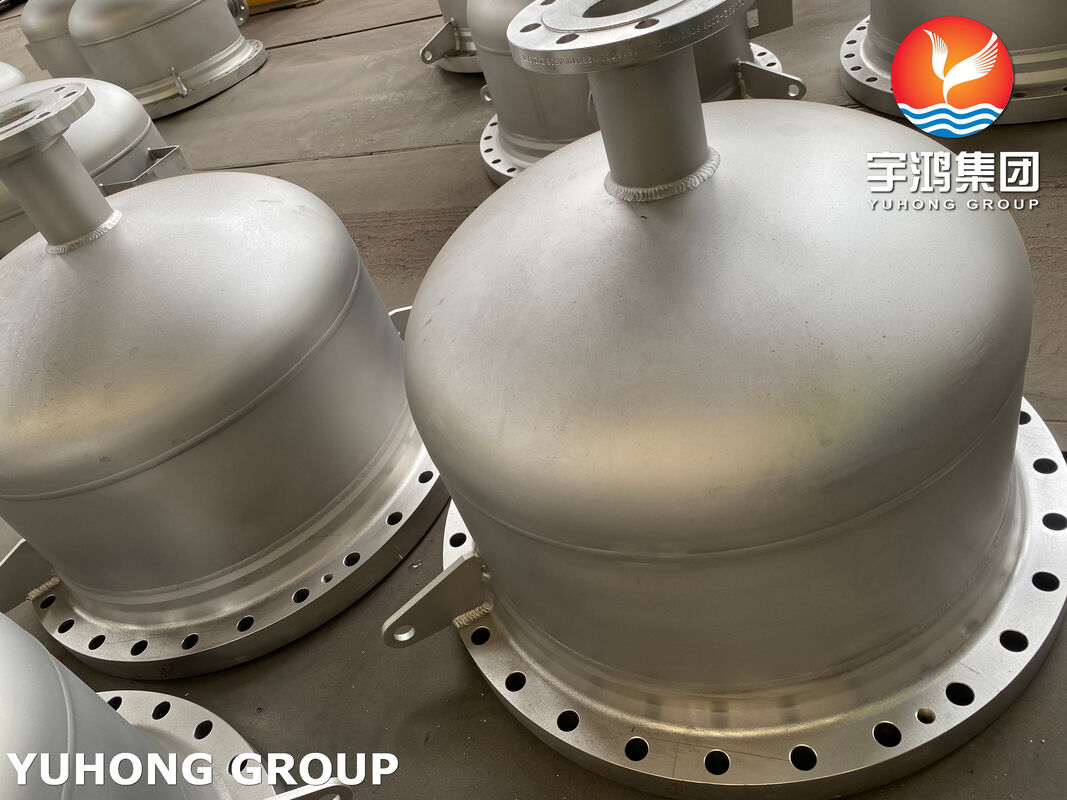

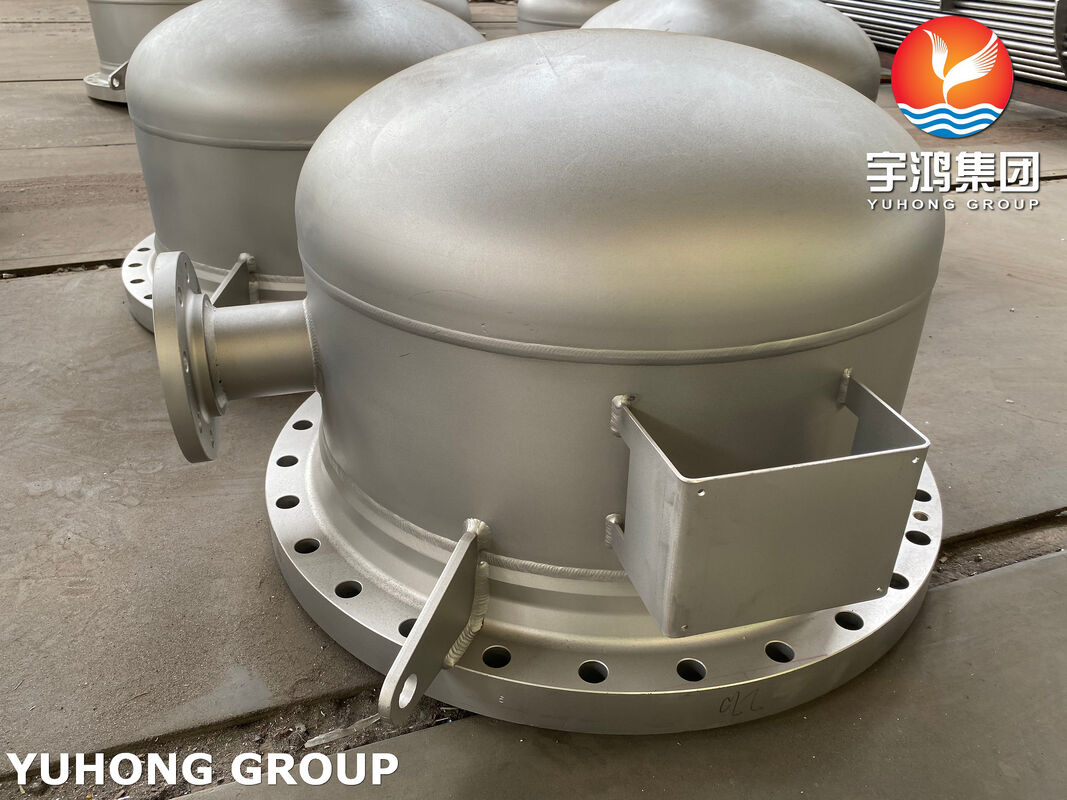

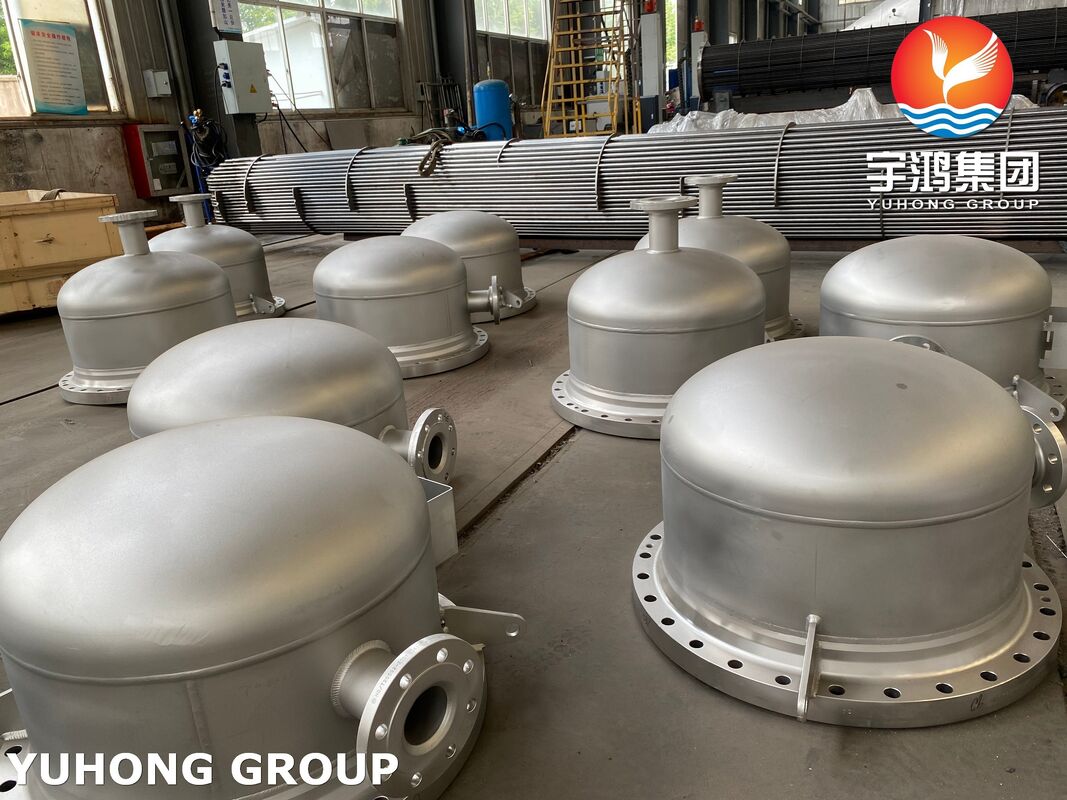

Heat Exchanger Front Head Channel Box
ASME Code Construction with A/B/C/D Type Options for Tube-Side Distribution
About Yuhong Group
Yuhong Group Co., Ltd. is a comprehensive supplier of engineered thermal equipment and precision components. We manufacture custom shell & tube heat exchangers, pressure vessels, and a full spectrum of replacement parts, including tube bundles, U-tubes, heat exchanger tubes, finned tubes, and all critical accessories such as tubesheets, baffles, and channel heads.
Product Overview: Front Head Channel Box
The front head channel box, also known as the stationary head or header, is a vital component of any shell and tube heat exchanger. It serves as the inlet and outlet chamber for the tube-side fluid, distributing the flow into the tubes and collecting it upon exit. Manufactured to ASME Code requirements, our channel boxes are available in various TEMA standard types—including A (Channel and Removable Cover), B (Bonnet), C (Channel Integral with Tubesheet), and D (Special High Pressure Closure)—to match your specific exchanger configuration and service conditions.
Component Specifications
| Channel Box Component |
Available Material Standards |
Function & Customization Notes |
| Main Channel Shell |
ASME SA516 Gr.70, SA240 304/316L, SA105 |
The cylindrical body containing the fluid chamber; material selected based on tube-side corrosivity and pressure. |
| Channel Cover (for A-Type) |
ASME SA516 Gr.70 or SA240 316L |
Removable cover providing access to tube ends for inspection, cleaning, or plugging without disturbing piping. |
| Bonnet (for B-Type) |
Cast Iron, SA105 Forged, or SA350 LF2 |
An integral cover design offering a compact, leak-resistant closure for the channel. |
| Nozzles / Connections |
SA105 Forged, SA182 F316L |
Inlet and outlet ports for tube-side fluid; available in various sizes, ratings, and orientations. |
| Pass Partitions |
Same as channel material |
Divides the channel into multiple passes (2-pass, 4-pass, etc.) to increase tube-side velocity and heat transfer. |
| Gaskets & Bolting |
Various (Spiral Wound, Metal-Jacketed) + SA193 B7 Studs |
Ensures leak-tight sealing between channel, tubesheet, and cover under operating pressure and temperature. |
TEMA Standard Front-End Head Designs
Type A - Flat Cover Channel (Channel and Removable Cover)
One of the most common designs. The head body is welded to the tube sheet or cast integrally, sealed by a removable flat cover. Advantages: The tube ends can be inspected or plugged by removing the flat cover without dismantling pipe connections, making maintenance convenient.
Type B - Bonnet/Integral Cover
The head body and cover are an integral design, like a "hat" directly fixed to the tube sheet with bolts. Advantages: Compact structure, fewer sealing surfaces, suitable for space-constrained applications or applications with strict leakage risk requirements.
Type C - Channel Integral with Tubesheet
The head body and tube sheet are forged or cast as a single component. Advantages: Eliminates the sealing surface between the head and tube sheet, suitable for high-pressure conditions or services with zero tolerance for leakage.
Type D - Special High Pressure Closure
Designed for extremely high pressures, it employs a special sealing structure (such as lens gaskets, double cone seals, etc.) to ensure reliability under extreme pressures.
Key Features & Benefits
- Fully ASME Compliant Manufacturing: All end caps and tube boxes are designed, manufactured, and inspected according to ASME standards, providing complete Material Quality Reports (MTR) and manufacturing data reports.
- Multi-Pass Design Support: Based on thermal calculations, partitions can be installed within the channels to achieve 2, 4, 6, or more tube passes, optimizing flow rates and heat transfer coefficients.
- Material Combination Flexibility: For corrosive tube-pass fluids, stainless steel lining, weld overlay, or composite plate structures can be used, ensuring corrosion resistance while reducing costs.
- Customized Nozzle Placement: Nozzles can be placed at any angle and location to meet your piping layout requirements, simplifying on-site piping work.
Typical Application Areas
The front-end end cap box is a key component in various heat exchanger configurations, widely used in:
- Refining and Petrochemical Industry: Reactor feed/discharge heat exchangers, tower top condensers
- Power Industry: High-pressure heaters, low-pressure heaters, condenser water chambers
- Marine and Shipbuilding: Seawater coolers, intercoolers
- General Industry: Process heaters, coolers, reboilers
Request a Custom Quote
Whether you need a standard Type A flat-cover channel, a Type B end cap box, or a Type C or D design to meet high-pressure requirements, our engineering team can provide a precisely matched solution based on your drawings or process parameters. Please send your technical requirements to jimmy@steelseamlesspipe.com for detailed technical confirmation and a quotation.
