Removable Bundle Shell and Tube Heat Exchanger for Refinery and Petrochemical Processing
Product Overview
The removable bundle shell and tube heat exchanger is designed for industrial systems where efficient heat transfer and convenient maintenance are equally important. This type of exchanger features a tube bundle assembly that can be withdrawn from the shell, allowing operators to access the internal components for inspection, cleaning, and servicing.
In many refinery and petrochemical processes, heat exchangers are exposed to fouling, scaling, or corrosive media. A removable bundle configuration makes it possible to perform routine maintenance without dismantling the entire equipment, helping plants maintain stable production and reduce downtime.

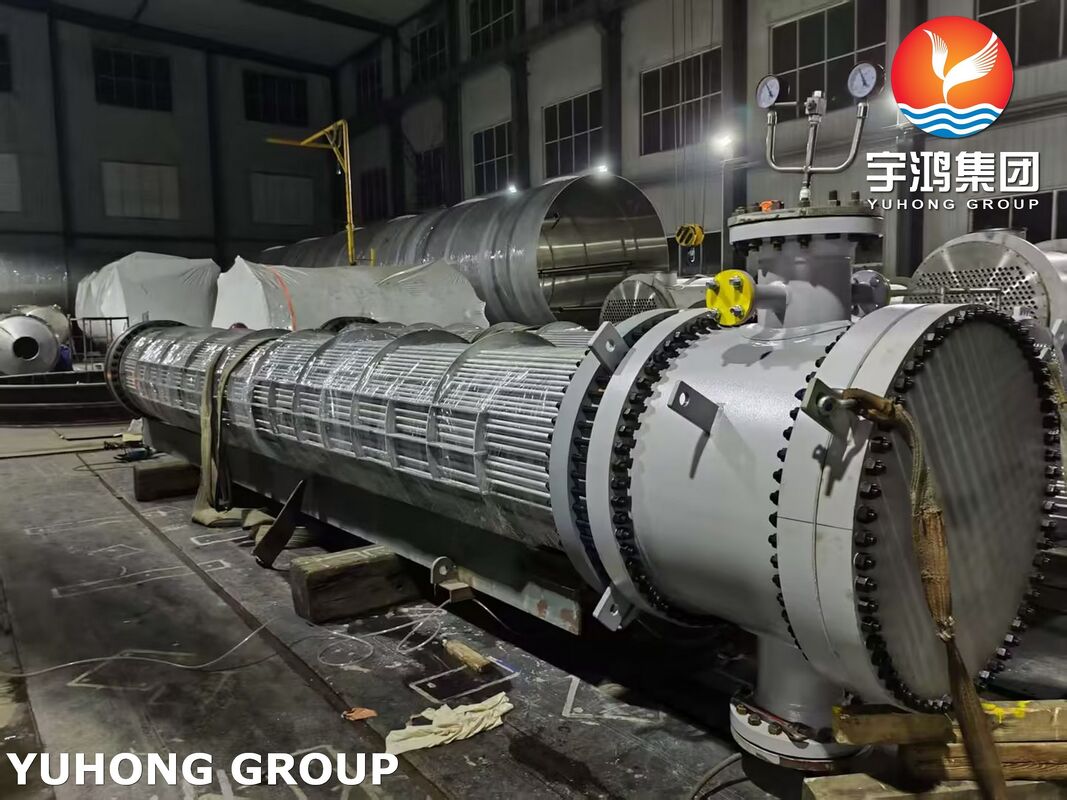

The exchanger consists of a cylindrical shell, tube bundle, channel head, and flanged connections. Fluids flow separately through the tubes and shell side, transferring heat across the tube walls while preventing direct mixing of the process media.
Key Features

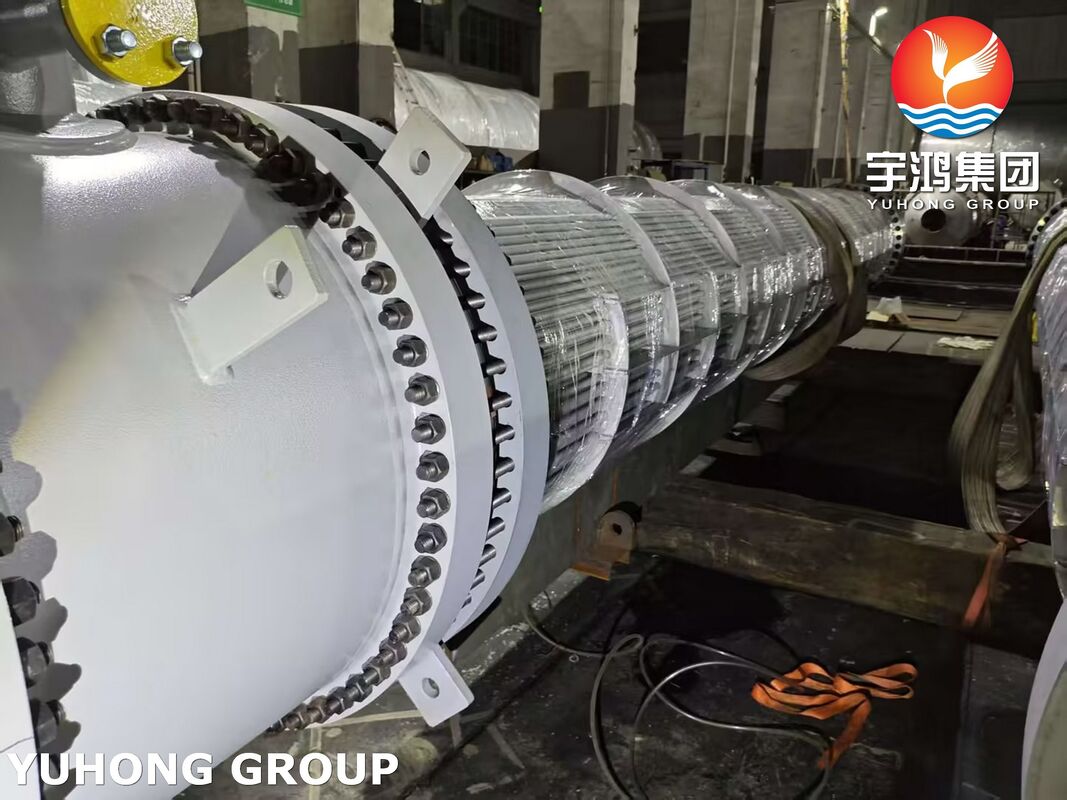

Removable Tube Bundle Design
The tube bundle can be extracted from the shell, allowing easier inspection, cleaning, and maintenance.
High Heat Transfer Performance
Multiple tubes provide a large heat transfer surface area, improving process efficiency in industrial operations.
Durable Pressure Equipment Structure
The exchanger is built to withstand demanding process conditions including high pressure and elevated temperatures.
Flexible Material Selection
Construction materials can be selected according to process requirements, including carbon steel, stainless steel, and alloy materials.

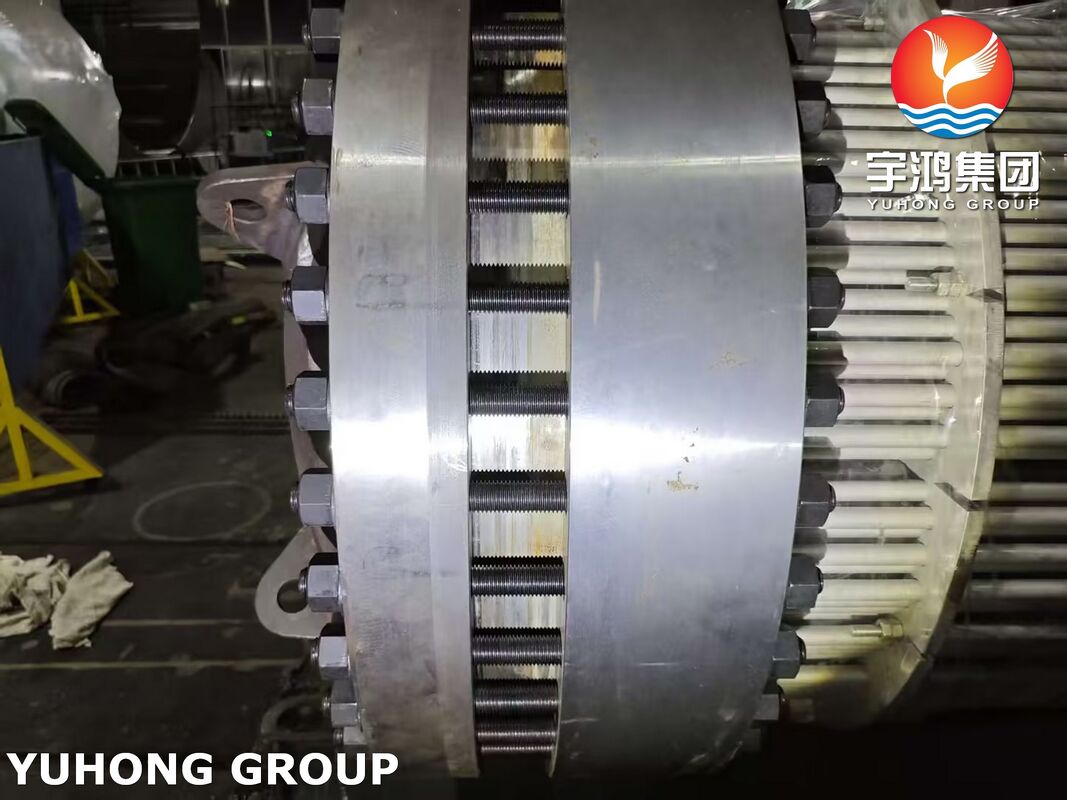

Convenient Mechanical Access
Flanged channel heads and bolted connections simplify maintenance procedures in industrial plants.
Applications
Removable bundle heat exchangers are widely used in heat transfer systems throughout the energy and process industries, including:
Oil refinery processing units
Petrochemical manufacturing plants
Natural gas treatment facilities
Chemical production plants
LNG processing systems
Power generation facilities
These exchangers are commonly used for process cooling, product heating, vapor condensation, and heat recovery in continuous industrial operations.
About Yuhong Group
Yuhong Group is a professional manufacturer of industrial process equipment, specializing in shell and tube heat exchangers, air coolers, and pressure vessels. With more than 30 years of manufacturing experience, the company provides reliable equipment for industries such as oil & gas, petrochemical, refinery, and power generation.
Manufactured in accordance with international standards including ASME and TEMA, Yuhong equipment is widely used in heat transfer and pressure systems across global industrial projects.
