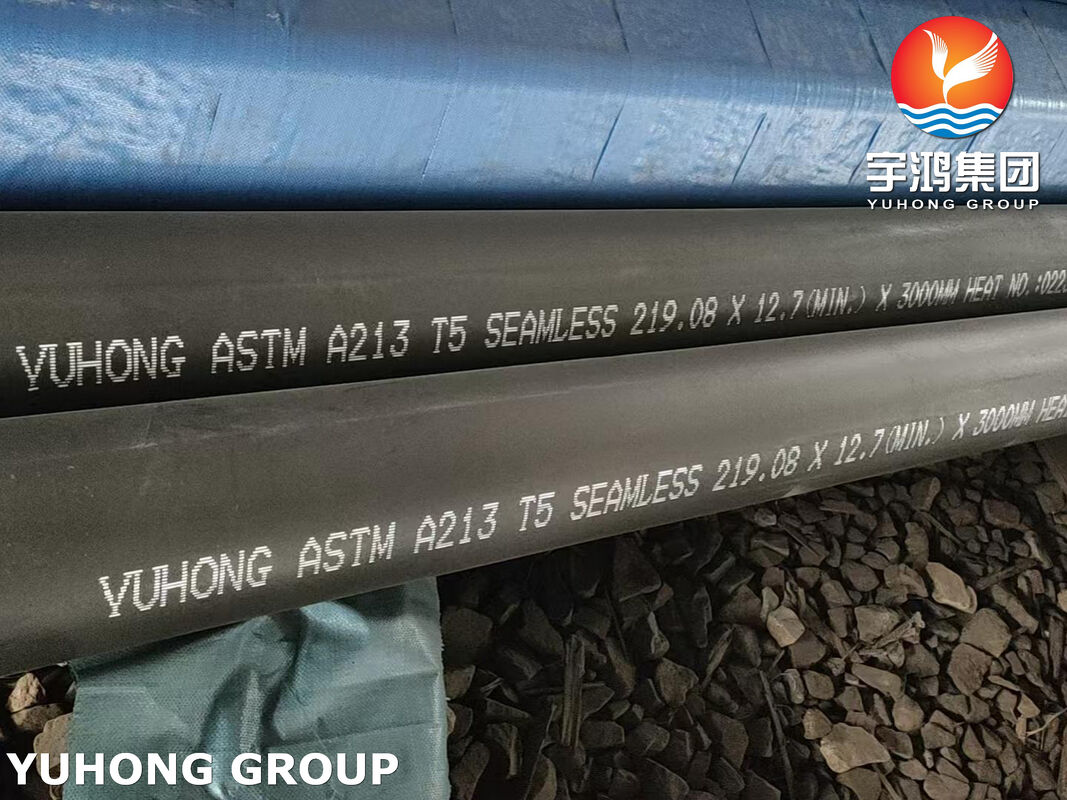

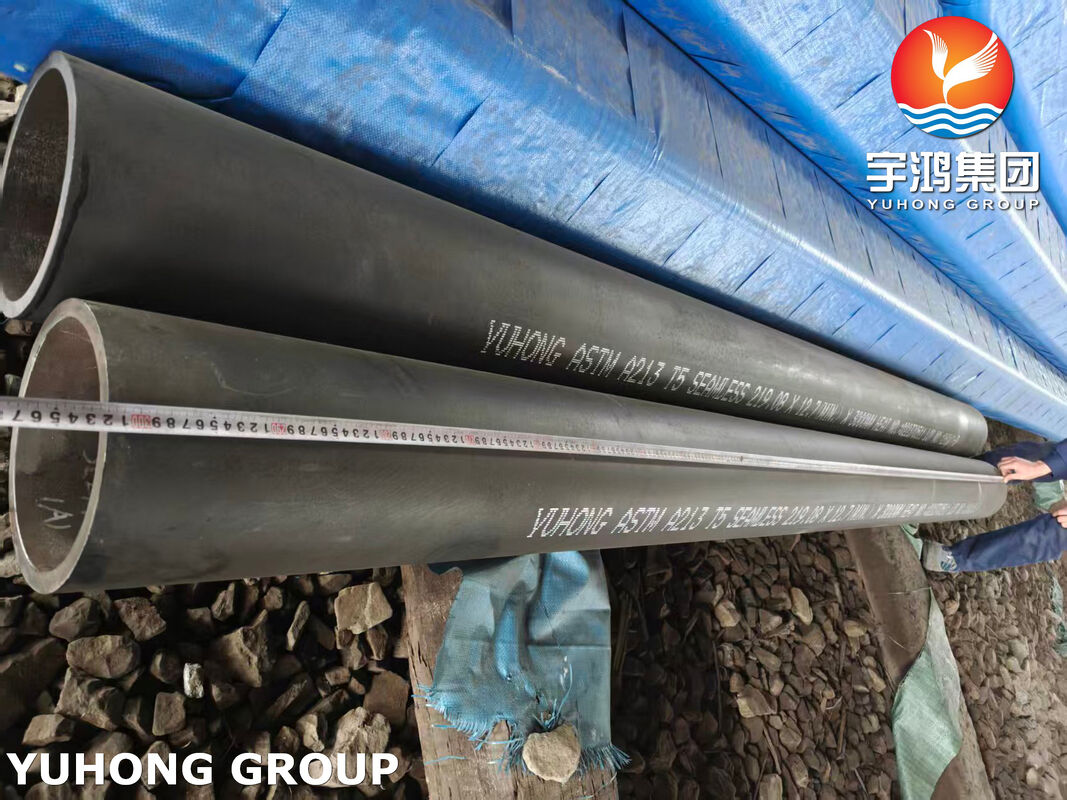

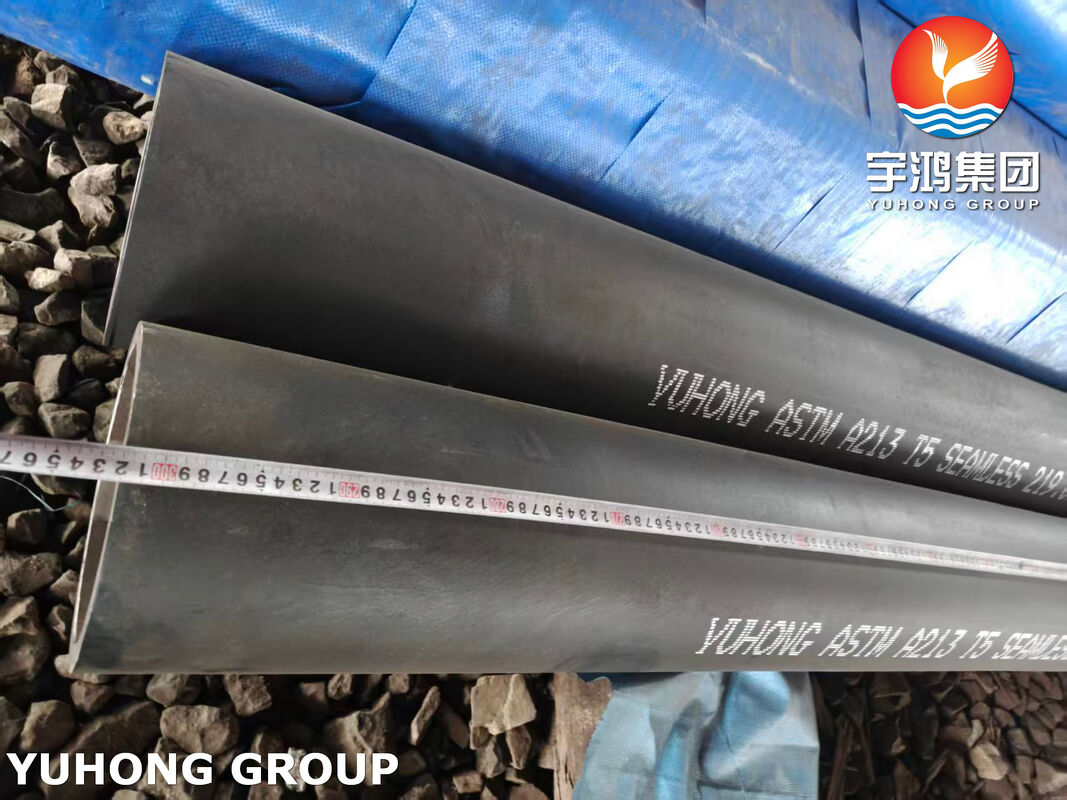

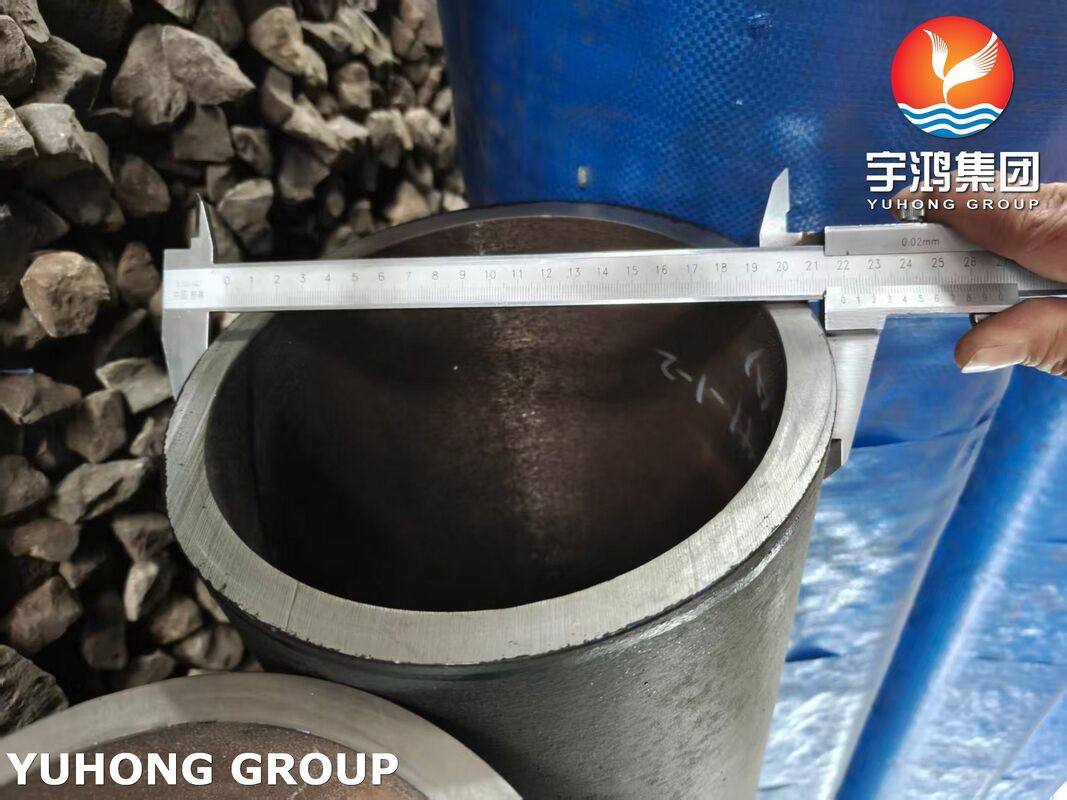

ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel

Place of Origin: China
Brand Name: YUHONG
Certification: ISO 9001/TUV/PED
Model Number: ASTM A213 / ASME SA213 T5
Minimum Order Quantity: 500 KGS
Price: Negotiable
Packaging Details: Steel frame wooden case with plastic cap
Delivery Time: Depends on order quantity
Payment Terms: T/T, L/C at sight
Supply Ability: 1000 TONS / month
Inquiry Now
Get A Quote
Specifications
Highlight Features

ASTM A213 T5 boiler tube

,

alloy steel seamless tube

,

high strength boiler tube

Boiler Tube Standard:
ASME SA213 , ASTM A213
Alloy Type:
Alloy Steel
Form:
Seamless Tube
Diameter:
3.18-152.4mm
Wall Thickness:
0.41mm - 25.4mm
Applications:
Boilers, Heat Exchangers, Superheaters, HRSG
Ends:
Bevled End, Plain End, Thread End
Product Description

ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel



ASTM A213 T5 is a seamless ferritic alloy steel tube conforming to ASTM A213/A213M standards, specifically designed for high-temperature, high-pressure applications such as boilers, superheaters, and heat exchangers.

This material belongs to the low-alloy high-strength steel category, with chromium and molybdenum as its main alloying elements, giving it excellent oxidation resistance and creep resistance at high temperatures.







Chemical Composition (%)
Element T5
Carbon (C) ≤ 0.15
Manganese (Mn) 0.30 – 0.60
Phosphorus (P) ≤ 0.025
Sulfur (S) ≤ 0.025
Silicon (Si) ≤ 0.50
Chromium (Cr) 4.00 – 6.00
Molybdenum (Mo) 0.45 – 0.65





Mechanical Properties (Room Temperature)
Property T5
Tensile Strength, Rm (MPa) ≥ 415
Yield Strength, Rp0.2 (MPa) ≥ 205
Elongation, A (%) ≥ 30
Hardness (HB) ≤ 163







Applications and Advantages of T5 Material:

  • Power Generation:Boiler tubes, superheater tubes, reheater tubes, steam transmission pipelines (up to 540°C), and Heat Recovery Steam Generators (HRSG) .
  • Petrochemical Industry:Heat exchangers, reactor vessels, furnace tubes (e.g., cracking furnaces, fired heaters), piping systems for high-pressure/high-temperature fluids .
  • Industrial Equipment:High-temperature and high-pressure heat exchangers, radiation section furnace tubes in industrial heating furnaces .
  • Pipelines:Transportation of petroleum and natural gas .



  • Excellent High-Temperature Performance
  • Good Oxidation and Corrosion Resistance
  • Reliable Mechanical Strength
  • Good Weldability
  • Cost-Effectiveness


ASTM A213 T5 Alloy Steel Seamless Tube,Boiler Tube,Low Alloy High Strength Steel 0
