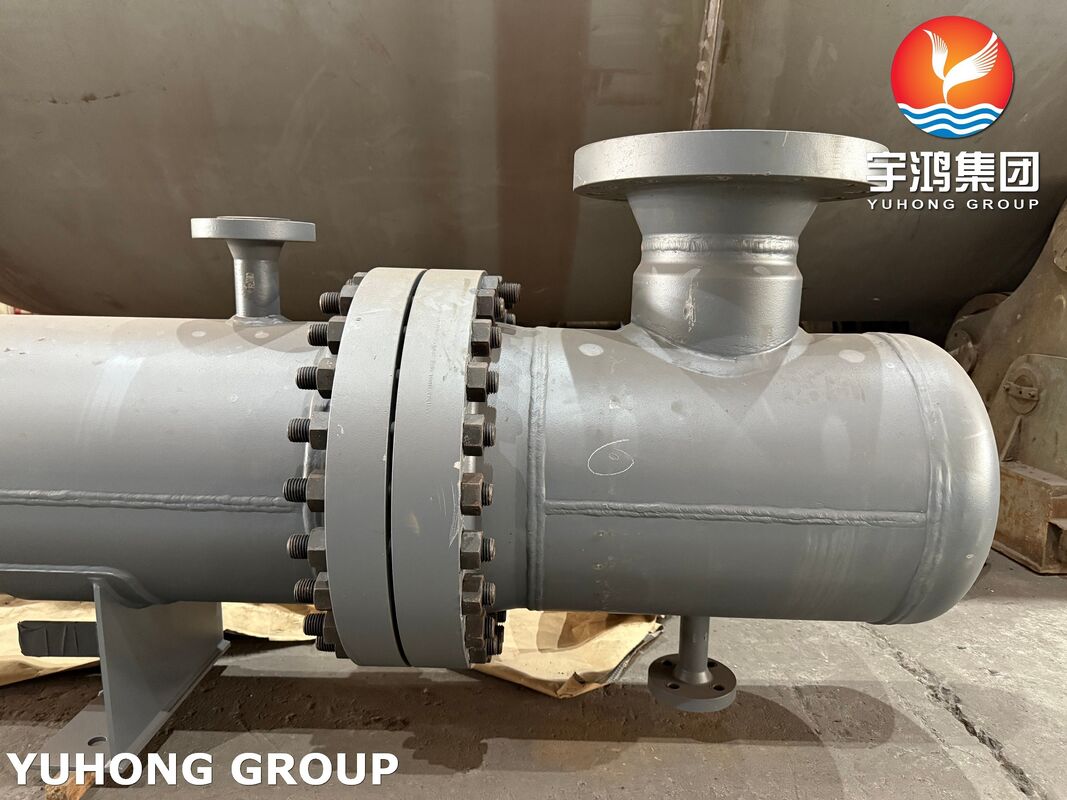

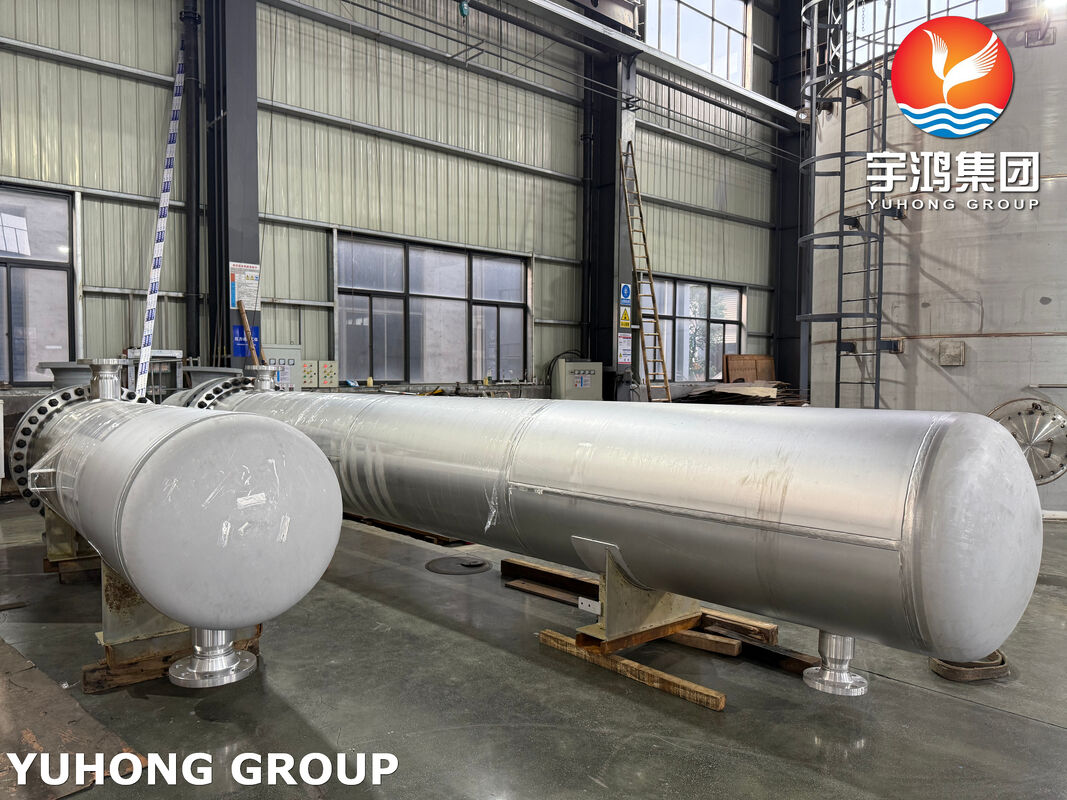

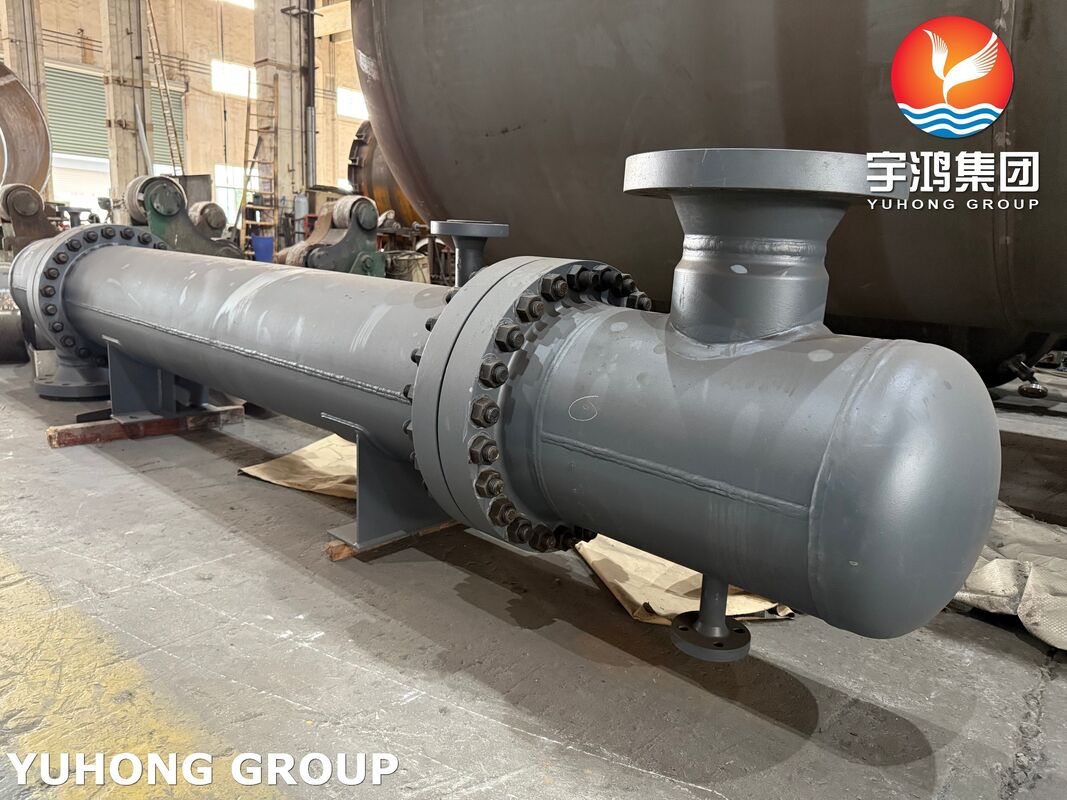

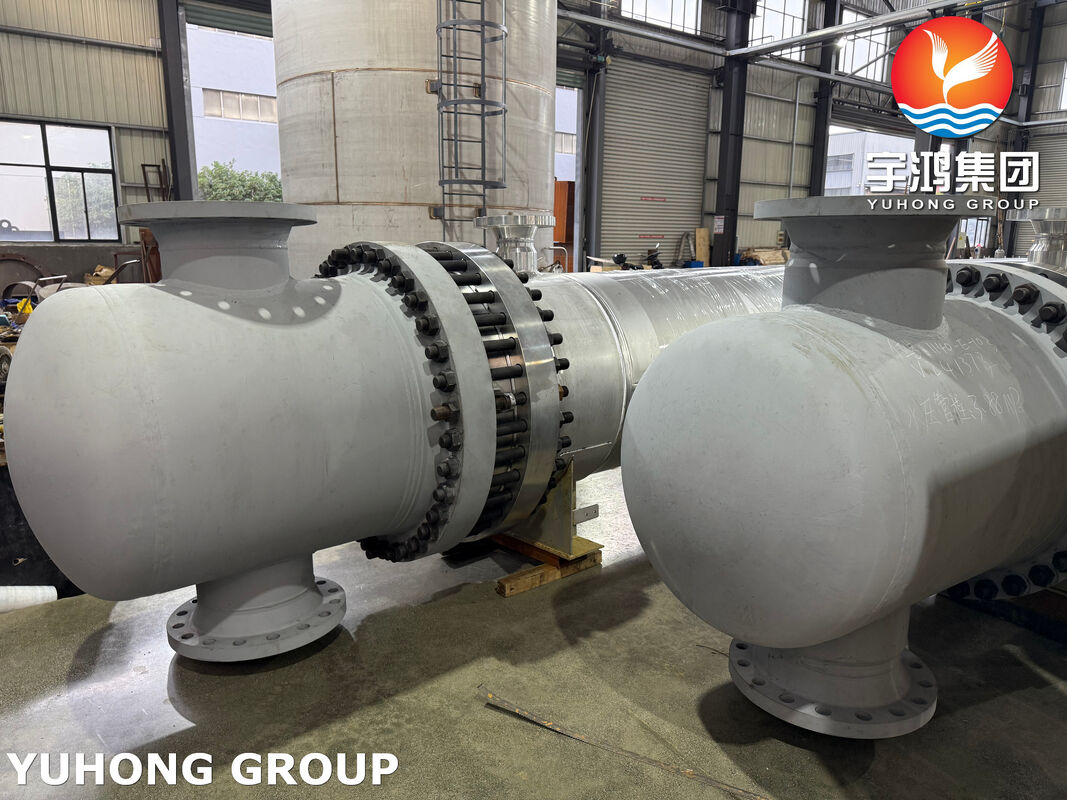

TEMA Industrial Shell and Tube Heat Exchanger Fixed Tube Sheet Design High Pressure

Place of Origin: China
Brand Name: Yuhong
Certification: DNV, BV, PED, LR, ABS, TS, CCS
Model Number: ASTM A179
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Iron Case
Delivery Time: 45-150days
Payment Terms: L/C, T/T
Supply Ability: 1000 ton/month
Inquiry Now
Get A Quote
Specifications
Highlight Features

TEMA industrial heat exchanger fixed tube

,

high pressure shell tube heat exchanger

,

TEMA heat exchanger with warranty

Shell:
ASME SA516M GR.60N
Craddle:
A516 GR.60
Sliding Rails:
SA240 304L
Barrel:
SA516 GR.70N
Wind Load:
UBC-1994
Design Standard:
TEMA K Type
Ndt:
100%RT, PT
Heat Exchanger Tube:
ASME SA213 TP316L
Bracket:
A516 GR.60
Shell Diameter:
Varies (typically 4 To 72 Inches)
Cladding:
Depend On Corrosion Allowance
Channel Cover:
ASME SA516 GRADE70
Type:
Shell And Tube Heat Exchanger
Maintenance:
Designed For Easy Cleaning And Tube Replacement
Product Description

Industrial Shell and Tube Heat Exchanger Fixed Tube Sheet Design High Pressure Heat Exchanger Manufacturer



Product Description

This Shell and Tube Heat Exchanger is designed and manufactured in accordance with international standards, suitable for high-pressure and high-temperature industrial applications such as oil & gas, petrochemical, and power plants.

The unit adopts a fixed tube sheet structure, providing a robust and cost-effective solution for continuous heat transfer operations.



Key Features
ASME U Stamp Compliance (available upon request)
Fixed Tube Sheet Design for enhanced structural stability
Removable Channel Cover for easy inspection and maintenance
Heavy-duty Nozzle Connections for industrial piping systems
Horizontal Saddle Support for stable installation
Customizable materials including carbon steel, stainless steel, and duplex steel



Applications
Oil & Gas Processing
Petrochemical Industry
Power Generation Plants
HVAC & Industrial Cooling Systems



Technical Advantages
High heat transfer efficiency
Reliable performance under harsh conditions
Long service life with low maintenance cost
Flexible design based on customer requirements



Manufacturing Standards
ASME Section VIII Division 1
TEMA Standard
Material standard: ASTM A182 (for flanges)



TEMA Industrial Shell and Tube Heat Exchanger Fixed Tube Sheet Design High Pressure 0
