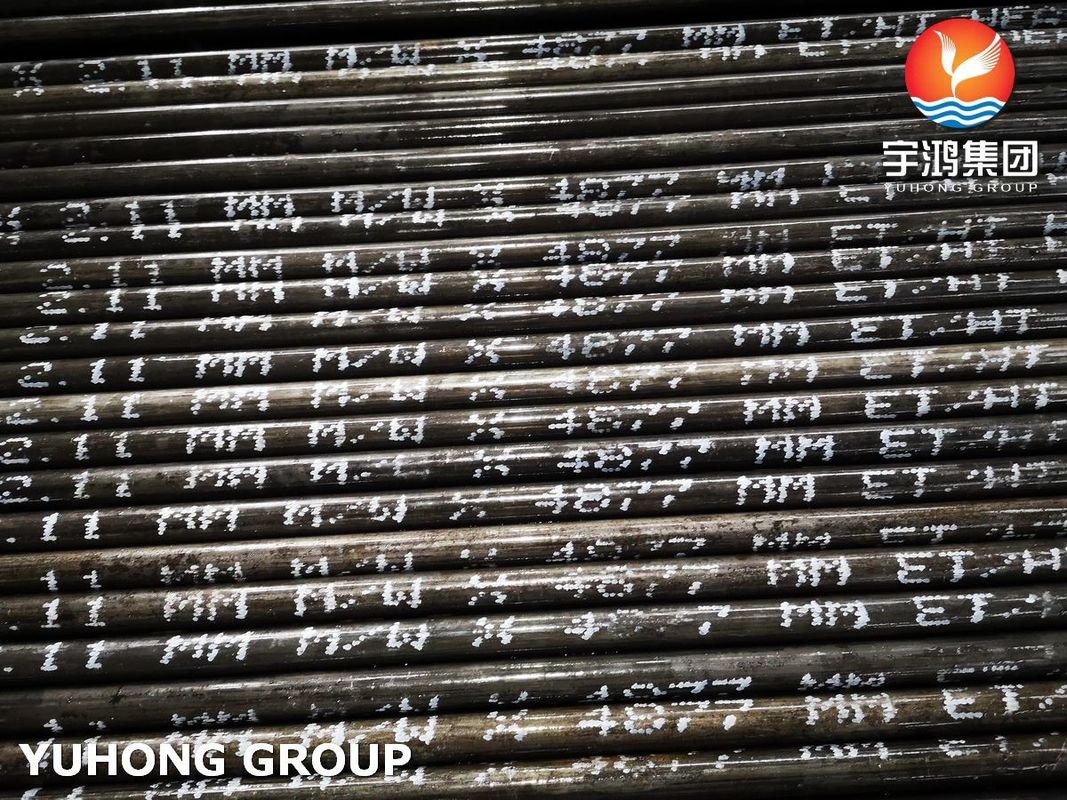

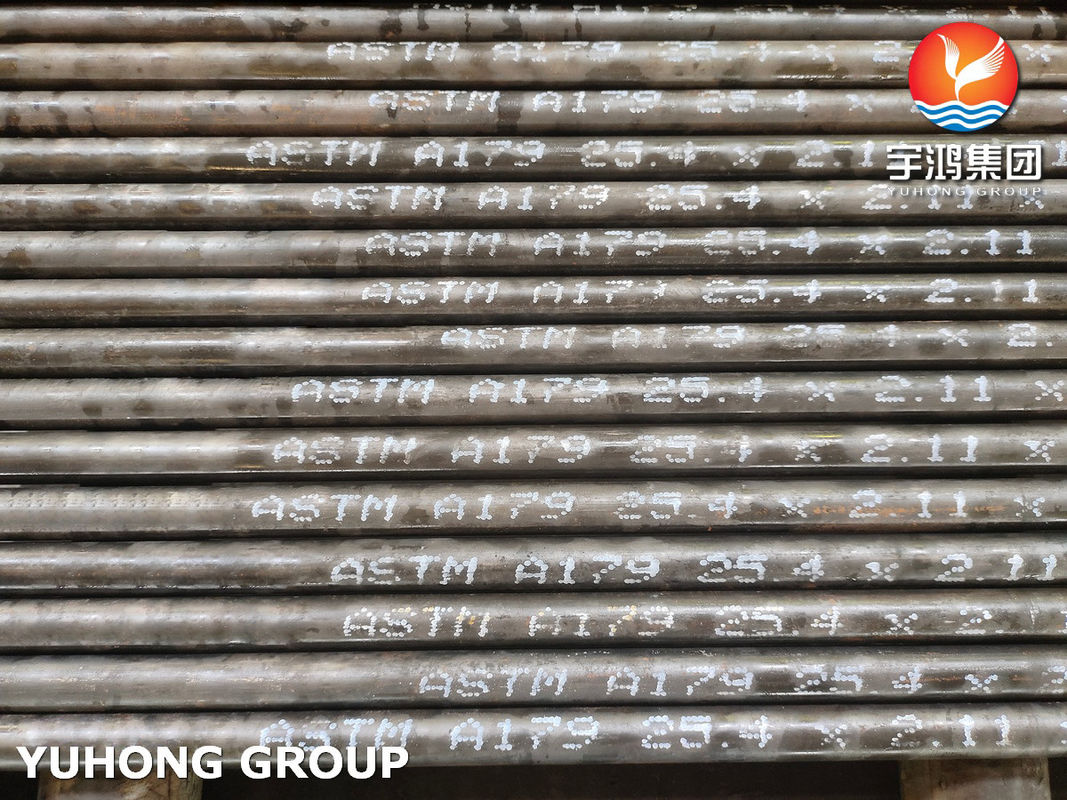

ASME / ASTM SA179 / A179 Seamless Carbon Steel Air Cooler Tube , For Oil and Gas Industry

ASME / ASTM SA179 / A179 Seamless Carbon Steel Air Cooler Tube , For Oil and Gas Industry

1. Standard and Specification
ASME SA179 is a specification established by the American Society of Mechanical Engineers (ASME) for seamless carbon steel tubes primarily intended for boiler and heat exchanger applications. It defines the chemical composition, mechanical properties, dimensions, and testing requirements for seamless carbon steel tubes to ensure reliability and safety under high temperature and pressure conditions.

2. Material Composition
ASME SA179 tubes are made from carbon steel, which typically contains:

• Carbon (C): 0.25% max
• Manganese (Mn): 0.30–0.60%
• Phosphorus (P): 0.035% max
• Sulfur (S): 0.035% max

This composition provides good strength, weldability, and heat resistance suitable for boiler and heat exchanger applications.

3. Manufacturing Process
ASME SA179 tubes are seamless, meaning they are manufactured without welding, which ensures a uniform structure and superior mechanical strength. The typical production process involves:

1. Hot-rolling a solid steel billet to the desired tube diameter and wall thickness.
2. Cold-drawing (optional) for tighter dimensional tolerances and improved surface finish.
3. Heat treatment to relieve stress and enhance mechanical properties.

4. Mechanical Properties

• Tensile Strength: 415–585 MPa (60–85 ksi)
• Yield Strength: ≥ 205 MPa (30 ksi)
• Elongation: ≥ 30%

These properties make SA179 tubes suitable for high-pressure and high-temperature service.

5. Dimensions and Tolerances
ASME SA179 covers standard nominal sizes (OD) and wall thicknesses:

• Outside Diameter (OD): 1/8 inch to 3 inches (commonly)
• Wall Thickness: 0.035 inches to 0.5 inches (depending on OD)
• Length: 6–12 meters standard, or cut-to-length per customer requirements

Tolerances on OD, wall thickness, and length comply with ASTM/ASME standards to ensure proper fit in boilers and heat exchangers.

6. Applications

ASME SA179 seamless carbon steel tubes are widely used in:

• Boilers: High-pressure water and steam tubes
• Heat Exchangers: Condensers and evaporators
• Pressure Vessels: Where high-temperature strength is required
• Industrial Piping: High-temperature service lines in power plants

7. Testing and Quality Requirements
SA179 tubes undergo rigorous quality assurance tests to ensure compliance with ASME requirements, including:

• Hydrostatic testing: Ensures pressure-bearing capability
• Ultrasonic or Eddy current testing: Detects internal or surface defects

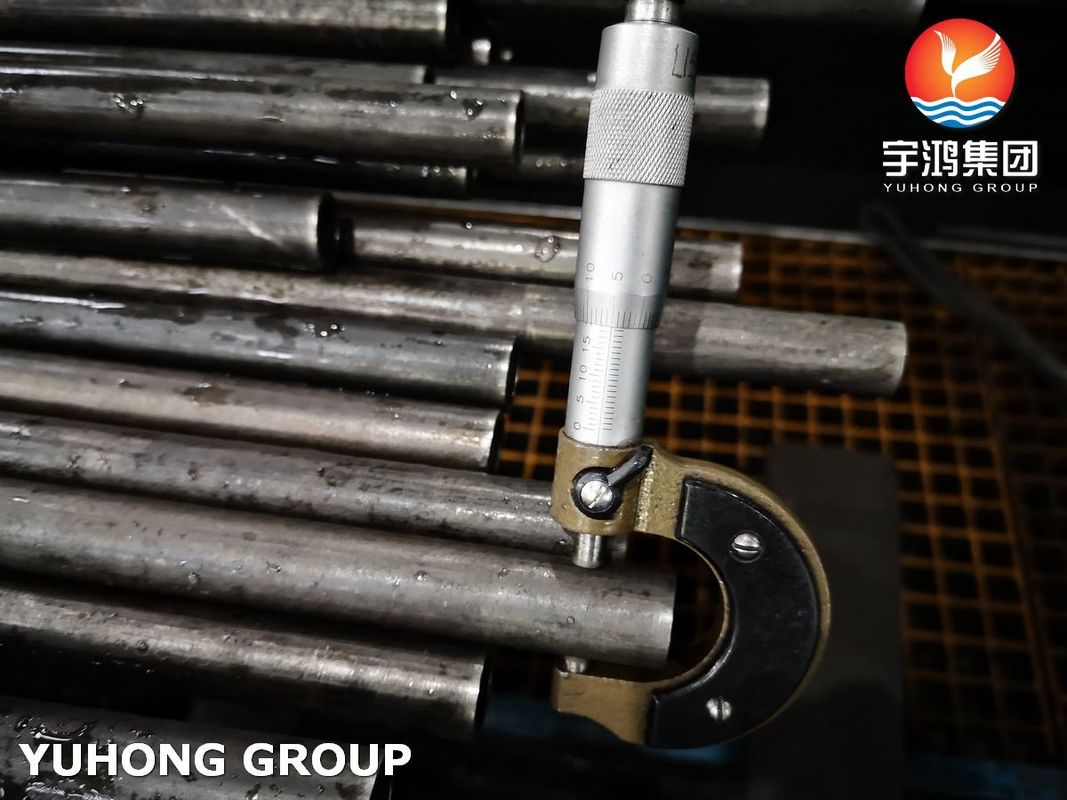

• Dimensional inspection: Confirms OD, wall thickness, and straightness
• Mechanical testing: Confirms tensile strength, yield strength, and elongation

8. Advantages of ASME SA179 Seamless Tubes

• High strength and durability under high pressure and temperature
• Excellent resistance to cracking and deformation
• Superior uniformity due to seamless construction
• Suitable for welding and bending without significant risk of failure
