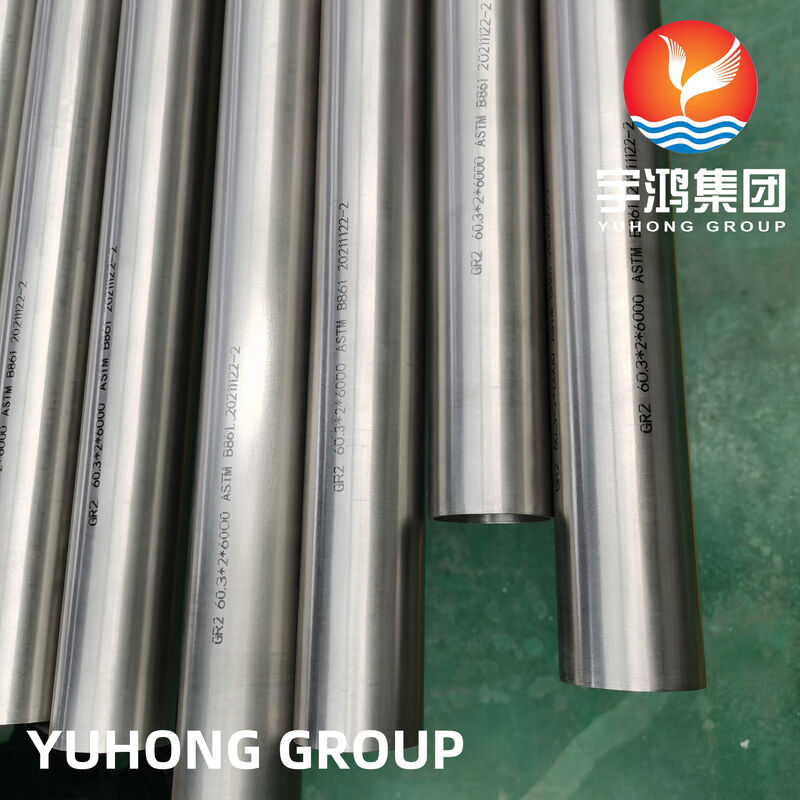

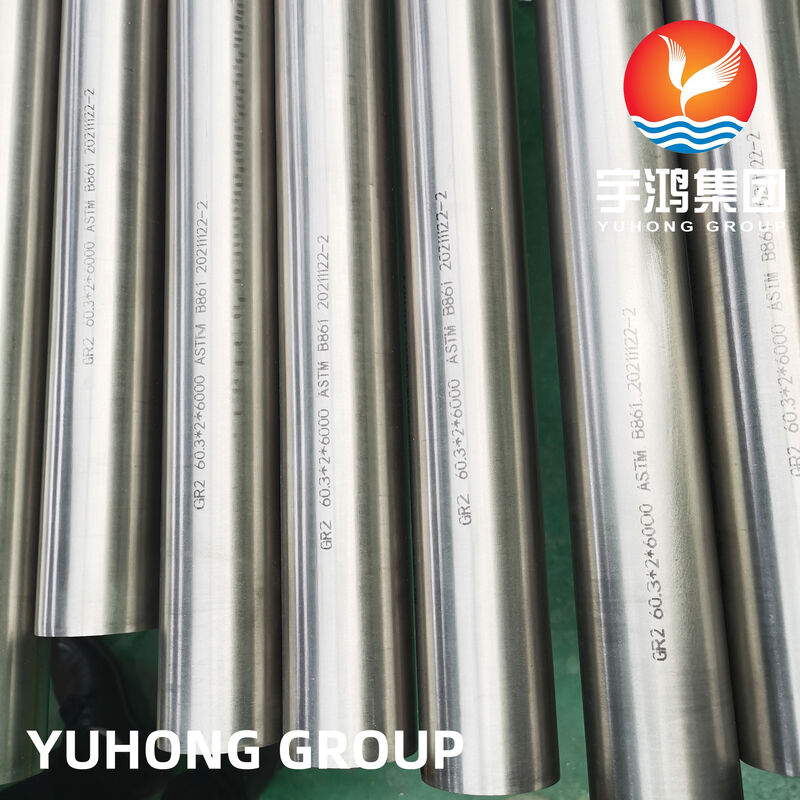

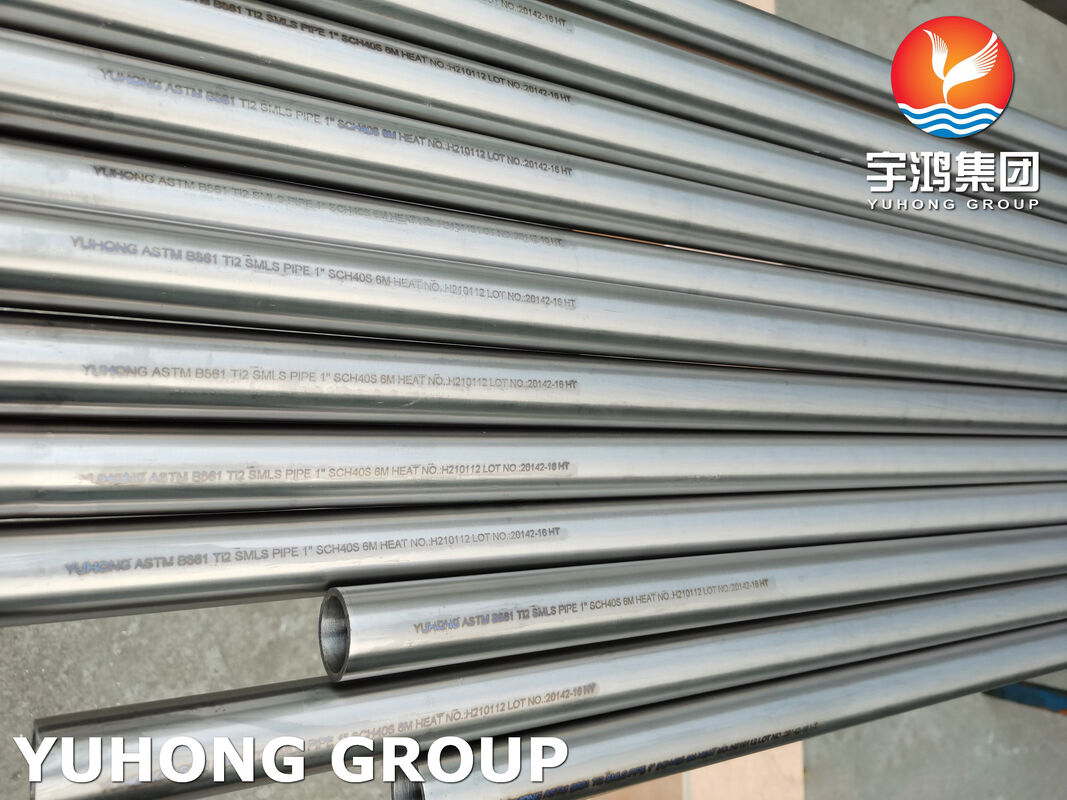

ASTM B861 Gr.2 Titanium Alloy Seamless Pipe For Heat Exchangers
Product Details
| Standard: | B861 | OD: | 10.3 – 114.3 mm |
|---|---|---|---|
| WT: | 1.5 – 15 mm | Material: | Gr.2 |
| Highlight |
ASTM B861 titanium alloy pipe,Gr.2 titanium seamless tube,heat exchanger titanium pipe |
||
Product Description
ASTM B861 Gr.2 Titanium Alloy Seamless Pipe For Heat Exchangers
The ASTM B861 Gr.2 pipe refers to titanium pipes classified under the ASTM B861 specification, specifically in Grade 2 (Gr.2). These pipes are manufactured from commercially pure (CP) titanium and are designed for seamless and welded applications, particularly in industries that require high strength-to-weight ratios, corrosion resistance, and reliability.
Titanium Grade 2 (Gr.2) Characteristics
Titanium Gr.2 is one of the most commonly used commercially pure titanium grades. It strikes a balance between strength, ductility, and corrosion resistance, making it highly suitable for structural and industrial applications.
Key Properties:
-
Chemical Composition:
- Titanium (Ti): Approximately 99%
- Impurities (max values):
- Carbon (C): ≤ 0.08%
- Nitrogen (N): ≤ 0.03%
- Hydrogen (H): ≤ 0.015%
- Oxygen (O): ≤ 0.25%
- Iron (Fe): ≤ 0.3%
-
Mechanical Properties:
- Tensile strength: ≥ 345 MPa
- Yield strength (0.2% offset): ≥ 275 MPa
- Elongation: ≥ 20%
- Hardness: Approximately 150 HB (Brinell).
-
Physical Properties:
- Density: 4.51 g/cm³ (lightweight material).
- Melting Point: 1668°C.
- Excellent machinability and weldability.
-
Corrosion Resistance:
- Exceptional resistance to corrosion in chloride environments, brine solutions, sea water, and an extensive range of industrial chemicals.
Applications of ASTM B861 Gr.2 Pipe
-
Aerospace:
- Hydraulic systems.
- Aircraft structures where lightweight durability is critical.
-
Chemical Processing:
- Heat exchangers, condensers, and chemical transport piping.
- Resistant to corrosive environments like acidic and alkaline solutions.
-
Medical:
- Equipment for bone implants, piping for surgical instruments, and biocompatible devices.
-
Marine:
- Pipes for desalination plants and shipbuilding.
- Excellent performance in salty or offshore environments.
-
Power Generation:
- Condenser pipes in nuclear, geothermal, and thermal power plants.
-
Automotive and Sports:
- Lightweight yet durable pipes for performance cars, motorbikes, and bicycles.
