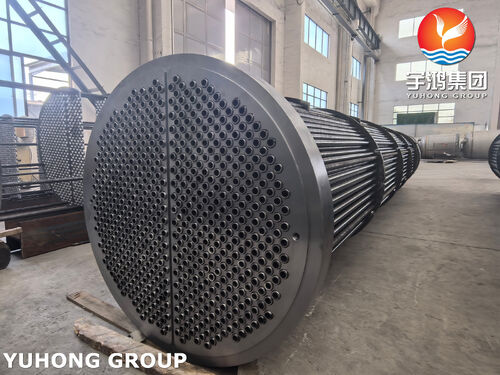

The heat transfer area is a crucial parameter in a shell and tube heat exchanger, fundamentally determining the equipment's thermal efficiency and overall heat exchange capacity. Whether optimizing a chemical process or an industrial HVAC system, understanding accurate heat exchanger sizing and calculation methods is essential for reliable operation.
1. Heat Transfer Area Calculation Formula
The required heat transfer area can be scientifically determined using the fundamental thermodynamic equation:
A = Q / (k * Δt)
A: Heat Transfer Area (m² or ft²)
Q: Total Heat Load or Heat Flow (W or BTU/hr)
k (often denoted as U): Overall Heat Transfer Coefficient (W/(m²·K) or BTU/(hr·ft²·°F))
Δt (often calculated as LMTD): Log Mean Temperature Difference (K or °C)
By determining the required heat load, estimating the overall heat transfer coefficient, and calculating the precise temperature difference, engineers can accurately pinpoint the optimal heat transfer area required for their specific application.
2. Key Factors Influencing Heat Exchanger Selection
When finalizing heat exchanger selection and sizing, theoretical calculations must be balanced with real-world engineering constraints. Consider the following factors:
Process Requirements and Production Goals:
The specific industrial process dictates the sizing strategy. For operations prioritizing increased production throughput or rapid heat transfer, a larger heat transfer area is necessary. Conversely, processes aiming to minimize energy consumption and pressure drop require a precisely optimized, potentially smaller area to maintain system balance.
Fluid Properties and Viscosity:
The physical properties of the working fluids directly impact the heat transfer coefficient and temperature differentials. For instance, handling high-viscosity fluids (which have higher flow resistance) requires specific sizing adjustments and flow velocity considerations. Meanwhile, low-viscosity fluids generally allow for maximizing the effective heat transfer area to boost thermal efficiency.
Equipment Dimensions and Capital Cost:
Physical space limitations and equipment dimensions play a significant role. Generally, a larger shell allows for more tubes, significantly increasing the effective heat transfer area. However, oversizing leads to increased equipment weight, larger installation footprints, and higher manufacturing and maintenance costs.
3. Conclusion
The heat transfer area of a shell and tube heat exchanger is the primary driver of its heating or cooling capabilities. Proper heat exchanger sizing requires a holistic evaluation of process demands, fluid characteristics, and spatial/budgetary constraints. Selecting the right area ensures optimal thermal performance, reliable long-term operation, and maximum return on investment.
