On What Basis is the Volume of a Shell and Tube Condenser Determined?

In the design of refrigeration and industrial heat exchange systems, computing the shell-side and tube-side volume of a Shell and Tube Condenser is critical for determining the equipment's heat transfer capacity. The volume directly correlates with the effective heat transfer area, which in turn dictates the overall thermodynamic efficiency of the system under actual working conditions. The determination of these volumetric parameters relies on three major technical dimensions:

1. Total Heat Load and Operating Requirements of the Refrigeration System

   The primary physical objective of a shell and tube condenser is to facilitate the release of latent heat during the phase change of the refrigerant from gas to liquid. The equipment volume must satisfy the system's comprehensive heat exchange demands based on:

   • Rated Cooling Capacity and Total Heat Rejection: This determines the total heat flow rate (in kW) that must be transferred per hour.
   • Condensing Temperature and Operating Pressure: Different refrigerants exhibit varying phase-change properties at specific operational pressures, which directly dictates the required internal volume for gaseous buffering and liquid storage.
2. Fluid Dynamics and Temperature Gradients of the Cooling Medium

   The specific parameters of the cooling side (typically water) determine the convective heat transfer coefficient, which inversely dictates the required volume.

   • Cooling Water Flow Rate and Velocity: The flow rate governs the heat exchange rate. Proper velocity design not only enhances the overall heat transfer coefficient but must also be strictly maintained within specified tube-side velocity limits to prevent internal erosion-corrosion and excessive pressure drop.
   • Inlet/Outlet Temperature Difference: The Logarithmic Mean Temperature Difference (LMTD) is crucial. A smaller temperature difference requires a larger theoretical volume and a greater total surface area of the heat exchange tube bundle to achieve the target heat rejection.
3. Engineering Physical Constraints and Operational Economics

   Beyond pure thermodynamic calculations, the final volume sizing of the equipment must incorporate on-site engineering specifications:

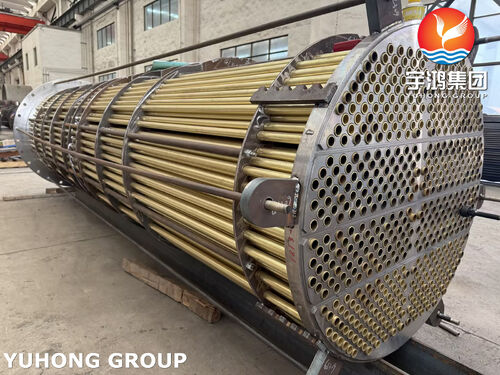

   • Spatial Dimensions and Tube Layout: The geometric parameters (length-to-diameter ratio) must fit the spatial constraints of the installation facility. An optimized internal tube bundle arrangement improves shell-side pressure drop and maximizes volume utilization.
   • Material Costs and Manufacturing Standards: While meeting the heat transfer area requirements, the design must balance material consumption and ensure structural compliance with relevant pressure vessel manufacturing codes (e.g., ASME standards).

Conclusion:

The volume of a shell and tube condenser is not determined by a single variable; it is comprehensively established through rigorous thermal load calculations, fluid parameter matching, and engineering physical constraints. Adhering to parameterized, scientific design is the foundation for ensuring the long-term, stable operation of heat exchange equipment under rated conditions.
