Place of Origin:
CN
Brand Name:
YUHONG
Certification:
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:
Tubesheet

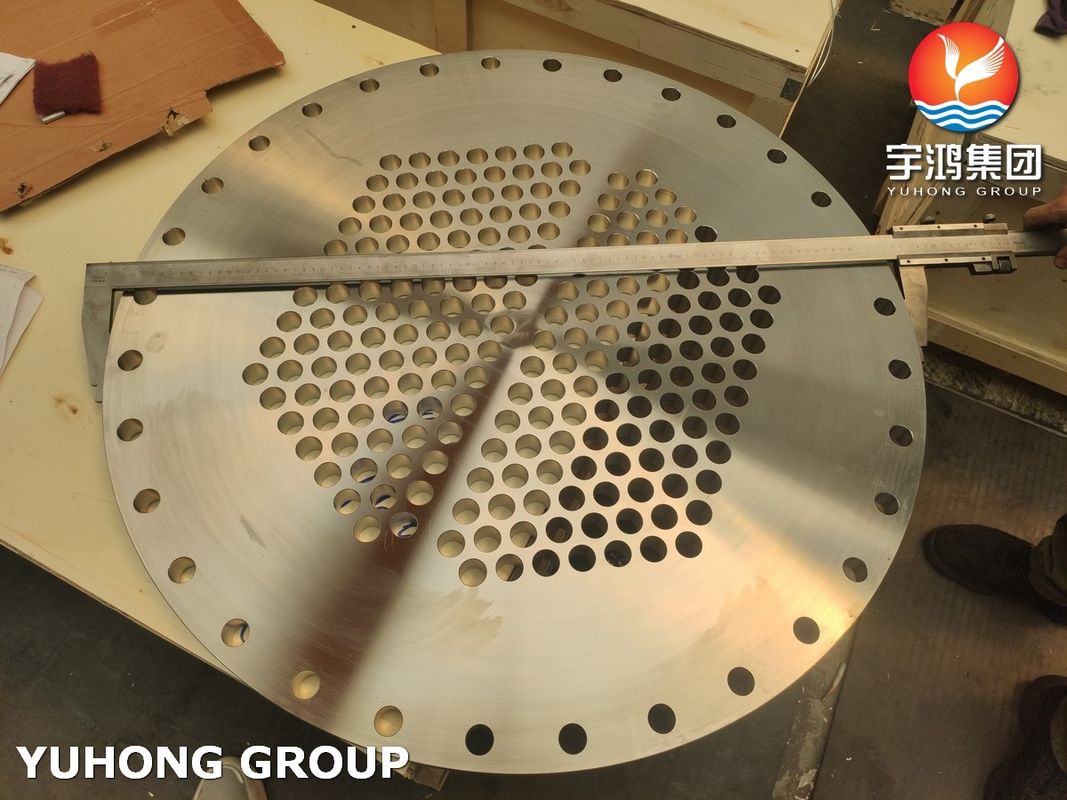

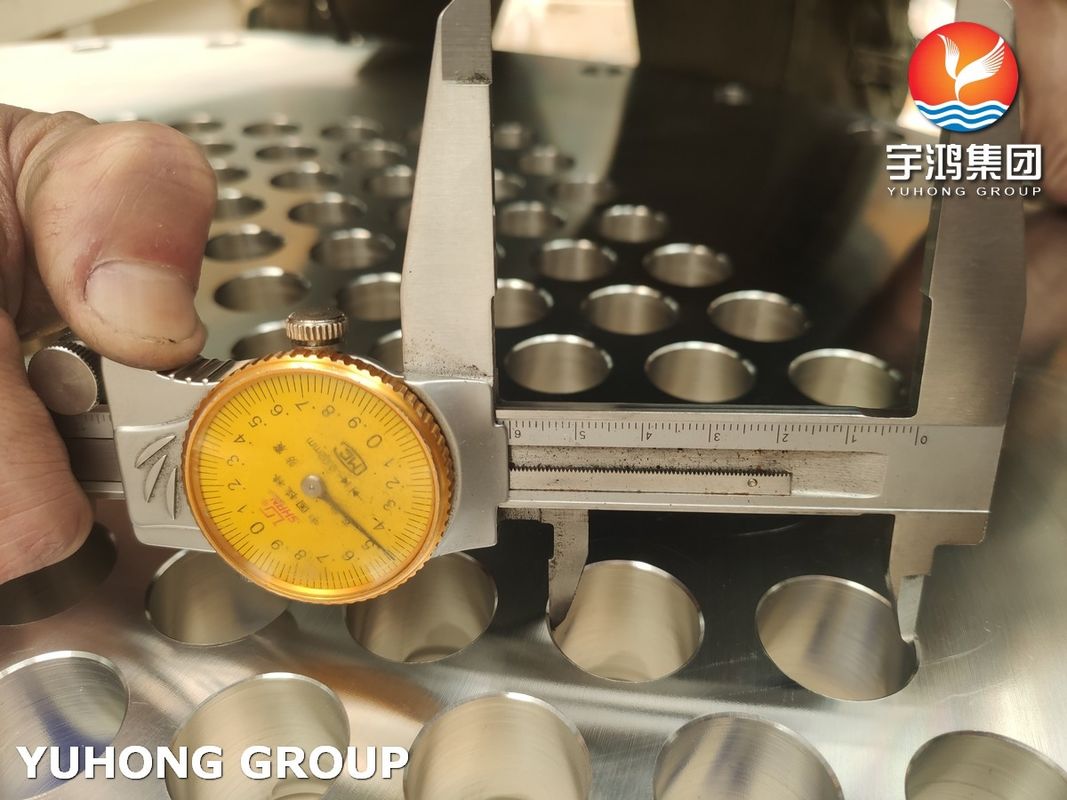

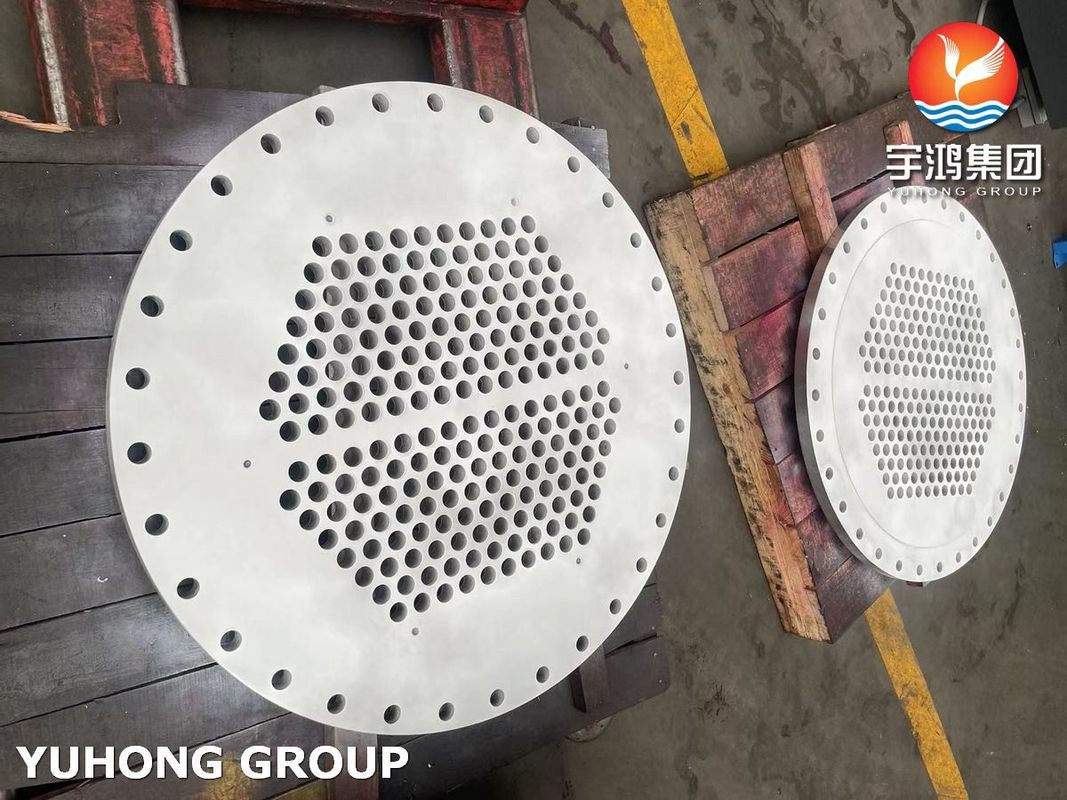

ASME SA266 TP304 High-Pressure Tubesheet, OD 870 mm, for Power Station Condensers
Yuhong Holding Group Co., Ltd. is a globally recognized manufacturer of pressure vessels, specializing in the production of thin-film evaporators, heat exchangers, reactors, columns, storage tanks, and filters. With an annual production capacity exceeding 6,000 tons, we provide high-quality products in various specifications and materials to meet the needs of industries such as biopharmaceuticals, petrochemicals, and more.

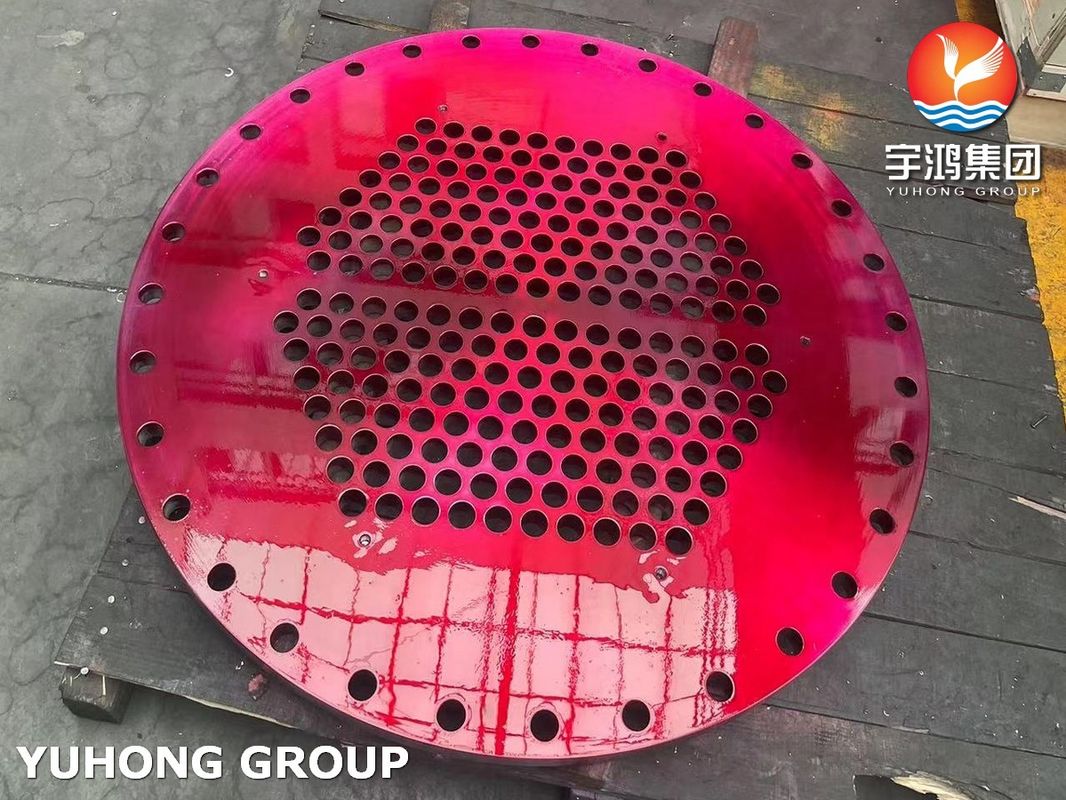

Our ASME SA240 TP304 Tubesheet is a critical component for shell and tube heat exchangers, designed to support and secure the heat exchanger tubes while ensuring optimal thermal performance and mechanical stability. Manufactured in compliance with the ASME Boiler and Pressure Vessel Code, this tubesheet is made from SA240 TP304 stainless steel, ensuring superior resistance to corrosion, durability, and reliability. Each tubesheet undergoes PT (Penetrant Testing) to ensure it is free of surface defects and meets the highest quality standards.
ASME SA266 TP304 High-Pressure Tubesheet Chemical Composition
The SA240 TP304 stainless steel is an austenitic stainless steel known for its excellent corrosion resistance and mechanical properties. Below is the chemical composition of TP304:
| Element | Composition (%) |
|---|---|
| Carbon (C) | ≤ 0.08 |
| Manganese (Mn) | ≤ 2.00 |
| Phosphorus (P) | ≤ 0.045 |
| Sulfur (S) | ≤ 0.030 |
| Silicon (Si) | ≤ 0.75 |
| Chromium (Cr) | 18.0 - 20.0 |
| Nickel (Ni) | 8.0 - 10.5 |
This composition provides TP304 with excellent resistance to oxidation, corrosion, and chemical exposure, making it ideal for heat exchanger applications.
ASME SA266 TP304 High-Pressure Tubesheet Mechanical Properties
The mechanical properties of SA240 TP304 ensure that it can withstand high pressures and temperatures, making it suitable for shell and tube heat exchangers.
| Property | Value |
|---|---|
| Tensile Strength (MPa) | ≥ 515 |
| Yield Strength (MPa) | ≥ 205 |
| Elongation (%) | ≥ 40 |
| Hardness (HBW) | ≤ 201 |
These properties guarantee that the tubesheet has the strength and flexibility needed for long-term operation in demanding environments.
Other Stainless Steel Grades for Tubesheets
At Yuhong Holding Group Co., Ltd., we offer tubesheets in various stainless steel grades to meet diverse operational requirements. Below are some common grades:
| Grade | Key Features | Application |
|---|---|---|
| SA240 TP316 | Higher corrosion resistance due to molybdenum (Mo). | Marine environments, chemical processing. |
| SA240 TP321 | Excellent resistance to intergranular corrosion. | High-temperature heat exchangers. |
| SA240 TP904L | Superior resistance to strong acids like sulfuric acid. | Chemical and pharmaceutical industries. |
| SA240 Duplex | High strength and excellent stress corrosion resistance. | Oil and gas, desalination plants. |
We also provide customized solutions based on specific project requirements.
Other Quality Control Measures Include:
ASME SA266 TP304 High-Pressure Tubesheet Applications
The ASME SA240 TP304 Tubesheet is an essential component for shell and tube heat exchangers used in a variety of industries. Typical applications include:
