| Brand Name: | YUHONG |
| Model Number: | Flange For Heat Exchanger |
| MOQ: | 1 PC |
| Price: | NON |
| Delivery Time: | 1 - 4 MONTH |
| Payment Terms: | T/T |

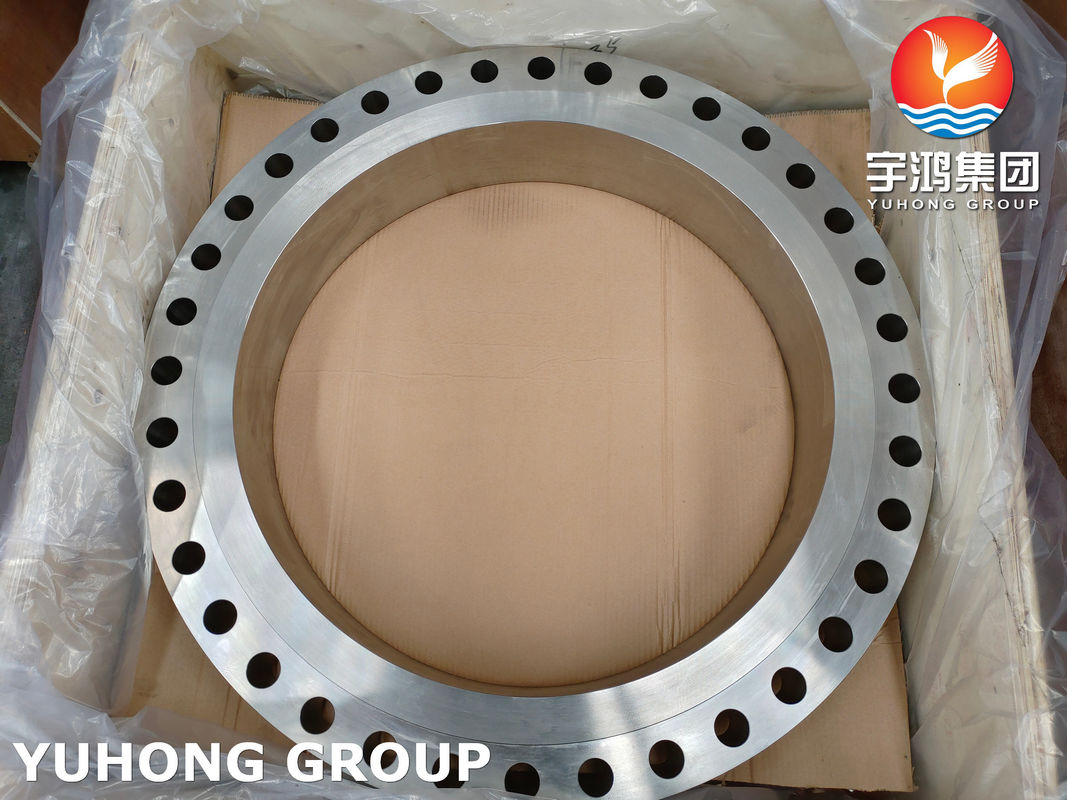

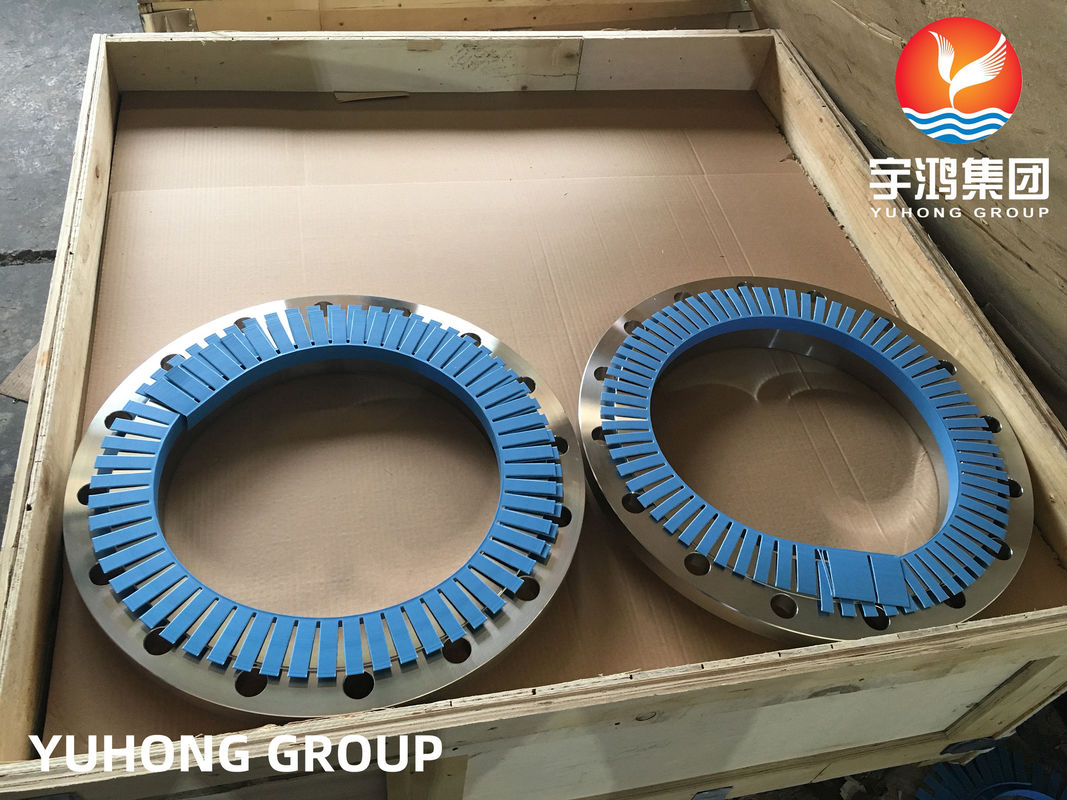

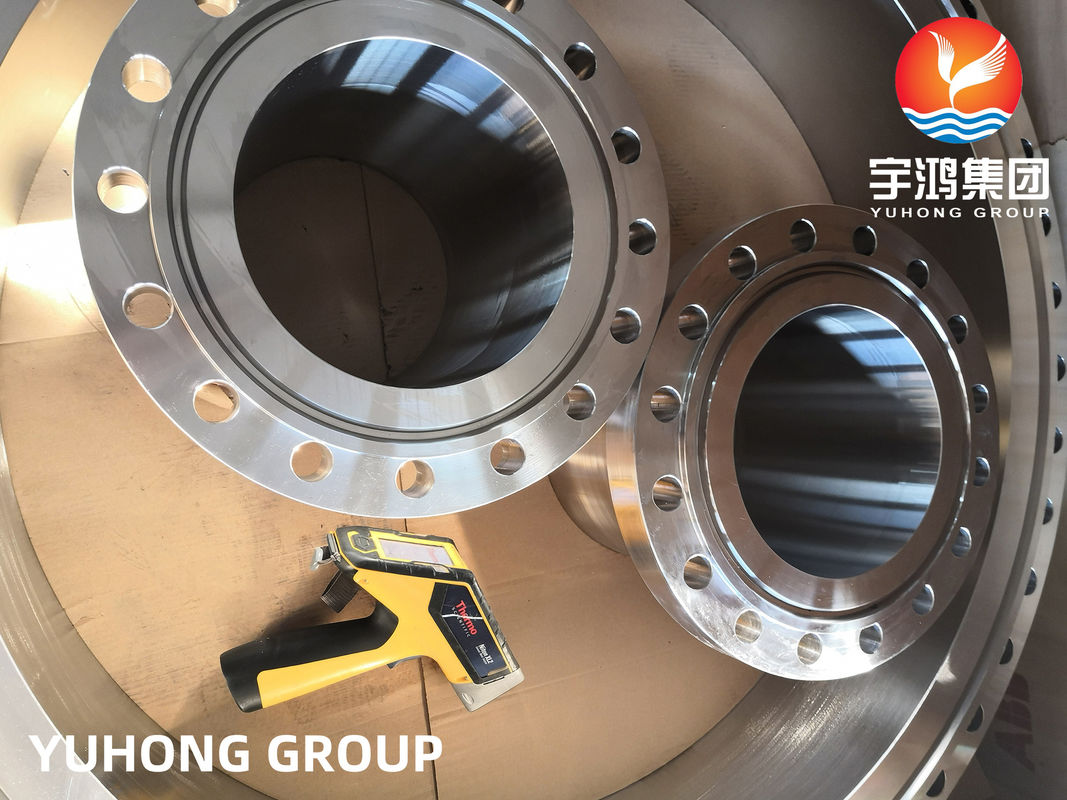

A stainless steel flange for the shell and tube side typically refers to a component used in shell and tube heat exchangers. These flanges are used to connect the shell side and tube side of the heat exchanger to the rest of the piping system. Here are some key points about these flanges:
Material: The flanges are made from stainless steel, which provides excellent corrosion resistance, strength, and durability, making them suitable for various industrial applications, including those involving high temperatures and pressures.
Types of Flanges: Common types of flanges used in shell and tube heat exchangers include:
Weld Neck Flanges: These are welded to the piping and provide high integrity and strength, suitable for high-pressure applications.
Slip-On Flanges: These are slipped over the pipe and then welded in place. They are easier to align and are used in lower-pressure applications.
Blind Flanges: These are used to close off the ends of the piping or the heat exchanger and are removable for inspection or maintenance.
Threaded Flanges: These are screwed onto the pipe and are used in low-pressure, non-critical applications.
Standards and Specifications: Flanges for shell and tube heat exchangers are manufactured according to various standards, such as ASME B16.5, ASME B16.47, and DIN standards. These standards specify the dimensions, pressure ratings, and materials.
Pressure Ratings: Flanges come in different pressure ratings, such as 150#, 300#, 600#, 900#, 1500#, and 2500#. The choice of pressure rating depends on the operating conditions of the heat exchanger.
Facing: The flange facing is the surface that mates with the gasket. Common types of facings include raised face (RF), flat face (FF), and ring-type joint (RTJ). The choice of facing depends on the sealing requirements and the type of gasket used.
Applications: Stainless steel flanges are used in various industries, including petrochemical, oil and gas, power generation, and chemical processing, where shell and tube heat exchangers are commonly employed.
Installation and Maintenance: Proper installation and regular maintenance are crucial to ensure the longevity and performance of the flanges. This includes correct alignment, proper bolting, and periodic inspection for signs of wear or corrosion.
When selecting a stainless steel flange for the shell and tube side of a heat exchanger, it is important to consider factors such as the operating pressure and temperature, the type of fluid being handled, and the specific requirements of the application.
