Place of Origin:
CHINA
Brand Name:
YUHONG
Certification:
ASME U STAMP
Model Number:
Stripping Column

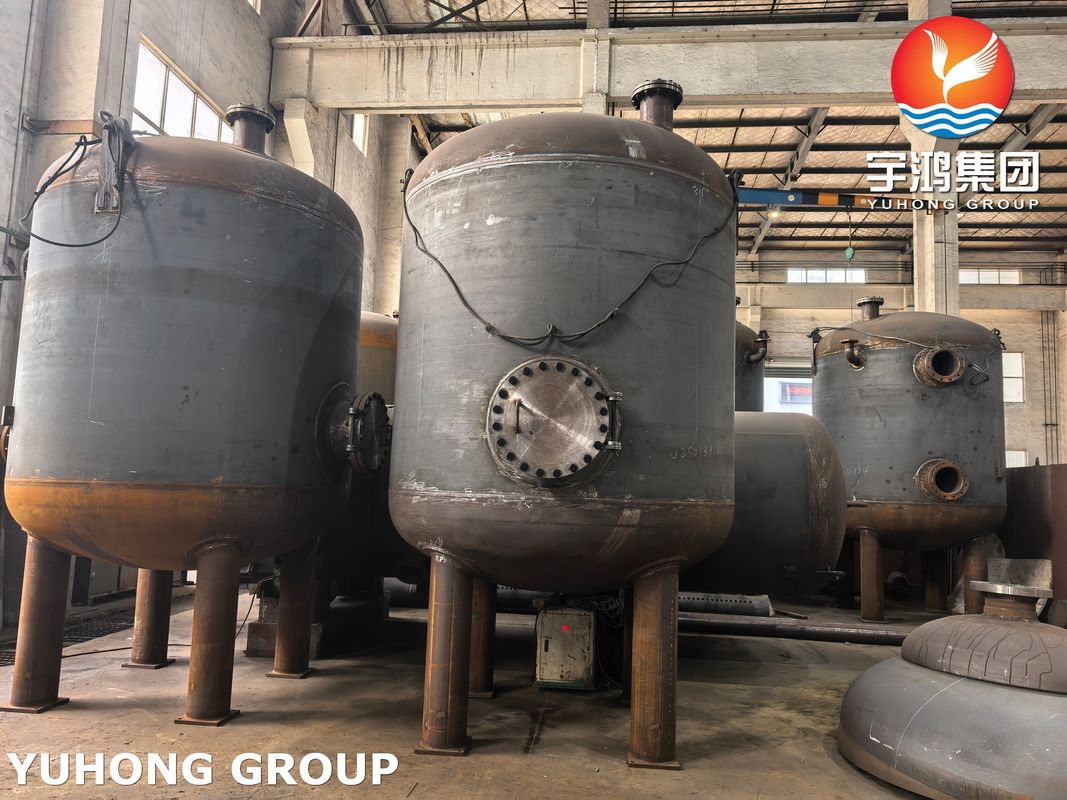

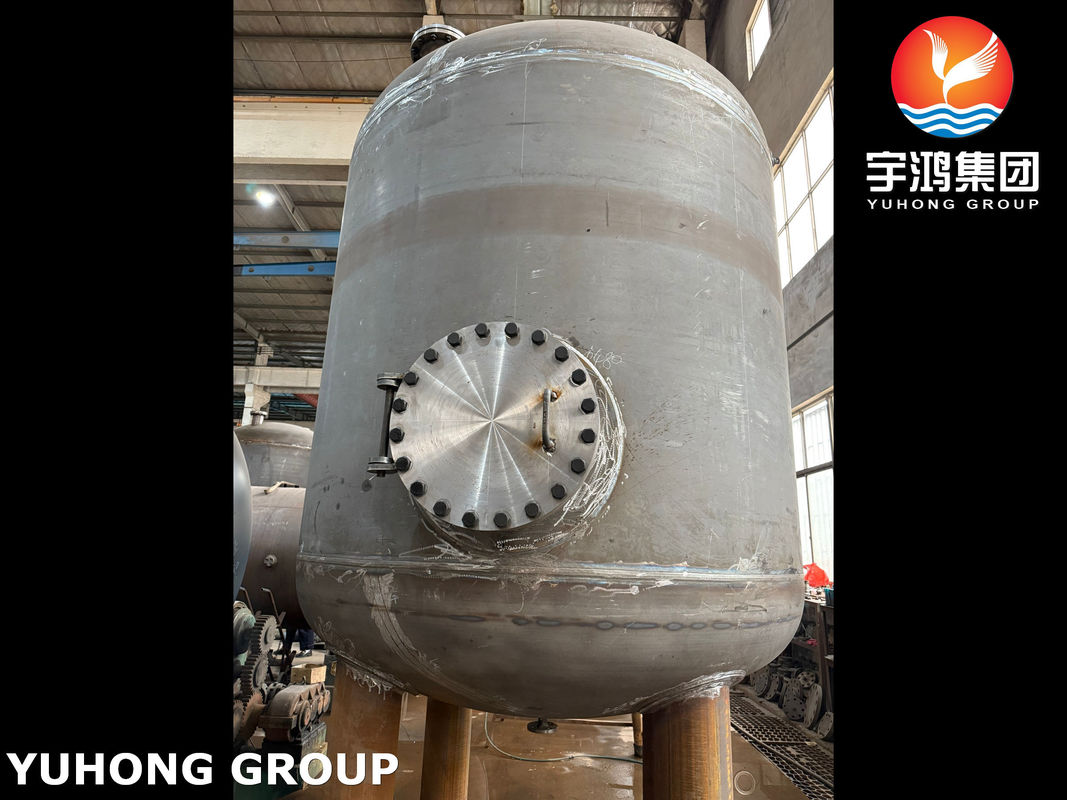

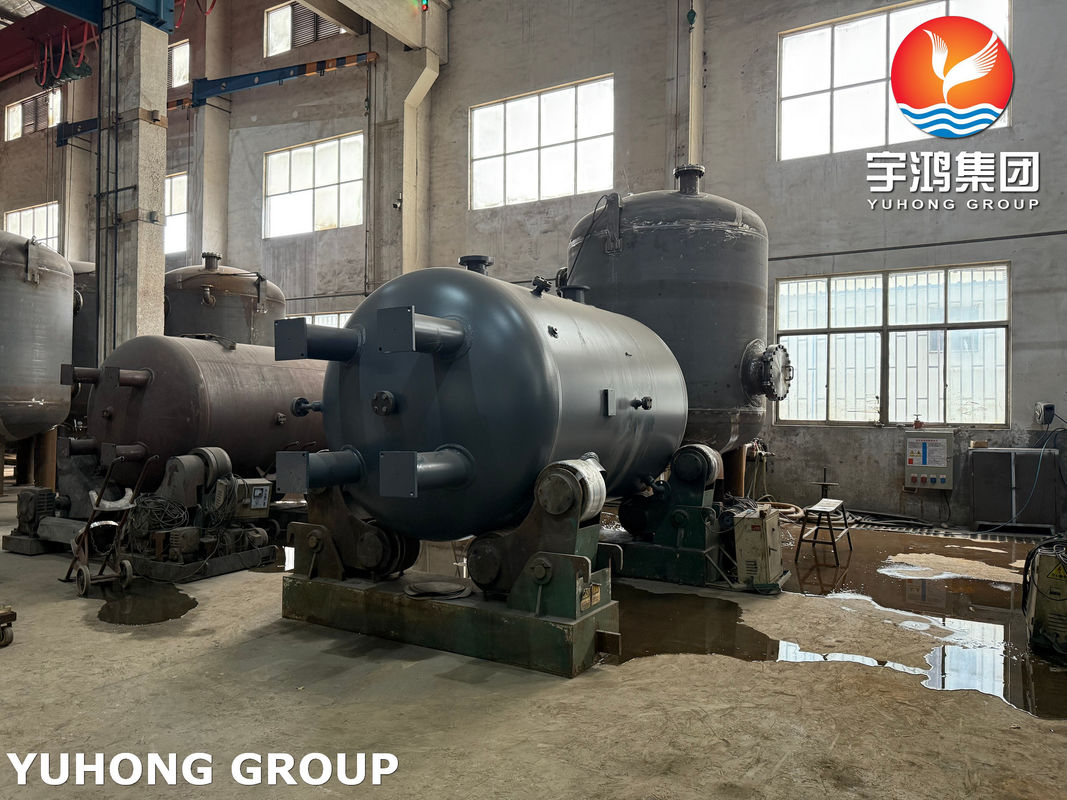

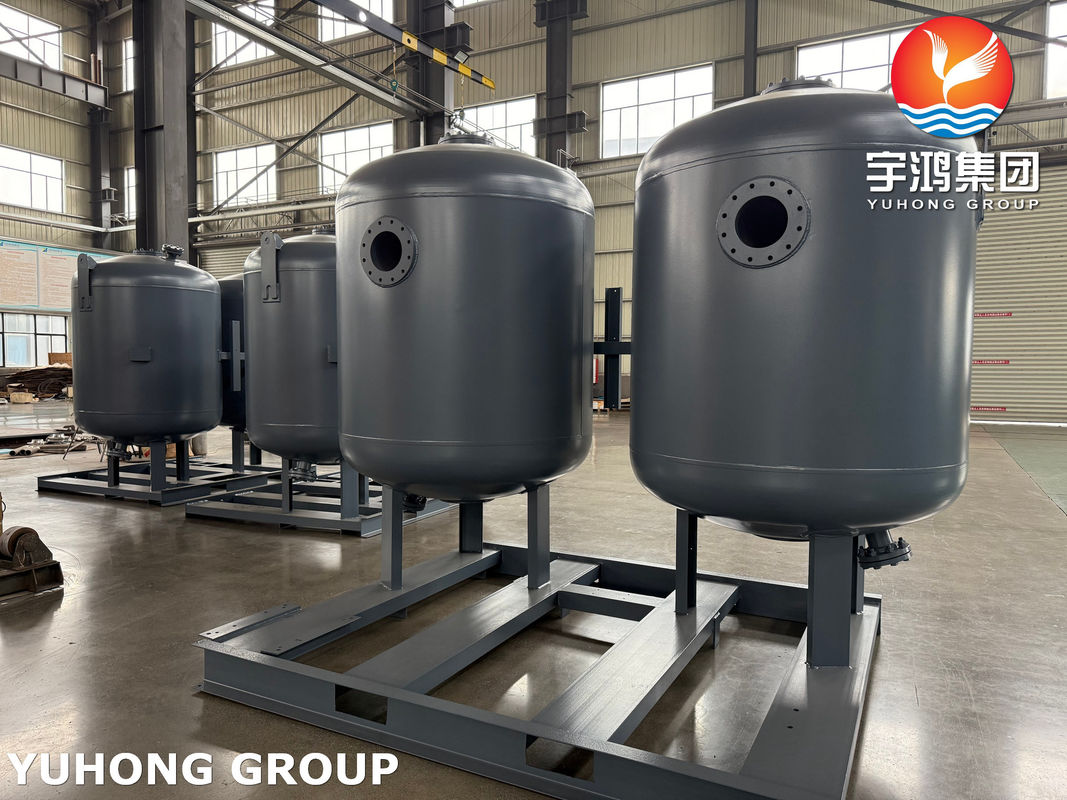

Stainless Steel Pressure Vessel for Stripping Column M.D.M.T. -6℃
Product Description:
The pressure rating of a stainless steel stripping column depends on several factors, including material grade, wall thickness, temperature, and design standards (e.g., ASME, PED). Below are key considerations for determining the pressure capacity:
Design Standards & Calculations
ASME BPVC Section VIII (for pressure vessels) is commonly used.
Cylindrical Shell Thickness Calculation (simplified):
t= P⋅D / (2⋅S⋅E−1.2⋅P)
= Minimum wall thickness (mm)
= Internal design pressure (bar or psi)
= Inner diameter (mm or in)
= Allowable stress (from ASME tables, e.g., ~80-120 MPa for 304SS at 100°C)
= Joint efficiency (0.7-1.0, depending on welding)
| DENSITY | 1005 Kg/m3 |
| INSULATION/FIREPROOFING | YES |
| CAPACITY | 0.23 M3 |
| DESIGN PRESSURE | 4 Bar G |
| Certifications | ASME U Stamp, National Board R Stamp |
| Pressure Level | Low Pressure (0.1MPa≤p<1.6MPa) |
| DESIGN CODES | ASME VIII + IBC 2018 + ASCE 7+NACE |
| OPERATING TEMPERATURE | 70 ~ 95 ºC |
| Application | Stripping Coulmn |
| Pressure Rating | 1500 Psi |
The YUHONG Pressure Vessel, originating from CHINA, is a versatile and reliable product designed for various application occasions and scenarios. Design codes such as ASME VIII, IBC 2018, ASCE 7, and NACE MR0175, this pressure vessel is suitable for a wide range of industrial uses.
1. Oil & Gas / Petrochemicals
2. Chemical Processing
3. Water & Wastewater Treatment
4. Food & Beverage
5. Pharmaceuticals & Biotechnology
6. Environmental & Air Pollution Control
7. Specialty Applications
Product Customization Services for Pressure Vessel:
Brand Name: YUHONG
Place of Origin: CHINA
CAPACITY: 0.23 M3
Certifications: ASME U Stamp, National Board R Stamp
M.D.M.T.: -6 ºC
DESIGN PRESSURE: 4 Bar G
DESIGN TEMPERATURE: + 150 / -6 ºC
Keywords: FITTINGS, INTERNAL SUPPORTS, STIFFENING RINGS
Support and Services:
Our Product Technical Support and Services for the Pressure Vessel product include:
Expert troubleshooting assistance for any issues related to the pressure vessel.
Guidance on proper installation, maintenance, and operation of the pressure vessel.
Access to product manuals, technical documents, and instructional materials.
Training programs for operators and maintenance personnel to ensure safe and efficient use of the pressure vessel
