Place of Origin:
China
Brand Name:
YUHONG
Certification:
ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2015
Model Number:
ASTM A106 GR.B CU-T2 EMBEDDED FIN TUBE

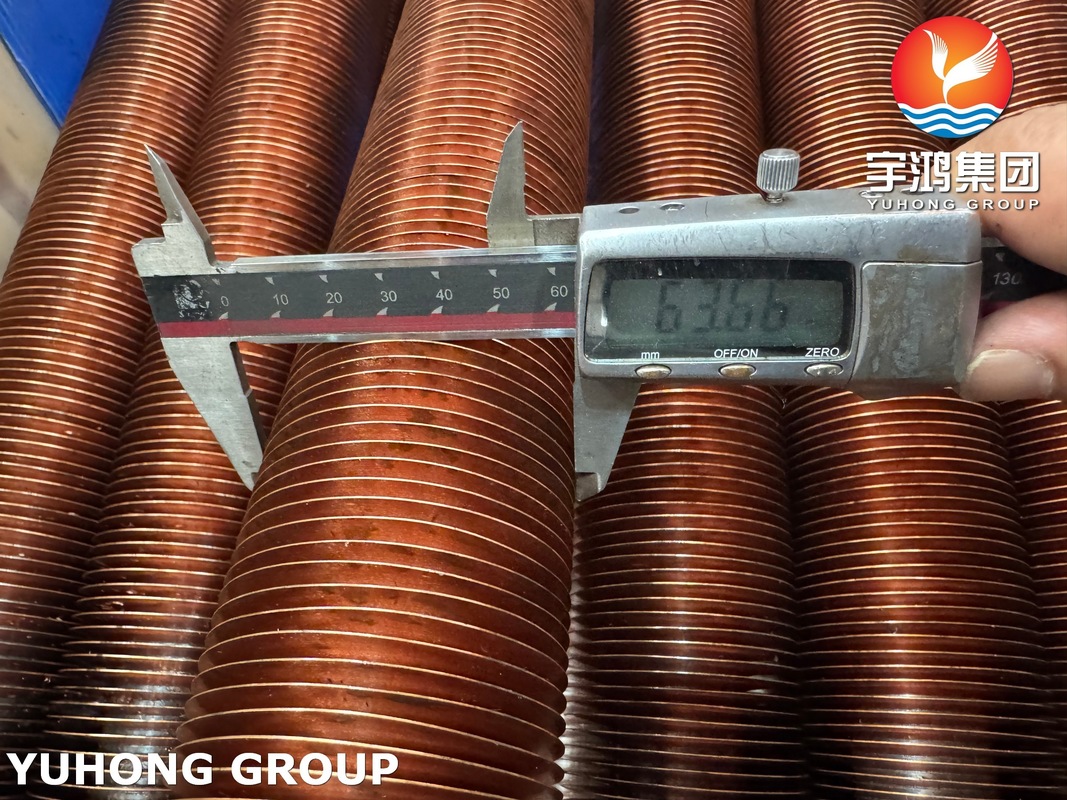

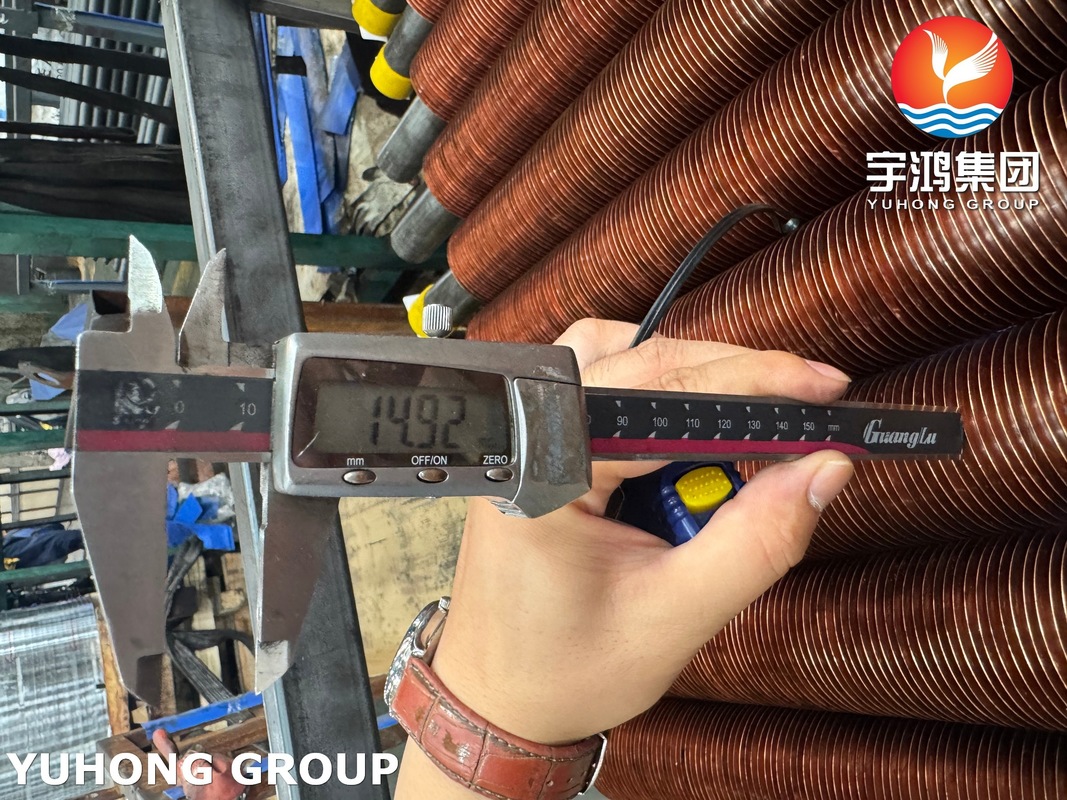

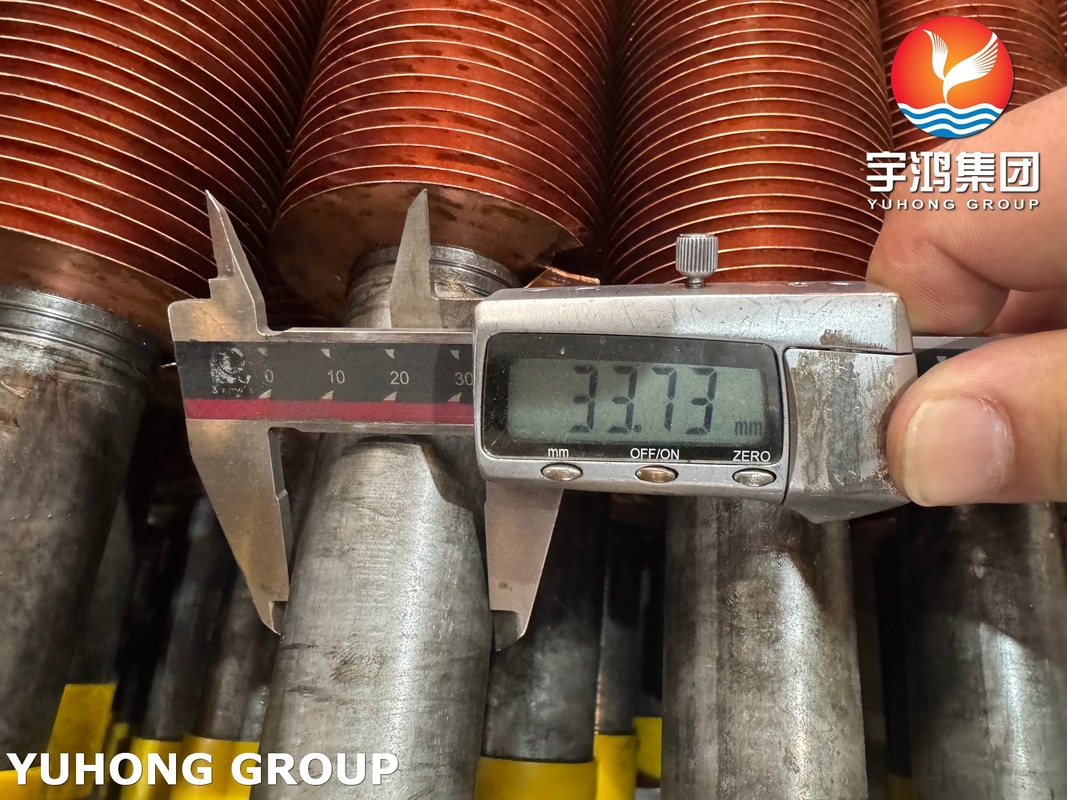

ASTM A106 Gr.B Tube With Cu-T2 Fin with Embedded Fin Tube G-Type
Inlay fin tubes, also known as G-fin tubes, are manufactured by mechanically wrapping fin material around a base tube. Their key feature is that the fin legs are embedded into the base tube surface under tension, forming a tight mechanical and metallurgical bond without the need for any filler material.
The combination of a sturdy carbon steel base tube and highly thermally conductive copper fins provides a unique balance of strength, corrosion resistance, and excellent heat transfer performance.
ASTM A106 Gr. B Seamless Carbon Steel Tube Chemical Composition(%):
| Standard | Grade | Chemical Components (%) | |||||||
| C | Si | Mn | P | S | Mo | Cr | V | ||
| ASTM A106 | A | ≤0.25 | ≥01.0 | 0.27-0.93 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.40 | ≤0.08 |
| B | ≤0.30 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.40 | ≤0.08 | |
| C | ≤0.35 | ≥0.10 | 0.29-1.06 | ≤0.035 | ≤0.035 | ≤0.15 | ≤0.40 | ≤0.08 | |
ASTM A106 Gr. B Seamless Carbon Steel Tube Mechanical Tests Required
| Standard | Grade | Mechanical properties | ||
| Tensile Strength (Mpa) |
Yield Strength (Mpa) |
Elongation (%) |
||
| ASTM A106 | A | ≥330 | ≥205 | ≥35 |
| B | ≥415 | ≥240 | ≥30 | |
| C | ≥485 | ≥275 | ≥30 | |
