Name: SA179 Carbon Steel Wound KL Finned Tubes for Industrial Air Coolers in Power Generation
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: Wound KL Finned Tubes
Availability: InStock

Home > Products > Fin Tube >

SA179 Carbon Steel Wound KL Finned Tubes for Industrial Air Coolers in Power Generation

SA179 Carbon Steel Finned Tubes

Industrial Air Coolers Wound KL Finned Tubes

Power Generation Heat Exchanger Finned Tubes

Place of Origin:

China

Brand Name:

YUHONG

Certification:

ISO 9001-2015,etc.

Model Number:

Wound KL Finned Tubes

Chat Now

Request A Quote

Product Details

Product:

Finned Tubes

Finned Tubes Type:

Wound KL Finned Tubes

Wound KL Finned Tubes Material:

SA179 Carbon Steel Seamless Base Tubes With AL Fins

Wound KL Finned Tubes Length:

For Air Coolers, 9144MM Normally, Depend By Customers

Wound KL Finned Tubes Application:

Industrial Air Coolers, Heat Exchangers, Condensers, Air Preheaters, And Waste Heat Recovery Units, Etc.

Wound KL Finned Tubes Industries Populares:

Petrochemical, Power Generation, HVAC & Refrigeration, General Industry

Highlight:

SA179 Carbon Steel Finned Tubes

Industrial Air Coolers Wound KL Finned Tubes

Power Generation Heat Exchanger Finned Tubes

Payment & Shipping Terms

Minimum Order Quantity

500Kgs

Price

Depend

Packaging Details

Poly Wooden Case With Iron Frame

Delivery Time

30-45 days

Payment Terms

T/T,L/C

Supply Ability

Depend

SA179 Carbon Steel Wound KL Finned Tubes for Industrial Air Coolers in Power Generation

Chat Now

HFW Finned Tube Serrated Type SA387 Grade 12, 13CrMo4–5 Fins for Power Plant HRSG

Chat Now

ASME SA179 Carbon Steel Tube with Aluminum Fins Extruded Fin Tube for Air Cooled Heat Exchangers

Chat Now

ASME SA192 Base Tube with Carbon Steel Fins Serrated Fin Tube for HRSG

Chat Now

008-574-88013900

market@steelseamlesspipe.com

008-574-88013900

Chat Now

Product Description

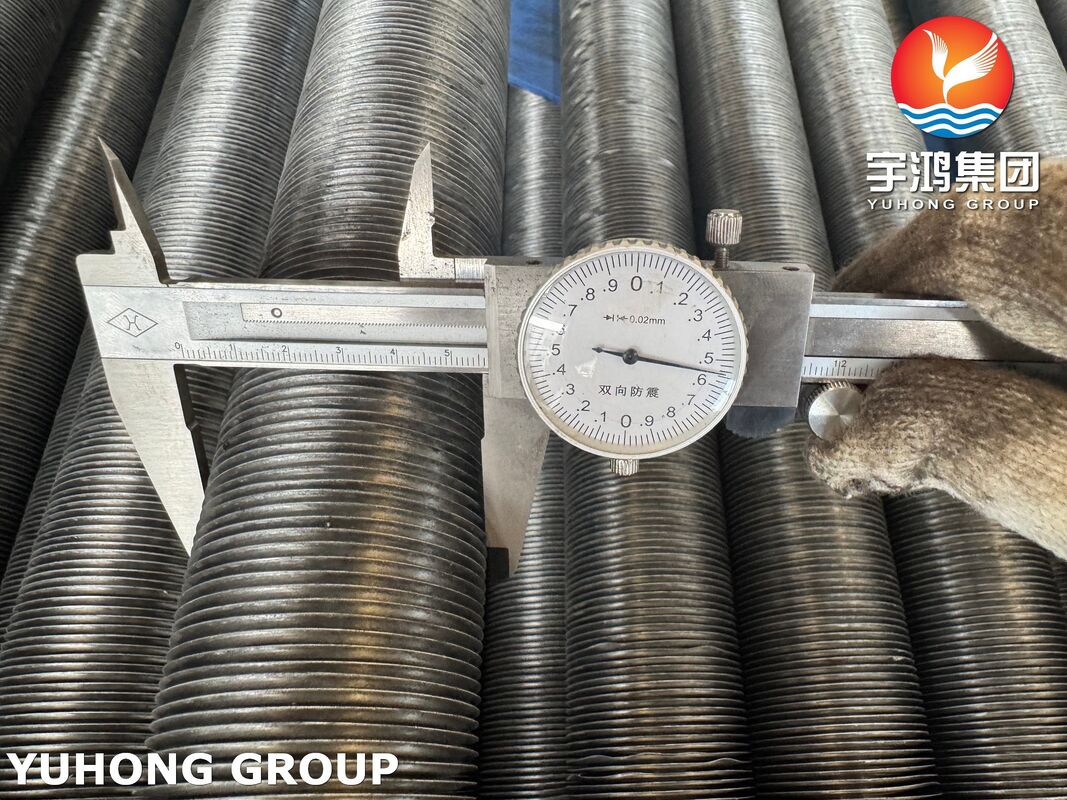

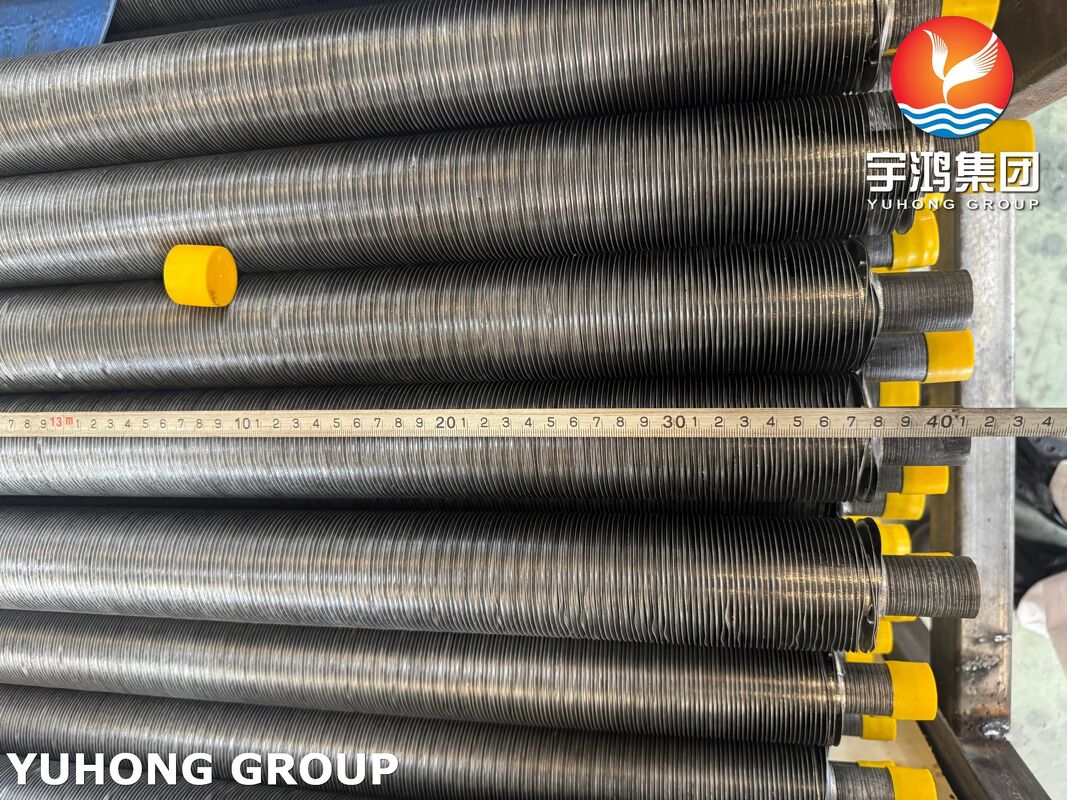

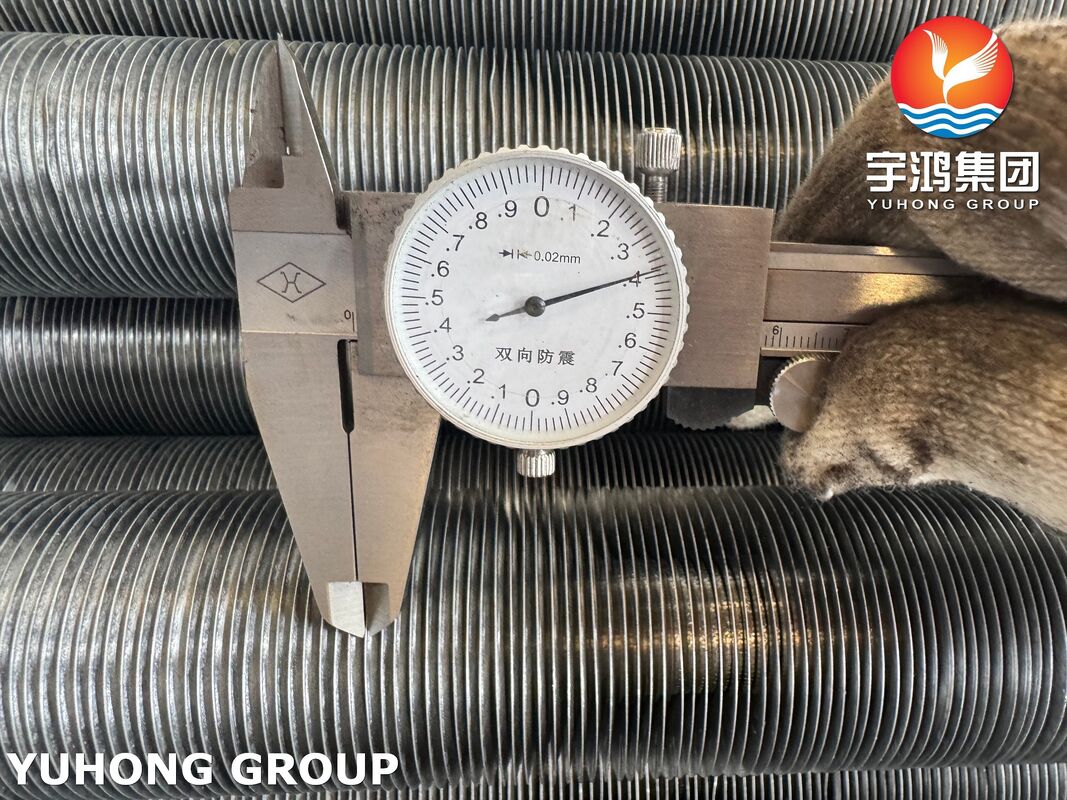

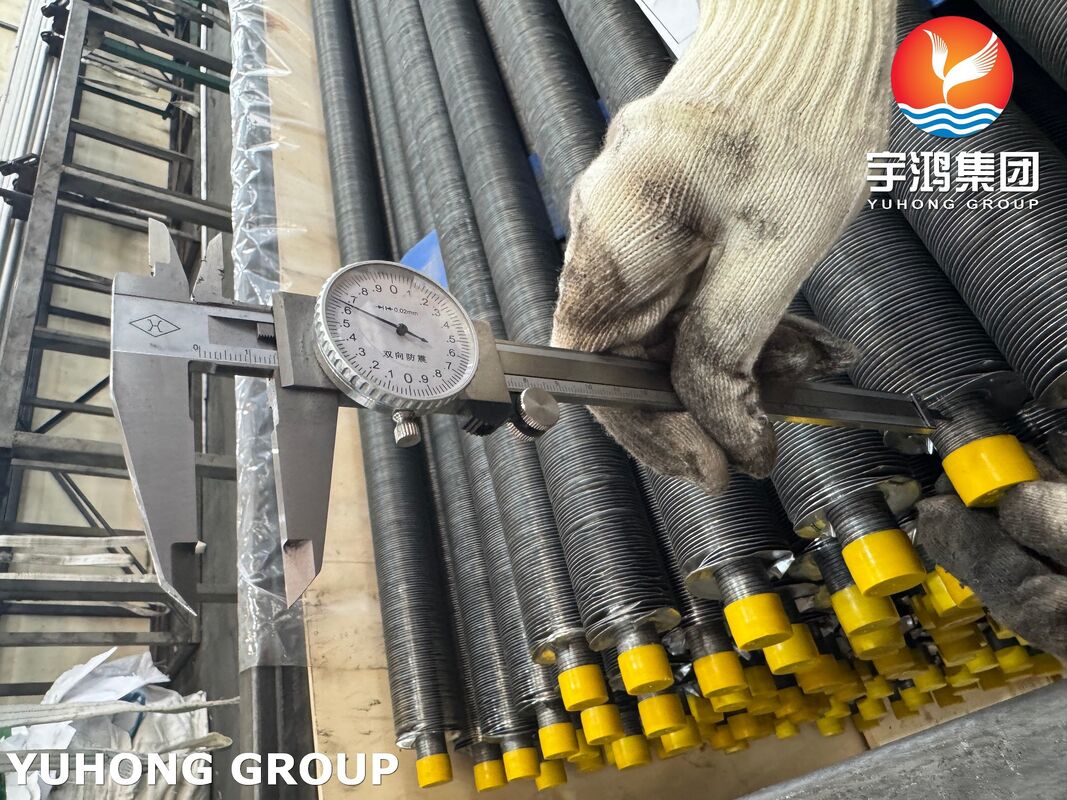

SA179 Carbon Steel Wound KL Finned Tubes for Industrial Air Coolers in Power Generation

Industrial air coolers in power generation are essential auxiliary equipment widely used in thermal power, nuclear power, and renewable energy power plants. These systems employ forced convection heat transfer with finned tube bundles as the core heat exchange elements to cool critical media, ensuring energy conservation and safe operation of power generation units.

As core components in power generation air coolers, wound L/LL/KL finned tubes primarily function to expand heat exchange surface area, enhance air-side heat transfer, and efficiently dissipate heat from process fluids to achieve optimal cooling performance.

KL Finned Tubes Advantages

Lower Thermal Resistance & Higher Heat Transfer Efficiency: Knurled base tube combined with rolled fin root creates mechanical interlock, reducing contact thermal resistance by 20-30% compared to L/LL types, and improving heat transfer coefficient by 10-15%. Ideal for air coolers and heaters requiring superior energy efficiency.
Superior Structural Reliability & Thermal Shock Resistance: Enhanced fin-tube bonding surpasses tension winding/overlapping methods. Resists fin loosening and detachment under temperature fluctuations and vibration conditions (e.g., compressor cooling, waste heat recovery). Service life extended by 30-50%.
Better Corrosion Resistance & Sealing: Tighter fin-root and base-tube fit minimizes crevice corrosion. Mechanical interlock effectively blocks moisture, salt, and corrosive elements compared to LL type. Excellent performance in wet air cooling, coastal, and chemical environments.
Higher Maximum Operating Temperature: GB/T 15386-94 standard permits maximum operating temperature of 250℃ (up to 280℃ for some suppliers), significantly higher than L (≤150℃) and LL (≤170-180℃) types. Suitable for 180-250℃ medium-temperature processes including heat medium heating and flue gas waste heat recovery.

A179 Base Tube Specifications

Chemical Composition

Carbon %	Manganese %	Phosphorus %	Sulfur %
0.06-0.18	0.27-0.63	0.035	0.035

Mechanical Properties

Tensile Strength, min	Yield Strength, min	Elongation in 2" or 50mm, min	Hardness Number max
47ksi (325 MPa)	26ksi (180 MPa)	35%	72 HRB

Fin Material Options

Aluminum

Common grades include Alu.1100 and Alu.1060. Aluminum fins offer light weight, excellent thermal conductivity, and good corrosion resistance, making them widely used in applications with weight constraints and moderate corrosive conditions.

Copper

Copper provides superior thermal conductivity, suitable for scenarios demanding extremely high heat transfer efficiency, such as precision instrument cooling. However, application scope is more limited compared to aluminum due to higher cost and increased weight.

Steel

Steel fins deliver high strength, capable of withstanding elevated pressure and temperature conditions. Applicable to high-temperature, high-pressure working environments. Thermal conductivity is lower than aluminum and copper, typically requiring fin structure optimization to enhance heat transfer efficiency.
