Name: ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: Flange For Heat Exchanger
Availability: InStock

Home > Products > Steel Flange >

ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment

ASME SA336 F11 CL2 flange

tube side steel flange

high pressure steel flange

Place of Origin:

CHINA

Brand Name:

YUHONG

Certification:

ISO 9001-2015

Model Number:

Flange For Heat Exchanger

Chat Now

Request A Quote

Product Details

Standard:

ASME SA336

Material:

F11 CL2

Flange Type:

Flange, Shell

Pressure:

Class 150# To 2500#

Size Range:

Customizable

Flange Standard:

ANSI B16.5

Highlight:

ASME SA336 F11 CL2 flange

tube side steel flange

high pressure steel flange

Payment & Shipping Terms

Minimum Order Quantity

1 PC

Price

NON

Packaging Details

WOODEN CASE, Ply-Wooden Cases with Steel Frames

Delivery Time

1 - 4 MONTH

Payment Terms

T/T

Supply Ability

300 TONS / MONTH

ASME SA105 Flange And ASME SA516 GR485 Shell

Chat Now

ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment

Chat Now

ASME SA105 Body Flange ASME B16.5 For Pressure vessels, Shell And Tube Heat Exchangers

Chat Now

ASTM A182 F310 Weld Neck RTJ Flange For Oil And Gas Extraction Equipment

Chat Now

+8613625745622

nirit@steelseamlesspipe.com

0086-574-88013900

Chat Now

Product Description

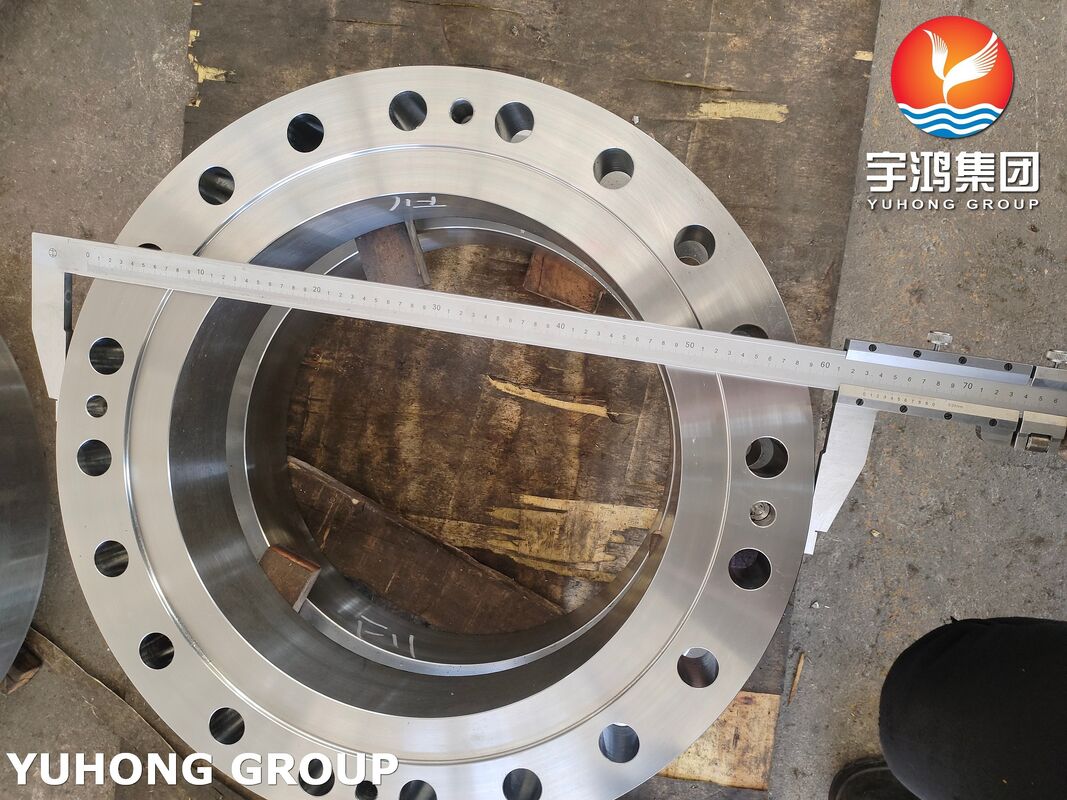

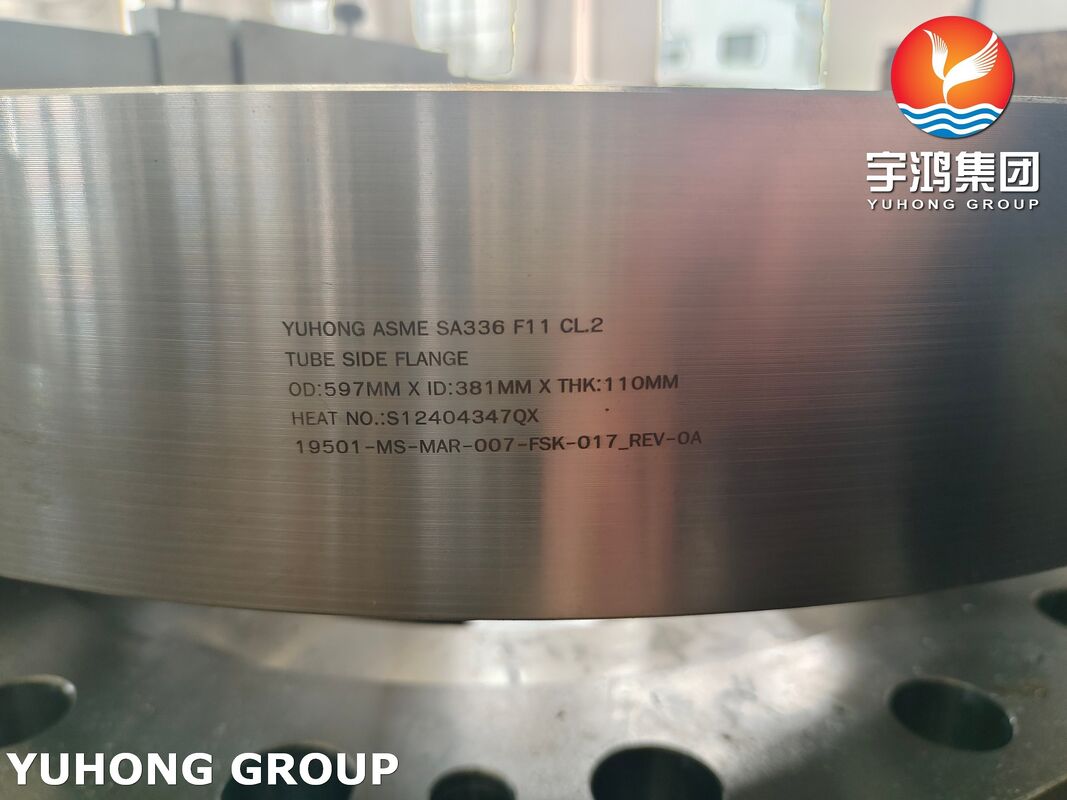

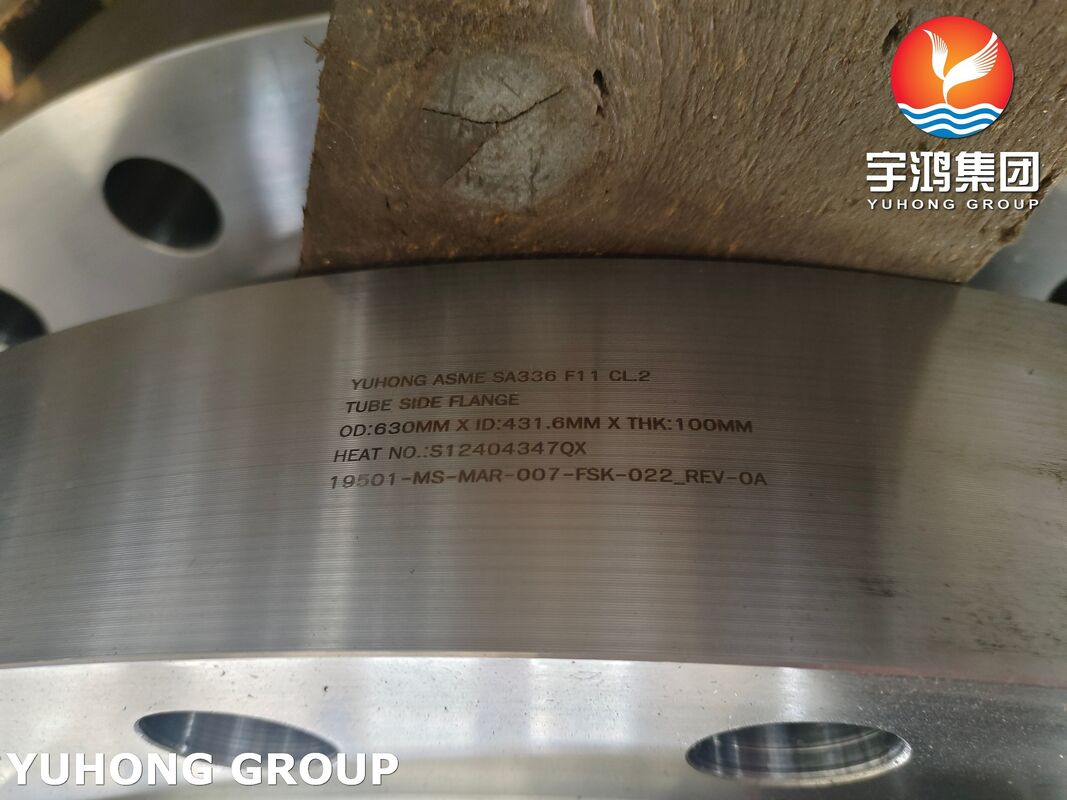

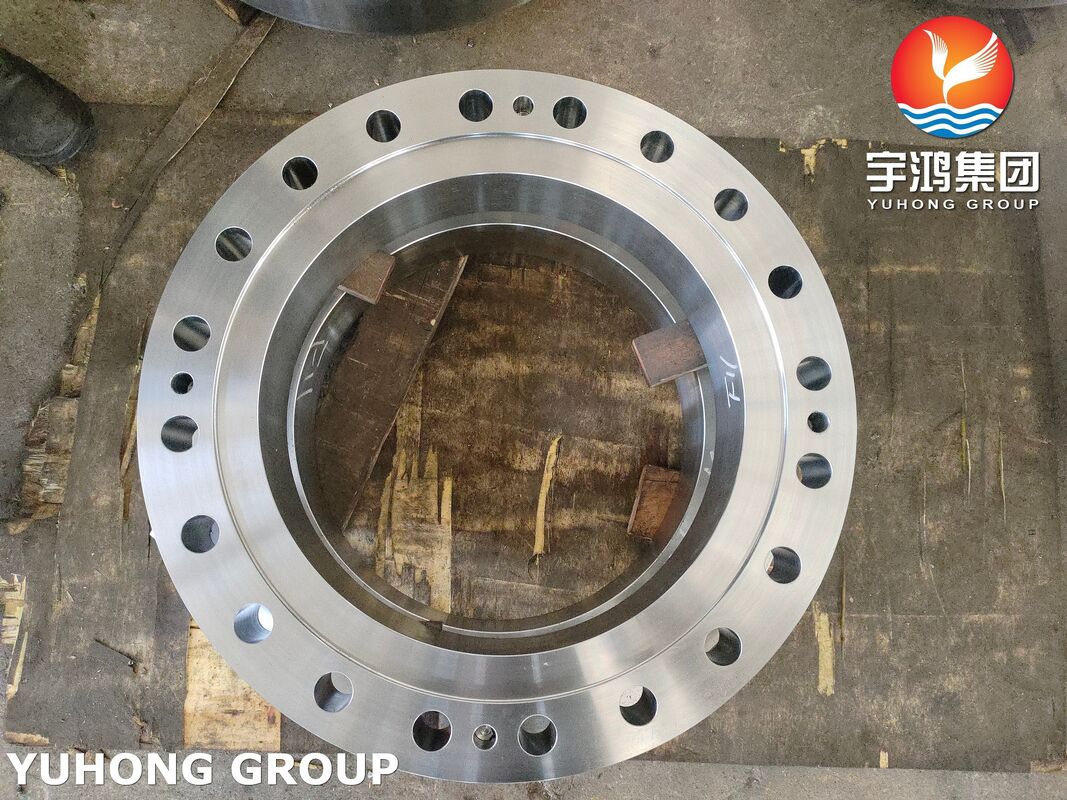

ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment

The ASME SA336 F11 Cl2 Tube Side Flange is a high-performance alloy steel flange designed for use in high-temperature and high-pressure environments. It is not a standard general-purpose flange, but a specialized component designed for heat exchangers operating under harsh conditions such as oil refining, chemical processing, or high-temperature power plants.

In shell-and-tube heat exchangers, the medium flows through two main spaces: the tube side and the shell side. The Tube Side designation specifies that this flange is used to connect, seal, or manage the fluid in the tube side.

Chemical Composition (Weight %)
ASME SA-336 Specification.
Element	Composition Requirement (%)
Carbon (C)	0.05 - 0.17
Manganese (Mn)	0.40 - 0.80
Phosphorus (P), max	0.025
Sulfur (S), max	0.025
Silicon (Si)	0.50 - 0.80
Chromium (Cr)	1.00 - 1.50
Molybdenum (Mo)	0.44 - 0.65

Mechanical Properties
Requirements for Grade F11 Class 2
Property	Test Condition / Direction	Requirement
Tensile Strength	At Room Temperature	415 MPa (60 ksi) min
Yield Strength	0.2% Offset, at Room Temperature	205 MPa (30 ksi) min
Elongation	In 50 mm (2 in.) Gauge Length, at Room Temperature	20% min
Reduction of Area	At Room Temperature	45% min
Brinell Hardness	---	137 - 187 HBW
Charpy V-Notch Impact	At -30°C (-22°F)	Avg. of 3 specimens: 20 J (15 ft·lbf) min
Charpy V-Notch Impact	At -30°C (-22°F)	Single specimen: 16 J (12 ft·lbf) min

Applications:

Hydrocracking/hydrodesulfurization unit
Hydrogen production and ammonia synthesis
Ethylene cracking unit
General pressure vessels

ASME SA336 F11 Cl2 alloy Steel Tube Side Flange For High temperature and high pressure environment 0
