Product Description

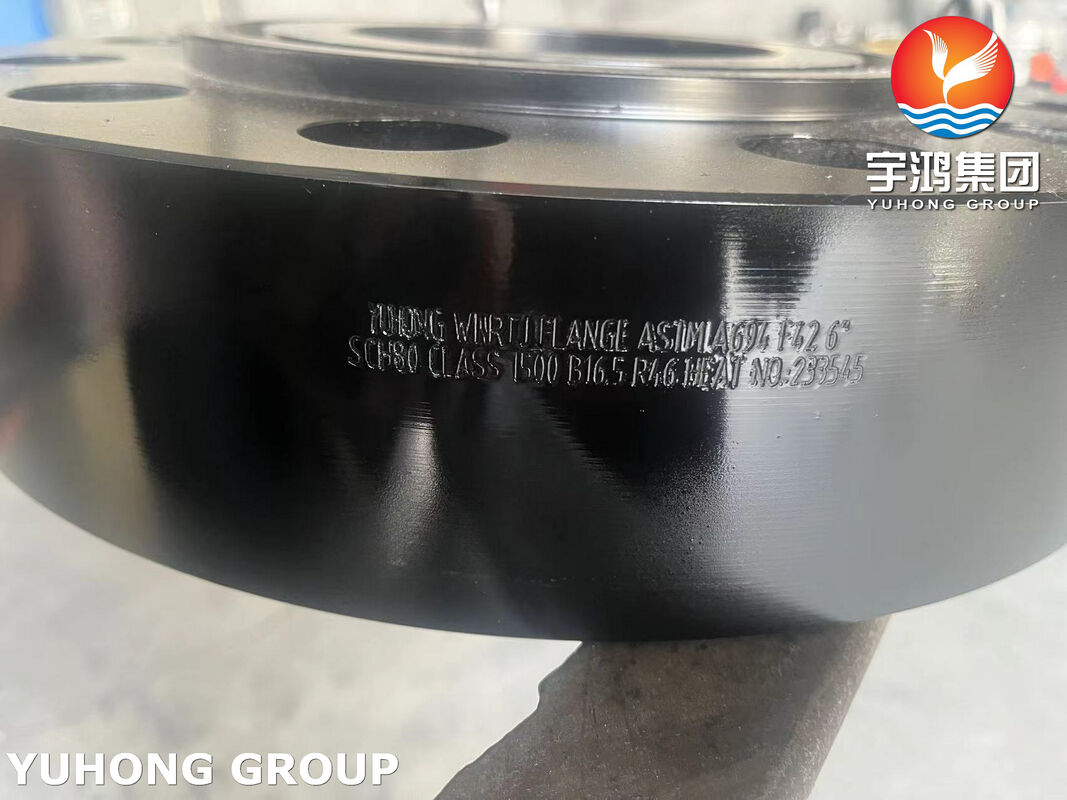

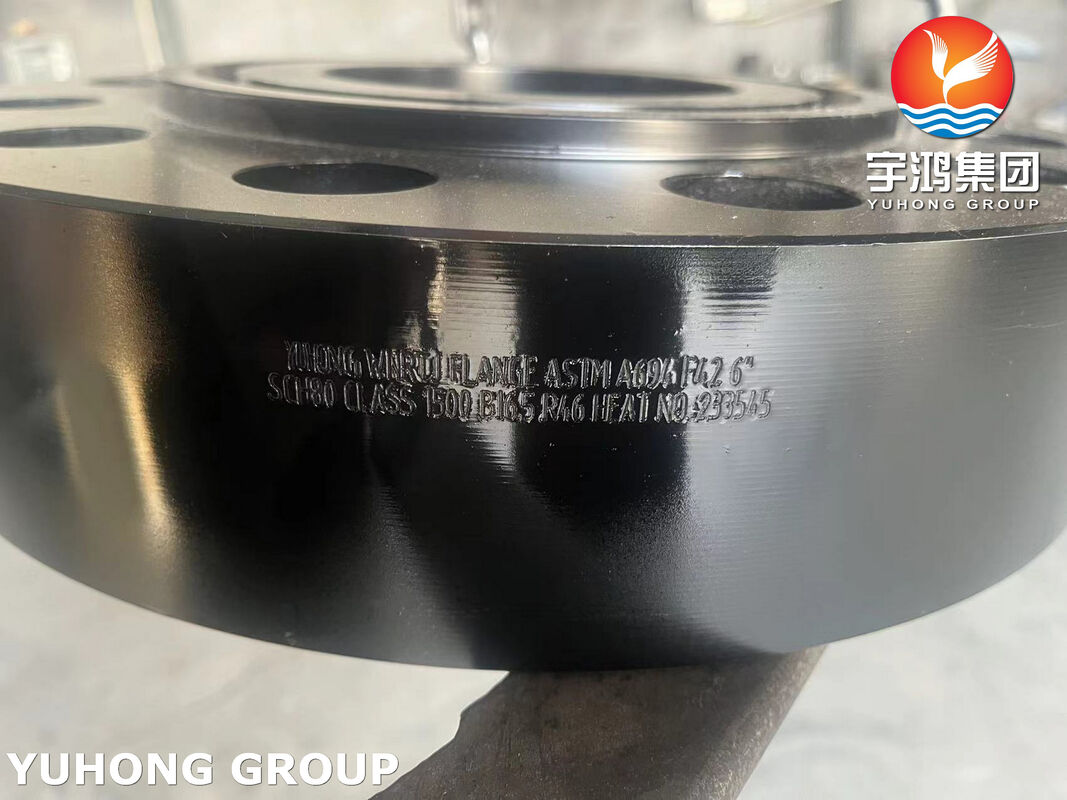

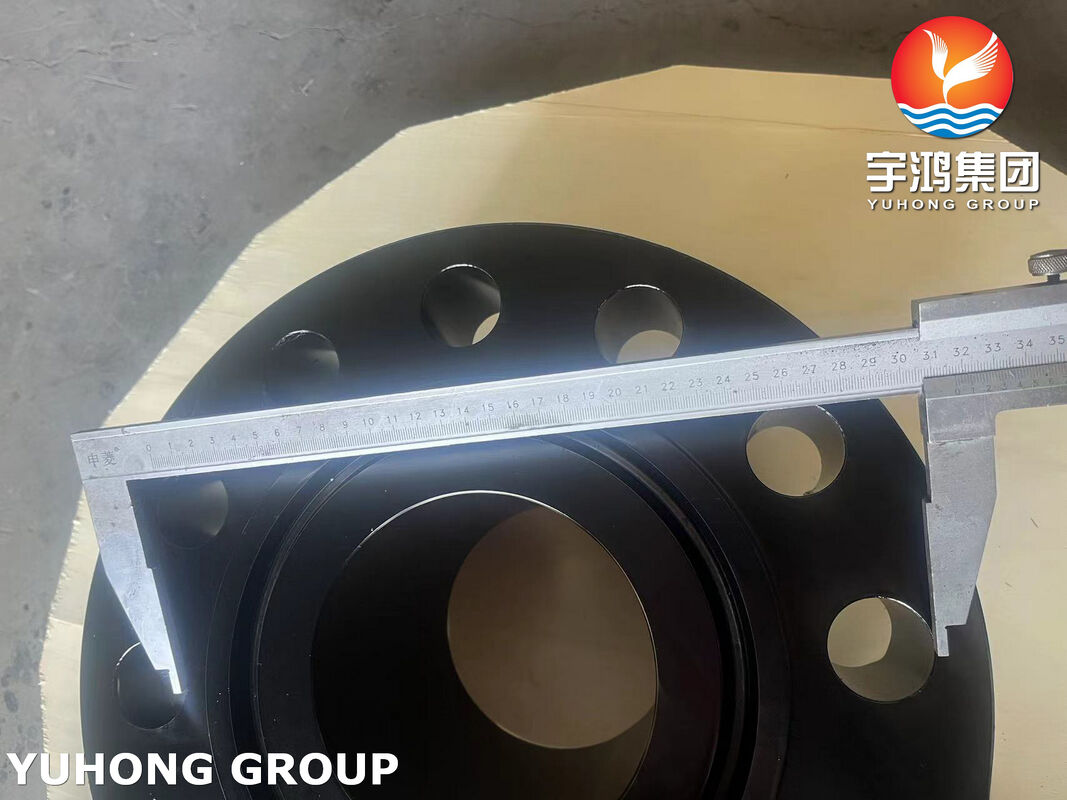

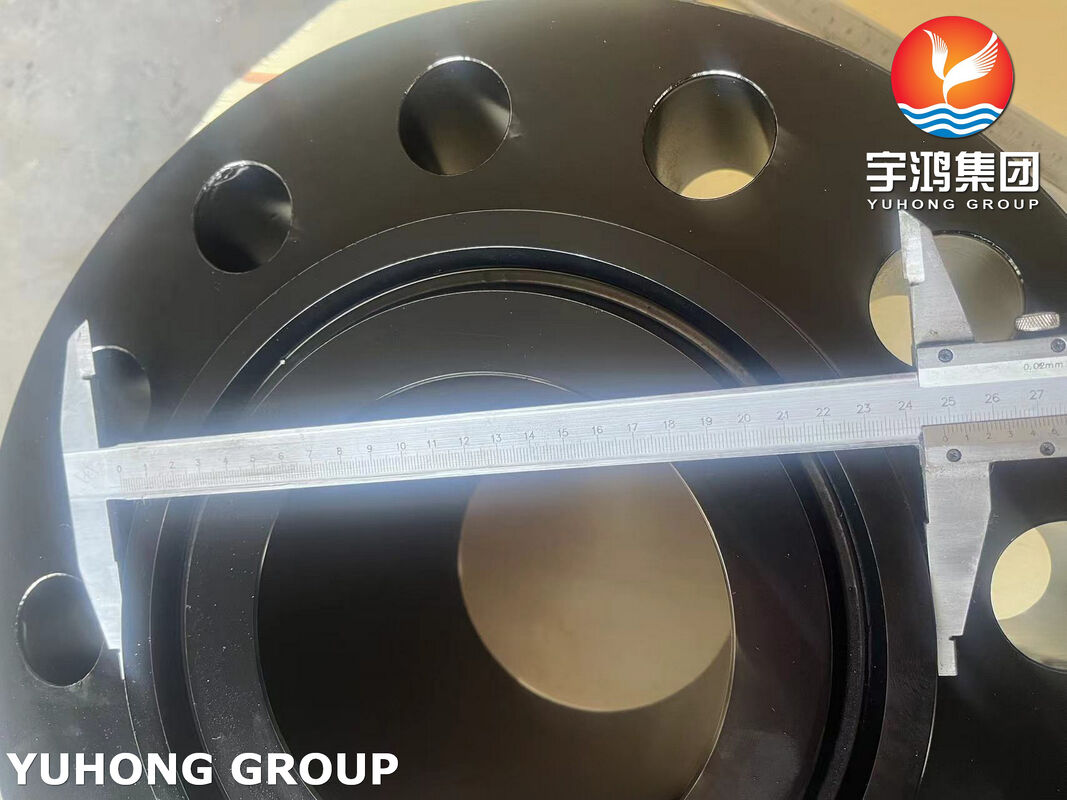

ASTM A694 F42 Carbon Steel Flange Weld Neck RTJ High Pressure Pipeline 42ksi Yield Strength For API 5L X42

ASME/ASTM A694 F42 is a high-strength carbon steel forged flange material specifically designed for high-pressure transmission pipelines. This standard covers forged or rolled steel pipe flanges, forged pipe fittings, valves, and components suitable for piping systems providing high-strength transmission services.

A significant characteristic of A694 F42 is its strength rating matching with API 5L X42 line pipe – a core requirement for flange and pipe material matching in long-distance oil and gas pipeline projects. The "42" in F42 represents its minimum yield strength of 42 ksi (approximately 290 MPa). The A694 series is divided into nine grades based on minimum yield strength: F42, F46, F48, F50, F52, F56, F60, F65, and F70, with F42 being the basic grade in this series.

Core positioning: The A694 F42 flange is a high-strength carbon steel flange solution for medium and high pressure oil and gas transmission pipeline systems, forming a complete pipeline matching system with API 5L X42 line pipe and A860 WPHY42 pipe fittings.

Chemical Composition
Element	Content (max, %)
C (Carbon)	≤ 0.30
Mn (Manganese)	≤ 1.60
P (Phosphorus)	≤ 0.025
S (Sulfur)	≤ 0.025
Si (Silicon)	0.15 – 0.35

Mechanical Properties (Room Temperature, Minimum) – F42 Grade

Parameter

F42 Value

Ambient to ~425°C

Yield Strength (0.2% offset)

≥ 290 MPa / 42 ksi

Tensile Strength

≥ 415 MPa / 60 ksi (range 415–585 MPa)

Elongation (gage length 50mm or 2 in.)

≥ 20%

Hardness (reference)

≤ 200 HB

A694 Full Grade Series Mechanical Properties Comparison
Grade	Min. Yield Strength (MPa)	Min. Tensile Strength (MPa)	Min. Elongation (%)
F42	290	415	20
F46	315	415	20
F48	330	425	20
F50	345	440	20
F52	360	455	20
F56	385	470	20
F60	415	515	20
F65	450	530	20
F70	485	565	18

Dimensional and Pressure Rating Range
Parameter	Range	Standard Reference
Nominal Pipe Size (NPS)	1/2″ – 48″ (DN15 – DN1200)	ASME B16.5 / B16.47 / MSS SP-44
Pressure Class	150# / 300# / 400# / 600# / 900# / 1500# / 2500#	ASME B16.5
Pressure Class (Metric)	PN6 – PN100	EN 1092-1
Flange Types	Socket Weld, Slip-On, Lap Joint, Weld Neck (WN), Blind, Threaded	ASME B16.5 / B16.47
Facing Types	RF (Raised Face) / FF (Flat Face) / RTJ (Ring Type Joint) / Tongue & Groove	ASME B16.5

Applications:

Oil & Gas (Onshore & Offshore) Long-distance oil and gas transmission pipelines – flange connections for high-pressure lines; wellhead Christmas trees; manifolds; pipeline valves and pump connections
Petrochemical & Chemical Processing Medium to high-pressure process piping systems in refineries and chemical plants
Power Generation High-pressure steam lines; boiler feedwater systems; steam turbine connections
General Industrial Marine piping systems (shipboard high-pressure lines); high-pressure water treatment pipelines; industrial utility piping
