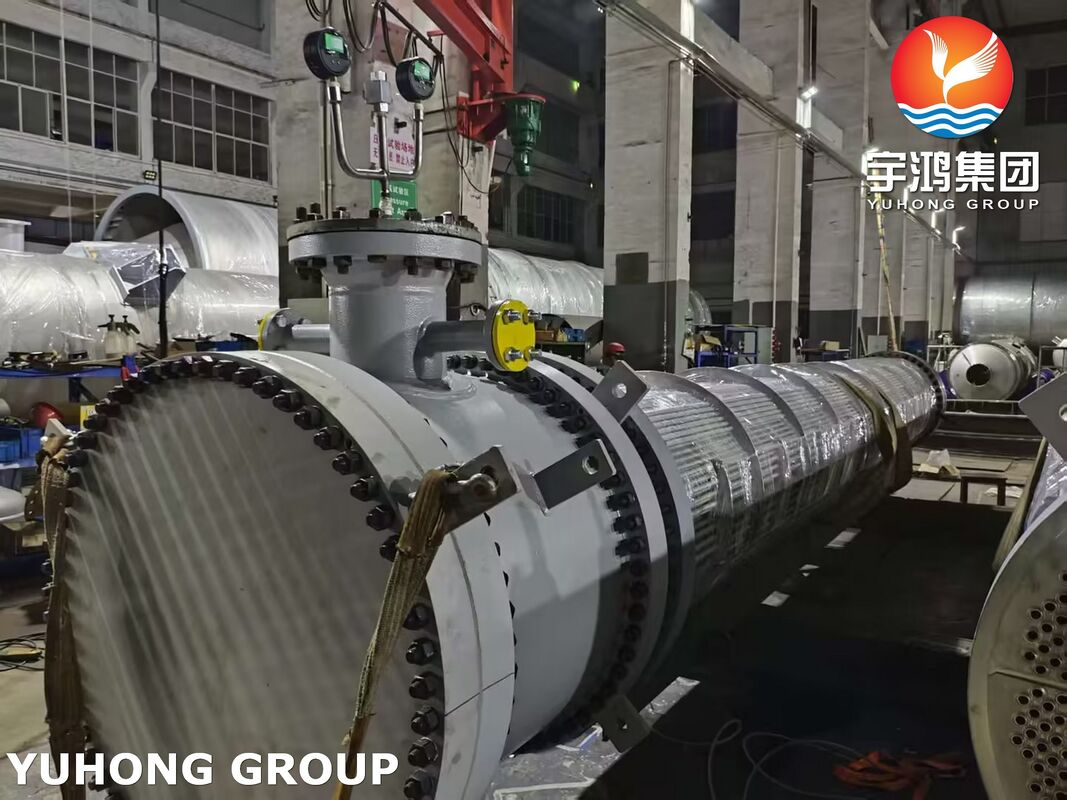

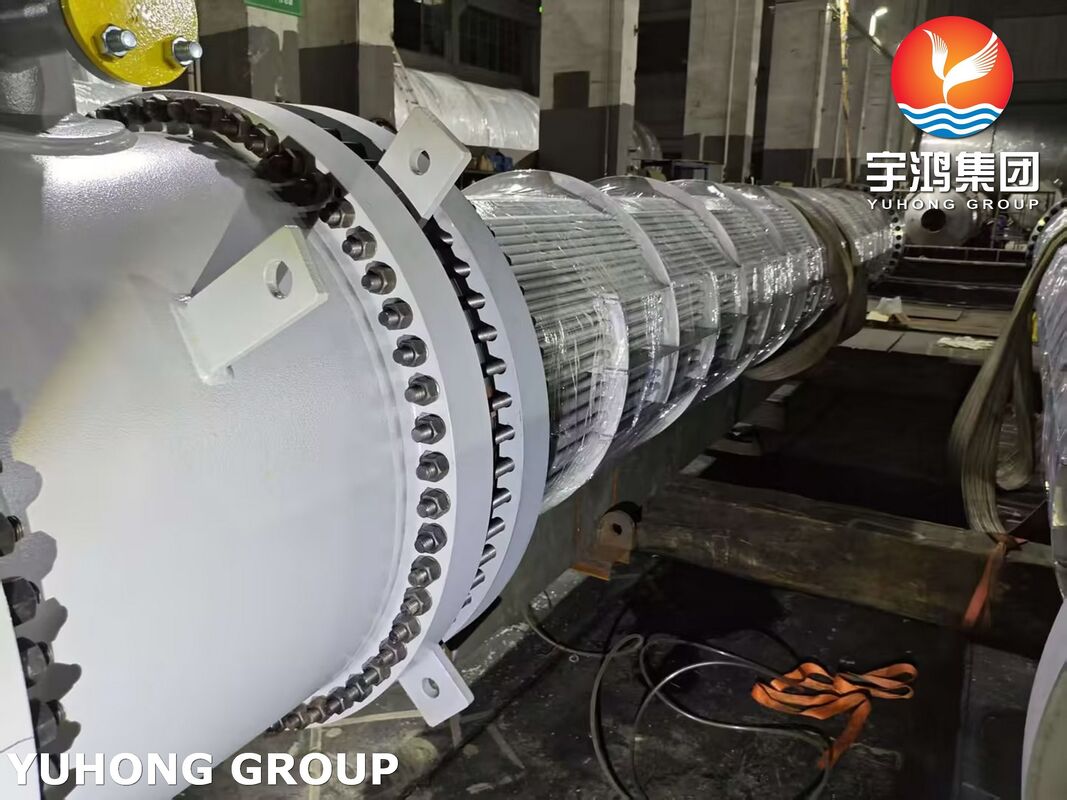

ASME Shell and Tube Heat Exchangers Chiller TP304L Tubes for Oil and gas industry
Yuhong heat exchanger is engineered for demanding industrial applications, combining high-strength SA516 GR.70N carbon steel with corrosion-resistant SS304L stainless steel cladding. It is designed to meet rigorous international standards for reliability, thermal efficiency, and longevity in aggressive chemical environments.
Dimensions & Specifications of ASME Shell and Tube Heat Exchangers Chiller
Inside Diameter (ID): 1,025 mm
Approximate Length: 7,715 mm
Design Type: removable tube bundle and cladded channel components
Advanced Material Engineering of ASME Shell and Tube Heat Exchangers Chiller
Shell Side: The barrel and covers are constructed from SA 516 Gr.70N (Normalized Carbon Steel)
Corrosion Protection (Channel Side): channel barrel, flanges, and covers utilize SA 350 LF2 CL.1 base metal integrated with a 3mm S.S.304L Cladding.
Tube Bundle Components:
Tubes: High-grade SA 213 TP304L seamless stainless steel
Baffles & Support Plates: SA 240 304L
Sealing & Bolting Integrity of ASME Shell and Tube Heat Exchangers Chiller
High-Strength Bolting: Critical joints (Shell/Channel/Cover) are secured with SA 320 L7 alloy steel bolts and SA 194 4 nuts
Premium Gaskets: All major interfaces utilize Spiral Wound S.S.304L gaskets
Technical Material Summary of ASME Shell and Tube Heat Exchangers Chiller
| Group | Material Specification |
| Shell / Barrel | SA 516 Gr.70N |
| Channel / Tube Sheet | SA 350 LF2 CL.1 + 3mm 304L Clad |
| Heat Exchanger Tubes | SA 213 TP304L |
| Internal Baffles | SA 240 304L |
| Main Bolting | SA 320 L7 / SA 194 4 |
