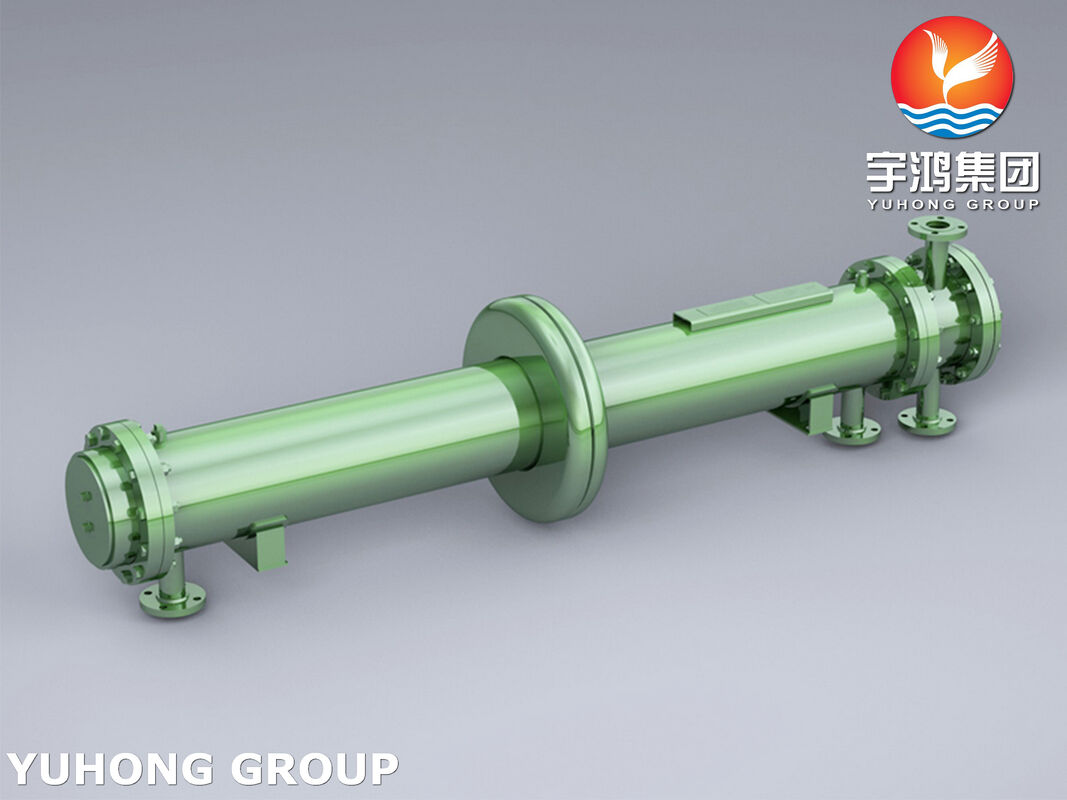

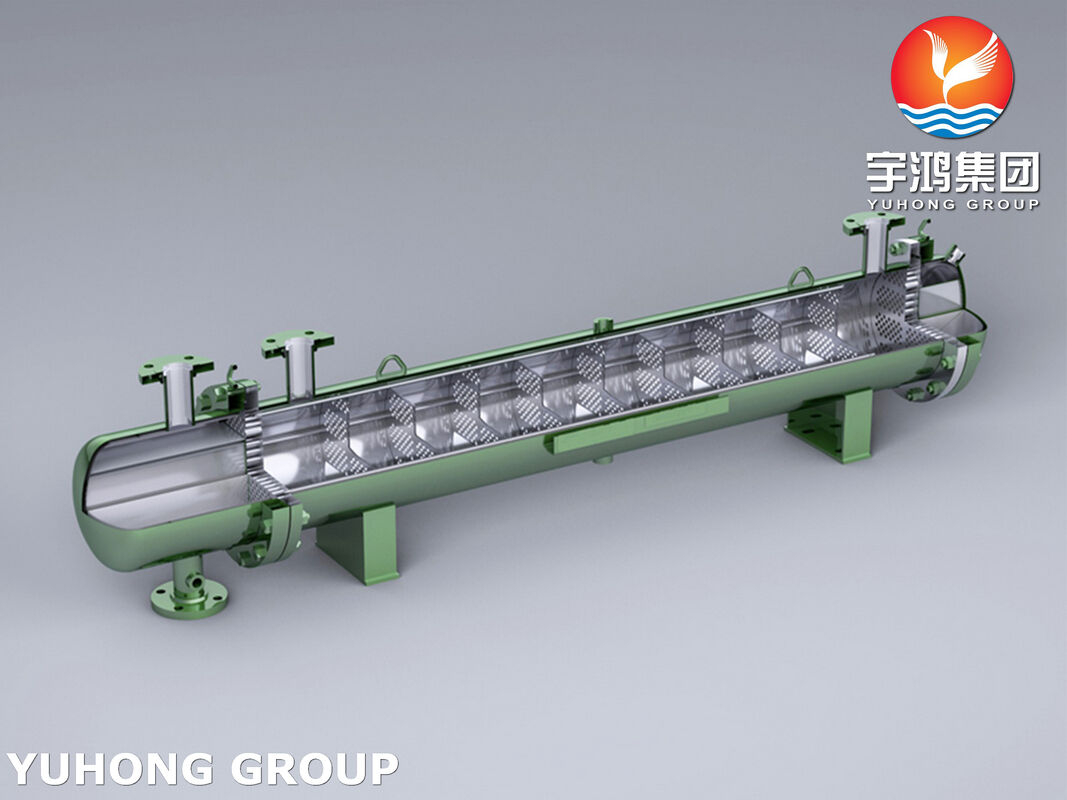

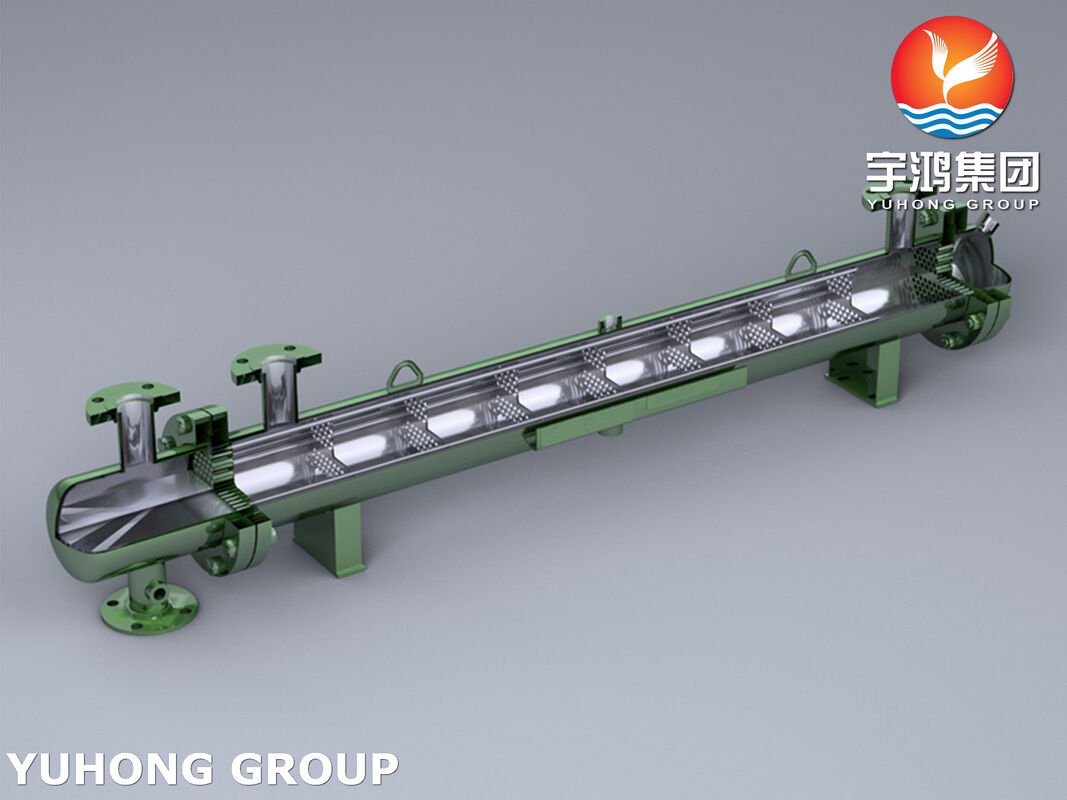

ASME SA516 GR.60 Shell and Tube Heat Exchangers for oil and gas industry
Product Details
| Code: | ASME SEC VIII DIV.1, TEMA R, API660, NACE | Type: | AES, Horizontal |
|---|---|---|---|
| Shell: | SA516 GR.60 | Channel: | SA336 GR.F11 CL2 |
| Flange: | SA266 CL.2 | Lug: | SA387 GR.11 CL2 |
| Highlight |
ASME SA516 GR.60 heat exchangers,TEMA shell and tube heat exchangers,oil and gas heat exchangers |
||
Product Description
ASME SA516 GR.60 Shell and Tube Heat Exchangers for oil and gas industry
Our company is a premier manufacturer of high-pressure heat transfer solutions, specializing in the design and fabrication of equipment for complex refinery units, including ASME VIII Div. 1 and API 660.
Design Data
| Parameter | Unit | Shell Side | Tube Side |
| Design Pressure | kgf/cm2(g) | 38 | 49.5 |
| Design Temperature | °C | 210 | 310 |
| Operating Temperature (In/Out) | °C | 48 / 100 | 165 / 143 |
| Fluid Type | - | HC + H2 | HC + H2 |
| Hydrotest Pressure (Shop) | kgf/cm2(g) | 59.7 | 65.1 |
| M.A.W.P. | kgf/cm2(g) | 38.7 | 49.9 |
| Corrosion Allowance | mm | 3 | 3 |
| Number of Passes | - | 1 | 2 |
| P.W.H.T. | - | YES | YES |
| Empty Weight / Tube Bundle | kg | 8300 / 2900 | - |
Material List
| Component Description | Dimensions / Size | Material Standard |
| "U" Tubes | ϕ25.4×2.11 THK (MW)×2135 STR.LG. | SA 213 Gr.T11 |
| Shell Course | I.D. 990×20 THK, L=2100 | SA 516 Gr.60 |
| Tubesheet | O.D. 1050×135 THK | SA 336 Gr.F11 Cl.2 |
| Channel Flange | O.D. 1240, I.D. 990×188 THK | SA 336 Gr.F11 Cl.2 |
| Elliptical Head 2:1 | I.D. 990×20 THK | SA 387 Gr.11 Cl.2 |
| Baffles (Odd/Even) | O.D. 985.2×10 THK | SA 387 Gr.11 Cl.2 |
| Tie Rods | ϕ1/2"−UNC×2030 LG. | SA 193 Gr.B7 |
| Sliding Rails | PL 50×6 THK×2000 LG. | SA 240-304L |
| Stud Bolt | ϕ1.1/2"−8UN,L=600 | SA 193 Gr.B7 |
| Hex Nut | ϕ1.1/2"−8UN(H=D) | SA 194 Gr.2H |
Exchanger Type and Application_U-tube shell and tube heat exchanger.
Design Configuration: It features a "U" tube bundle design, which allows for free thermal expansion, making it ideal for the high temperature differentials found in refinery processes.
Specific Application: It serves as the Stabilizer Feed Exchanger within the Naphtha Coker Hydrotreating Unit.
Core Function: The equipment manages the heat exchange of Hydrocarbons and Hydrogen (HC + H2) streams to preheat feed materials for the stabilization column.
