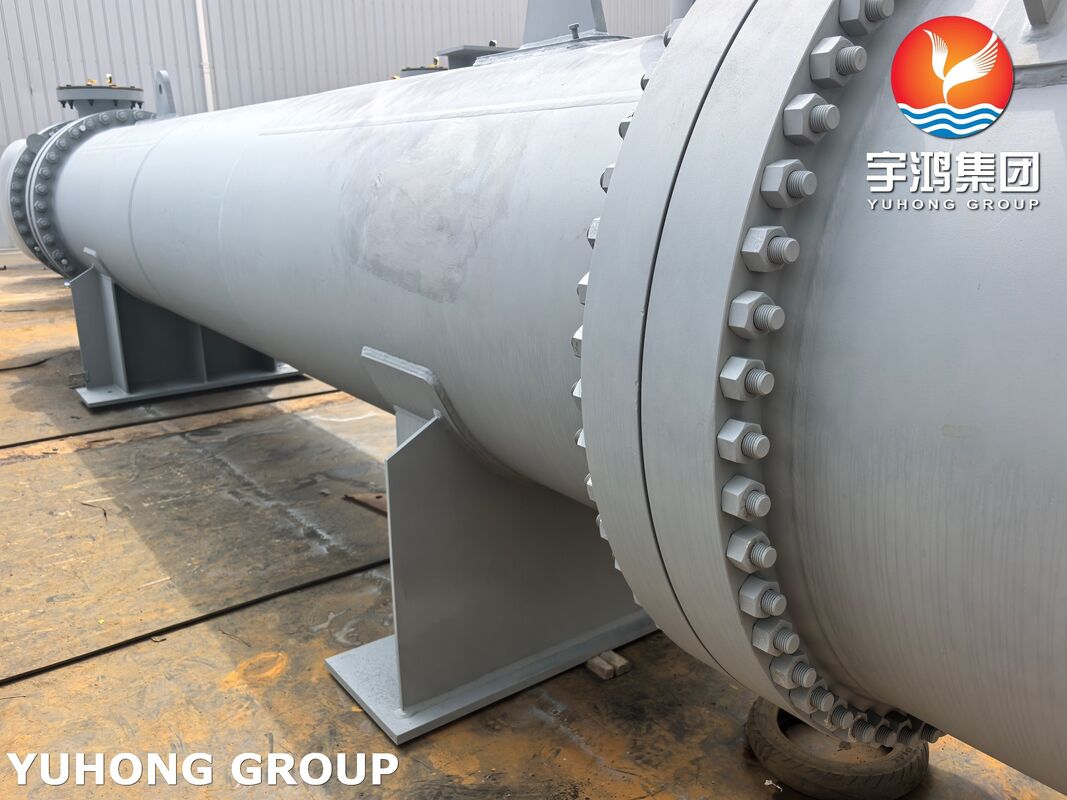

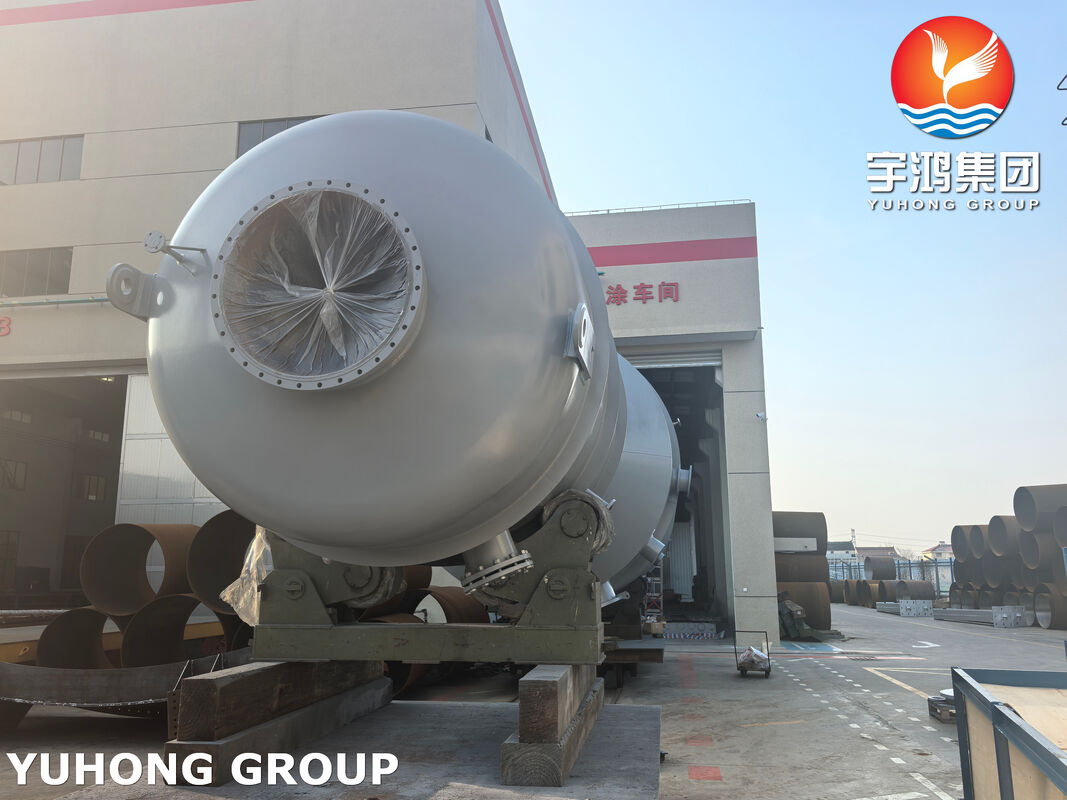

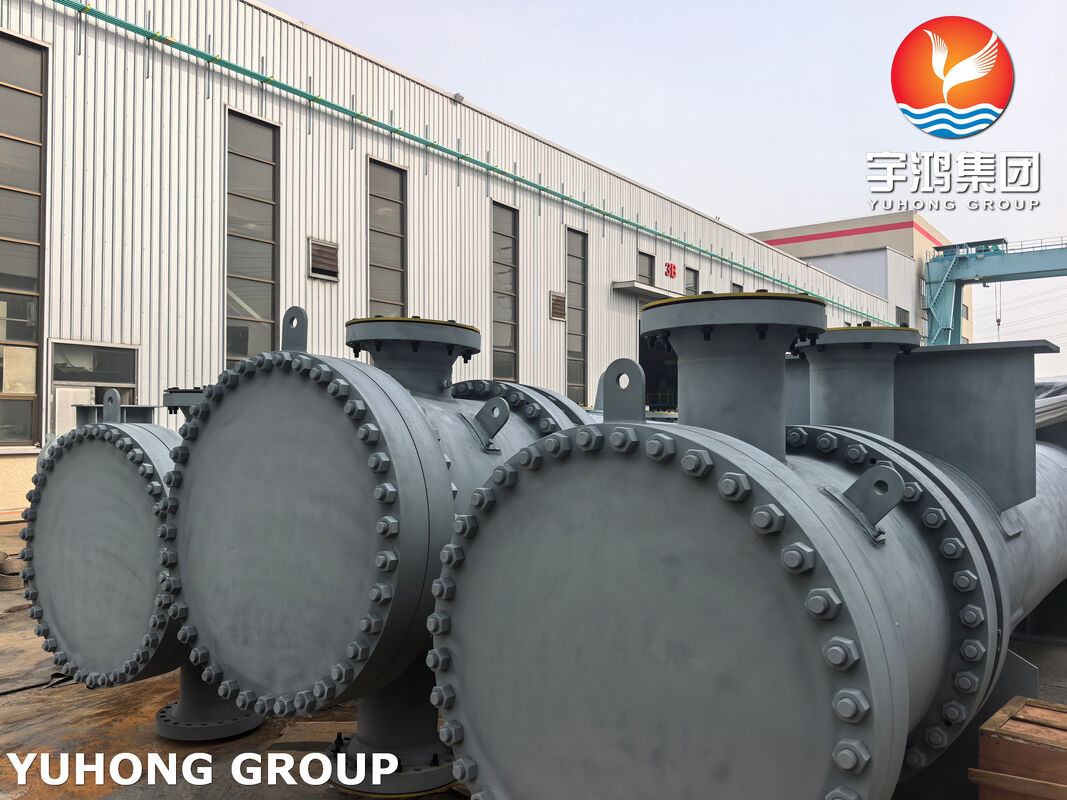

ASME Certificated Shell And Tube Type Heat Exchanger Reformed Gas Boiler for Fertilizer Plant

ASME Certificated Shell And Tube Type Heat Exchanger Reformed Gas Boiler for Fertilizer Plant

YUHONG GROUP is a leading international manufacturer and technical service provider specializing in high-performance Heat Exchangers and ASME Pressure Vessels. With decades of industrial expertise, we deliver critical components—including tubesheets, air coolers, and complex pressure-retaining units—to the world’s most demanding sectors.

Design & Dimensions

• Reference Drawings: For general assembly and design data.

• Orientation: All bolt holes must straddle the normal center lines of the vessel.

• Units: All dimensions are in mm unless otherwise specified.

• Gasket Surfaces: All R.F. (Raised Face) gasket contact surfaces shall comply with ASME B16.5.

• Edges: All accessible sharp corners and inside edges of nozzles/connections must be rounded to a smooth radius (minimum 3mm for nozzle interiors).

MATERIAL

8501: TUBES / 34 OD x 4.5 Thk (MIN), SA-213 Gr.22 (SEAMLESS)

8452: HEX. NUT M24 x 3P, SS 304

8451: HEX. HD BOLT M24 x 3P x 85 LG., SS 304

8116: KNUCKLE FORGING, SA-336 Gr.22

8002: CHANNEL DISHEND, SA-387-GR 11 CL.2

2201: HYDROTEST DISHEND, SA-516-GR-70

11: HYDRO. RING 40 THK., SA-387-GR 11 CL.2

10: BAFFLE SUPPORT CLEAT 22 THK., SA-387 GR 11 CL.2

9: BY PASS PIPE 8 NB SCH 160, SA-335 Gr.22 (SEAMLESS)

8: INLET CHANNEL CONE-2 40 Thk, SA-387-GR 11-CL 2

7: INLET CHANNEL CONE-1 40 Thk, SA-387-GR 11-CL 2

6: STUB PIECE 24 THK, SA-387-GR-11-CL-2

5: OUTLET CHANNEL 30 Thk, SA-387-GR 11-CL 2

4: INLET CHANNEL 40 Thk, SA-387-GR 11-CL 2

3: SHELL COURSE 3 69 Thk, SA-387-GR 11-CL 2

2: SHELL COURSE 2 69 Thk, SA-387-GR 11-CL 2

1: SHELL COURSE 1 69 Thk, SA-387-GR 11-CL 2

Inspection & NDT (Non-Destructive Testing)

• Radiographic Examination (RT): * 100% RT for all pressure butt-welds

• Ultrasonic Examination (UT): All pressure-retaining butt welds and nozzle attachments shall be fully examined per ASME Sec. VIII, Div. 1 (UW53 & Appendix 12).

• Magnetic Particle Examination (MT): * Required for all welded joints of low alloy steel and lifting lugs per App. 6 of ASME Sec. VIII Div. 1​

Hydro​static Test

• Medium: Clean potable water

• Duration: Maintain test pressure for at least one hour per 25mm of total nominal shell thickness.

• Sequence: No painting is permitted before the hydrotest, leak test, and weld inspections are approved.

• Post-Test: Equipment must be cleaned thoroughly to remove scales and foreign materials.
