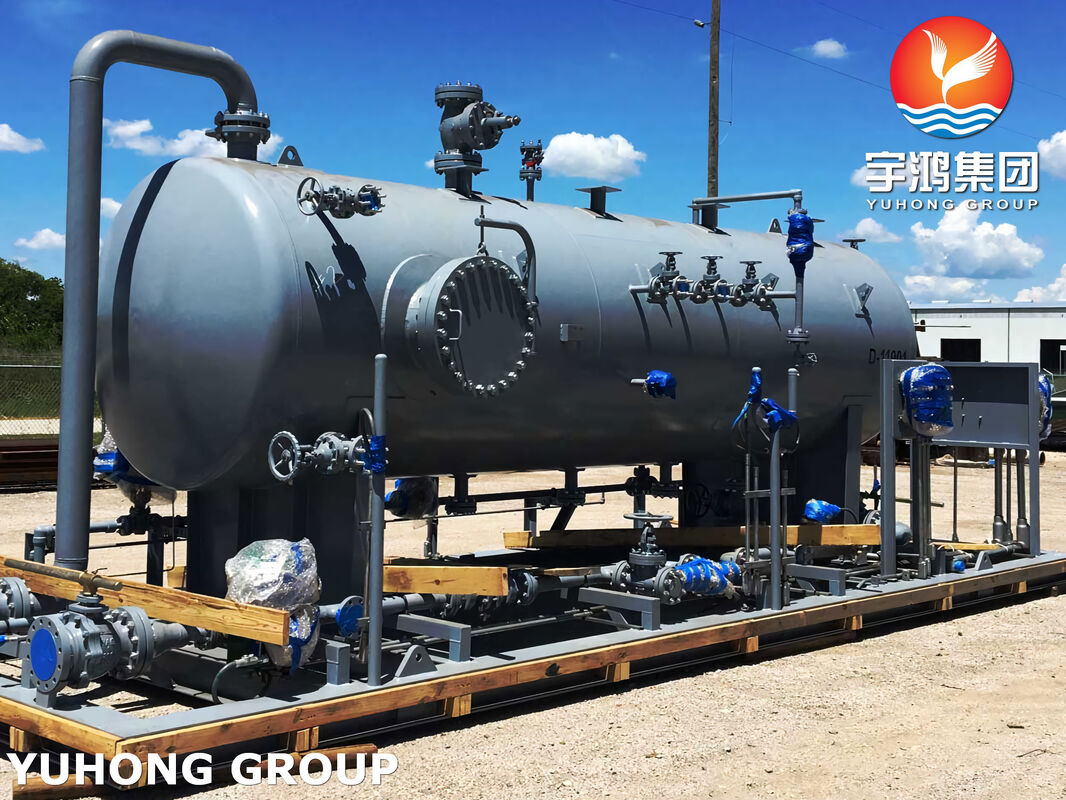

ASME U Stamp Certified BS EN10025 S275JR Condensate Tank for Hydro Plant

Place of Origin: China
Brand Name: YUHONG
Certification: ASME VIII DIV.1 , PED, API , NB, NACE MR0175
Model Number: Reactor for FORMALDEHYDE & HEXAMINE PRODUCTION
Minimum Order Quantity: 1 Set
Price: 50,000 -- 500,000 USD
Packaging Details: Nude Cargo/Bare Packaging, Frame Packaging
Delivery Time: 60---150 DAYS
Payment Terms: L/C, T/T
Supply Ability: 50SETS/MONTHS
Inquiry Now
Get A Quote
Specifications
Highlight Features

ASME U Stamp condensate tank

,

BS EN10025 S275JR pressure vessel

,

hydro plant condensate tank

Design Code & Certification:
ASME Section VIII, Div. 1
NECK:
BS EN10025 S275JR
FLANGE:
A105
HANDLE:
BS4449 GR.250
PLATE:
BS EN10025 S275JR
RING:
BS EN10025 S275JR
SLEEVE:
SA106B
Product Description

ASME U Stamp Certified BS EN10025 S275JR Condensate Tank for Hydro Plant

Constructed from premium carbon steel and featuring precision-engineered fittings, YUHONG pressure vessel meets the rigorous structural requirements of industrial pressure vessel standards, providing a long-term solution for condensate management.



Technical Specifications

Parameter Value / Specification
Medium Condensate
Nominal Capacity 9.23 Cubic meter
Operating Conditions 2 Barg @ 110degree
Design Pressure / Temp 2 Barg @ 110degree
MDMT -18degree
Joint Efficiency 0.7 (Shell & Head)
Corrosion Allowance 0.00 mm
Weight 1,600 kg (Empty) / 10,830 kg (Full for Test)



Construction Features

  • Premium Material Selection: The vessel shell and heads are fabricated from BS EN 10025 S275JR grade carbon steel.

  • Heavy-Duty Manhole Assembly (MH1 - DN600): * Features a 24-inch ASME B16.5 Class 300 SORF (Slip-On Raised Face) flange paired with a matching BLRF (Blind Raised Face) cover.

    • SA-193-B7 stud bolts and SA-194-2H nuts for leak-proof sealing.

    • fabricated from SA-106-B pipe with handling hooks and eye bolts for safe and easy blind cover maintenance.

  • Structural Integrity: Every unit undergoes a vertical hydrostatic test at 2.6 Barg

ASME U Stamp Certified BS EN10025 S275JR Condensate Tank for Hydro Plant 0
