Name: ASME SA210 / SA210 GR-C Seamless Tube High Strength Carbon Steel Boiler Tube For High Temp, Superheater, Power Generation
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: ASME SA210 / SA210
Availability: InStock

Home > Products > Boiler Tube >

ASME SA210 / SA210 GR-C Seamless Tube High Strength Carbon Steel Boiler Tube For High Temp, Superheater, Power Generation

ASME SA210 seamless boiler tube

SA210 GR-C carbon steel tube

high temperature superheater tube

Place of Origin:

China

Brand Name:

YUHONG

Certification:

ISO 9001/TUV/PED

Model Number:

ASME SA210 / SA210

Chat Now

Request A Quote

Product Details

Standard:

ASME SA210 / SA210

Material Grade:

GR-C

Form:

Seamless Tube

Diameter:

12.7 ~ 127 Mm (1/2 ~ 5 In)

Wall Thickness:

0.9 ~ 12.7 Mm (0.035 ~ 0.500 In)

Applications:

Boilers, Heat Exchangers, Superheaters, HRSG

Highlight:

ASME SA210 seamless boiler tube

SA210 GR-C carbon steel tube

high temperature superheater tube

Payment & Shipping Terms

Minimum Order Quantity

500 KGS

Price

Negotiable

Packaging Details

Steel frame wooden case with plastic cap

Delivery Time

Depends on order quantity

Payment Terms

T/T, L/C at sight

Supply Ability

1000 TONS / month

ASME SA335 P91 P92 Seamless Alloy Steel Boiler Tube，High Temp Pressure for Power Plant Boiler, Superheater

Chat Now

ASME SA210 / SA210 GR-C Seamless Tube High Strength Carbon Steel Boiler Tube For High Temp, Superheater, Power Generation

Chat Now

A334 Gr.6 Alloy Steel Boiler Tube For Heat Exchangers, Condensers, And Boilers

Chat Now

ASTM A335 P22 Rows Bend Tubes Hight Emperature Reheaters And Superheaters In Power Plants,Boilers

Chat Now

+8613625745622

nirit@steelseamlesspipe.com

0086-574-88013900

Chat Now

Product Description

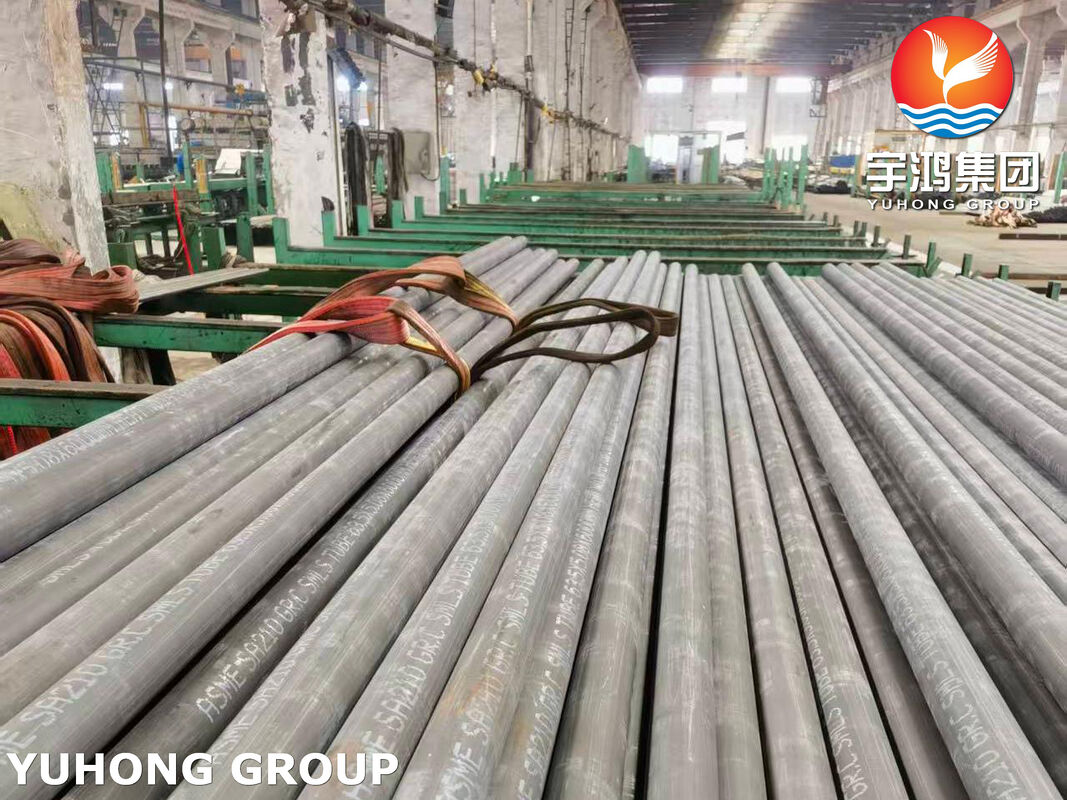

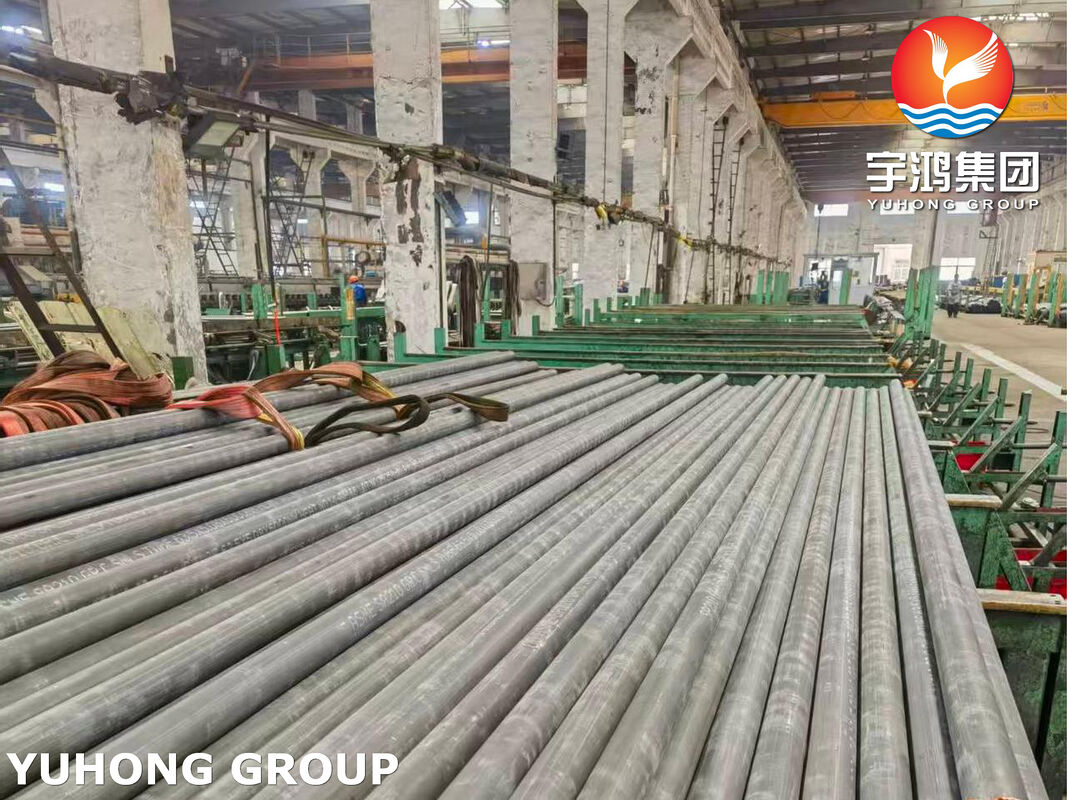

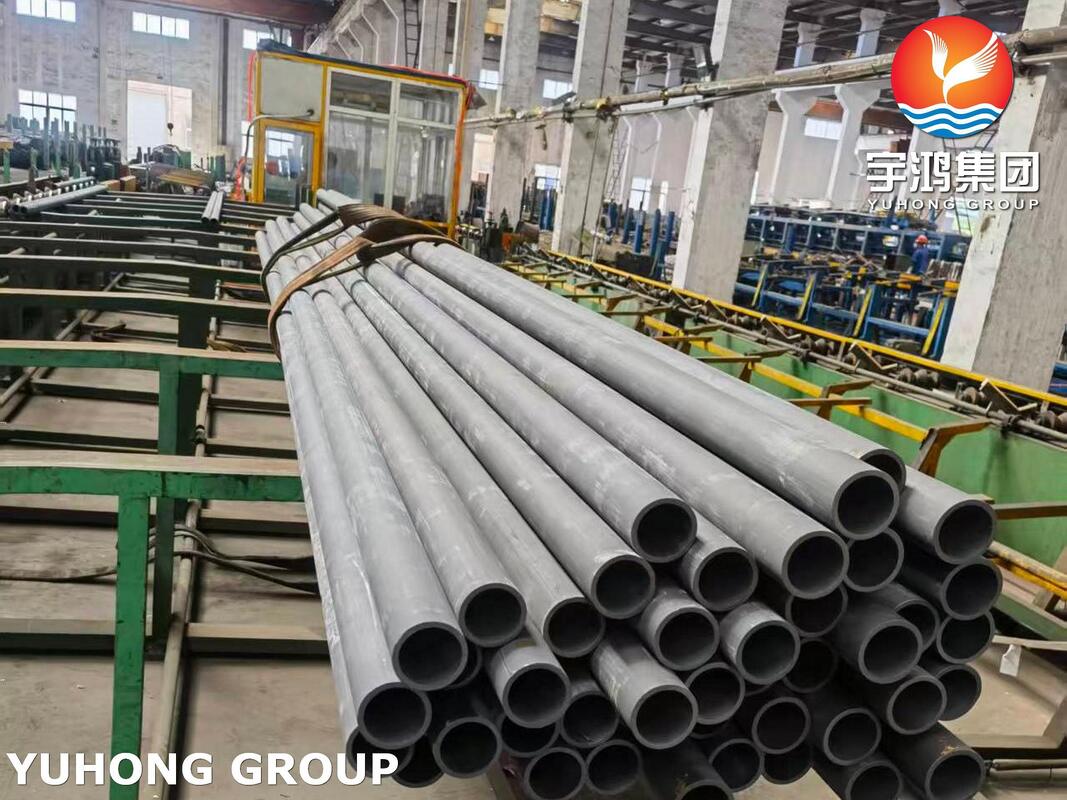

ASME SA210 / SA210 GR-C Seamless Tube High Strength Carbon Steel Boiler Tube For High Temp, Superheater, Power Generation

ASME SA210 GR-C seamless steel tube is a steel tube designed specifically for critical pressure-bearing components in high-pressure boilers, based on high strength and advanced heat treatment processes.

Through higher carbon and manganese content and precise heat treatment, it achieves significantly higher strength and creep resistance up to 649°C compared to the SA210 GR-A series.

In the fields of power plant boilers and heat exchangers, it is an important upgrade solution to replace ordinary carbon steel, reducing wall thickness and improving efficiency. Its core value lies in balancing high strength with good machinability, ensuring long-term stable operation of pressure-bearing equipment in industries such as power and chemical engineering at high temperatures. The chemical composition of ASME SA210 GR-C has strict smelting analysis requirements. Compared to the GR-A grade, its carbon and manganese content range is wider, giving the material a higher strength base.

Chemical Composition
Element	Composition (wt%)
Carbon (C)	≤ 0.35
Manganese (Mn)	0.29 – 1.06
Phosphorus (P)	≤ 0.035
Sulfur (S)	≤ 0.035
Silicon (Si)	≥ 0.10

Mechanical Properties
Property	Value (min.)
Tensile Strength	≥ 485 MPa (70 ksi)
Yield Strength	≥ 275 MPa (40 ksi)
Elongation (in 2 in / 50 mm)	≥ 30%
Hardness (Brinell)	≤ 179 HBW (or ≤ 89 HRBW)

Application:

• Superheaters and reheaters: Improve steam temperature and quality.

• Economizers: Preheat feedwater to improve boiler efficiency.

• Steam piping and headers: Collect and distribute steam.

• High-pressure boiler systems: Widely used in fossil fuel, nuclear, and combined cycle power plants.

• Boilers and pressure vessels: Suitable for various designs requiring reliable materials.

• General engineering applications: Includes components such as flues, safety ends, supports, and arches.

• General engineering for the oil and gas industry.

ASME SA210 / SA210 GR-C Seamless Tube High Strength Carbon Steel Boiler Tube For High Temp, Superheater, Power Generation 0
