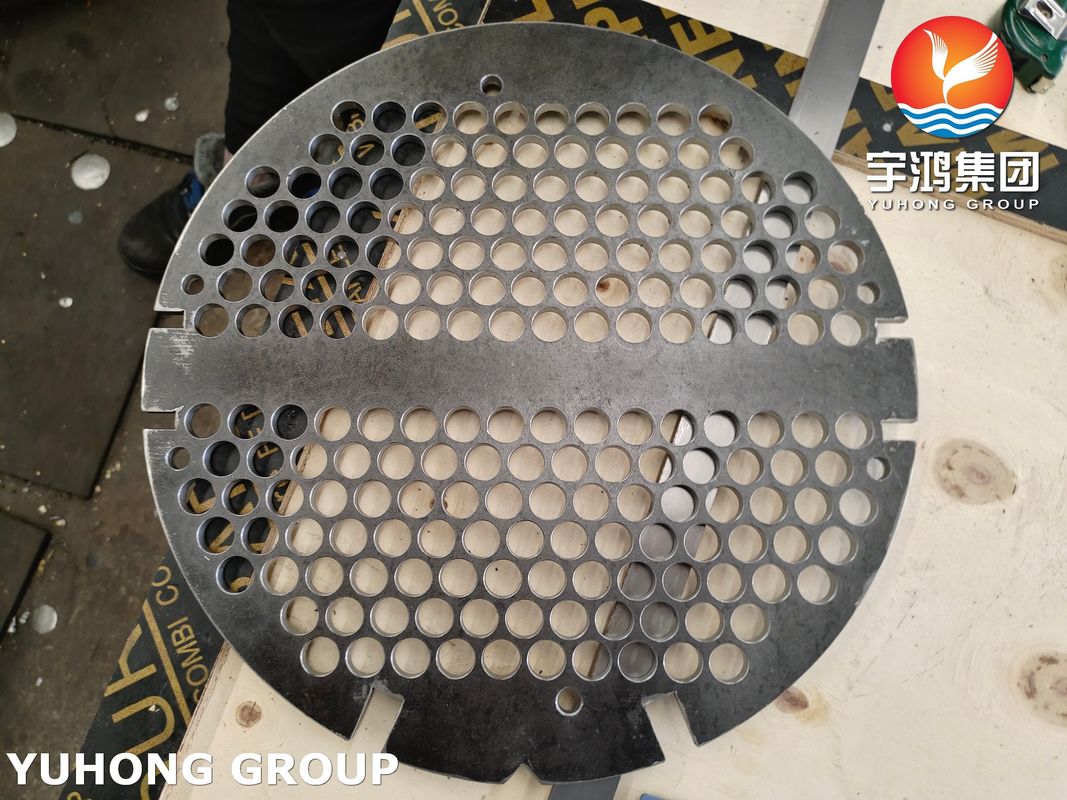

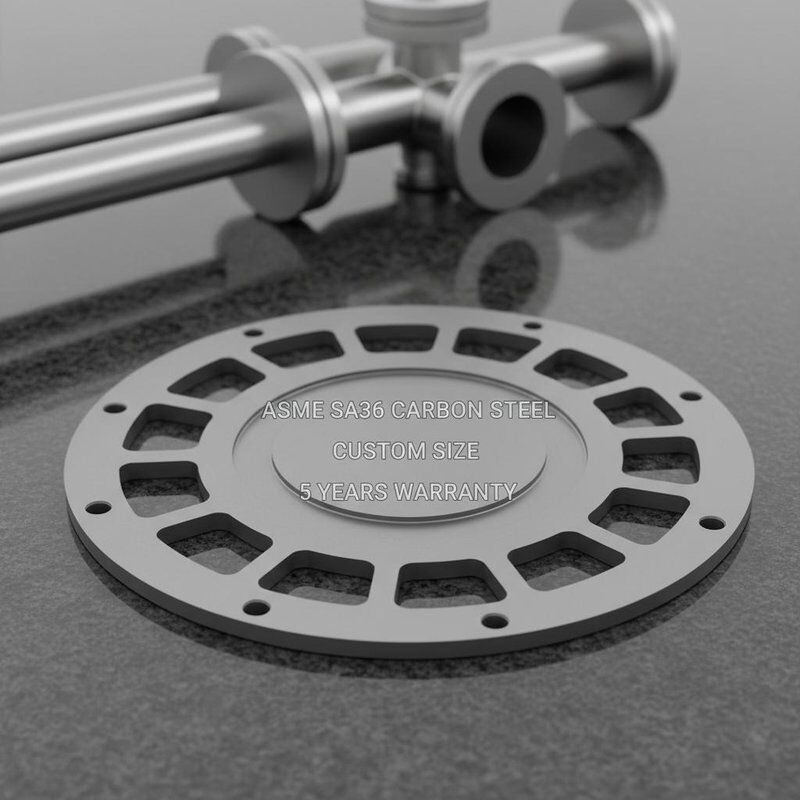

ASME SA36 Carbon Steel Baffle Plate with Custom Made Size and 5 Years Warranty for Heat Exchanger Applications

ASME SA36 Carbon Steel Baffle Plate with Custom Made Size and 5 Years Warranty for Heat Exchanger Applications

Carbon Steel Plate Baffle

ASME SA36 baffle plate

Tube Bundle plate baffle

Place of Origin:

China

Brand Name:

YUHONG

Certification:

ASME U CERTIFICATED

Model Number:

ASME SA36

Chat Now
Request A Quote
ASME SA36 Carbon Steel Baffle Plate with Custom Made Size and 5 Years Warranty for Heat Exchanger Applications ASME SA36 Carbon Steel Baffle Plate with Custom Made Size and 5 Years Warranty for Heat Exchanger Applications ASME SA36 Carbon Steel Baffle Plate with Custom Made Size and 5 Years Warranty for Heat Exchanger Applications ASME SA36 Carbon Steel Baffle Plate with Custom Made Size and 5 Years Warranty for Heat Exchanger Applications ASME SA36 Carbon Steel Baffle Plate with Custom Made Size and 5 Years Warranty for Heat Exchanger Applications
Product Details
Material:
Carbon Steel
Application:
Tube Bundle Or Heat Exchanger/condenser
Warranty:
5 Years
Size:
Custom Made
Edge Detail:
Square
Product Type:
Baffle
Highlight:

Carbon Steel Plate Baffle

,

ASME SA36 baffle plate

,

Tube Bundle plate baffle

Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiate
Packaging Details
PLY WOODEN CASE WITH PLASTIC COVER
Delivery Time
25-30 DAYS
Payment Terms
L/C,T/T
Supply Ability
50 TONS/ month
RELATED PRODUCTS
Good price ASME SA516 Grade70 Carbon Steel Heat Exchanger Baffle Single Segmental 7.9MM Thickness online

ASME SA516 Grade70 Carbon Steel Heat Exchanger Baffle Single Segmental 7.9MM Thickness

Chat Now
Good price ASME SA516 Gr.70 Disk & Ring Baffles (Double-Segmental) for Power Plant Condensers TEMA RCB-4.53 online

ASME SA516 Gr.70 Disk & Ring Baffles (Double-Segmental) for Power Plant Condensers TEMA RCB-4.53

Chat Now
Good price Heat Exchanger Baffle Plate Stainless Steel Asme SA240 SS304 Anti-Corrosion online

Heat Exchanger Baffle Plate Stainless Steel Asme SA240 SS304 Anti-Corrosion

Chat Now
Good price ASME SA36 Carbon Steel Baffles Used In Heat Exchanger Customized Size online

ASME SA36 Carbon Steel Baffles Used In Heat Exchanger Customized Size

Chat Now
CONTACT US
+8613095973896
ruby@steelseamlesspipe.com
0086-574-88013900
Chat Now
Product Description
ASME SA36 Carbon Steel Plate Baffle For Tube Bundle Or Heat Exchanger Application
Durable Structural Component for Industrial Applications
Technical Overview
The ASME SA36 Baffle Plate is a carbon steel structural plate manufactured in compliance with the ASME SA36/ASTM A36 standard. Designed for high-strength applications, it is widely used in pressure vessels, heat exchangers, boiler systems, storage tanks, and pipeline supports. Its primary function is to redirect fluid flow, reduce vibration, and enhance structural integrity in industrial equipment.
Key Specifications
Property Specification
Material Standard ASME SA36 / ASTM A36
Material Type Carbon Steel
Thickness Range 3mm to 50mm (customizable)
Size Availability Up to 3m x 12m (standard)
Surface Finish Mill scale, blasted, or coated (optional)
Yield Strength ≥ 250 MPa (36,300 psi)
Tensile Strength 400-550 MPa (58,000-79,800 psi)
Applications Baffles, supports, gussets, reinforcement
Product Advantages
✓ Cost-Effective: Low-carbon steel balances strength and affordability
✓ Weldability: Excellent compatibility with common welding techniques
✓ Corrosion Resistance: Optional coatings for harsh environments
✓ Versatility: Customizable dimensions and hole patterns
Manufacturing Process
  • Material Selection: SA36-grade hot-rolled steel
  • Cutting: Plasma, laser, or waterjet cutting to required shapes
  • Forming: Press-bending or rolling for curved baffles
  • Surface Treatment: Sandblasting, priming, or galvanizing
ASME SA36 Carbon Steel Baffle Plate with Custom Made Size and 5 Years Warranty for Heat Exchanger Applications 0
Compliance & Certifications
  • ASME Section II (Material Standards)
  • ASTM A36 (Parallel U.S. standard)
  • EN 10025-2 (Equivalent EU standard)
Ordering Information
Specify the following when ordering:
  • Thickness
  • Dimensions (Length x Width)
  • Hole pattern (if applicable)
  • Surface treatment requirements
