ASME Certificated Shell And Tube Type Heat Exchanger Stripping Gas Heater

Place of Origin: China
Brand Name: YUHONG
Certification: ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS
Model Number: YUHONG HE
Minimum Order Quantity: 1Set
Price: 1--1000000 USD
Packaging Details: Pallet
Delivery Time: 45---150 DAYS
Payment Terms: L/C,T/T
Supply Ability: 50SETS/MONTHS
Inquiry Now
Get A Quote
Specifications
Highlight Features

ASME certificated shell and tube heat exchanger

,

TEMA heat exchanger gas heater

,

stripping gas heater heat exchanger

Tube:
SA179
Cover:
SA234 WPB
Spacer:
SA36/SA179
Flange:
SA266 2N
Stud Bolt:
A193 B7-A194 2H
Barrel:
SA106 B
Product Description

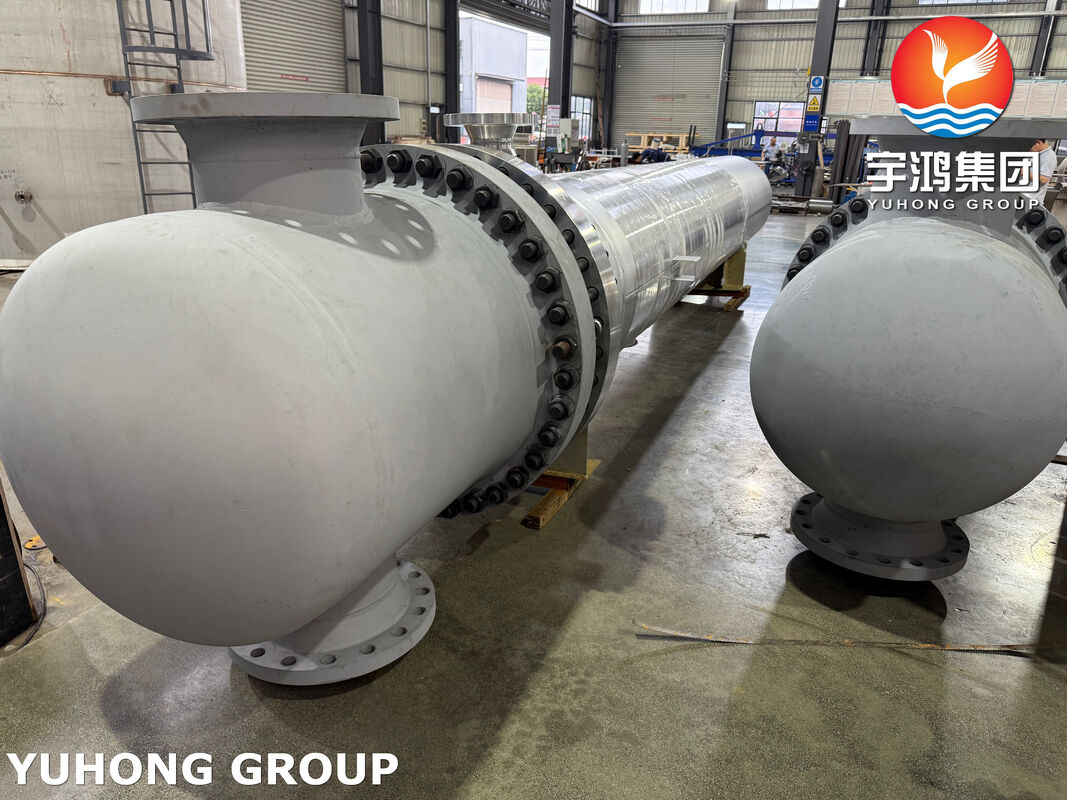

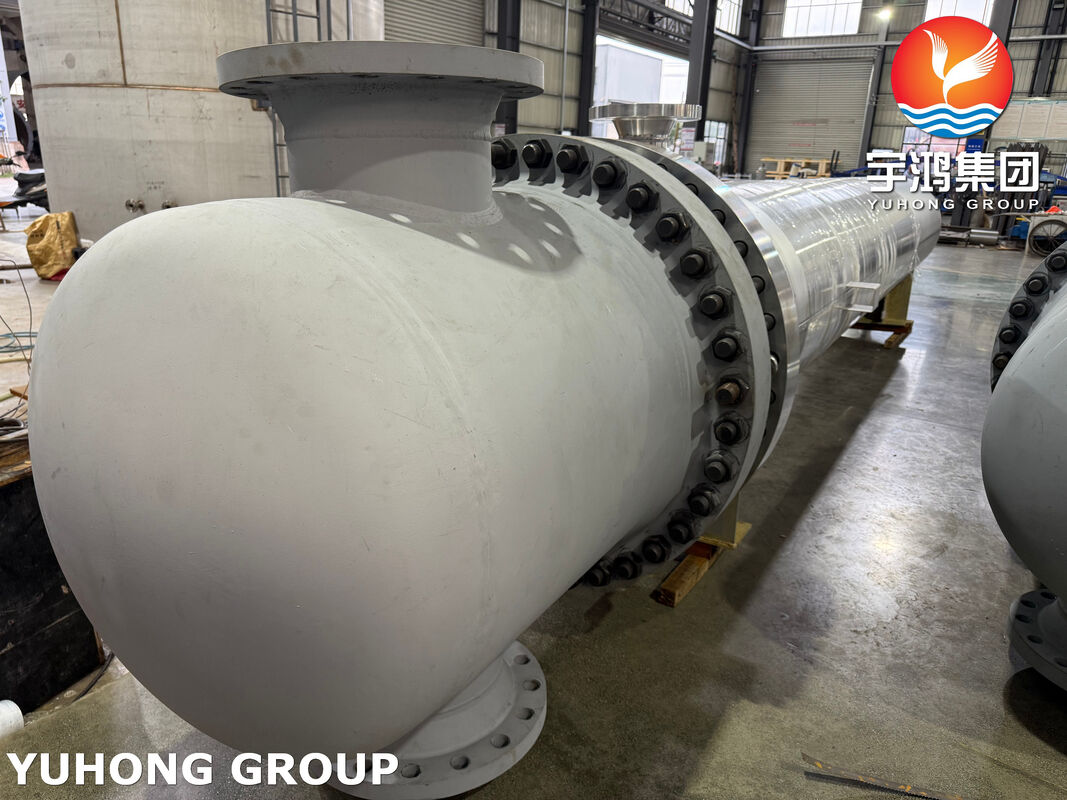

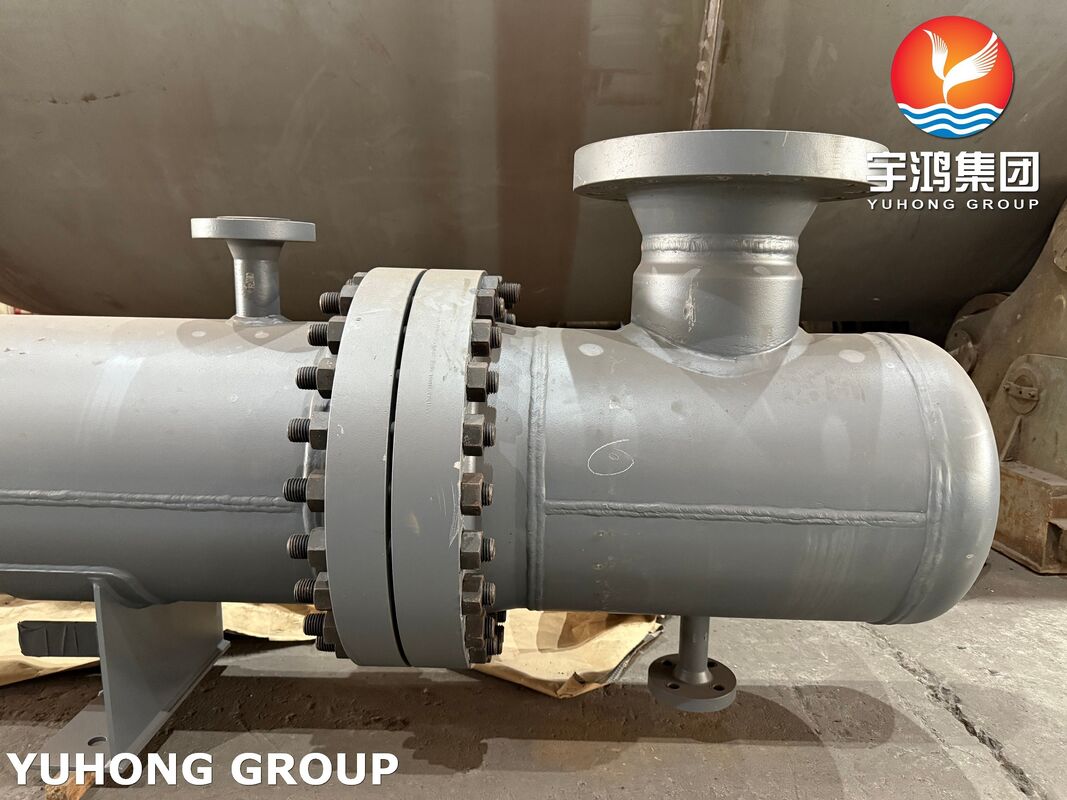

ASME Certificated Shell And Tube Type Heat Exchanger Stripping Gas Heater

YUHONG Stripping Gas Heater is a precision-engineered thermal solution designed specifically for the demanding environments of the Pipeline Project. Built to facilitate critical heat exchange processes in gas conditioning units (GCU), this heater combines robust metallurgical integrity with advanced engineering standards (ASME Sec VIII Div.1 and TEMA) to ensure maximum efficiency in stripping gas applications.

Technical Engineering & Design Standards

Design Pressure: shell-side design pressure of 5 barg.

Temperature Resilience: design temperature for the shell side is rated at 150°C.

Seismic & Wind Load Integrity: The unit is designed in accordance with IBC 2010 for seismic stability and ASCE/SEI 7-22 for wind load resistance.

Material Excellence for Sour Service

To combat the corrosive nature of hydrocarbon condensates and lean glycol fluids, the 01-GA-0204 utilizes premium-grade materials tailored for Sour Service (HIC/SSC) requirements.

Shell & Barrels: SA-516 Gr. 70N

Tube Bundle: SA-213 T9/T22 alloy tubes

Cladding Protection: cladded with Stainless Steel (minimum 3mm after machining)

Applications

  • Oil and Gas Midstream Processing
  • Hydrocarbon Condensate Heating
  • Lean Glycol Regeneration Units
  • Stripping Gas Pre-heating
ASME Certificated Shell And Tube Type Heat Exchanger Stripping Gas Heater
