Name: SA209 T1 Carbon Molybdenum Alloy Steel Embedded G Finned Tubes With Al1060 Fins
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: Embedded G Finned Tubes
Availability: InStock

Home > Products > Fin Tube >

SA209 T1 Carbon Molybdenum Alloy Steel Embedded G Finned Tubes With Al1060 Fins

Place of Origin:

China

Brand Name:

YUHONG

Certification:

ISO 9001-2015,etc.

Model Number:

Embedded G Finned Tubes

Chat Now

Request A Quote

Product Details

Product:

Finned Tubes

Finned Tubes Type:

Embedded G Finned Tubes

Embedded G Finned Tubes Material:

SA209 T1 Carbon Molybdenum Alloy Seamless Base Tubes With AL1060 Fins

Embedded G Finned Tubes Length:

Depend By Customers

Embedded G Finned Tubes Industries Populares:

Power Generation, Petrochemical, HVAC & Refrigeration, General Industry,etc.

Embedded G Finned Tubes Application:

Industrial Air Coolers, Tube Bundles, Condensers, Air Preheaters, And Waste Heat Recovery Units, Etc.

Payment & Shipping Terms

Minimum Order Quantity

500Kgs

Price

Depend

Packaging Details

Poly Wooden Case With Iron Frame

Delivery Time

30-45 days

Payment Terms

T/T,L/C

Supply Ability

Depend

H Type And Double H Type Finned Tubes For Heat Exchangers High Rigidity

Chat Now

ASTM A335 Alloy Steel Seamless P22 HFW Finned Tubes for Petrochemical Industrial Furnace

Chat Now

SA209 T1 Carbon Molybdenum Alloy Steel Embedded G Finned Tubes With Al1060 Fins

Chat Now

ASTM A312 Stainless Steel Seamless TP321H HFW Finned Tubes for Large Heat Transfer Equipment

Chat Now

+8615906753302

isabela@steelseamlesspipe.com

0086-574-88013900

Chat Now

Product Description

SA209 T1 Carbon Molybdenum Alloy Steel Embedded G Finned Tubes With Al1060 Fins

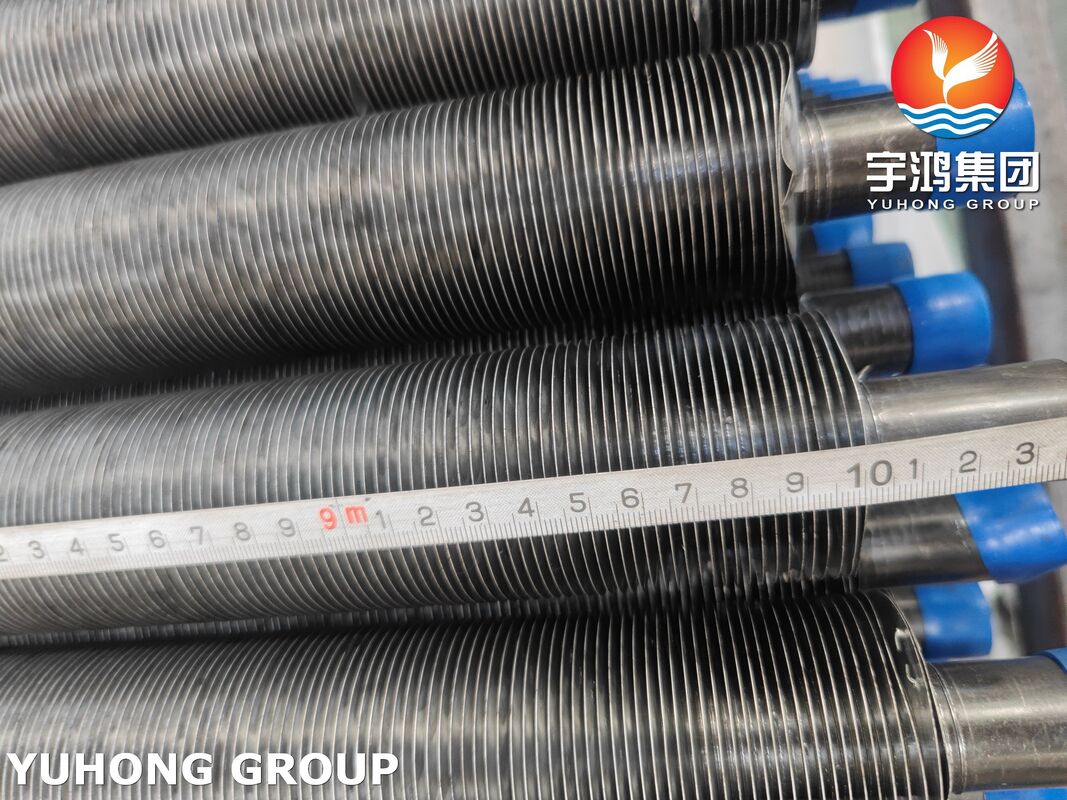

These are embedded G-type finned tubes manufactured by mechanically locking the pre-formed G-profile aluminum fins into the precision-machined grooves on the outer surface of the SA209 T1 carbon-molybdenum alloy steel base tube.The embedded fin design ensures secure mechanical bonding without brazing or welding, suitable for specified temperature and pressure conditions.

SA209 T1 carbon‑molybdenum alloy steel embedded G finned tubes with AL1060 aluminum fins combine elevated temperature strength & creep resistance of the base tube, high thermal conductivity of AL1060 fins, they are widely used in industrial heat‑transfer systems where moderate‑to‑high temperature, corrosion stability, and high heat‑exchange efficiency are required.

Advantages

High Heat Transfer Efficiency: Wound G fins are tightly and evenly wrapped around the base tube with a spiral structure, which maximizes the effective heat transfer area under the same tube length. The G-shaped fin profile optimizes air flow field distribution, reduces air side resistance, and enhances the convective heat transfer coefficient between fins and cooling air.
Strong Corrosion & Wear Resistance:Wound G finned tubes can be processed with surface anti-corrosion treatments (such as galvanizing, epoxy coating) according to industrial media requirements.
Optimized Energy-saving Performance: The reasonable G-shaped fin profile reduces air side pressure drop, which can decrease the power consumption of axial flow fans in industrial air coolers while ensuring heat transfer effect.
Excellent Structural Stability & Connection Tightness:The winding process ensures tight bonding between G fins and the base tube, with no obvious gap at the contact interface. This avoids heat transfer resistance caused by loose connection, and effectively prevents fin detachment or loosening during long-term high-temperature, high-velocity air operation.

A209 T1 Base Tube Specifications

This speciﬁcation covers several grades of minimumwall-thickness, seamless, carbon-molybdenum alloy-steel, boiler and superheater tubes.

Chemical Composition

Carbon %	Manganese %	Phosphorus %	Sulfur %	Silicon%	Molybdenum%
0.10-0.20	0.30-0.80	0.025	0.025	0.10-0.50	0.44-0.65

Mechanical Properties

Tensile Strength, min	Yield Strength, min	Elongation in 2" or 50mm, min
55ksi (380 MPa)	30ksi (205 MPa)	30%

Applications

Power Generation Equipment: Boiler feedwater heaters & economizers/Convection pass heat transfer components/Steam generator heat exchanger bundles.
Petrochemical & Refining Processes: Process gas heaters, overhead vapor coolers, and feed preheaters/ Heat recovery units in refinery furnaces and cracking units/ Heat exchangers for hydrogen production and hydrotreating units.
HVAC & Industrial Waste Heat Recovery:Waste heat boilers and flue‑gas heat recovery units/Air‑to‑fluid heat exchangers in cogeneration plants/Combined heat and power (CHP) system heat transfer bundles.
Marine & Offshore Heat Exchangers:Marine auxiliary boilers and exhaust gas heat recovery devices/Engine jacket water and exhaust gas heat exchangers (within rated temperature limits).
