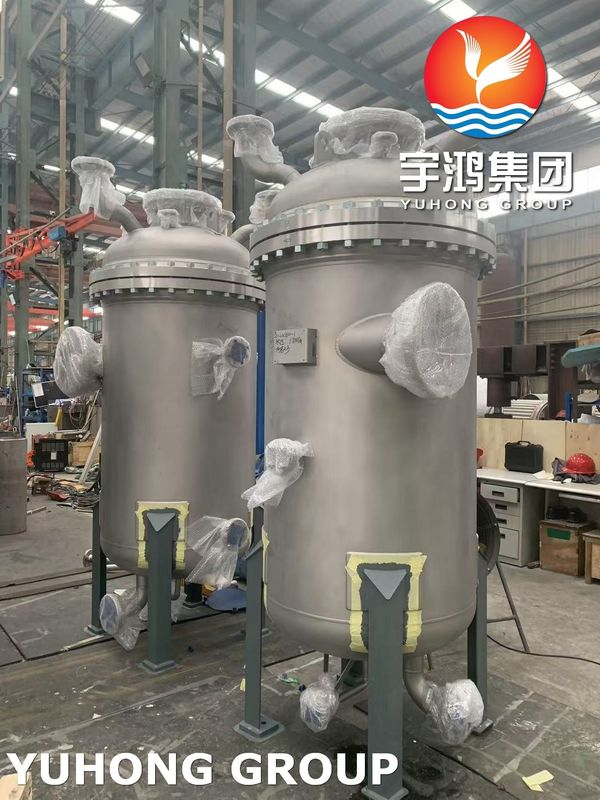

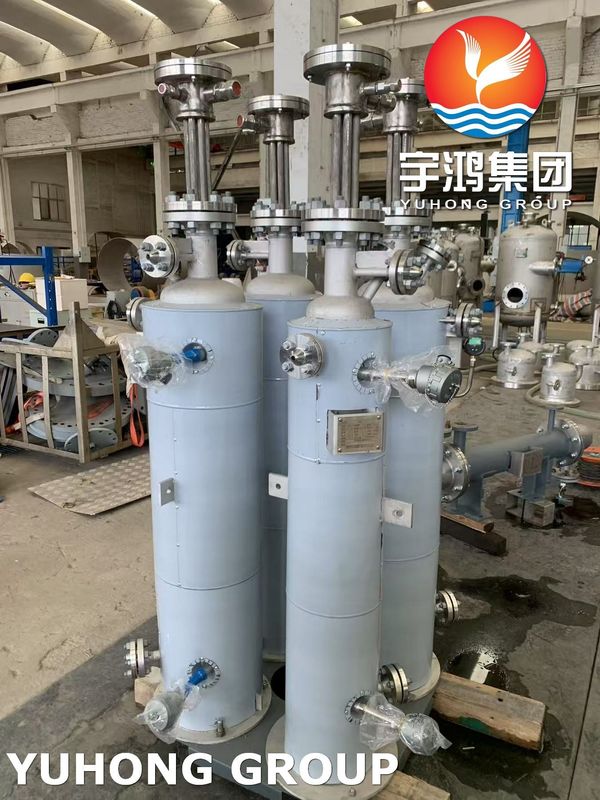

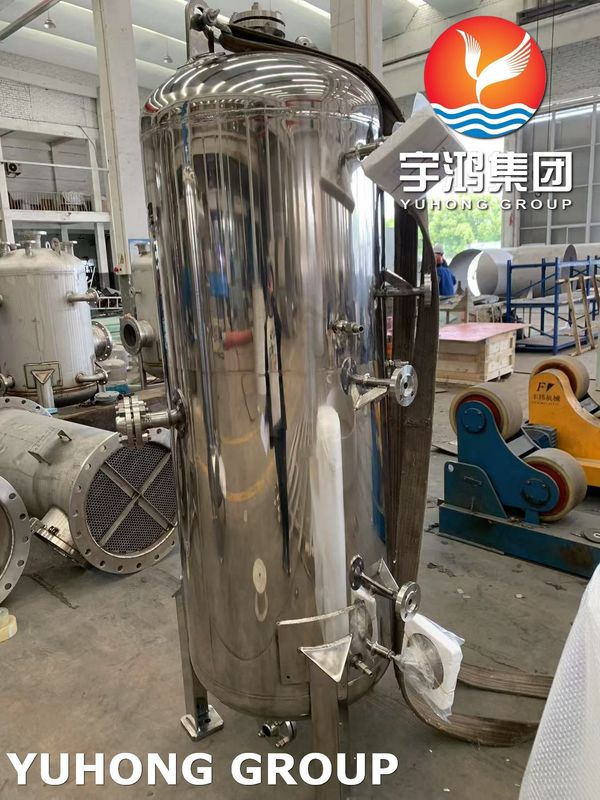

ASME VIII Div. 1 Pressure Vessel Equipment For Aftercooler Separator High Efficiency

Pressure Vessels For Aftercooler Separator Shell, Heads Nozzle Flange Of Clading Or Stainless Steel

Aftercooler separator (often referred to as an air compressor aftercooler or moisture separator) is a device used in compressed air systems to cool the hot compressed air and remove moisture and contaminants before the air enters downstream equipment.

Function:

1. Cooling Compressed Air – After compression, air is hot (often 150–350°F). The aftercooler reduces the temperature to near ambient levels.

2. Condensing Moisture – As air cools, water vapor condenses into liquid, which is then separated and drained.

3. Removing Contaminants – Oil droplets, particulates, and other impurities are also separated.

Types of Aftercooler Separators:

1. Air-Cooled Aftercooler – Uses ambient air to cool compressed air via a heat exchanger (common in smaller systems).

2. Water-Cooled Aftercooler – Uses circulating water for cooling (more efficient for high-capacity systems).

3. Separator/Filter Element – Often includes a coalescing filter or centrifugal separator to remove moisture and oil.

Key Components:

1. Heat Exchanger – Cools the compressed air.

2. Moisture Separator – Collects condensed water.

3. Automatic Drain Valve – Removes accumulated liquid.

4. Baffles/Centrifugal Mechanism – Enhances separation efficiency.

Benefits:

Prevents Water Damage – Protects pneumatic tools and systems.

Improves Air Quality – Reduces corrosion and contamination.

Increases Efficiency – Dry, cool air improves system performance.

Applications:

·Industrial air compressors

·Pneumatic tool systems

·HVAC and refrigeration

·Process air systems

Support and Services:Our company offers comprehensive technical support and services for our Pressure Vessel product. Our team of experts is available to assist you with installation, maintenance, troubleshooting, and any other technical inquiries you may have. We are committed to ensuring that your Pressure Vessel operates efficiently and safely at all times
