Air Cooler Tube Bundle ASME SB163 Monel 400 Seamless Tube With Aluminum Extruded Type Fin

Name: Air Cooler Tube Bundle ASME SB163 Monel 400 Seamless Tube With Aluminum Extruded Type Fin
Brand: YUHONG HOLDING GROUP CO., LTD
SKU: Air Cooler Tube Bundle
Price: 500,000.00 USD
Availability: InStock

Brand Name:	YUHONG
Model Number:	Air Cooler Tube Bundle
MOQ:	1Set
Price:	1--1000000 USD
Delivery Time:	45---150 DAYS
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ASME , U STAMP , PED, API , ABS, LR, DNV, GL , BV, KR, TS, CCS

Packaging Details:

Pallet

Supply Ability:

50SETS/MONTHS

Highlight:

Air Cooler Tube Bundle ASME SB163

ASME air fin cooler tube bundle

Monel 400 Air Cooler Tube Bundle

Product Description

Air-Cooled Tube Bundle, ASME SB163 Monel 400 Seamless Tube with Aluminum Extruded Type Fin, For Tower OVHD Air Condenser

Yuhong Group supply air cooled tube bundle more than 15 years , most of our tube bundle for petrochemical , oil refinery , water solutation plant, power plant, this project below middle east old client, the first project , we supply 9 sets air coolers, the order cover thermal desigin , GA drawing and detail drawing , mechanical calculation , fabrication, Pressure testing , packing , shipment . Final got client full satisfied , and arrange new re-peat order with us , the new project total 6 sets air coolers, but this time the tube bundles has Copper Nickel Seamless Tube ASME SB163 Monel 400 , Yuong Group as one of the earliest supplier for Monel 400 grade , we start to export this grade on 2012 , and regular export Monel 400 seamless tube with Aluminum ASME SB221 Gr. 1060 Extruded Fin tube to Romania. The Monel 400 Extruded Fin tube has higher anti corrosion than common carbon steel ASME SA179 and alloy steel ASME SA213 T11, T12, T22, T5, T9, T91, T92 .

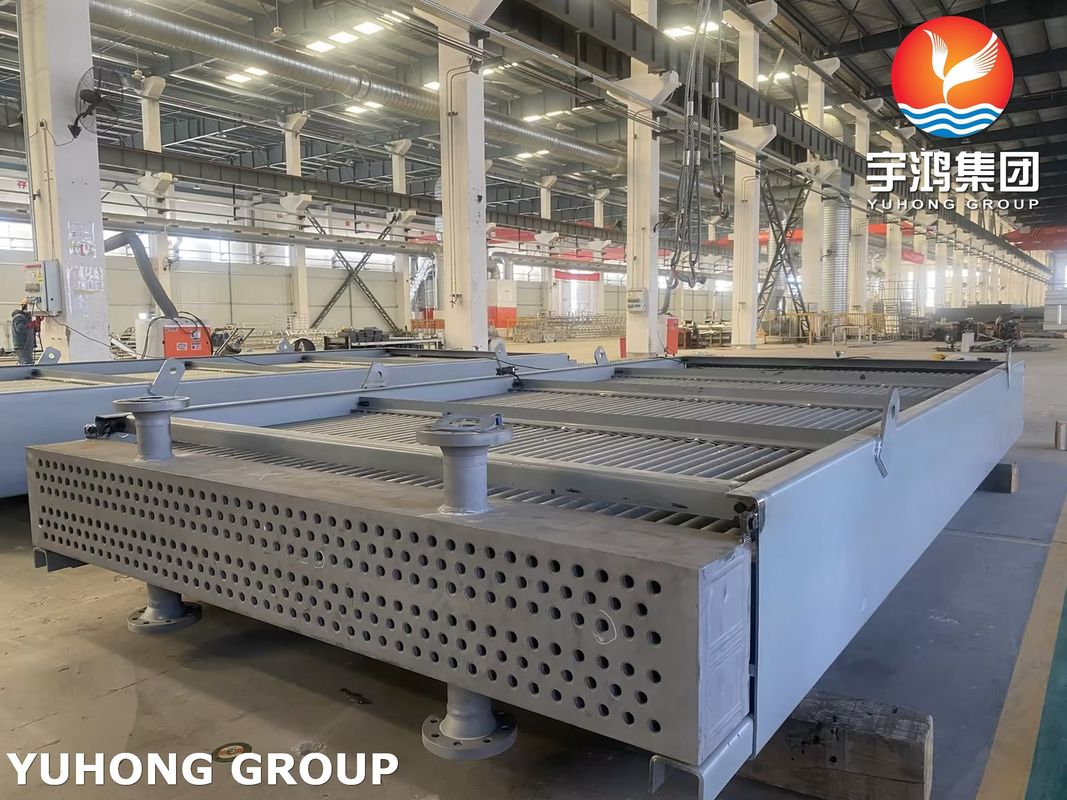

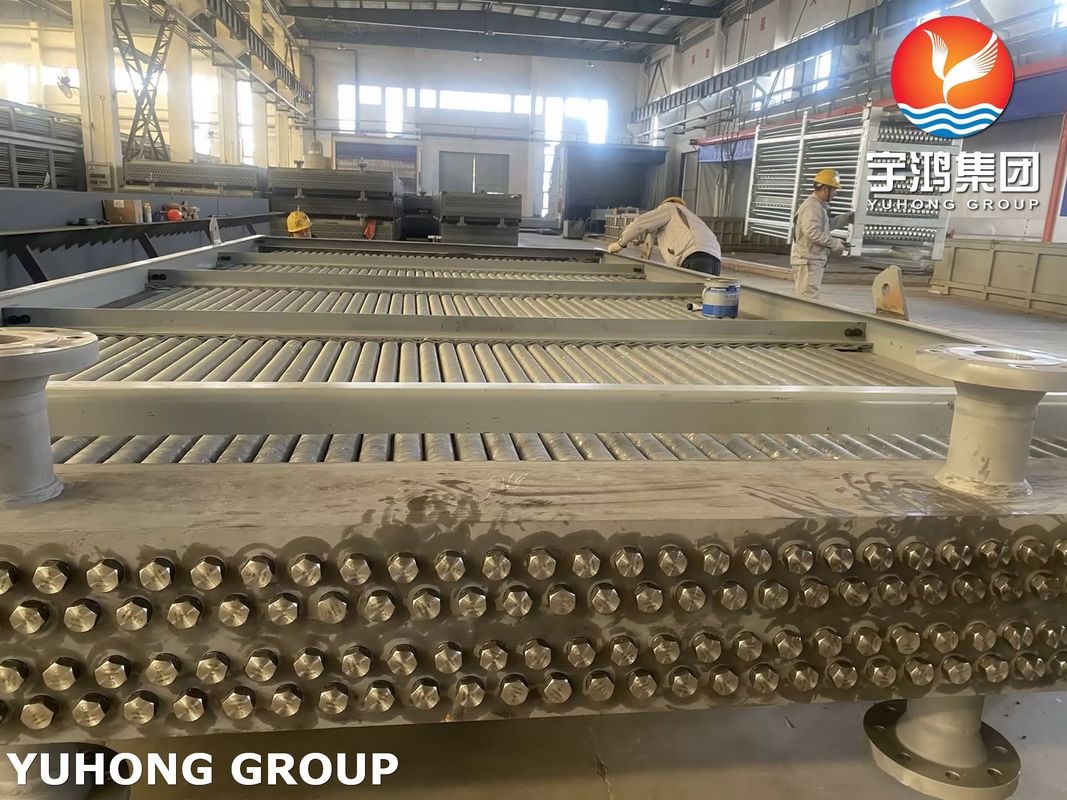

Air Cooler Tube Bundle ASME SB163 Monel 400 Seamless Tube With Aluminum Extruded Type Fin 0

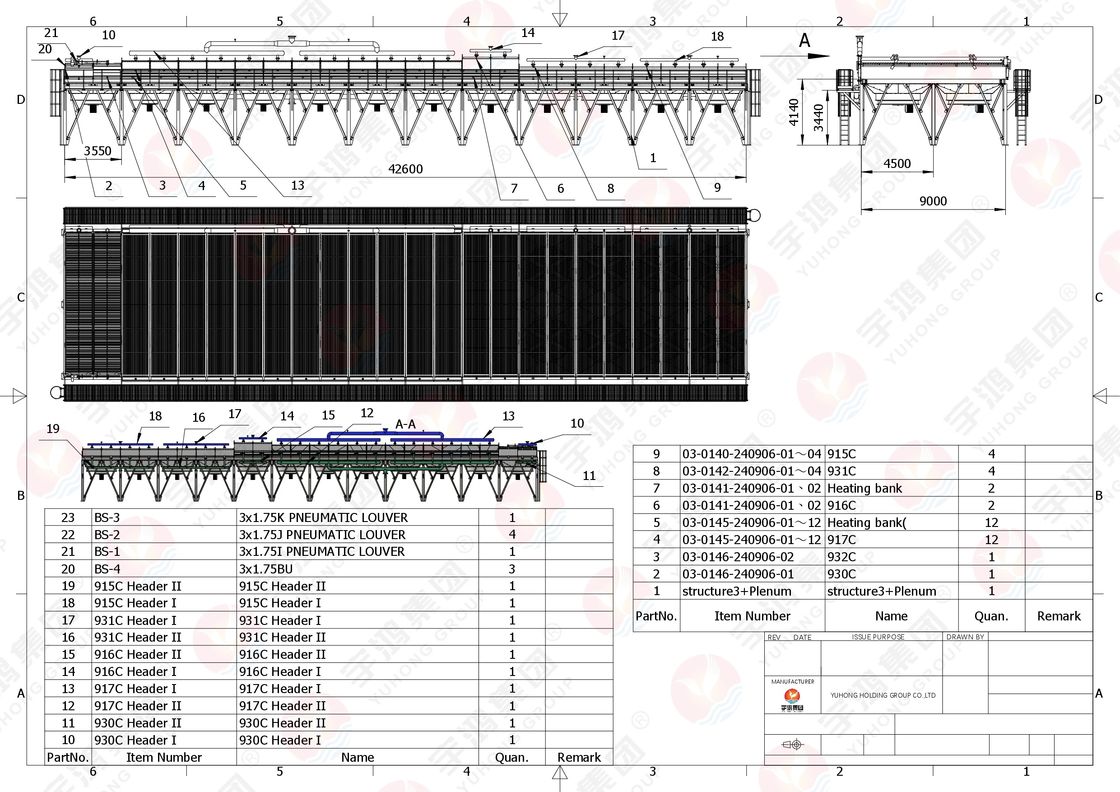

Air Cooler Tube Bundle ASME SB163 Monel 400 Seamless Tube With Aluminum Extruded Type Fin 1

25101 - AIR COOLERS DATA
Sr. No.	Description	Unit	AIR CONDENSER 4-A01	AIR COOLER 4-A02	AIR COOLER 4-A04	AIR COOLER 4-A05	AIR CONDENSER 4-A06	AIR COOLER 4-A09
1	TYPE	-	FORCED DRAFT	FORCED DRAFT	FORCED DRAFT	FORCED DRAFT	FORCED DRAFT	FORCED DRAFT
2	STANDARD		API 661/ASME	API 661/ASME	API 661/ASME	API 661/ASME	API 661/ASME	API 661/ASME
3	SIZE / BAY	mm	4260 x ~9700	2450 x ~6700	2330 x ~6700	2620 x ~6700	6100 x ~9700	2830 x ~9700
4	TOTAL EXTERNAL SURFACE AREA PER UNIT	m²	22024	6381	10693	5905.3	7810	6225.2
5	TOTAL BARE SURFACE AREA PER UNIT	m²	1015.1	294.11	492.87	272.18	7810	287
6	LOCATION		OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR	OUTDOOR
7	OPERATING CONDITIONS
8	FLUID		Naphtha	Naphtha	Light Gas Oil	Heavy Gas Oil	Atm.Residue	Total Naphtha
9	MAX. OPER. PRESSURE	kg/cm².g	1.4	7.043	4.714	3.714	5.357	4.714
10	DESIGN PRESSURE	kg/cm².g	3/FV	10.3	9.2	8	15	11.5
11	TEST PRESSURE	kg/cm².g	4	13.39	11.96	10.4	19.5	14.95
12	MAX. OPER. TEMPERATURE	°C	154.736	112	107	112	171	124
13	DESIGN TEMPERATURE	°C	170	145	145	150	190	130
14	PERFORMANCE DATA - AIR SIDE
15	MAX. ADMIS. TIP SPEED	m/sec	60	60	60	60	60	60
16	DESIGN AIR TEMP.	°C	45	45	45	45	45	45
17	AIR QUANTITY/UNIT @D.A.T.	m³/sec	543.62	142	205.63	104.273	916.45	71.07
18	STATIC PRESSURE	mmH2O	18.514	16.283	24.435	20.166	18.863	19.368
19	CONSTRUCTION
20	TUBE BUNDLE
21	BUNDLE SIZE	mm	2130 x 9660	2450 x 6660	2330 x 6660	2620 x 6700	3050 x 10000	2830 x 9660
22	BAY PER UNIT		4	3	4	2	6	1
23	BUNDLES PER BAY		2	1	1	1	2	1
24	NUMBER OF TUBE ROWS		6	6	8	8	16	10
25	NUMBER OF TUBES		183	213	268	296	944+29	415
26	NUMBER OF PASSES		2	3	8	8	2	5
27	HEADER
28	MATERIAL		SB 127 UNS N04400	A516 GR 70	A516 GR 70	A516 GR 70	A516 GR 70	A516 GR 70
29	HEADER TYPE		PLUG TYPE	PLUG TYPE	PLUG TYPE	PLUG TYPE	PLUG TYPE	PLUG TYPE
30	PLUG MATERIAL		SB 564 M UNS N04400	A105	A105	A105	A105	A105
31	CORROSION ALLOWANCE	mm	0	6	3	3	3	3
32	TUBE
33	MATERIAL		SB 163 UNS 04400	SA179	SA179	SA179	SA179	SA179
34	TUBE DIMENSIONS	mm	Ø 25 x 2.3	Ø 25 x 2.6	Ø 25 x 2.6	Ø 25 x 2.6	Ø 25 x 2.6	Ø 25 x 2.6
35	LENGTH	mm	9000	6000	6000	6000	9000	9000
36	ARRANGEMENT		D	D	D	D	D	D
37	PITCH	mm	63.5	63.5	63.5	63.5	49	63.5
38	FIN TYPE		EMBEDDED	EMBEDDED	EMBEDDED	EMBEDDED	-	EMBEDDED
39	FIN MATERIAL		AL1060	AL1060	AL1060	AL1060	-	AL1060
40	HEIGHT	mm	15.875	15.875	15.875	15.875	-	15.875
41	THICKNESS	mm	0.4	0.4	0.4	0.4	-	0.4
42	SPACING	mm	2.538	2.538	2.538	2.538	-	2.538
43	MISCELLANEOUS
44	STRUCTURE MATERIAL		Q235B	Q235B	Q235B	Q235B	Q235B	Q235B
45	SURFACE PREPARATION		GALVANIZED	GALVANIZED	GALVANIZED	GALVANIZED	GALVANIZED	GALVANIZED
46	VIBRATION SWITCHES		YES	YES	YES	YES	YES	YES
47	ACCESSORIES DISTRIB. HEADER		YES	YES	YES	YES	YES	YES
48	COLLECTION HEADER		YES	YES	YES	YES	YES	YES
49	WALKWAYS		YES	YES	YES	YES	YES	YES
50	LADDERS		YES	YES	YES	YES	YES	YES
51	MECHANICAL EQUIPMENT
52	FAN
53	NUMBERS PER UNIT		8	6	8	4	12	3
54	NUMBERS PER BAY		2	2	2	2	2	3
55	BLADE KEYING ANGLE	°	Later	Later	Later	Later	Later	Later
56	PERSONAL PROTECTION		FAN INLET GRATING, GUARDS ON ROTATING PARTS	FAN INLET GRATING, GUARDS ON ROTATING PARTS	FAN INLET GRATING, GUARDS ON ROTATING PARTS	FAN INLET GRATING, GUARDS ON ROTATING PARTS	FAN INLET GRATING, GUARDS ON ROTATING PARTS	FAN INLET GRATING, GUARDS ON ROTATING PARTS
57	FAN DIAMETER		3200	1900	1900	2000	3800	2100
58	MOTOR
59	VOLTAGE (V)		380	380	380	380	380	380
60	FREQUENCY (Hz)		50	50	50	50	50	50
61	PHASE		3	3	3	3	3	3
62	RPM		1500	1500	1500	1500	1500	1500
63	POWER	kW	30	11	15	15	30	11
64	AREA CLASSIFICATION		EEx de IIB T3	EEx de IIB T3	EEx de IIB T3	EEx de IIB T3	EEx de IIB T3	EEx de IIB T3
69	NOZZLES DATA PER BUNDLE
70	INLET
71	TAG		-	-	-	-	-	-
72	SIZE		6"	6"	4"	3"	3"	6"
73	RATING		150LB	150LB	150LB	150LB	300LB	150LB
74	FLANGE TYPE		RF	RF	RF	RF	RF	RF
75	QUANTITY		3	2	1	2	2	2
76	STANDARD		ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5
77	OUTLET
78	TAG		-	-	-	-	-	-
79	SIZE		6"	6"	4"	3"	3"	6"
80	RATING		150LB	150LB	150LB	150LB	300LB	150LB
81	FLANGE TYPE		RF	RF	RF	RF	RF	RF
82	QUANTITY		1	2	1	2	2	2
83	STANDARD		ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5
84	HEADER VENT
85	TAG		-	-	-	-	-	-
86	SIZE		1"	1"	1"	1"	1"	1"
87	RATING		150LB	150LB	150LB	150LB	300LB	150LB
88	FLANGE TYPE		RF	RF	RF	RF	RF	RF
89	QUANTITY		1	1	1	1	1	1
90	STANDARD		ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5
91	HEADER DRAIN
92	TAG		-	-	-	-	-	-
93	SIZE		1"	1"	1"	1"	1"	1"
94	RATING		150LB	150LB	150LB	150LB	300LB	150LB
95	FLANGE TYPE		RF	RF	RF	RF	RF	RF
96	QUANTITY		1	1	1	1	1	1
97	STANDARD		ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5	ASME B16.5
98	STEAM INLET
99	TAG						-
100	SIZE						1X1.5"
101	RATING						150LB
102	FLANGE TYPE						RF
103	QUANTITY						1
104	STANDARD						ASME B16.5
105	CONDENSATE OUTLET
106	TAG						-
107	SIZE						1X1"
108	RATING						150LB
109	FLANGE TYPE						RF
110	QUANTITY						1
111	STANDARD						ASME B16.5
112	CONDENSATE DRAIN
113	TAG						-
114	SIZE						1"
115	RATING						150LB
116	FLANGE TYPE						RF
117	QUANTITY						1
118	STANDARD						ASME B16.5

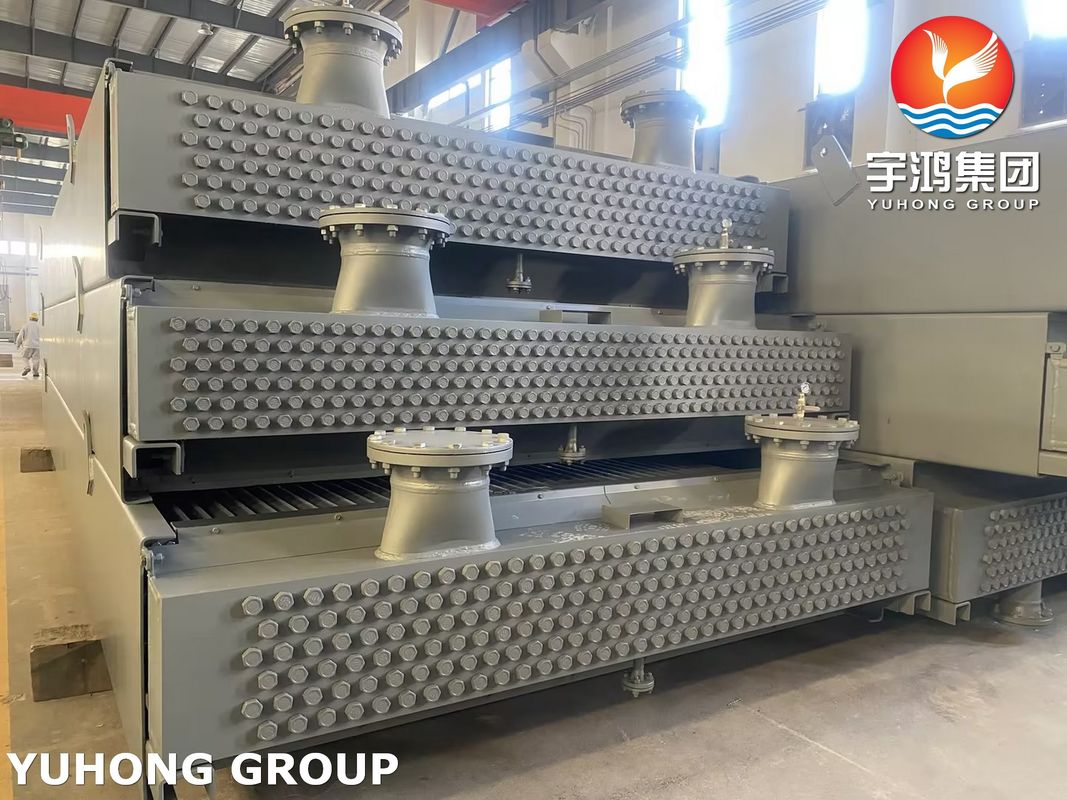

Air Cooler Tube Bundle ASME SB163 Monel 400 Seamless Tube With Aluminum Extruded Type Fin 2
