Place of Origin:
China
Brand Name:
Yuhong
Certification:
ASME, EN 10204 3.1
Model Number:

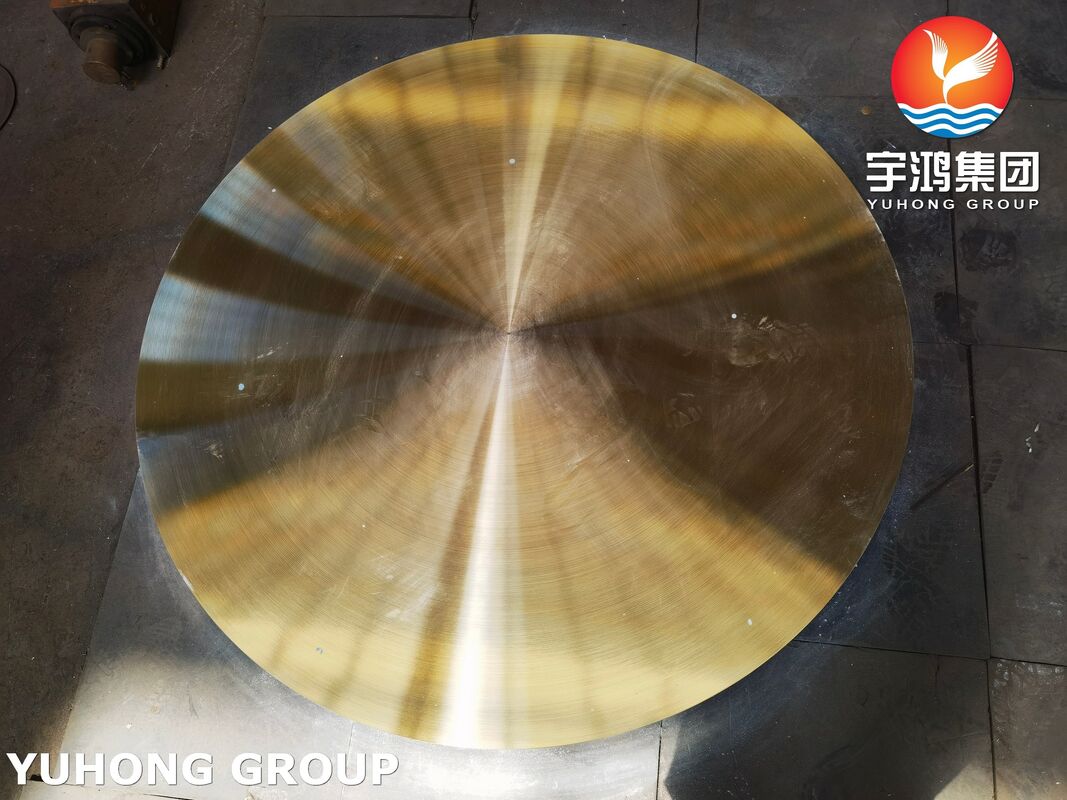

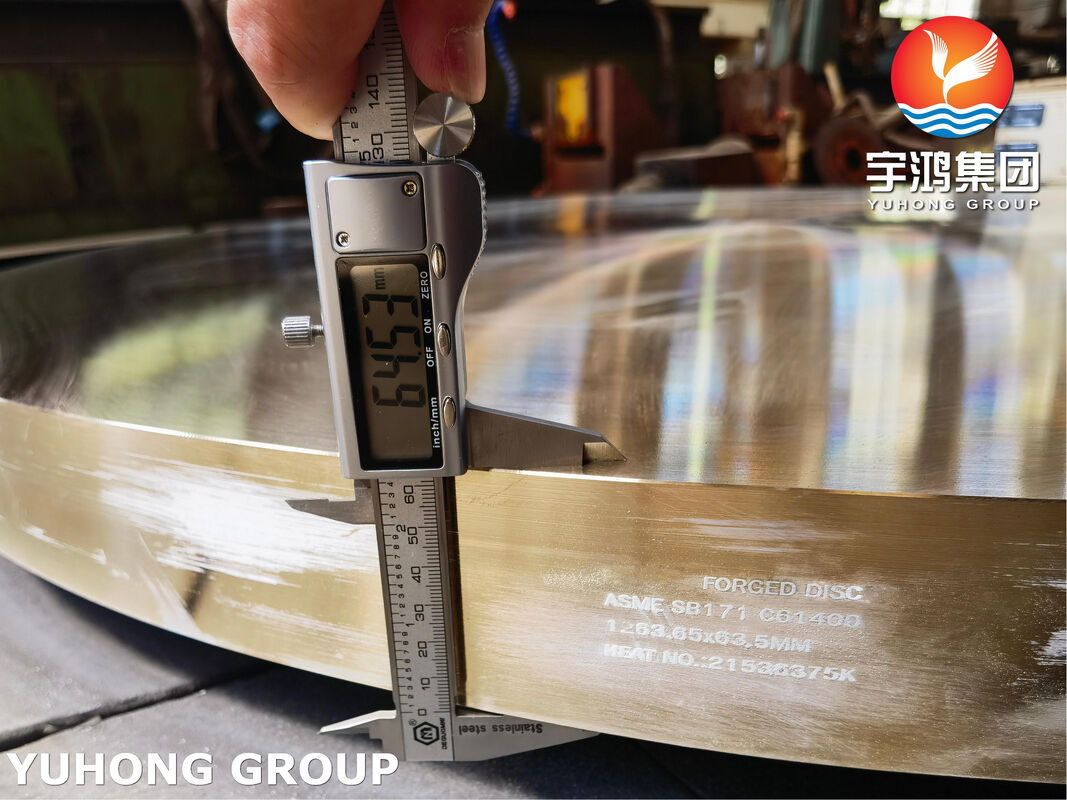

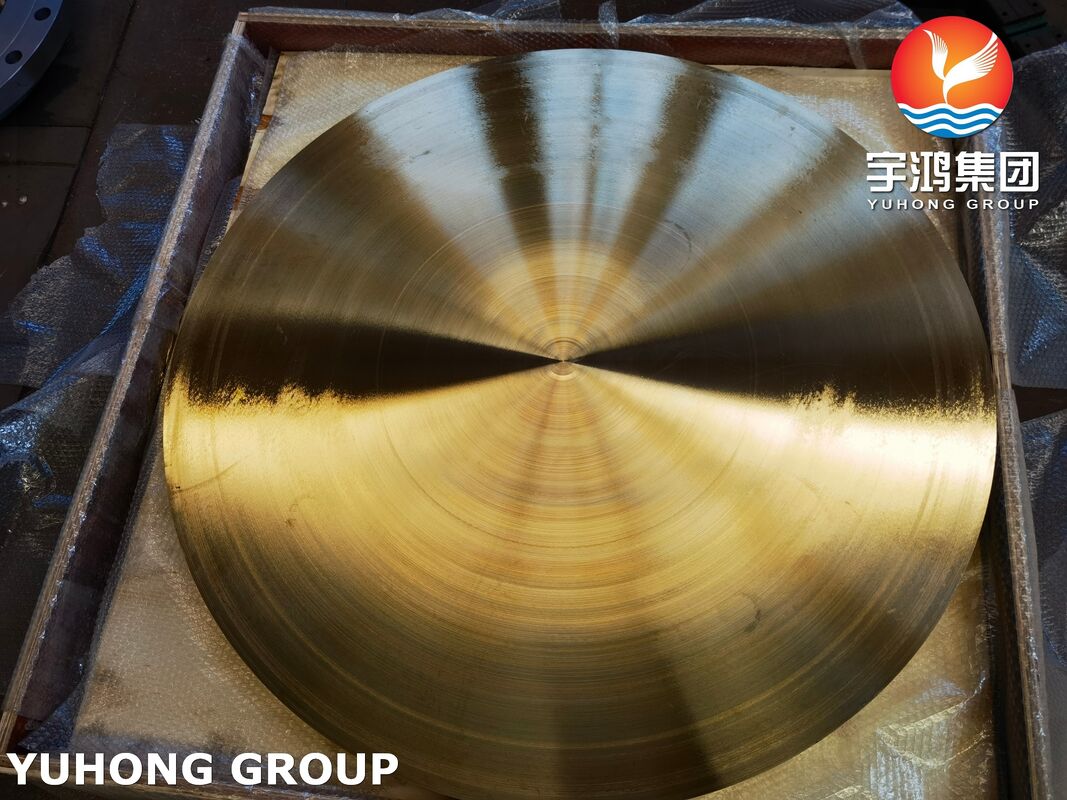

ASME SB 171 C61400
| Attribute | Benefit to Your Component |
|---|---|
| Exceptional Strength & Toughness | Withstands severe impact and cyclic loading, preventing in-service failure. |
| Outstanding Wear & Galling Resistance | Excellent performance under high friction and marginal lubrication, drastically extending service life. |
| Superior Corrosion Resistance | Highly resistant to seawater, acids, and alkalis, ideal for marine and chemical processing applications. |
| Excellent Machinability | Provides reliable and efficient machinability to tight tolerances, despite its high strength. |
| High Pressure & Temperature Stability | Maintains dimensional stability and mechanical properties under demanding operational environments. |
| Alloy (Common Name) | UNS No. | Cu (Copper) | Al (Aluminum) | Fe (Iron) | Ni (Nickel) | Sn (Tin) | Zn (Zinc) | Pb (Lead) | Mn (Manganese) |
|---|---|---|---|---|---|---|---|---|---|
| C61400 (Aluminum Bronze) | C61400 | Remainder | 9.0 - 11.0 | 3.0 - 5.0 | 3.0 - 5.0 | - | 1.0 max | 0.02 max | 1.5 max |
| C93200 (Leaded Tin Bronze) | C93200 | 81.0 - 85.0 | - | 0.20 max | 0.8 max | 6.3 - 7.5 | 2.0 - 4.0 | 1.0 - 3.0 | - |
| C95400 (General Al Bronze) | C95400 | Remainder | 10.0 - 11.5 | 3.0 - 5.0 | 1.5 max | - | 0.5 max | 0.03 max | 0.5 max |
| C63000 (Nickel Al Bronze) | C63000 | Remainder | 9.0 - 11.0 | 2.0 - 4.0 | 4.0 - 5.5 | - | 1.0 max | 0.02 max | 1.0 - 2.5 |
| C36000 (Free-Cutting Brass) | C36000 | 60.0 - 63.0 | 0.35 max | 0.35 max | - | - | Remainder | 2.5 - 3.7 | - |
| Comparison Criteria | SB171 C61400 Forged Disc | C61400 Cast Cake/Disc | Sliced from Large Diameter Bar |
|---|---|---|---|
| Primary Process | Precision Forging | Sand / Centrifugal Casting | Rolled/Forged Bar, then Sliced |
| Internal Soundness | Excellent. Dense, defect-free, fine-grained structure. | Variable. Risk of micro-porosity, shrinkage cavities, and segregation. | Depends on bar quality. Potential for centerline porosity or inhomogeneity. |
| Mechanical Properties | Highest & Most Uniform. Excellent isotropic behavior; optimal strength and toughness throughout. | Lower. Cast microstructure generally results in lower mechanical properties vs. forged. | Anisotropic. Properties are superior in the rolling direction; may be inconsistent across the slice. |
| Material Utilization | High. Can be supplied in near-net shapes, minimizing machining waste. | Moderate. Requires significant machining allowance to remove casting skin and ensure sound material. | Potentially Lower. Generating a disc from a large bar can result in more scrap material. |
| Ideal For | Critical, High-Performance Components where reliability, longevity, and performance are non-negotiable. | Non-critical or lightly loaded applications where internal defects are less consequential. | Components where property uniformity is not the primary concern, and the shape is suitable. |
| Cost Perspective | Higher initial investment justified by superior part reliability, longer lifespan, and reduced risk of in-service failure—lowering Total Cost of Ownership. | Lower initial cost, but carries hidden risks of scrapped parts after machining and potential for premature field failure. | Variable initial cost, but may not deliver the guaranteed performance level of a purpose-forged disc. |
