ASTM A335 P22 Alloy Steel Serrated Spiral High Frequency Welded (HFW) Fin Tube: A Comprehensive Technical Guide

Product Overview

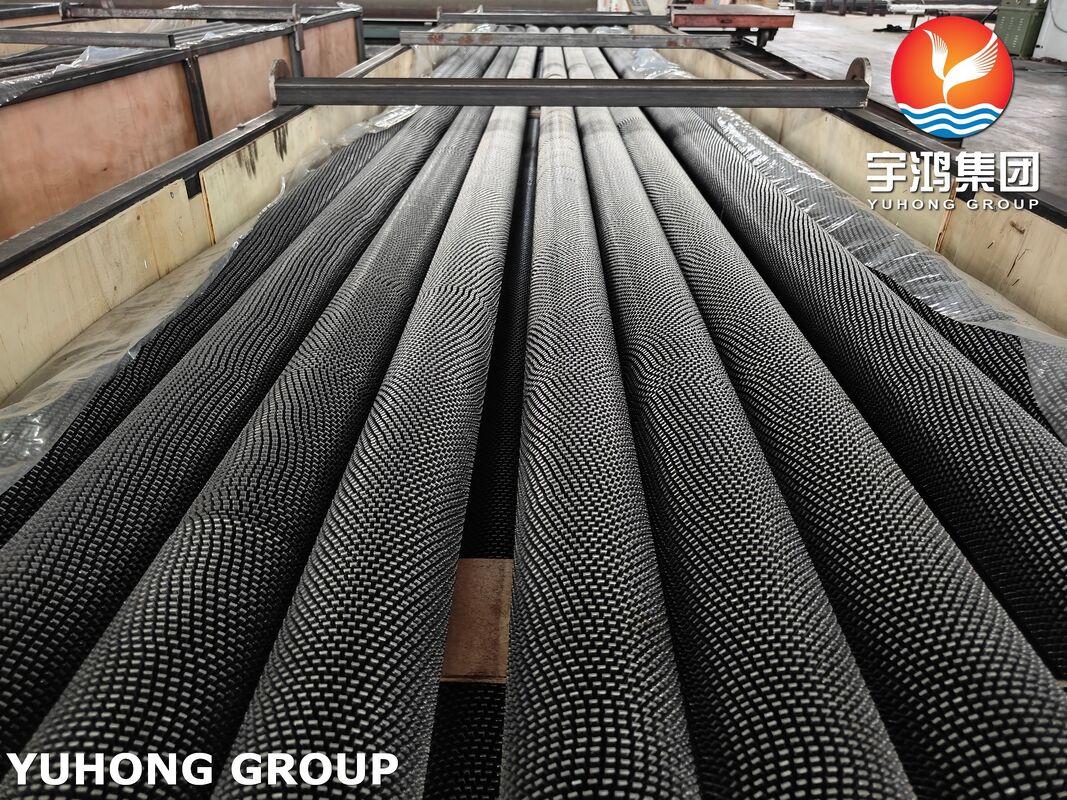

The ASTM A335 P22 Alloy Steel Serrated Spiral High Frequency Welded Fin Tube is a high-performance engineered component designed for superior heat transfer in extreme operating environments. This product integrates the excellent high-temperature mechanical properties of ASTM A335 Grade P22 alloy steel with an advanced finned design. The base tube is manufactured from seamless ferritic alloy-steel pipe, specifically intended for high-temperature service. The addition of a continuous, serrated spiral fin via High Frequency Welding (HFW) technology dramatically increases the external surface area, resulting in significantly enhanced heat exchange efficiency compared to bare pipes.

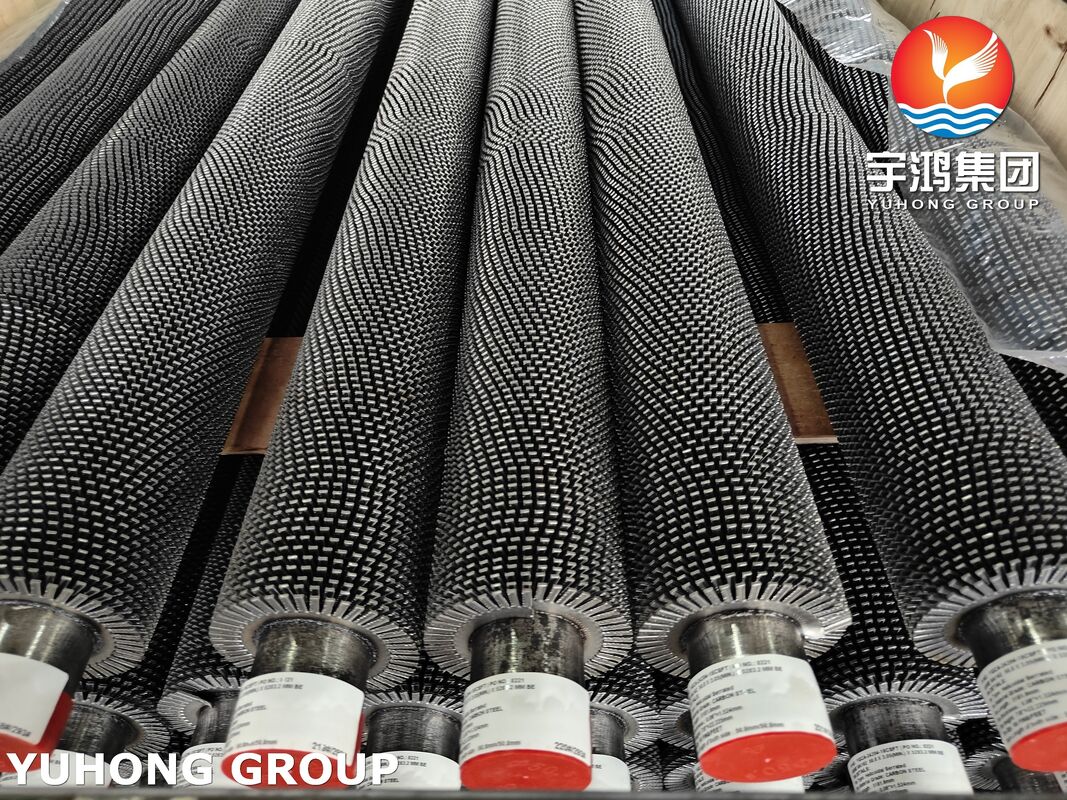

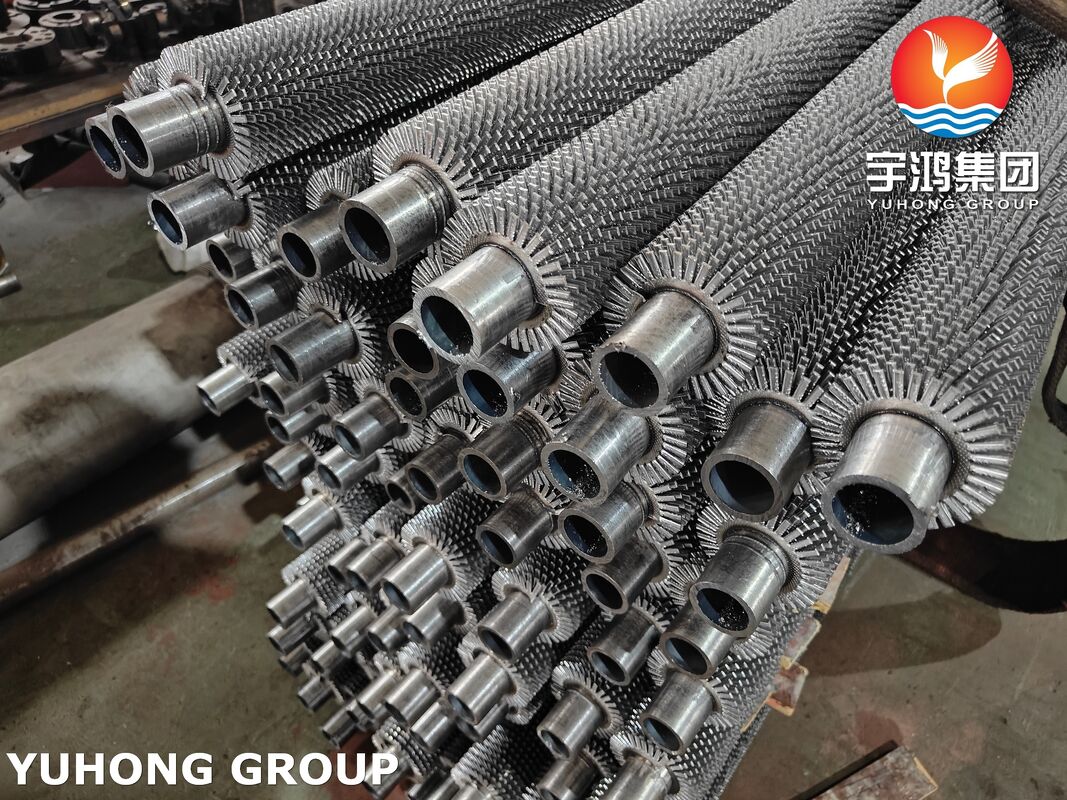

The "serrated" feature of the fin—small, regular cuts along the fin edge—further disrupts laminar flow and promotes turbulence in the surrounding fluid (typically gas or air), leading to even higher heat transfer coefficients. This makes it an ideal and reliable solution for industrial systems where efficient heat dissipation or recovery under high pressure and temperature is critical.

Standard Specification & Material Compliance

This product is manufactured in strict compliance with internationally recognized standards, ensuring reliability, safety, and performance.

• Primary Material Standard: The base tube conforms to ASTM A335/A335M, the Standard Specification for Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service. The latest active version of this standard is ASTM A335/A335M-24. Pipes per this specification are suitable for bending, flanging, and fusion welding operations.

• Grade Designation: Grade P22. This grade is also known by its Unified Numbering System (UNS) designation K21590.

• Material Classification: P22 is a low-alloy ferritic steel containing chromium and molybdenum, often referred to as 2.25Cr-1Mo steel. Ferritic steels in the ASTM A335 standard are defined as low- and intermediate-alloy steels containing up to and including 10% chromium.

• Fin & Welding: The spiral fin is welded to the base tube using High Frequency Welding (HFW) processes, ensuring a strong, continuous, and metallurgically bonded joint with high thermal conductivity.

Chemical Composition of ASTM A335 Grade P22 (Base Material)

The chemical composition of the P22 grade alloy steel is the foundation of its high-temperature capabilities. The following table details the required elemental composition as per the standard specification.

Table 1: Chemical Composition Requirements for ASTM A335 Grade P22 (UNS K21950)

Key Roles of Alloying Elements:

• Chromium (Cr): Enhances oxidation and corrosion resistance at elevated temperatures and contributes to strength through carbide formation.

• Molybdenum (Mo): Significantly increases high-temperature strength and creep resistance by solid solution strengthening.

• Carbon (C): Provides fundamental strength. The controlled range ensures a good balance of strength and weldability.

Typical Mechanical & High-Temperature Properties

While ASTM A335 provides general requirements, the P22 material exhibits a well-documented set of mechanical properties crucial for design engineers.

Table 2: Typical Mechanical & Performance Properties of P22 Alloy Steel

Product Applications

This fin tube is designed for demanding applications across major industries where efficient heat transfer in high-temperature, high-pressure environments is paramount.

• Power Generation (Thermal & Nuclear): Ideal for heat recovery steam generators (HRSG), economizers, air pre-heaters, and auxiliary heat exchangers in boiler systems.

• Petrochemical & Refining: Used in process gas heaters, charge air coolers, reformer furnace convection sections, and various waste heat recovery units within refineries.

• Chemical Processing: Employed in reactors, high-temperature process gas coolers/heaters, and catalytic converter units.

• Other Industries: Also suitable for applications in metallurgical plants, pulp and paper recovery boilers, and offshore platform process modules.
