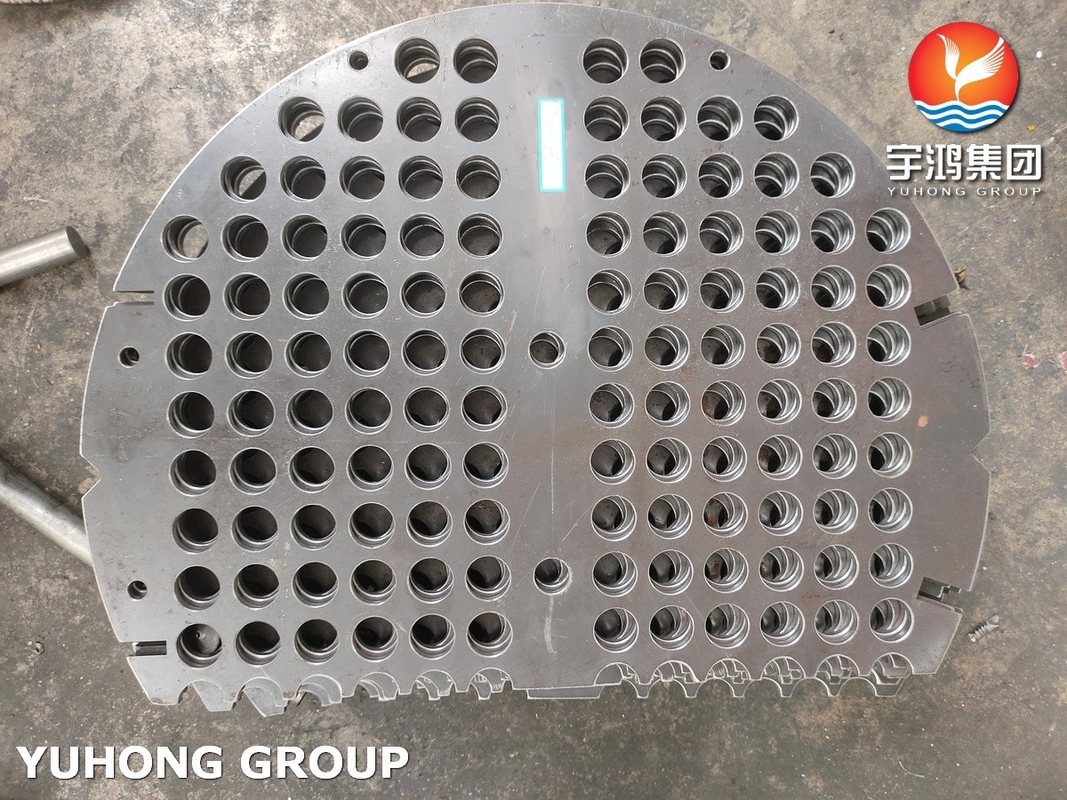

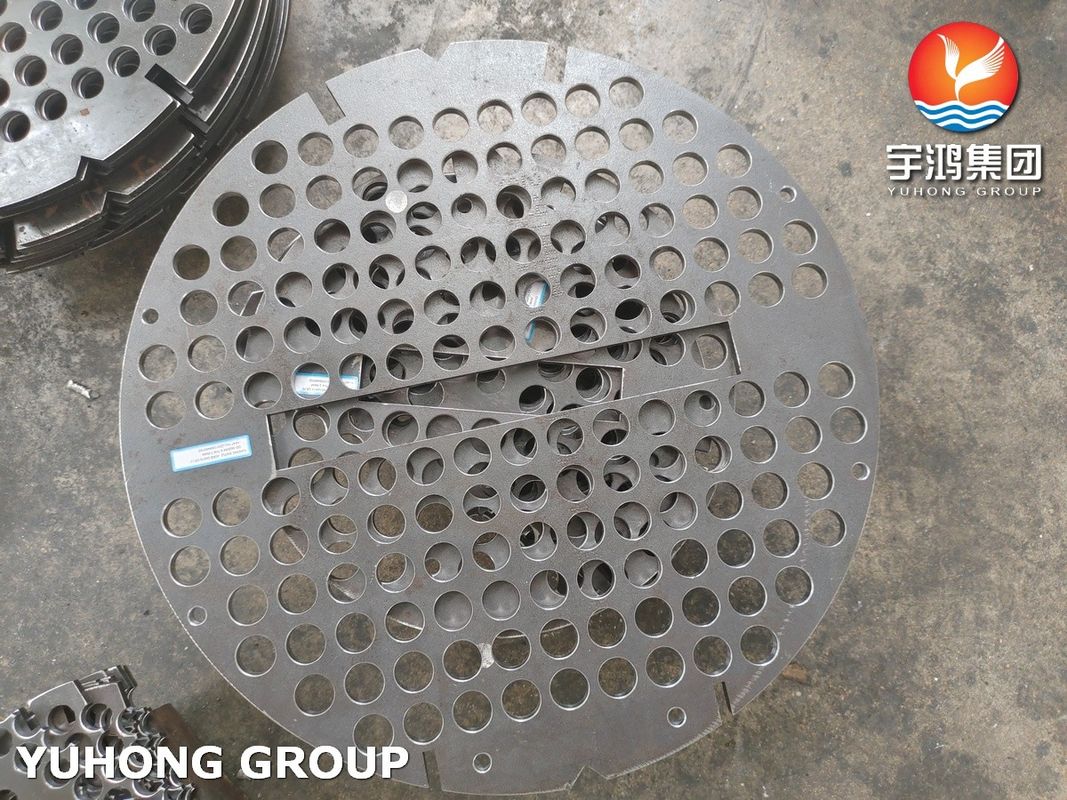

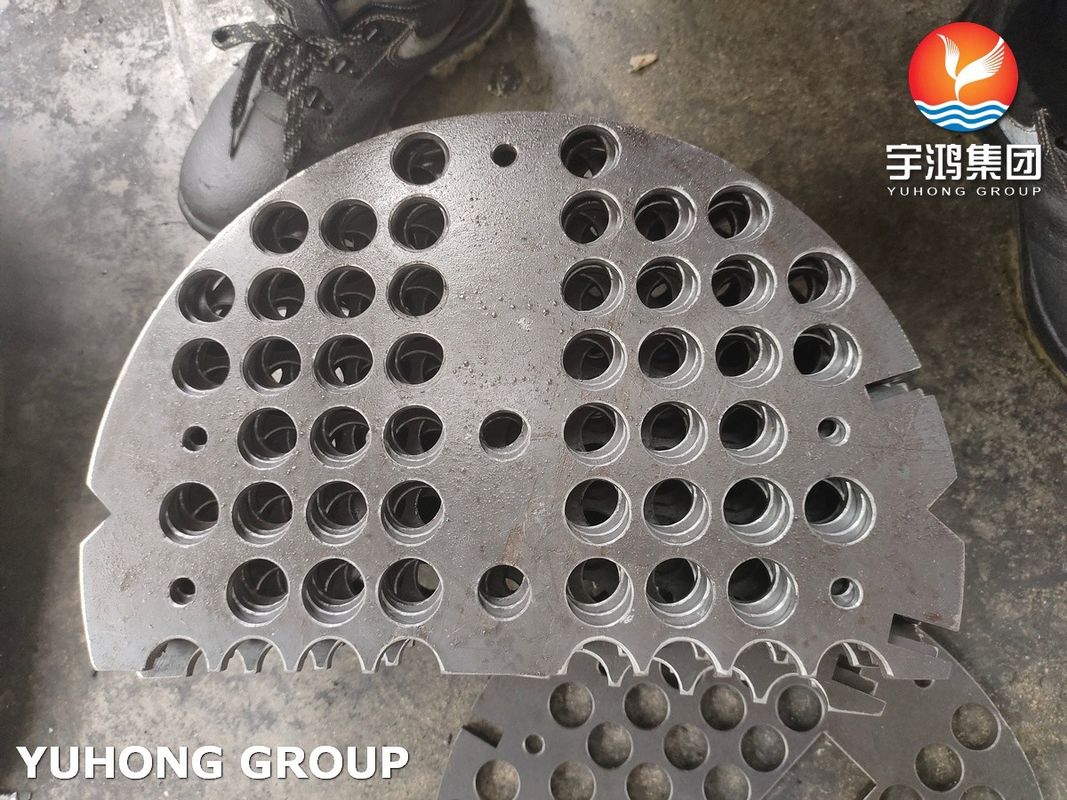

ASME SA516 Gr.70 Baffle: Heat Exchanger Carbon Steel Plate Component​

What is the role of baffles in heat exchangers?

Baffles are critical internal components in shell-and-tube heat exchangers, designed to optimize fluid dynamics, enhance heat transfer efficiency, and provide structural support to the tube bundle. ASME SA-516 Gr.70 is a carbon steel specification widely used for manufacturing baffles due to its excellent balance of strength, weldability, and cost-effectiveness. This grade is particularly suited for moderate and low-temperature applications in industries such as oil refining, chemical processing, and power generation. Below is a detailed technical overview of SA-516 Gr.70 baffles, including material properties, design considerations, and application guidelines.

1. Material Specifications

ASME SA-516 Gr.70 is a normalized carbon-manganese steel plate compliant with ASME Boiler and Pressure Vessel Code (BPVC) Section II. The "Gr.70" designation refers to its minimum tensile strength of 70 ksi (485 MPa), making it ideal for pressure-retaining components in moderate service conditions.

Chemical Composition (Weight %)

Mechanical Properties

*Required for applications below -29°C (-20°F).

2. Key Advantages

• Cost-Effective: Lower material and fabrication costs compared to alloy steels.

• Weldability: Compatible with common welding techniques (SMAW, GTAW, SAW) without preheat for thicknesses ≤ 32 mm.

• Low-Temperature Toughness: Suitable for service down to -29°C (-20°F) with proper impact testing.

• Formability: Easily shaped into segmental, helical, or rod baffle designs.

3. Design Considerations

Baffle Types

• Segmental Baffles: Most common; cut to 20–35% of shell diameter to direct cross-flow.

• Helical Baffles: Reduce dead zones and vibration risks.

• Rod Baffles: Minimize pressure drop in high-flow applications.

Technical Parameters

• Thickness: Typically 6–25 mm, depending on shell pressure and flow-induced loads.

• Spacing: 20–50% of shell diameter; tighter spacing increases heat transfer but raises pressure drop.

• Tolerances: Tube hole drilling ±0.5 mm; alignment critical to prevent tube vibration.

4. Fabrication & Manufacturing

• Cutting/Forming: Laser/plasma cutting or machining for precision; cold forming for curved baffles.

• Welding:

  • Filler Metals: AWS E7018 for SMAW; ER70S-6 for GTAW.

  • Post-Weld Heat Treatment (PWHT): Required for thicknesses > 32 mm or severe cyclic service.

• Corrosion Protection:

  • Coatings: Epoxy, phenolic, or rubber linings for corrosive environments (e.g., seawater).

  • Cladding: Optional stainless steel (304/316) overlay for aggressive chemicals.

5. Applications

SA-516 Gr.70 baffles are used in:

• Oil & Gas: Crude oil coolers, amine reboilers.

• Chemical Plants: Solvent condensers, reactor feed exchangers.

• Power Generation: Feedwater heaters, turbine lube oil coolers.

• HVAC: Chillers and condensers.

6. Standards & Compliance

• ASME BPVC Section VIII: Governs design and fabrication of pressure vessels.

• TEMA Standards: Defines baffle spacing, layout, and tube support requirements.

• ASTM A516/A516M: Material specifications for steel plates.

• NDT Requirements:

  • Dye Penetrant Testing (PT): For weld inspection.

  • Ultrasonic Testing (UT): Optional for critical thicknesses.

7. Comparison with Other Grades

8. Limitations

• Corrosion Susceptibility: Not suitable for highly corrosive fluids without coatings/cladding.

• Temperature Limits: Maximum service temperature ~450°C (842°F); above this, oxidation resistance declines.

• Thickness Constraints: Thicker plates may require PWHT, increasing fabrication costs.
