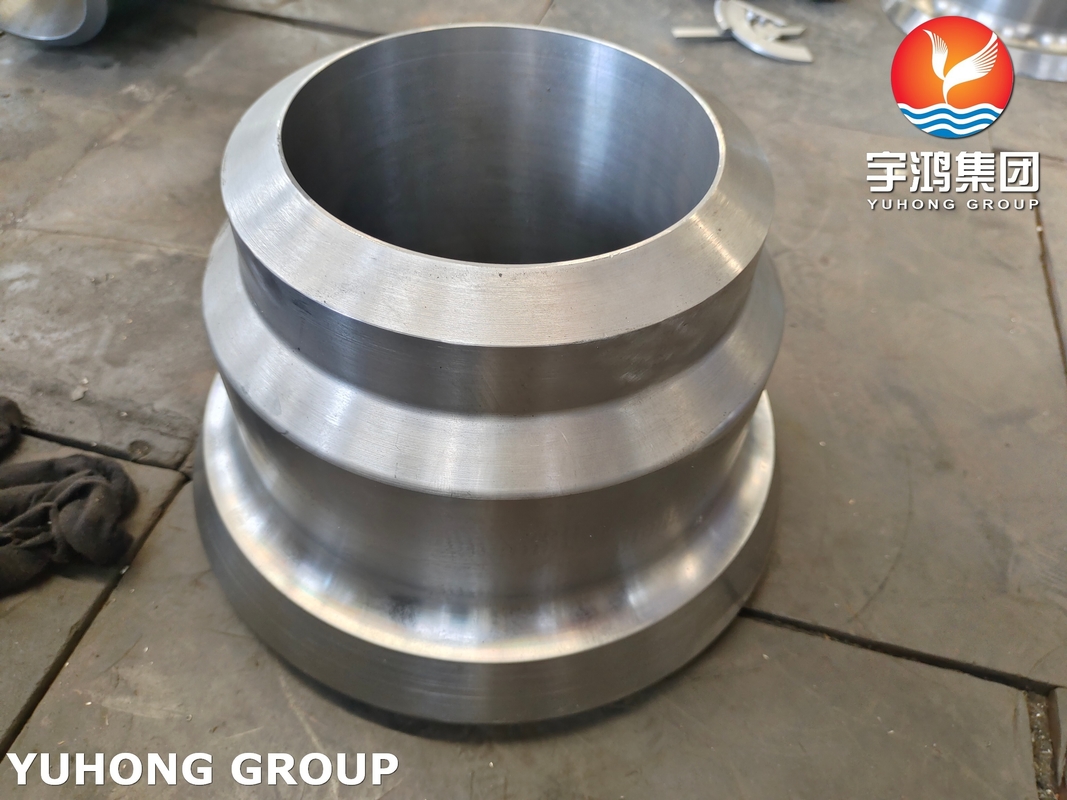

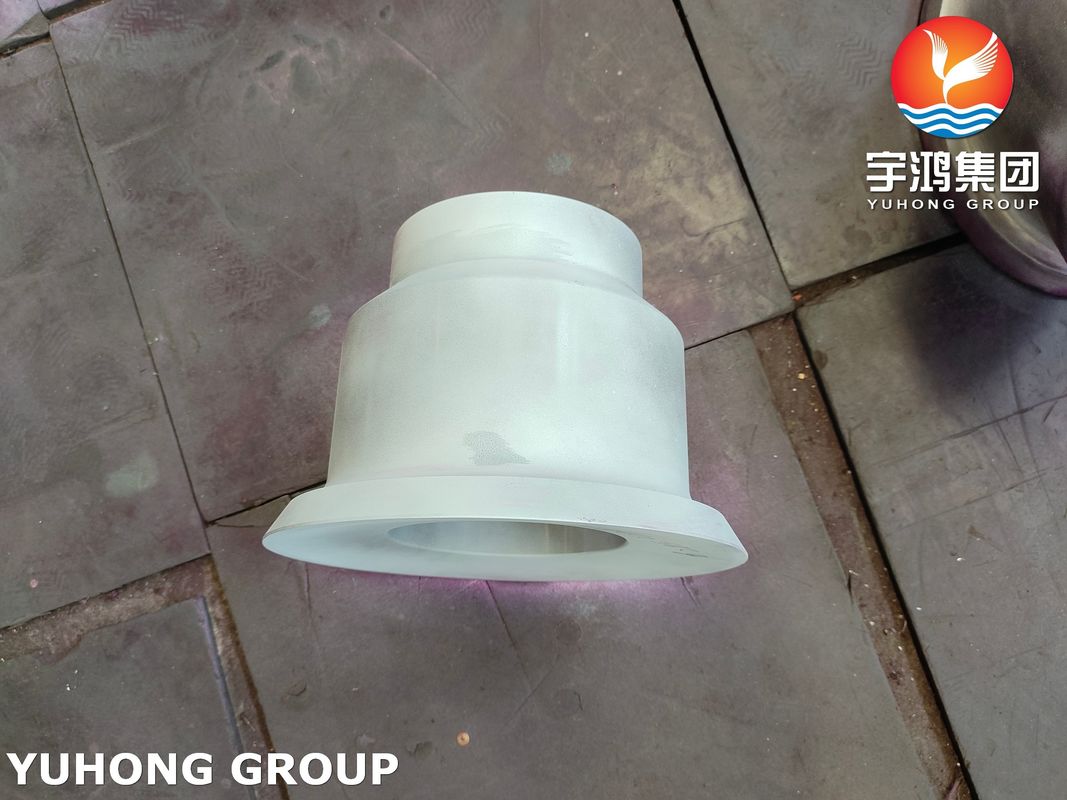

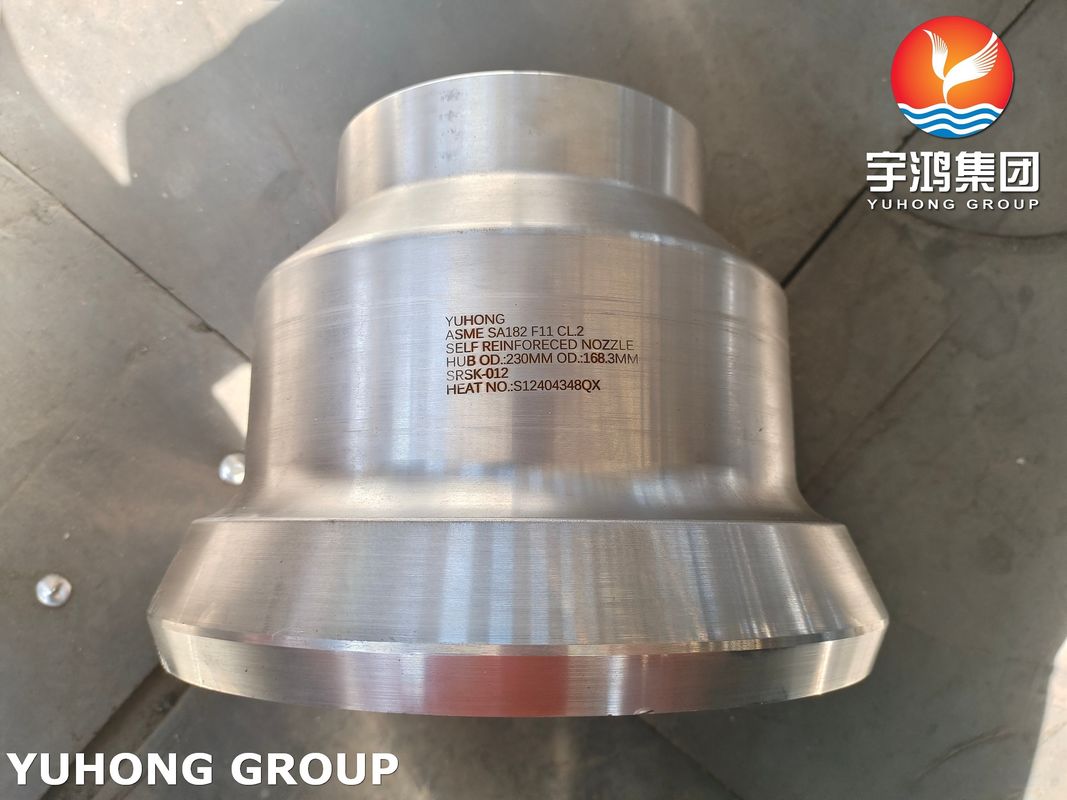

ASME SA182 F11 Self-Reinforced Nozzle: High-Temp Pressure Vessel Part
ASME SA182 F11 Self-Reinforced Nozzle is a critical high-pressure/high-temperature (HP/HT) component used in boilers, reactors, and power/petrochemical systems. It integrates reinforcement directly into the nozzle forging, eliminating the need for external reinforcement pads. This design enhances structural integrity while simplifying fabrication.
Technical Details
1. Material: SA182 F11 Forged Steel
Composition (Key Elements):
Cr (1.00–1.50%), Mo (0.44–0.65%), C (0.05–0.20%)
Classes: Class 2 (most common), Class 3 (higher strength).
Mechanical Properties (Class 2, min.):
Tensile Strength: 415 MPa (60 ksi)
Yield Strength: 205 MPa (30 ksi)
Hardness: 121–174 HB
Temperature Limits:
Max Service: 595°C (1100°F) for creep resistance.
MDMT: As low as -30°C (-20°F) with proper PWHT & impact testing.
2. Self-Reinforced Design
Principle: Extra thickness at the nozzle-vessel junction provides reinforcement per ASME Sec. VIII Div. 1 (UG-37 to UG-45).
Reinforcement Zone:
Extends d (nozzle ID) or Rn + tn + t from the centerline.
Height: 2.5t or 2.5tn (whichever is smaller).
Advantages:
No external pad → Fewer welds, reduced corrosion risk, smoother flow.
Improved fatigue resistance at the junction.
3. Fabrication & Welding
Critical Steps:
Preheat: 200–300°C (400–600°F) to prevent cracking.
Welding: Use compatible consumables (e.g., E8018-B2).
PWHT Mandatory: 675–760°C (1250–1400°F) for stress relief.
Cooling Rate Control: Avoid temper embrittlement (375–575°C range).

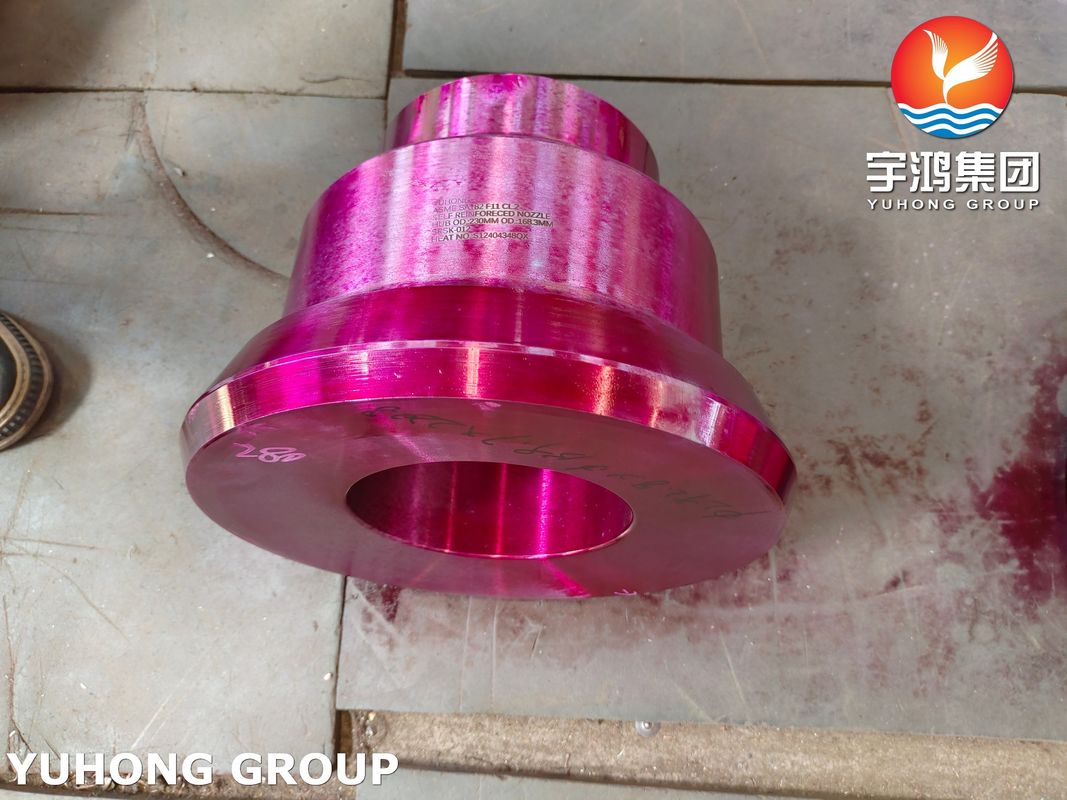

NDT Requirements:
RT (radiographic) for welds + MT/PT (surface cracks) + UT (forgings).
4. Applications
Power plants (boiler drums, steam headers).
Petrochemical reactors & heat exchangers.
High-pressure turbine piping.
Advantages vs. Disadvantages
|
Pros |
Cons |
|---|---|
|
Fewer leak paths |
Higher material cost |
|
Simplified inspection |
Strict PWHT requirements |
|
No crevice corrosion (vs. pads) |
Risk of temper embrittlement |
|
Better fatigue performance |
Weight increase |
Key Considerations
Design Compliance: Must satisfy ASME Sec. VIII reinforcement calculations.
Impact Testing: Essential for low-temperature service (UG-84).
Quality Control: Traceability of F11 material certs (mill test reports).
Why Choose This Nozzle?
Ideal for HP/HT corrosive environments (e.g., steam service) where reliability and minimized maintenance are critical. The self-reinforced design excels in cyclic loading applications but demands rigorous fabrication oversight.
For project specifics, always cross-reference ASME BPVC Sec. VIII Div. 1 and applicable piping codes (B31.1/B31.3).
