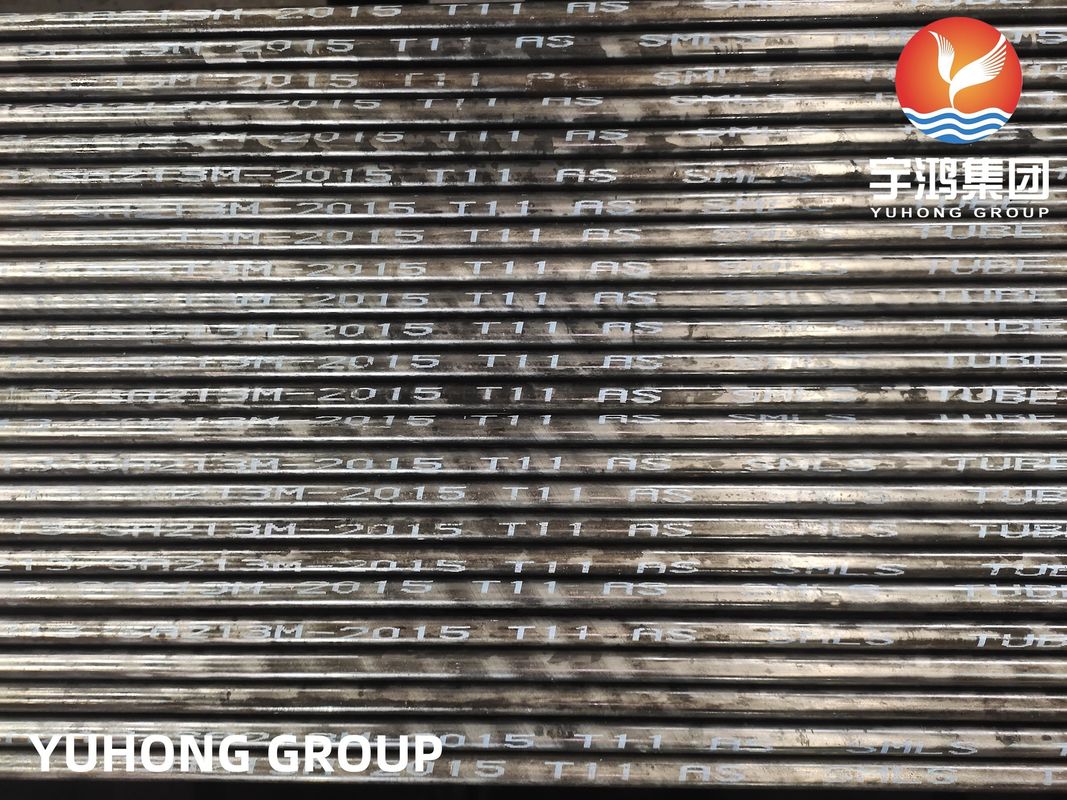

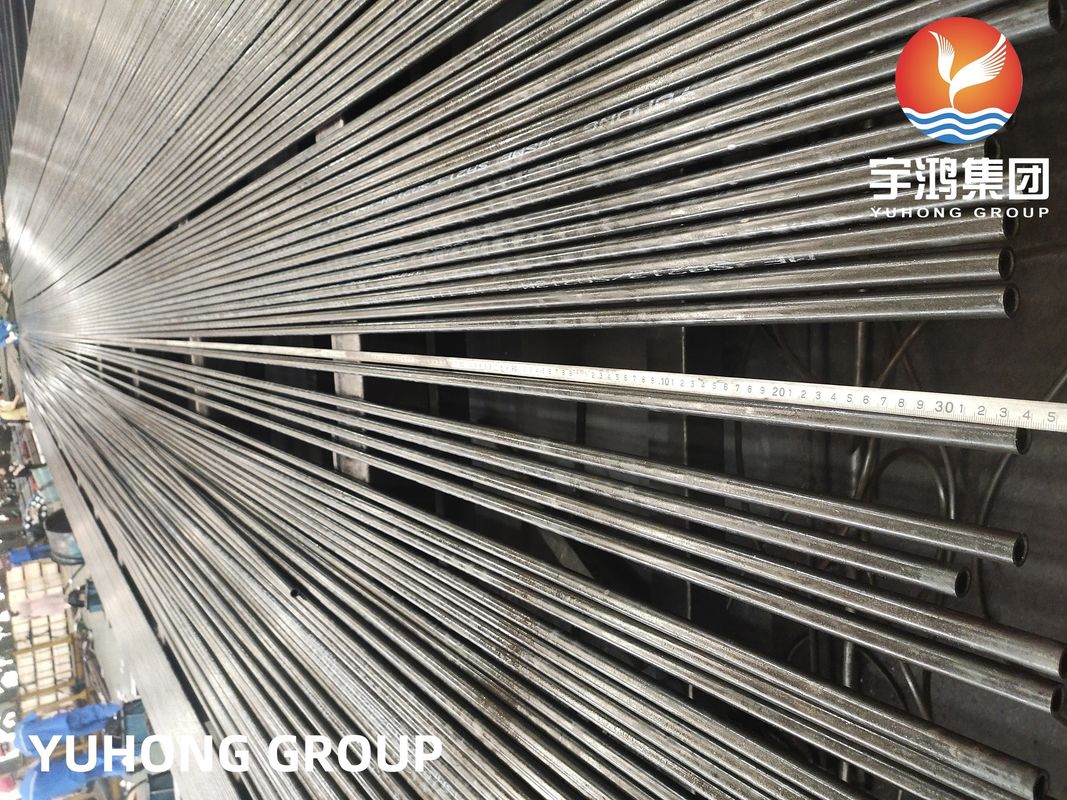

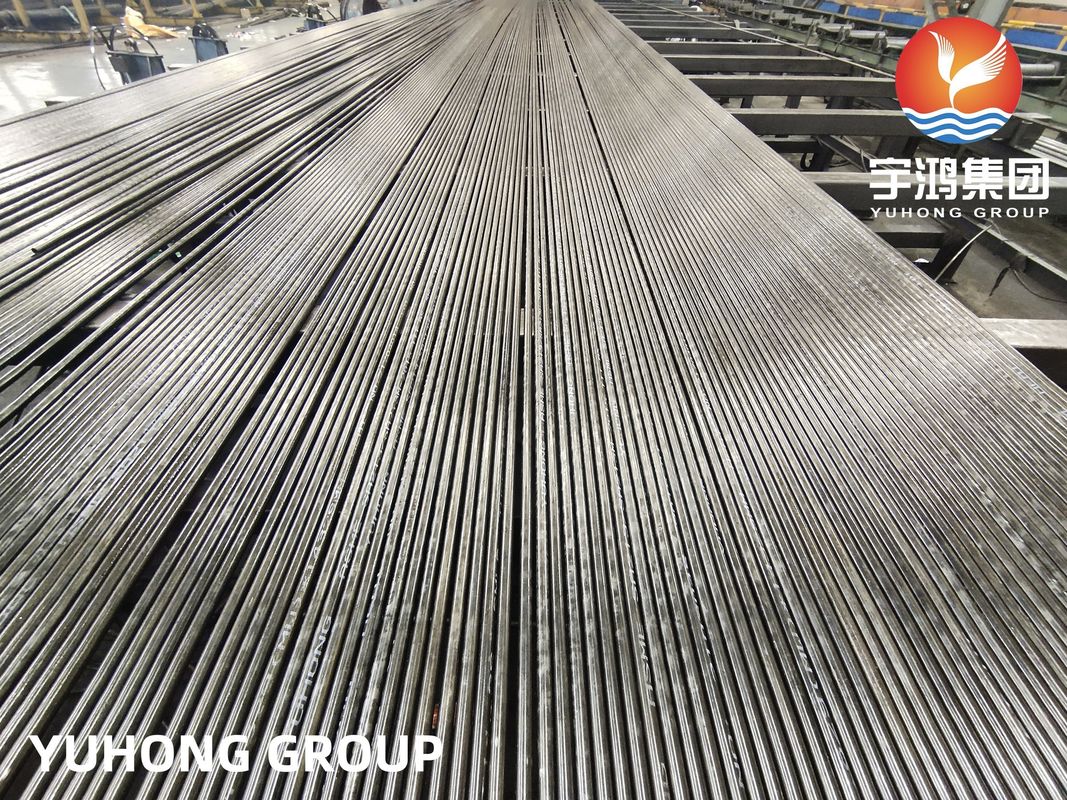

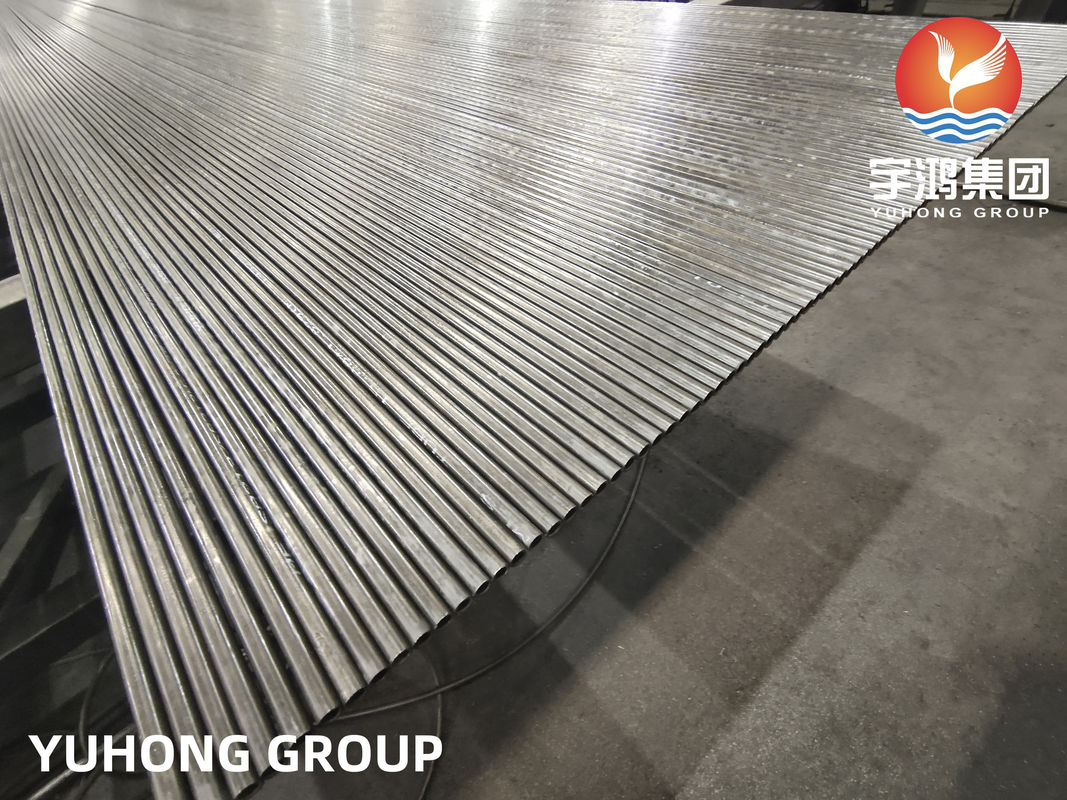

A213 T11 Alloy Steel Seamless Tube – Introduction
ASTM A213 T11 is a seamless ferritic alloy steel tube designed for high-temperature service in boilers, superheaters, and heat exchangers. It offers excellent thermal strength, oxidation resistance, and creep resistance, making it ideal for pressure-bearing applications in power plants and petrochemical industries. The alloy primarily contains chromium (1–1.5%) and molybdenum (0.44–0.65%), enhancing its performance at elevated temperatures. Supplied in a normalized and tempered condition, A213 T11 tubing meets strict mechanical and chemical requirements for long-term reliability in demanding environments.
Material Overview
· Standard: ASTM A213
· Grade: T11
· Type: Seamless ferritic alloy-steel tube
· Main Alloying Elements: Chromium (1.0–1.5%), Molybdenum (0.44–0.65%)
A213 T11 Equivalent Grades
|
Standard |
Equivalent Grade |
Notes |
|---|---|---|
|
ASME / ASTM |
SA213 T11 |
Identical to A213 T11 (ASME version for pressure vessels) |
|
EN (Europe) |
13CrMo4-5 (1.7335) |
Common in European boilers and pressure vessels |
|
DIN (Germany) |
13CrMo44 |
Older DIN standard; similar to 13CrMo4-5 |
|
BS (UK) |
620B or BS 3059 Part 2 620B |
British standard for high-temperature boiler tubing |
|
JIS (Japan) |
STBA 22 |
Japanese equivalent for heat exchanger/boiler tube |
|
GOST (Russia) |
12Kh1MF |
Russian equivalent; used in pressure vessels |
Chemical Composition (Typical Range)
| Element | Content (%) | Role |
|---|---|---|
| Carbon (C) | ≤ 0.15 | Improves hardness and strength |
| Manganese (Mn) | 0.30 – 0.60 | Enhances strength and hardenability |
| Silicon (Si) | 0.50 – 1.00 | Improves oxidation resistance |
| Chromium (Cr) | 1.00 – 1.50 | Provides corrosion and oxidation resistance |
| Molybdenum (Mo) | 0.44 – 0.65 | Increases creep strength |
| Phosphorus (P) | ≤ 0.025 | Controlled to reduce brittleness |
| Sulfur (S) | ≤ 0.025 | Controlled to improve weldability |
Mechanical Properties (at Room Temperature)
| Property | Typical Value |
|---|---|
| Tensile Strength | ≥ 415 MPa (60 ksi) |
| Yield Strength | ≥ 205 MPa (30 ksi) |
| Elongation | ≥ 30% |
| Hardness | ≤ 163 HB (Brinell) |
Processing Steps
1. Tube Manufacturing
· Method: Seamless
· Processed by hot-extrusion or piercing of a solid billet followed by elongation through a mandrel mill.
Cold-drawn finishing may be used for dimensional precision.
2. Heat Treatment
According to ASTM A213 specification, T11 tubes must be heat-treated as follows:
· Normalized at 850–900°C (1562–1652°F)
(Refines grain structure and improves toughness)
· Tempered at a temperature not less than 650°C (1202°F)
(Relieves internal stresses and restores ductility after normalizing)
Note: Heat treatment must be applied after cold finishing if it's done.
3. Cold Finishing (Optional)
· For tubes requiring tighter dimensional tolerances or smoother finishes.
· May involve:
- Cold drawing
- Straightening
- Sizing
4. Descaling / Surface Treatment
· Descaled via mechanical (shot blasting) or chemical (pickling) methods if required.
5. Testing & Inspection
All tubes undergo mechanical and nondestructive testing per ASTM A213:
· Hardness test
· Flattening test
· Flaring test
· Hydrostatic or nondestructive electric test
· Dimensional check (OD, wall thickness, length)
